How to install a 240V circuit breaker?
- Measure the room or rooms where you’ll be installing the circuit, and draw a detailed, accurate floor plan. ...
- On the floor plan, mark the position of every receptacle, switch, fixture and major appliance you plan to add to the circuit.
- Draw lines representing the electrical cable for the circuit. ...
Does 240V need a neutral?
You don't need a neutral for most 240v applications. To be code compliant (and you should) however you need to have a 15-amp rated 240v plug. You also need to make sure the breaker on that circuit is 15a, not 20a. That plug is the 6-15R, as shown in this chart (left, row marked 6): https://img.greentechheat.com/nema-plug-chart.png
What wire should you use for 240V?
Understanding 120/240V Wiring Color Code
- Wiring Types. Depending on where you live, the branch circuit wiring in your home will be made with individual conductors run through a hollow metal conduit, or with one of ...
- Black and Red Wires. ...
- Blue, Yellow, and Other Colors. ...
- White Wires. ...
- The White Wire in a 240V Circuit. ...
- Green and Bare Wires. ...
Is 120V or 240V better?
Better Lighting When it comes to the lighting, the advantages of 240V power really shows. Commercial greenhouse lighting, outdoor floodlights, and stadium lighting may benefit the most from 240V power compared to 120V power, because these lights run off of ballast assistance, which is an electronic device used for starting and regulating ...
Is neutral necessary for a sandpaper?
No neutral necessary unless the manufacture requires it.
Is GFCI protection necessary for a spa?
Are you supplying a spa or just using a spa panel as a disconnect for this heater you gave no other details about? GFCI protection may not even be necessary depending on what you are feeding. That said I think it is common to have 60 amp GFCI breakers with no neutral - you can't supply loads that utilize the neutral with such breakers as the neutral current will throw off balance and make them trip - but that will not be a problem for a straight 240 volt load like you have either.
Does article 680 require GFCI protection?
jstjohnz said: It's an electric (resistance) heater for a pool. I don't think article 680 actually requires GFCI protection, but these heating elements do corrode and fail in a way that can put leakage current in the water, and if that happens it trips the GFCI.
Does square D GFCI work without line neutral?
Might make more sense, but that is not the way Square D GFCI's work, those are the only ones I have tested myself - the GFCI protection does not work without the line side neutral being connected. Though the breaker contacts will still close and let the ungrounded lines through if there is no connection to line side neutral - you just don't have GFCI protection anymore.
Do I need to disconnect a GFCI breaker?
You will need to pull the neutral in the breaker panel like you said. Click to expand... Yes but still need a disconnect and the "spa panel" is quite a bit cheaper than a QO 60A 2-pole GFCI breaker.
Do GFCI breakers work with unbalanced loads?
240V GFCI breakers will work properly with unbalanced loads. Many spas for example have a combination of 120V and 240V loads.

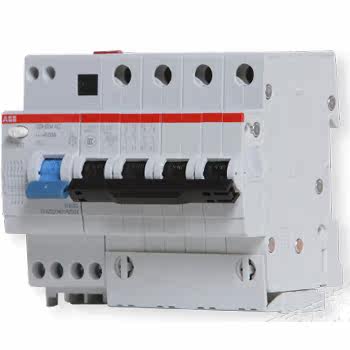

Do European RCDs use relay coils?
European RCDs may use only passive (relay coil) components. Click to expand... I'm speculating here, but I think it would make more sense to power the internal electronics from both hot leads, as in L1 to neutral and L2 to neutral, so that the GFCI will function if you have power on either L1 or L2.
Does a straight 240 need a neutral?
A straight 240 does not need a neutral. A 120/240 needs the neutral. A product for each need. No conspiracy.
Is GFCI ground UL?
Yup, and label it 'GFCI Protected / No Equipment Ground'. And that's not even an indirect Code requirement via UL... that's a direct Code requirement.
Does a GFCI have a load neutral?
Click to expand... A breaker doesn't, but a GFCI must have load terminals for all the current-carrying conductors. This is why a 120V GFCI has a load neutral and some but not all 240V GFCIs have them. 240v GFCI which lack a load neutral indeed can't be used with loads that return any portion of the current on the neutral.
Do 240V breakers have a neutral wire?
Some 240v loads (dryers, stoves) are both line-to-line and line-to-neutral. However, some 240v breakers do not have a load terminal for a neutral wire. Will that still work with things like dryers and stoves?
Do 240V breakers have a load terminal?
However, some 240v breakers do not have a load terminal for a neutral wire.
Does a ground fault circuit interrupter give good protection?
When the dryer or stove, etc. has only a 3 wire cord and has neutral connected to the frame (some older models) then a ground fault circuit interrupter will not give as good protection and in some cases you will get a hard to find GFCI tripping problem.
Can 240V GFCI be used with load neutral?
240v GFCI which lack a load neutral indeed can't be used with loads that return any portion of the current on the neutral.
What happens if a shared neutral is added before GFCI?
A shared neutral will trip the breaker. ie if a neutral return is added before the GFCI when somebody adds a socket.
Why do you need a neutral breaker?
Just like a balance scale as long as you add or subtract the same from each side it stays in balance but spill a little and it goes out of balance. This is why the neutral needs to be connected to the GFCI breaker. So all things can be monitored.
How does a GFCI transformer work?
In a GFCI the two (or three) current-carrying conductors are run through a "current transformer" (a toriod transformer, if you're interested). This transformer converts the net current in the conductors to a voltage that is sensed by the GFCI electronics.
What voltage does a 20A breaker run?
20A breaker runs the heater only (pure 240v load).
How does a GFCI work?
My rudimentary understanding of GFCI devices says that GFCIs work by comparing the current going out in the hot to the current returning in the neutral — difference? = ground fault = trip.
How many lines does 240V come from?
Thing to remember is the 240volt comes from two 120volt lines. These lines are 180 degrees out of sync. Think +120 and -120volt at the same time, this equals 240volt.
Can a GFCI split current?
With a two-pole GFCI two hots and the neutral run through the transformer. Current can be split in any fashion between the three conductors and it will still cancel out if there's no leakage to ground. If the neutral isn't connected then that wire is effectively ignored by the transformer (since there'll never be current in it) and the current between the two hots is compared.
