What are the load balancing methods in EtherChannel?
There are two load balancing methods for outgoing traffic in EtherChannel, as follows: round-robin, which spreads the outgoing traffic evenly across all of the adapters in the EtherChannel; and standard, which selects the adapter using an algorithm. The Hash Mode parameter determines the numerical value that is fed to the algorithm.
What is EtherChannel and how does it work?
Since more than one physical connection is combined into one logical connection, EtherChannel enables more available links in instances where one or more links go down. With load balancing, we are able to balance the traffic load across the links and improves the efficient use of bandwidth.
What is load balancing and how does it work?
With load balancing, we are able to balance the traffic load across the links and improves the efficient use of bandwidth. Cisco does not offer round-robin load balancing for EtherChannel as it could potentially result in out-of-order frames.
What is the recommended number of links in an EtherChannel?
So to be consistent, the number of links should be in powers of two, 2, 4, 8, etc. Load balancing on a 3-port EtherChannel is not as effective as load balancing on a 2-port or 4-port EtherChannel. Changing the hash may result in a different distribution ratio among the links if they are unevenly distributed.
Do port channels load-balance?
The Cisco NX-OS software load balances traffic across all operational interfaces in a port channel by hashing the addresses in the frame to a numerical value that selects one of the links in the channel. Port channels provide load balancing by default.
Does LACP do load balancing?
LACP mode is also called M:N mode, where M refers to the number of active links and N refers to the number of backup links. This mode guarantees high reliability and allows traffic to be load balanced among M active links.
How do I change my EtherChannel load balancing?
To change the load-balancing method for your switch, use port-channel load-balance and verify with show etherchannel load-balance. This is a global command – you can't change the load balancing method on a per-port or per-EC level. The “XOR” choices balance on source and destination IP or source and destination MAC.
What does an EtherChannel do?
EtherChannel is a port link aggregation technology in which multiple physical port links are grouped into one logical link. It is used to provide high-speed links and redundancy. A maximum of 8 links can be aggregated to form a single logical link.
Is EtherChannel the same as LACP?
EtherChannel supports both LACP and Cisco's PAgP, whereas 802.3ad uses LACP. LACP allows for up to 8 active and 8 standby links, whereas PAgP only allows for 8 active links.
What is the difference between LACP and port channel?
LACP is used for the collective handling of multiple physical ports that can be seen as a single channel for network traffic purposes. packets. A port in passive mode cannot set up a port channel (LAG. A LAG combines a number of physical ports together to make a single high-bandwidth data path.
What is the difference between port channel and EtherChannel?
An etherchannel bundles individual physical links into one logical link to increase the total bandwidth. It also seen as one link by Spanning tree algorithms. A port channel is the logical representation of the etherchannel on the switch.
Does EtherChannel increase bandwidth?
Benefits of using EtherChannel Increased Bandwidth: Use EtherChannel and combine two or four links into one logical link. It will double or quadruple your bandwidth. For example, four 100Mb Fast Ethernet connections bonded into one could provide you up to 800Mb/second, full duplex.
What is LACP and PAgP?
LACP is an Open standard, i.e., supported by most vendors. While PAGP is Cisco proprietary; i.e., PAGP can only be used between Cisco devices. Configuration/Port modes. LACP has two modes, i.e., Active mode (Ports initiate negotiation with other ports by exchanging LACP packets.)
What are two load balancing methods in the EtherChannel technology?
Explanation: Source MAC to destination MAC load balancing and source IP to destination IP load balancing are two implementation methods used in EtherChannel technology.
What are two advantages of EtherChannel choose two?
Configuring the EtherChannel interface provides consistency in the configuration of the physical links. Load balancing occurs between links configured as different EtherChannels. EtherChannel uses upgraded physical links to provide increased bandwidth.
Is EtherChannel a redundancy?
EtherChannel Technologies Network engineers love redundancy in a network; it allows for lines to fail without affecting the connection to the internet for end users. What's even better is that using EtherChannel technologies, we can make redundant links and use them to increase the speed to local servers on site.
What is the difference between LACP and trunking?
LACP is a protocol that negotiates trunking between devices, so devices connected to each other can tell trunking is possible. Plain trunking just sets the ports to trunking, so the other side has no way of knowing trunking is configured, unless you explicitly configure it.
What is the difference between LAG and LACP?
LAG is an actual instance for link aggregation. LACP is a control protocol to enable LAG automatically configure network switch ports, detach link failure and activate failover.
What is the difference between static and dynamic LACP?
The two primary types of LAGs are static (also known as manual) and dynamic. Dynamic LAGs use Link Aggregation Control Protocol (LACP) to negotiate settings between the two connected devices. Some devices support static LAGs, but do not support dynamic LAGs with LACP.
What is the difference between LACP active and passive?
LACP runs on any link that is configured to be in the active state. The port in an active mode also automatically initiates negotiations with other ports by initiating LACP packets. Passive mode—the interface is not in an active negotiating state. LACP runs on any link that is configured in a passive mode.
EtherChannel Load Balancing Configuration
In our example below, you’ll see that we’ve got a router, two switches, and two PCs. Switch2 has got the default configuration of ‘src-mac’, which is fine because there are two PCs that have different MAC addresses. PC1’s traffic will be sent down Switch2’s G0/0 interface, for example, and PC2’s traffic will be sent down Switch2’s G0/1 interface.
EtherChannel Load Balancing Verification
To check the EtherChannel load balancing algorithm, we can use the command ‘show etherchannel load-balance’. It will also show the traffic load balancing method based on its type, non-IP, IPv4, or IPv6.
How does etherchannel work?from cisco.com
EtherChannel reduces part of the binary pattern that the addresses in the frame form to a numerical value that selects one of the links in the channel in order to distribute frames across the links in a channel. EtherChannel frame distribution uses a Cisco-proprietary hashing algorithm. The algorithm is deterministic; if you use the same addresses and session information, you always hash to the same port in the channel. This method prevents out-of-order packet delivery.
How to find out which interface is used in the Etherchannel?from cisco.com
The command for this determination is test etherchannel load-balance interface port-channel number {ip | mac} [source_ip_add | source_mac_add] [dest_ip_add | dest_mac_add].
How many ether channels can a Cisco 6500/6000 switch support?from cisco.com
Catalyst 6500/6000 switches that run Cisco IOS? system software support a maximum of 64 EtherChannels. You can form an EtherChannel with up to eight compatibly configured LAN ports on any module in a Catalyst 6500/6000 series switch. All LAN ports in each EtherChannel must be the same speed, and you must configure all the ports as either Layer 2 or Layer 3 LAN ports.
How many Ethernet ports can a Catalyst 6500 switch support?from cisco.com
With software releases 6.2 (1) and earlier, the six- and nine-slot Catalyst 6500 series switches support a maximum of 128 EtherChannels. In software release 6.2 (2) and later releases, the spanning tree feature handles the port ID. Therefore, the maximum number of EtherChannels with support is 126 for a six- or nine-slot chassis and 63 for a 13-slot chassis. All Ethernet ports on all modules, which include those on a standby Supervisor Engine, support EtherChannel with no requirement that ports be contiguous or on the same module. All ports in each EtherChannel must be the same speed. You can base the load-balance policy (frame distribution) on a MAC address (Layer 2 [L2]), an IP address (Layer 3 [L3]), or a port number (Layer 4 [L4]). You can activate these policies, respectively, if you issue the set port channel all distribution {ip | mac| session | ip-vlan-session} [source | destination | both] command. The session keyword is supported on the Supervisor Engine 2 and Supervisor Engine 720. The ip-vlan-session keyword is only supported on the the Supervisor Engine 720. Use this keyword in order to specify the frame distribution method, with the IP address, VLAN, and Layer 4 traffic.
How does Cisco hash work?from cisco.com
The Cisco-proprietary hash algorithm computes a value in the range 0 to 7. With this value as a basis, a particular port in the EtherChannel is chosen. The port setup includes a mask which indicates which values the port accepts for transmission. With the maximum number of ports in a single EtherChannel, which is eight ports, each port accepts only one value. If you have four ports in the EtherChannel, each port accepts two values, and so forth. This table lists the ratios of the values that each port accepts, which depends on the number of ports in the EtherChannel:
Why does the EtherChannel switch use the same MAC address?from cisco.com
So if the data is received from the same source, then same link of the EtherChannel is used in order to forward the data.
What is a fast Ethernet channel?from cisco.com
Fast EtherChannel allows multiple physical Fast Ethernet links to combine into one logical channel. This allows load sharing of traffic among the links in the channel as well as redundancy in the event that one or more links in the channel fail. Fast EtherChannel can be used to interconnect LAN switches, routers, servers, and clients via unshielded twisted pair (UTP) wiring or single-mode and multimode fiber. This document refers to Fast EtherChannel, Gigabit EtherChannel, port channel, channel and port group with a single term, EtherChannel. The information in the document applies to all of these EtherChannels.
What is a flow in etherchannel?
A flow is a communication from a client to our server using a particular application.
What is etherchannel in FTP?
With EtherChannel, a single flow is load balanced onto a single port channel interface.
Is a port channel a multilane?
You can think of a port channel as a multi-lane motorway. The cars always stay in their own lane in a single lane, but because there are multiple lanes, the overall traffic gets there quicker. In our example, if we only had one uplink rather than four, we don't have so much overall bandwidth available between the switches.
How Does EtherChannel Work?
We can assign up to 16 physical interfaces to an EtherChannel, but only 8 interfaces can be active at a time. You can form EtherChannel between two, four, or eight active Fast, Gigabit, or 10-Gigabit Ethernet interfaces, with an additional one to eight inactive interfaces which can become active as the other interfaces fail.
Why is Etherchannel used?
Since more than one physical connection is combined into one logical connection, EtherChannel enables more available links in instances where one or more links go down.
What is an etherchannel?
EtherChannel is a technology wherein we bundle physical interfaces together to create a single logical link. It is also known as Link Aggregation. It provides fault-tolerant and high-speed links between Cisco switches and routers and is often seen in the backbone network. The approved open standard is called 802.3ad, which works with other vendors and is often called LAG.
What are the benefits of etherchannel?
Meaning, we can utilize all of the 4 links and reap the benefits of EtherChannel namely, load balancing, redundancy, and increased bandwidth.
How many protocols can we use for EtherChannel?
We also have two protocols that we can use, aside from manually configuring EtherChannel.

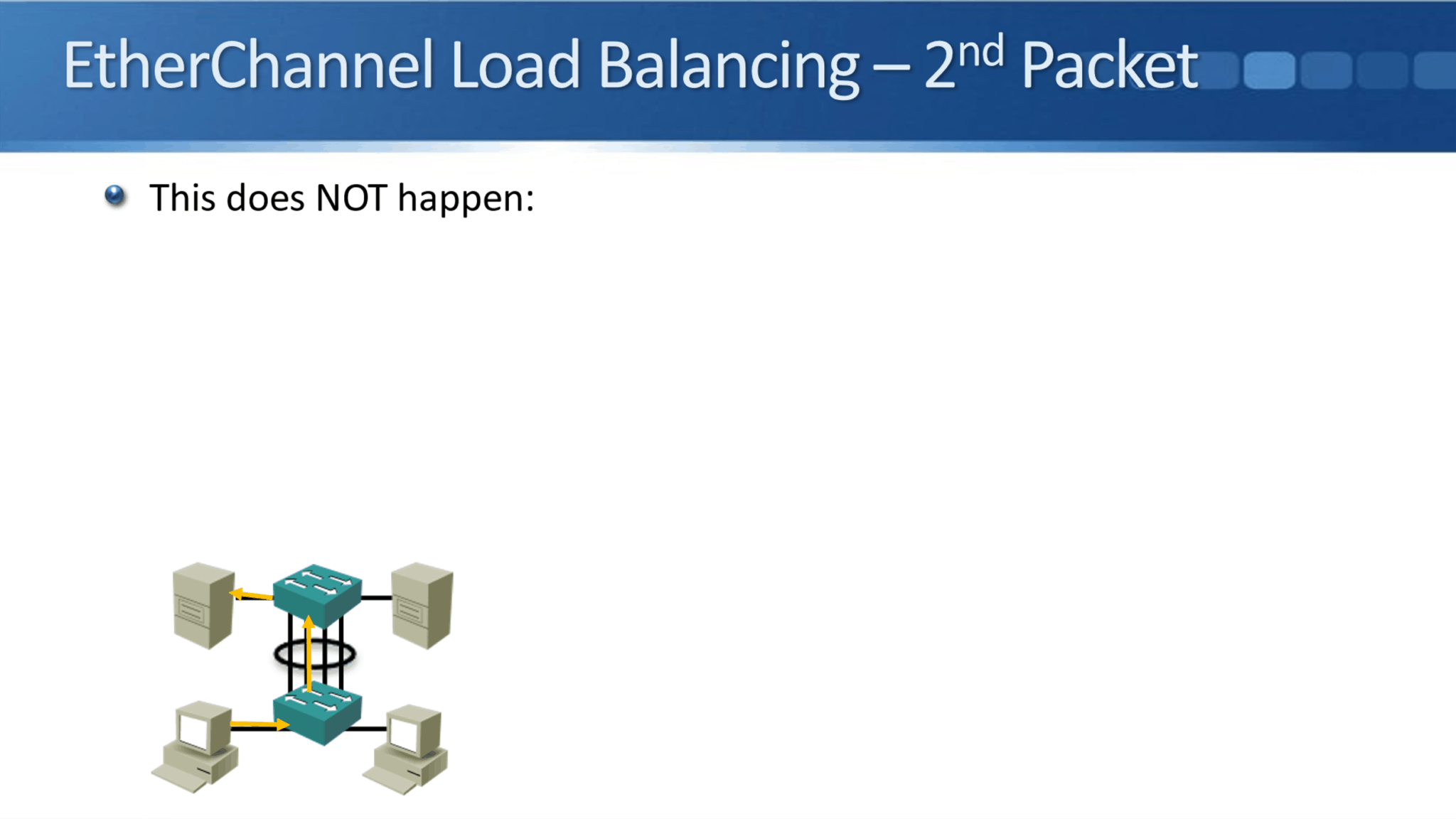

Does Cisco offer round robin load balancing?
Cisco does not offer round-robin load balancing for EtherChannel as it could potentially result in out-of-order frames.
