- S - Service Grade. This means the cord is 600-volt rated.
- SJ - Junior Service. Meaning 300-Volt rated.
- T - Thermoplastic. The wire is coated in PVC.
- P - Parallel. These are the types of cords where each conductoris insulated separately as in a typical lamp cord.
- O - Oil-Resistant. ...
- W - Weather-Resistant. ...
- V - Vacuum Type. ...
What is the best power cord?
- PVC sheath is thick and durable
- The cord can be bent 180 degrees
- The plug is angled down by 90 degrees to reduce stress on the extension cord
- Has a Power Grip handle which makes it easy to pull out
- Durable
- Connects 15 Amp source to 50 Amp receiver
What is the best electricial conductor?
“Silver is the best conductor of electricity because it contains a higher number of movable atoms (free electrons). For a material to be a good conductor, the electricity passed through it must be able to move the electrons; the more free electrons in a metal, the greater its conductivity.
What gauge is best for extension cord?
Tech Specs & Details
- 100 Feet
- Flame resistant
- Water-resistant
- 10 Gauge
- Heavy duty
- 10/3 Extension Cord
How to determine the rating of your main electrical panel?
- Examine the Electrical Meter
- Locate the Main Electrical Panel
- Locate and Examine the Main Breaker Box or Fuse Box
- If You Have a Fuse Panel
- How Much Does It Cost To Replace An Electrical Panel
- Do They Make Qwik grip plugs on neutral load centers
- Note
How are power cords rated?
Common household extension cords are available in 16 gauge (smallest), 14 gauge, 12 gauge, and 10 gauge (biggest). The lower the number, the bigger the gauge and the greater the amperage and wattage is.
What do the numbers mean on a power cord?
They refer to the number and types of wire inside the cable. For example, 14-2 means the cable has two 14-gauge wires inside. 12-3 G means the cable has three 12-gauge wires plus a bare ground wire.
Which is better 14 or 16 gauge extension cord?
Within 50 feet of your outlet, use a 16-gauge light-duty cord for blowers. For a higher Amp or a greater distance from the outlet, go with a 14-gauge medium-duty cord. Look for a "W" on the jacket if the cord is rated for outdoor use.
Which is better 12 or 16 gauge extension cord?
When using 100 feet extension cords, you'll need a: 16 Gauge for 1-10 Amps. 14 Gauge for 11-13 Amps. 12 Gauge for 14-15 Amps.
How do you read a cable code?
An electrical cable is classified by two numbers separated by a hyphen, such as 14-2. The first number denotes the conductor's gauge; the second denotes the number of conductors inside the cable. For instance, 14-2 has two 14-gauge conductors: a hot and a neutral.
What is a 10A 125V power cord used for?
Product Overview. The Power Supply Cord RA HOSP Ground 10A 125V 10ft is a power cord that is used to supply power to medical components, medical devices and patient care equipment. The assembly is comprised of a plug, connector and 10 feet long 16 AWG three conductor interconnecting cable.
Can 12 gauge extension cord handle 20 amps?
For instance, for a length of 25 - 50 feet, a 14 gauge cord will be great for 14-15 Amps, whereas the 12 gauge will work for 16-20 Amps. For 100 feet, the 14 gauge cord works for 11-13 Amps, while the 12 gauge cord is best suited for 14-15 amps.
How do I know which extension cord to buy?
How to Pick the Best Extension Cord at the Hardware StoreBuy longer than you think you'll need. ... Thicker cords can carry more power. ... Look for cords that can handle 15 amps. ... Cords designed for cold weather are generally more flexible. ... Skip indoor/outdoor cords with multi-outlet ends. ... Different guidelines for indoor-only cords.
What is the difference between light duty and heavy-duty extension cord?
The lower the gauge, the higher the wire's capacity. Follow these guidelines: A 16-gauge extension cord is for light duty applications (holiday lights, portable fans, hedge trimmers, etc.). A 14-gauge cord is for medium duty applications (lawnmowers, power drills, table saws, etc.).
What is a 14 gauge extension cord good for?
Frequent use cords. A 14-gauge cord is for medium or frequent duty applications (lawnmowers, power drills, table saws, television sets, etc.). These cords are also great for things like power tools, electric chainsaws, leaf or snow blowers, etc. They can handle larger tools and equipment and heavier use.
What is the strongest extension cord?
Our pick: U.S. Wire & Cable 50 FT. ... Also great: SJEOW heavy-duty extension cords. ... Budget pick: Iron Forge Tools 12/3 SJTW Heavy Duty Yellow Outdoor Extension Cord. ... Indoor pick: Cordinate Décor Extension Cord with 3 Grounded Outlets. ... Safety, care, and maintenance. ... The competition. ... Footnotes.Sources.More items...•
What does 16 3 mean on an extension cord?
These are the gauge of the wire and number of conductors (wires) in the cord. So, a number like '12 3' means the cord has 12 gauge diameter wire and 3 wires. Here is the breakdown: 16 gauge=light duty. 14 gauge=medium duty.
What is the difference between C19 and C20?
A C20 power cord is rated by NEC up to 20 Amps in North America and by IEC up to 16 Amps in the balance of the world. C19 is rated by NEC up to 20 Amps in North America and by IEC up to 16 Amps in the balance of the world.
What is the difference between C13 and C14?
The IEC C13 connector is typically used on standard mains cables; the C14 connector is used on devices, power supplies and IEC extension cables.
What is C13 power cord?
IEC C14 to C13 cords are the most popular type of power cord used to power equipment in a data center server rack. Sometimes referred to as Jumper Cords, C14 to C13 cords are used to connect server and network equipment power supplies to a PDU or power strip.
Are all 3 prong power cords the same?
Yes.... they are all IEC cables and they are interchangeable. Just makes sure that stuff like power amps that draw lot's of current have the ones with heavier gauge wire in them.
What is the OSHA standard for cords?
The OSHA construction standard requires flexible cords to be rated for hard or extra-hard usage. These ratings are derived from the National Electrical Code, and are required to be indelibly marked approximately every foot along the length of the cord.
Why do extension cords need to be 3-wire?
Extension cords must be 3-wire type so they may be grounded, and to permit grounding of any tools or equipment connected to them. When a cord connector is wet, electric current can leak to the equipment grounding conductor, and to humans who pick up that connector if they provide a path to ground.
Why are flexible cords finely stranded?
Flexible cords are finely stranded for flexibility, so straining a cord can cause the strands of one conductor to loosen from under terminal screws and touch another conductor.
Why are flexible extension cords needed?
With the wide use of power tools on construction sites, flexible extension cords often are necessary. Because they are exposed, flexible, and unsecured, they are more susceptible to damage than is fixed wiring.
What is a conductor in a power cable?
Conductor. Conductors are the only power carrying path in a power cable. Conductors are of different materials. Mainly in the cable industry, we use copper (ATC, ABC) and aluminum conductors for power cables. There are different types of a conductor as Class 1: solid, Class 2 stranded, Class 5 flexible, Class 6 Extra flexible ...
What does it mean when wire sizes are larger?
Larger wire sizes (those with a greater diameter) will have less voltage drop than smaller wire sizes of the same length. In American wire gauge, every 6 gauge decrease gives a doubling of the wire diameter, and every 3 gauge decrease doubles the wire cross-sectional area.
Why are underground cables better than other types of cables?
The underground cables have several advantages such as less liable to damage through storms, lightning, low maintenance cost, a lower chance of faults, a smaller voltage drop, and a better general appearance .
What is the inner sheath of a cable?
Beading (Inner Sheath) This portion of the cable is also known as the inner sheath. Mostly it is used in Multi-core cables. It works as a binder for insulated conductors together in multi-core power cables and provides bedding to armor/braid.
What is flexible power cable?
Flexible power cables are used for portable devices, mobile tools, and machinery. These are designed and manufactured as per voltage, ...
What is power cable?
Power cables are mainly used for power transmission and distribution purposes. It is an assembly of one or more individually insulated electrical conductors, usually held together with an overall sheath. The assembly is used for transmission and distribution of electrical power.
What is the outermost cover of a cable?
This is the outermost cover of the cable normally made of PVC (Poly Vinyl Chloride), RUBBER (Various Types of Rubber), and often the same material as the bedding. It is provided over the armor for overall mechanical, weather, chemical, and electrical protection.
What is the importance of an extension cord?
What’s important when choosing an extension cord is to determine the amount of the wattage and amperage that will be drawn by the tool or appliance connected to the extension cord. With simple devices, such as lamps, radios, televisions, and other electronics, the familiar basic household extension cord is perfectly acceptable in most cases.
What is extension cord?
Extension cords offer a means of extending a home's or workshop's electrical circuits when a lamp, appliance, or tool has an attached cord that is too short to reach the needed location. Most people have several extension cords they keep on hand for this purpose.
Can you plug a heater into an extension cord?
You should never use an extension cord to plug one of these heaters into a power source. Numerous house fires have occurred when heaters are plugged into extension cords, due to their high wattage and amperage demands.
Can you use an extension cord with a motor?
The electrical load of these items is substantially higher, which means light-weight extension cords should not be used with them.
Can bare exposed wires cause shock?
Nicks and bare exposed wires can cause electrical shock. Also, make sure to examine the plug ends on your extension cords, looking for damage. Your local hardware store has replacement plugs that can be used to extend an extension cord's life, provided the cord itself is in good condition. The Spruce / Ana Cadena.
Non-Detachable Power Cords
These power cords are hard-wired to the equipment. In general cases, you don’t need to remove the cord from the equipment.

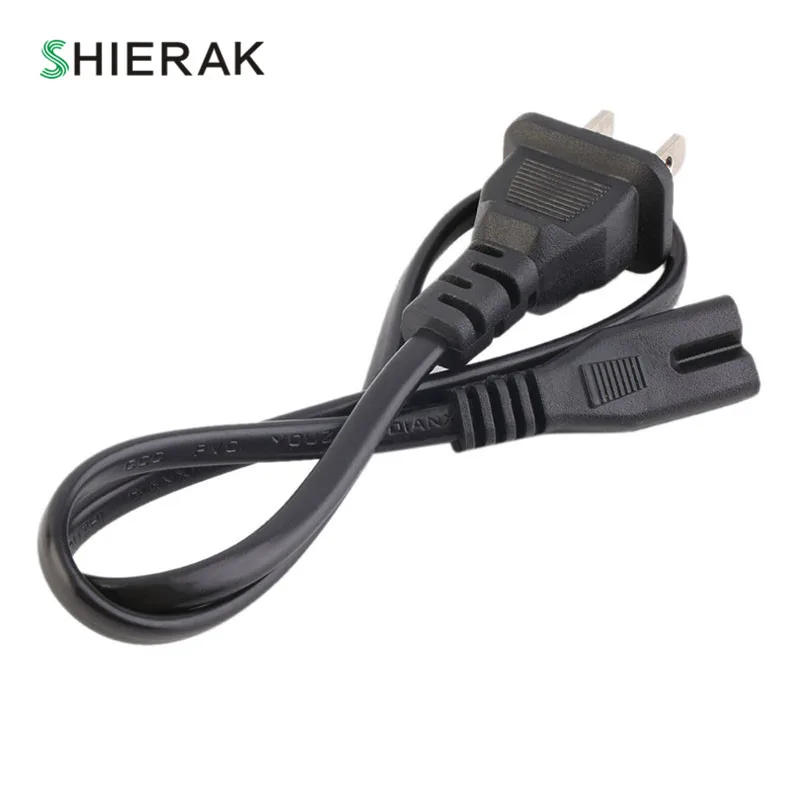

Detachable Cord
It is also known as a line cord, main cord, or power cable. It consists of a flexible cord with electrical connectors male and female. The male end is attached to a molded electrical plug. The female consists of a molded electrical receptacle.
Final Findings
We can clearly state that each country has their own standards of approvals. Considering the North American developing standards, NEMA (National Electrical Manufacturer Association) certify and declare the approved cords as NEMA Power Cords. These cables are typically used for ITE. Rest of the countries use IEC 60320 standard cords.
How many amps can a 100 foot extension cord run?
With that in mind, you typically don’t see 100-foot cords exceeding 15- amp (15A) capacity.
How many amps does a tool need?
For larger tools that require them, it’s not enough to simply tap into the temp power pole or a nearby outlet. You have to ensure that if your tool requires 15 amps, it gets 15 amps. Use an extension cord that doesn’t carry the correct thickness (gauge) wire and you “starve” your tool. But, you also do something worse.
Can an undersized extension cable melt?
An undersized extension cable will heat up over time. Use it in that state for too long, and the wire insulation could melt. This particularly holds true if you keep the wire in a coil, which creates resistance and a magnetic field that heats up.
How many volts does a SO portable power cord need?
For Example, Many customers will order the SO portable power cords because of their ability to handle higher voltages when in reality, their applications would only require the junior service (300 volts).
What does the S in a power cord mean?
The "S" in "SO" stands for "Extra Hard Service." This means that the wire is able to be used in applications requiring 600 volts or less. The second letter, "O" stands for "Oil Resistant," which means the outer jacket of the cable is oil resistant.
What is the difference between a Soow and a Sjoow power cord?
The difference between SOOW and SJOOW power cords is quite simple, but in order to fully comprehend the major benefits that each offers you have to first understand their applications. Power cords or power cables are one of the main components of electrical systems.
Why are the Sjoow and Soow cables considered power cables?
The SJOOW and SOOW are designated as power cables because of how they can safely transfer power from one source to another. Sycor's Blog Archives.
What does OO stand for in power cords?
OO = Oil-resistant outer jacket and inner insulation. W = Weather and water-resistant - outdoor rated (note: this is NOT the same as Type W, another kind of portable cord) Portable power cords are very reliable products and are used frequently because of the variety of constructions.
Is SO portable power cord expensive?
The SO portable power cords are more expensive and take up extra space. By understanding your applications' maximum requirements, you can lower your costs, and although it may only be by a little, when purchasing thousands of meters of wire, every cent counts.
Wire Vs. Cable
While the terms wire and cable are often used interchangeably, a wire is one electrical conductor and cable is multiple conductors, or a group of wires, encased in sheathing.
Wire Labeling
The information printed on the sides of wire indicates its THHN/THWN, material, max voltage rating and gauge.
Wire Colors
A wire’s color tells you the purpose of the wire. Typically, white wires are neutral wires, green or bare wires are ground wires and any other color is a hot wire that carries an electrical current.
Types of Electrical Cable
Different types of electrical cables each have their own specific purposes and applications. Below are common cables you may use in your projects:
Cable Labeling
All the information you need to know about a type of cable is printed on its sheathing.
