What is the function of a bio sensor?
A Biosensor basically is an analytical device. It is used for detection of an analyte which combines a biological component with a physico-chemical detector. Biosensor combines following three functionalities in one. 1. Bio-receptor 2. Transducer 3. Electronics circuit and display.
What are the parts of a biosensor?
There are three main parts of a biosensor: (i) the biological recognition elements that differentiate the target molecules in the presence of various chemicals, (ii) a transducer that converts the biorecognition event into a measurable signal, and (iii) a signal processing system that converts the signal into a readable form [19–21].
What is the role of the transducer in a biosensor?
Transducer: The transducer is an element that converts one form of energy into another. In a biosensor the role of the transducer is to convert the bio-recognition event into a measurable signal. This process of energy conversion is known as signalisation.
How does a glucose biosensor work?
The basic concept of the glucose biosensor is based on the fact that the immobilized GOx catalyzes the oxidation of β-D-glucose by molecular oxygen producing gluconic acid and hydrogen peroxide. In order to work as a catalyst, GOx requires a redox cofactor—flavin adenine dinucleotide (FAD).
Most recent answer
Note that even in the subcategory "physicochemical detector" there are plenty of biosensors possibilities. Thus and according to the comments from our other colleagues, it is necessary to be more specific towards the type of biosensor you want to know more.
All Answers (5)
Could you be more specific please? There are many types of biosensors and they do not work in the same way. However, the principle is always the same : you would like to discriminate an analyte of interest in a complex media.
Similar questions and discussions
What is the exact part of an Electrochemiluminescence cell that emission occurs on it?
What is a biosensor?

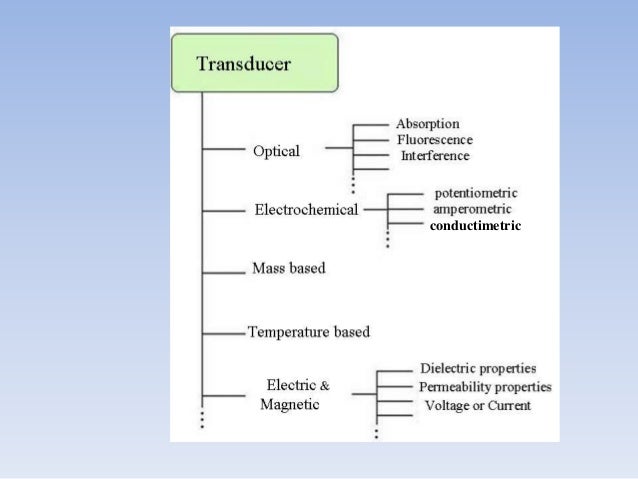

A biosensor can be defined as a “compact analytical device or unit incorporating a biological or biologically derived sensitive recognition element integrated or associated with a physio-chemical transducer” [18]. There are three main parts of a biosensor: (i) the biological recognition elements that differentiate the target molecules in the presence of various chemicals, (ii) a transducer that converts the biorecognition event into a measurable signal, and (iii) a signal processing system that converts the signal into a readable form [19–21]. The molecular recognition elements include receptors, enzymes, antibodies, nucleic acids, microorganisms and lectins [22,23]. The five principal transducer classes are electrochemical, optical, thermometric, piezoelectric, and magnetic [24]. The majority of the current glucose biosensors are of the electrochemical type, because of their better sensitivity, reproducibility, and easy maintenance as well as their low cost. Electrochemical sensors may be subdivided into potentiometric, amperometric, or conductometric types [25–27]. Enzymatic amperometric glucose biosensors are the most common devices commercially available, and have been widely studied over the last few decades. Amperometric sensors monitor currents generated when electrons are exchanged either directly or indirectly between a biological system and an electrode [28,29].
Who first described the biosensor?
First description of a biosensor by Clark and Lyons
How to facilitate electron transfer between the redox center and the electrode surface?
Various strategies to facilitate electron transfer between the GOx redox center and the electrode surface have been employed, such as enzyme wiring of GOx by electron-conducting redox hydrogels, the chemical modification of GOx with electron-relay groups and the application of nanomaterial as electrical connectors [48,63–65].
When was the glucose biosensor invented?
The concept of the biosensor for measuring glucose levels was first proposed in 1962 by Clark and Lyons from the Children’s Hospital of Cincinnati [19]. This glucose biosensor was composed of an oxygen electrode, an inner oxygen semipermeable membrane, a thin layer of GOx, and an outer dialysis membrane.
How is the cofactor regenerated?
The cofactor is regenerated by reacting with oxygen, leading to the formation of hydrogen peroxides.
Can you monitor glucose without a transducer?
Continuous subcutaneous glucose monitoring can also be achieved without direct contact between the interstitial fluid and transducer by using the microdialysis technique [80,81]. GlucoDay (Menarini, Florence, Italy) and SCGM (Roche, Mannheim, Germany) are based on a microdialysis technique. This approach provides both better precision and accuracy, and lower signal drift than needle-type sensors [82,83].
Who invented the first needle-type enzyme electrode for subcutaneous implantation?
First needle-type enzyme electrode for subcutaneous implantation by Shichiri
