Fluidmaster flappers can be adjusted in three different ways:
- Turning the flapper cone from a minimum to maximum setting, so you are moving the secondary hole away from the top of the tank which traps the air in the ...
- Moving a float (a float is placed on the flapper chain) up the chain, so you are setting the flapper to close faster. ...
- Pulling slightly on the cone and turning the cone from a minimum to maximum setting, so you are closing the cone window and causing the flapper to stay open longer.
Does the Fluidmaster adjust-a-flush toilet flapper save water?
The Fluidmaster Adjust-A-Flush saves water. Fluidmaster's Adjust-A-Flush toilet flapper valve adjusts the volume of water that flows from the tank into the bowl for each flush.
How do you remove a flapper from a Fluidmaster toilet tank?
Fluidmaster has “Flexible Frame” flappers that have a pipe adaptor molded onto the frame. • To remove existing flapper first turn off the water to the toilet and flush toilet tank emptying most of the water. To remove existing flapper, gently pull flapper up sliding it off the overflow pipe.
How do I adjust the fill valve on my Fluidmaster toilet?
Fluidmaster fill valve adjustment can be done by hand without removing the part from the toilet. This long, dark-colored tube will have a screw to its side; this can be adjusted either by hand or with a Philips-head screwdriver.
How does an adjust a flush toilet flapper work?
Fluidmaster's Adjust-A-Flush toilet flapper valve adjusts the volume of water that flows from the tank into the bowl for each flush. A dial setting on the flapper adjusts the amount of air escaping from the cone of the flapper, altering how long the valve floats in the open position before "flapping" shut.

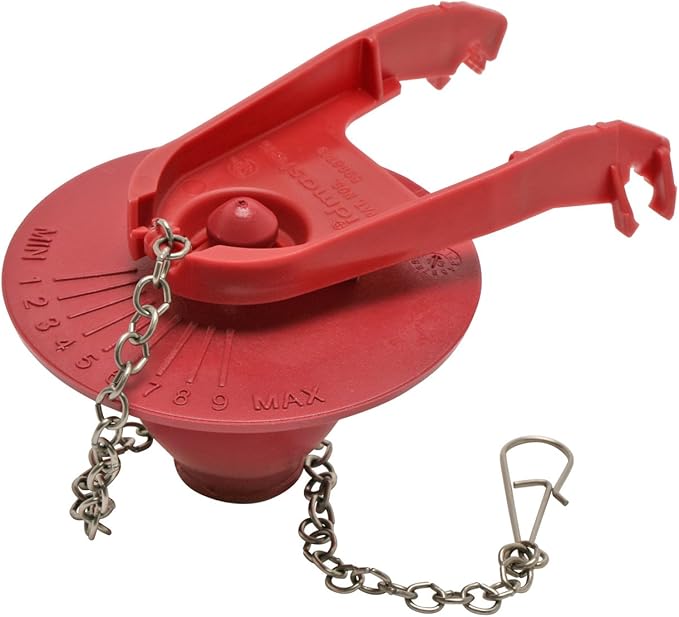

What are the numbers on fluidmaster flapper?
The chain attachment fitting on the valve frame is the center point. Rotate the flapper body from "1" for the quickest flush/lowest water volume to "9" for the longest flush/maximum water volume, with "4" as the standard setting.
What does the min and max mean on toilet flapper?
By lowering the float on the chain you are causing the flapper to stay open longer. Pulling slightly on the cone and turning the cone from a minimum to maximum setting, so you are closing the cone window and causing the flapper to stay open longer.
How do you adjust the float on a flapper?
0:272:57How to Adjust Toilet Flapper Float that Closes Too Soon or Too FastYouTubeStart of suggested clipEnd of suggested clipYou will move this higher along the chain. But if there's not enough water entering meaning thisMoreYou will move this higher along the chain. But if there's not enough water entering meaning this thing's closing too fast you move this float towards towards this flapper.
How do you adjust a fluidmaster flush valve?
Mark, 1” above the top of overflow pipe. Remove fill valve from tank to adjust height. Adjust height of fill valve by holding lower shank with right hand and top of valve with left hand. Twist the lower shank counter clockwise to increase valve height and clockwise to decrease valve height.
What if toilet still leaks after replacing flapper?
If you've tried replacing the toilet flapper but the toilet still runs, the flush valve seat is probably rough or pitted. You can replace the entire flush toilet flapper valve, but it's a big job.
How do you adjust toilet so you don't have to hold the handle down?
To do this, adjust the chain length so there is only about ½ inch of slack. Trim the length of the leftover chain if it hangs down too far and interferes with any part. Make sure the chain is not too short either, as you would end up with another issue; a toilet flapper not closing.
How do you adjust float height?
4:568:33How To Set and Adjust the Float Height on a Motorcycle ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipAll we need to do is press in on it a little bit. And it shouldn't take a lot of force. We're justMoreAll we need to do is press in on it a little bit. And it shouldn't take a lot of force. We're just using a flat blade screwdriver. We'll make small adjustments. So it doesn't get way.
How do I make my toilet flapper open longer?
0:513:16Fix for toilet flapper closing too early so toilet won't flush properlyYouTubeStart of suggested clipEnd of suggested clipIt's important to have at least half inch play nothing too much nothing too little otherwise theMoreIt's important to have at least half inch play nothing too much nothing too little otherwise the flap won't stay open long enough. So as you can see what the problem here is is my float which is part
Where should the float be in a toilet?
0:210:57How to Adjust a Toilet Float - YouTubeYouTubeStart of suggested clipEnd of suggested clipSee this tube. That's your overflow tube. And the water should only be about an inch from the top toMoreSee this tube. That's your overflow tube. And the water should only be about an inch from the top to control the water level you'll either have a float cup like this or a float ball like this.
What is the most common problem associated with the fluidmaster?
COMMON PROBLEMSToilet Tank Won't Fill Up Or Is Slow To Fill.Toilet running constantly.Toilet flushes on its own (Ghost Flushing)
Why does my new fluidmaster keeps running?
My Fluidmaster Keeps Running! This fill tube connects the fill valve to your toilet overflow tube. Ensure that it's firmly attached; the water stream should go right into it when flushed. The float might also not be in the proper position. If it is too high, the valve won't shut off, and the toilet will keep running.
How do you adjust the height on a toilet fill valve?
1:042:53Adjusting Toilet Fill Valve - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou can see here at the base of the fill valve that little grey plastic ring we're gonna have toMoreYou can see here at the base of the fill valve that little grey plastic ring we're gonna have to actually pop that up and this will allow us to remove. The fill valve and make the adjustments.
How do I know if my toilet flapper is 2 or 3 inches?
Look at the flush valve drain opening at the bottom of your tank. If the opening looks about the size of a baseball or orange, you need a 2″ flapper. If the opening looks about the size of a softball or grapefruit, you need a 3″ flapper.
How do you know if your toilet flapper is bad?
You may need a new flapper if: Your toilet bowl is running (if you have to jiggle the handle to make it stop, your flapper is probably bad) You touch the flapper and it starts to fall apart or rub off. The eyelet hole (where the chain hooks into the flapper) is torn.
Are there different types of toilet flappers?
Types: There are two types of flappers, Adjustable Flappers and Non-Adjustable Flappers, and these flappers are designed for specific flushing capacities of toilets.
What is the standard toilet flapper size?
Flappers comes in two sizes, two inch and three inch. A majority of toilets will use the two inch flapper; however three inch flappers have become popular in recent years and can be found in newer toilets manufactured since 2005.
How to set flapper cone to close faster?
Turning the flapper cone from a minimum to maximum setting, so you are moving the secondary hole away from the top of the tank which traps the air in the flapper cone for a longer period of time. Moving a float (a float is placed on the flapper chain) up the chain, so you are setting the flapper to close faster.
What is the GPF of a flapper?
Adjustable flappers are designed to flush toilets that use a flush volume of 1.28 and 1.6 gallon per flush (GPF)
How do flappers work?
How "Adjustable" toilet flappers work 1 Traditional flappers use air to hold the flappers open, adjustable flappers don’t allow the flapper to trap or hold air inside their cone/bulb. 2 Adjustable flappers are designed to flush toilets that use a flush volume of 1.28 and 1.6 gallon per flush (GPF) 3 Adjustable flappers should not be used on toilets made before 1994. 4 Adjustable flappers may use a float to delay the flapper from closing right away. 5 Adjustable flappers may use a dial in place of a float. The dial sets a secondary hole in the flapper cone to release air and force the flapper to close.
How to make a chain flapper stay open longer?
By lowering the float on the chain you are causing the flapper to stay open longer. Pulling slightly on the cone and turning the cone from a minimum to maximum setting, so you are closing the cone window and causing the flapper to stay open longer.
What is the purpose of the dial in a toilet flapper?
The di al sets a secondary hole in the flapper cone to release air and force the flapper to close. If you are unsure, which size of flapper you need for your toilet, please click here: Determine size of flapper.
When were flappers not used on toilets?
Adjustable flappers should not be used on toilets made before 1994.
What is a fluidmaster leak guard?
Some fill-valve models come with a Fluidmaster leak guard that attaches to the flapper and float system in control of releasing water from the tank into the toilet bowl. This system, attached to the toilet's fill lever, acts as a secondary seal. If the leak guard is triggered by an excessive loss of water in the tank, it stops the flow of water.
How to adjust Fluidmaster fill valve?
Fluidmaster fill valve adjustment can be done by hand without removing the part from the toilet. This long, dark-colored tube will have a screw to its side; this can be adjusted either by hand or with a Philips-head screwdriver.
What is a fluidmaster?
Fluidmaster is a company that specializes in the sale of toilet parts and accessories. Fluidmaster parts are designed to improve the flushing and filling functions of your toilet, minimize the risk of both internal and external water leakage and give toilet owners better control over the settings of their toilets.
How to keep water level in toilet tank?
To prevent external flooding, it is advised to maintain a tank water level that is at least one inch lower than the toilet's handle .
Who is Blake Flournoy?
Blake Flournoy is a writer, reporter, and researcher based out of Baltimore, MD. As a handyman's apprentice operating out of the Atlanta suburbs, they made a name for themselves repairing appliances and installing home decor. They have never seen Seinfeld and are deathly scared of wasps. View Work.
How to remove flapper from overflow pipe?
To remove existing flapper, gently pull flapper up sliding it off the overflow pipe.
How to attach chain to tank lever?
Draw chain up to tank lever and using chain clip, attach to tank lever arm, threading clip into one of the lever arm holes. Tip-attach chain lip to tank lever directly above flapper and leave 1/2 inch of slack in chain.
How to remove a fluidmaster flapper?
• To remove existing flapper first turn off the water to the toilet and flush toilet tank emptying most of the water. To remove existing flapper, gently pull flapper up sliding it off the overflow pipe.
How to check flapper is working?
Turn water back on to toilet. Once filled, flush the tank to check flapper is operating correctly.
How to unclamp flapper clips?
Gently pull flapper arms up until the flapper clips have unclamped from mounting posts.
Why do toilet flappers wear out?
Flappers wear out more often if you use drop-in bleach tablets. Instead use Flush ‘n Sparkle ™ Self-Cleaning Toilet System and protect your flapper.
What if the Flapper is Worn or Cracked?
While inspecting the toilet flapper, make sure it is not cracked or worn away. If so, you’ll need to move onto the next step: replacement. But don’t worry, we have some articles on how to do that too. See the “Resources” section below.
How to clean a flush valve outlet?
Pull up the flapper and clean the inside of the flush valve outlet. Do this by scouring it with your scrub pad. We want to make sure the flapper and flush valve seat are nice and clean for a perfect fit.
How to check if toilet flapper is working?
First, open the toilet tank, flush the toilet, and see if water never reaches the overflow tube. Then check the flapper. Does it seem to fit well on the flush valve seat?
What to do if your toilet runs continuously but water never reaches the top of the overflow tube?
If your toilet runs continuously but the water never reaches the top of the overflow tube, then adjusting a toilet flapper is your first item to check.
Why won't my toilet flapper align?
Often, a toilet flapper won’t align with the flush valve seat because it is worn out or cracked. This is an example of an extremely worn-out flapper. But it doesn’t have to be nearly this bad to cause toilet running problems.
What happens if a seat is misaligned?
If the seat is misaligned as we suspect, it won’t create that watertight seal, and water will continue flowing. So, the first attempt at a solution is to adjust the flapper’s guide arm. If it continues to run after this, the stopper may be worn or cracked and will need to be replaced.
