How do I calibrate my IAC?
- Depress the accelerator pedal slightly.
- Start the engine and run for 5 seconds.
- Turn the ignition switch to the OFF position for 10 seconds.
- Restart the engine and check for proper idle operation.
- Press the gas pedal marginally.
- Start the engine and let it run for 5-10 seconds.
- Turn the ignition to “off”
- Wait 10 seconds.
- Start the engine.
How do I reset my idle air control IAC valve?
3:288:21How to Reset an Idle Air Control Valve - Symptoms of a Bad IAC - YouTubeYouTubeStart of suggested clipEnd of suggested clipStep one turn the car to the on. Position. Step two put the car into park p and press the brake.MoreStep one turn the car to the on. Position. Step two put the car into park p and press the brake. Down. Step three now press the gas pedal down slowly. Step four once you have released the pedals.
How do I tune my IAC valve?
0:381:42FAST Quick Tech: How to Adjust Your IAC - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe're going to rotate our Allen screw to move the marker into our target. Box oftentimes. If yourMoreWe're going to rotate our Allen screw to move the marker into our target. Box oftentimes. If your engine has an annoying hissing sound it's probably pulling air through the open ayack.
How do you adjust the idle control?
Disconnect the idle air adjustment valve by locating and disengaging the electronic connector that holds it to the throttle body. Turn the idle screw to adjust the idle—turn the screw to the left to increase the RPM or to the right to lower it.
What should IAC be at idle?
It should be at 60-70 with a cammed car. 1) You will want to monitor your IAC, Idle Speed, throttle position voltage and your throttle position %.
How do you perform an idle air relearn?
Follow these steps to complete an Idle Relearn: Put gear shifter in "P" (Park), turn off all accessories. Run the engine until it reaches normal operating temperature. Allow engine to idle for at least one minute. Turn the air conditioning on and allow the engine to idle for at least one minute.
What happens if idle air control valve is stuck open?
If a car's idle air control valve is stuck open, it will create a rich air-fuel ratio while the vehicle idles. Therefore, the car's engine may start well while warm and run until it reaches a high enough RPM.
How do I know if my idle air control valve is working?
Check Engine Light comes on Another symptom of a potential issue with the idle control valve is an illuminated Check Engine Light. If the engine control module detects an issue with the idle air control valve circuit or signal, it will set off the Check Engine Light to notify the driver that there's an issue.
Where is the idle adjustment screw?
The idle speed screw (arrow 1) is located on the primary linkage. The idle metering adjustment screws (arrow 2) are located on the primary metering block on most Holley carburetors. A typical starting location for these idle mixture screws is between 1 and 1 ½ turns out from fully seated.
How do I fix idle going up and down?
What To Do When RPM Goes Up and Down During Idle?Make sure the engine is properly tuned. ... Check the air intake system for any leaks. ... Make sure the throttle body is clean and free of any obstructions. ... Replace the spark plugs if they are worn out or fouled. ... Check the engine vacuum and make sure there are no leaks.More items...•
What problems can idle air control valve cause?
When the idle air control valve fails, it inhibits the flow of air through the engine. When the car can't receive air, it leads to engine stalling. The severity of this symptom can range from occasional stalling at first, to stalling immediately after ignition.
What is the perfect idle RPM?
The idle speed should feel consistent without skipping or slipping. In most of today's cars, an idle speed of 600 to 1000 RPMs is average. If your car is idling rough, though, it won't feel smooth. The RPMs will jump up and down, for example, or they'll fall below 600 RPM (or whatever is typical for your vehicle).
What happens if idle is too high?
High idle speeds waste fuel, cause extra wear and tear on your engine, and can be unsafe as well. If your foot should slip off the brake as the engine revs, it could cause your vehicle to lurch forward, putting other drivers and even pedestrians at risk.

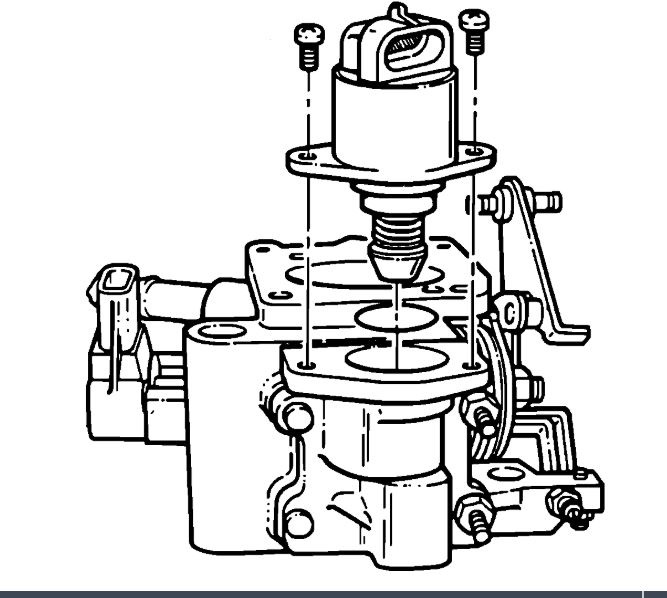

How does the IAC control idle speed?
The idle air control (IAC) valve is controlled electrically; which gets its input from the vehicle's (ECU). The (IAC) either, bypasses the throttle or operates the throttle butterfly valve directly. Computer controls and electronic fuel injection made efficient and responsive idle control easier to achieve.
How do you fix a rough idle when AC is on?
My Car Idles Rough When the AC Is OnCheck common sources of trouble that can cause a rough idle when AC is on. ... The IAC valve is a common source of trouble. ... Check and remove buildup from the throttle body, if necessary. ... Make sure the cooling or condenser fan is working properly.More items...•
What controls the idle control valve?
Most idle control valves come in the form of a motorized valve or motor that is mounted somewhere on the vehicle's intake manifold. The valve or motor is controlled by the engine control module, which will adjust the idle speed according to parameters such as engine temperature and electrical system load.
What causes rpms to jump while idling?
Among the potential underlying causes are vacuum leaks, EGR system malfunctions, malfunctioning oxygen sensors, dirty fuel injectors, fuel pump malfunction, faulty spark plugs, a faulty mass airflow sensor, or a faulty throttle position sensor.
Why does my engine keep idling at low RPM?
It's possible. A faulty idle control valve can leave the engine idling at too low an RPM for it to continue running.
How to tell if IAC is working?
Normally, if you just start your car, the idle air control valve will cause the engine rpms to increase and slowly decrease. That would be a sign that your IAC is working.
How to tell if idle control valve is bad?
Look for a high engine idle. A common symptom of a faulty idle control valve can be a high idle. Start the engine and look at the tachometer on the dashboard. Most vehicle’s engines will idle at our below one thousand RPMs. If you are familiar with your engine’s normal idle, compare that to its current RPMs.
Why is my idle low?
If the idle is low and inconsistent, it may be due to an issue with your idle control valve. Low idles could also be caused by vacuum leaks. Look for signs of a vacuum leak. If your engine is idling poorly, try to diagnose any possible vacuum leaks that may be causing it.
What is idle air valve?
The idle air control valve — also known as the "idle speed control valve" — regulates the idle speed of your engine. This is controlled by the engine's computer. Sometimes parts go bad, which results in your car idling strangely or stalling. Check to see if your idle control valve is functioning properly before attempting to replace it.
How to check idle air?
Also, if you have a modern vehicle with an OBD2 system, you can check your idle air through scan tools. On older vehicles, try to check the resistance that's going to the valve from the vehicle. You can also try to manually activate it to see how the car reacts—you may be able to isolate the problem to the valve.
Why is my car idle so high?
If the vehicle’s engine is idling well above 1,000 RPMs, it’s probably too high. Vacuum leaks can also cause a high idle. Pay attention to low idle or stalling. Aside from high idle issues, low idle and even sporadic stalling can both be attributed to a bad idle control valve.
