how do i hide clip boundaries in autocad

• Do one of the following: On the ribbon, choose Insert > Clip Xref (in Reference).
• Select the desired external references.
• Press Enter.
• To turn off clipping boundaries, choose Off. To turn on existing clipping boundaries, choose On.
• Press Enter.

Full Answer

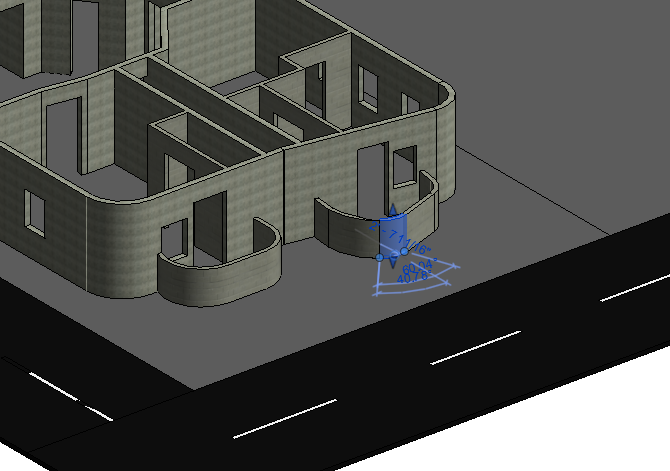

How to extrude walls in AutoCAD?

• Right-click a wall tool, and click Apply Tool Properties to Linework.
• Select the line to convert, and press Enter.
• When prompted to erase the original geometry, press Enter to retain the linework, or enter y (Yes) to erase it.
• Edit the properties of the new walls in the Properties palette, if necessary.

How to create boundaries in AutoCAD?

To Create a Boundary Polyline

• Click Home tab Draw panel Boundary. ...
• In the Boundary Creation dialog box, in the Object Type list, select Polyline.
• Under Boundary Set, do one of the following: To create a boundary set from all objects visible in the current viewport, select Current Viewport. ...
• Click Pick Points.
• Specify points within each area to form a boundary polyline. ...

More items...

How to create Polyline in AutoCAD?

To Join Polylines, Splines, Lines, and Arcs Into a Single Polyline

• Click Home tab Modify panel Edit Polyline. Find
• Select a polyline, spline, line, or arc to edit. If you selected a spline, line, or arc, press Enter to convert the selected object into a polyline.
• Enter j (Join).
• Select one or more polylines, splines, lines, or arcs that are located end to end.
• Press Enter to end the command.

How to insert a xref in AutoCAD?

You can use several methods to attach an xref:

• Click View tab Palettes panel External References Palette.
• Click Tools menu Palettes Reference Manager.
• At the Command prompt, enter EXTERNALREFERENCES.
• At the Command prompt, enter XATTACH.

What is clipping boundary in Autocad?

The clipping boundary determines a portion of an image, underlay, viewport, or external reference to hide. The visibility of the clipping boundary is controlled by the FRAME system variable. The list of prompts varies depending on whether you are clipping an underlay, image, external reference, or viewport.

How do I delete a clipping line in Autocad?

To Delete the Boundary of a Clipped ImageClick Modify menu Clip Image.Select the clipped image with the boundary you want to delete.Enter d (Delete). The boundary of the clipped image is deleted, and the original boundary of the image is restored.

How do I use clip options in Autocad?

To Clip an XrefSelect an xref.Click External Reference tab > Clipping panel > Create Clipping Boundary.If prompted, specify yes to delete any existing boundary.Select a polyline or specify a rectangular or polygonal clipping boundary.More items...•

How do I delete a boundary in Xclip?

This time, select only the XCLIP boundaries you wish to remove. You can use the CTRL + A keys to select all objects in your drawing, then hold SHIFT and deselect all the objects you want to keep. After you've selected the objects you want to remove, use the Delete option.

How do I remove a border from a PDF in AutoCAD?

2:464:45AutoCAD How to Remove Border From Images | 2 Minute TuesdayYouTubeStart of suggested clipEnd of suggested clipNow the same is goes for ole objects you can use ole frame you can also use wipeout frame to removeMoreNow the same is goes for ole objects you can use ole frame you can also use wipeout frame to remove the border or plot or not plot wipe out frames.

How do I hide an xref in AutoCAD?

"Hide xref layers: To quickly hide all those extra xref layers in your drawing, select the xref tree in the filters browser in Layer Properties Manager and check the Invert Filter box in the bottom left corner. Now only your layers in the drawing will be displayed.

What is a clipping boundary for external references?

With a clipping boundary, you can determine the portions of an external reference or block reference that you want to display by hiding the redundant parts of the reference inside or outside the boundary. You can control the display of the clipping boundary with a clipping frame.

How do you mask in AutoCAD?

To Mask a Drawing AreaClick Annotate tab Markup panel Wipeout. Find.Specify points in a sequence that defines the perimeter of the area to be masked. You can also enter p and click an existing polyline to use. The polyline must be closed, contain line segments only, and have zero width.Press Enter to end the command.

How do I delete everything outside the box in AutoCAD?

select everything inside your rectangle then escape. erase>> all>> remove items previous. trim with a fence everything else outside your rectangle.

How to modify clipping boundary?

However, if changes are required, we have a few options still. To easily modify the clipping boundary, selecting the xref/block and moving the xclip grips (blue squares in the corners) allows us to dynamically change the boundary as needed. This will also work when a polyline/polygon was used as well.

What is Xclip in AutoCAD?

The XClip command allows us to clip/crop an external reference (xref) or block to a specific area that can be defined by either a rectangle or polyline.

How to remove a boundary in XRef?

Finally, to remove or delete the boundary restoring the xref/block to its originally extents we can enter the XCLIP command again at the command line, choose our object, and then select the delete option to remove the boundary. For xrefs, the remove boundary button from the ribbon can be used when the reference is selected.

How to start XCLIP?

The XClip command can be started by entering XCLIP at the command line. After hitting enter, we are prompted to choose an object. The object can be an xref or even a block. For xrefs, the command can also be initiated by selecting the xref and choosing the create clipping boundary button on the contextual ribbon tab along the top of the screen.
