Most often, appliance owners are able to diagnose igniter problems through noise alone. By listening to your gas oven, you can actually tell if igniter problems are coming. Obviously, the most concrete sign is when your oven isn’t producing heat.
What does it mean when your oven igniter is bad?
Not only will a faulty igniter mean your oven will not produce any flame or heat, but it could mean that it continues to release natural gas as it tries to ignite. That is something that no one wants. If you believe your oven is having igniter problems, here is how to diagnose them and repair them.
How do you test an igniter on a gas oven?
Igniter/Safety Valve Circuit Test Take a clamp-on type ammeter, and attach it to the circuit to determine whether the igniter is working efficiently enough to open the safety valve. Clamp your meter onto the wire that either goes to the bake burner igniter or the bake burner safety valve. Turn on the bake function, and see what current is drawn.
Why is my gas oven clicking and not lighting?
It is best not to let an oven linger when it is clicking and not lighting as this means gas is still being released and building up. What that constant clicking means is that your igniters have gone faulty and need to be replaced. In most gas ovens, the igniters are hidden away under a bottom covering.
What should I do if my gas burner does not ignite?
If the burner is in the correct position, but the gas is still not igniting, check to make sure the porthole is clear by inserting a needle into the hole. If the spark igniter lights the burner but does not stop clicking, the igniter electrode is likely dirty, and the metal rod of the electrode should be scrubbed clean.
What are the symptoms of a bad oven igniter?
A faulty igniter can cause a poor air to fuel mixture and create a gas smell while running the oven. The igniter itself should draw more than three amps, glow red and create ignition within 60 seconds or less. The oven burner itself should have an even flame on either side.
How do you test a gas oven igniter?
1:272:18Oven Not Heating? Igniter Testing – Gas Oven Troubleshooting - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow use a probe to touch one of the igniters terminals and the second probe to touch the otherMoreNow use a probe to touch one of the igniters terminals and the second probe to touch the other terminal. If the meter reading shows a result between 0 and 1,100 ohms of resistance.
How long does a gas oven igniter last?
Gas oven igniters last around eight years.
What would cause a gas oven not to ignite?
1:283:19Top 4 Reasons Oven Won't Turn On — Gas Range TroubleshootingYouTubeStart of suggested clipEnd of suggested clipIf this happens the igniter or electrode will be unable to ignite the gas to heat the oven. On. SomeMoreIf this happens the igniter or electrode will be unable to ignite the gas to heat the oven. On. Some ranges the oven control uses a thermostat and sensing bulb assembly.
How much does it cost to replace a gas oven igniter?
between $150 and $300The cost to replace your gas stove igniter is between $150 and $300. You might need a replacement if your stovetop won't stop clicking, the pilot light goes out or your burner won't light.
How do you fix a gas oven igniter?
0:211:29Replacing an Oven Igniter in a Gas Range - YouTubeYouTubeStart of suggested clipEnd of suggested clipPull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out ofMorePull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out of the oven plug. The new igniter into the wire harness.
Is it worth fixing a gas oven?
Repair is always an option, until the repairs cost more than the oven is worth. If your oven is constantly breaking down, it may mean that the unit is reaching the point of no return. Continually replacing parts and paying for repairs can add up quickly, so buying a new oven would just make more sense financially.
Can you manually ignite a gas oven?
Answer: No, this is not possible due to the gas being controlled by the gas safety valve. You need the ignitor to be working properly before gas is allowed out of the gas safety valve.
Can you clean an oven igniter?
The igniter can be cleaned like the burners on your stove top by removing it and scrubbing it with a toothbrush. Since oven cleaning often does not involve cleaning the igniter, it should be replaced if the dirt is too bad.
Why is my gas oven not working but my stove is?
If the gas igniter is working, the problem might be that the gas elements or burners are blocked. The easiest way to check them is to take them out and check that they aren't blocked in any way. If they are, give them a clean and then put them back into the oven and see if this solves the problem.
Do gas stove igniters wear out?
The igniter on your gas oven is a fundamental part when it comes to heating your oven up. A gas oven igniter works by sparking and heating the gas emitted from the oven, so without it, the oven will not be able to produce heat. However, as so much rests on this little igniter, they are prone to a bit of wear and tear.
Why is my gas stove igniter not clicking?
0:231:35Stove Not Clicking? - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe first thing you want to do is unplug the stove. Because if you don't unplug it and you try toMoreThe first thing you want to do is unplug the stove. Because if you don't unplug it and you try to start working on the module in the back you Shore everything and pop the breaker.
How many ohms should a gas oven igniter have?
between 80 and 175 ohmsThe Oven Igniter If it shows resistance, it has continuity. No resistance? No continuity. Typically these will be somewhere between 80 and 175 ohms of resistance for a working igniter.
Why does my gas oven igniter glow but no flame?
There are many reasons why an oven igniter may glow but not flame: the igniter may be worn out, there may be a problem with the gas valve, or you might have a gas shortage. In most cases, the igniter is the problem; it almost always goes bad first.
How do you test an igniter with a multimeter?
Test The Ignitor With A Multimeter Set a multimeter to the lowest possible resistance test and place the probes onto tips of the plug for the ignitor. If the multimeter shows infinity or stays at zero, the ignitor no longer works and must be replaced.
How do you test an oven spark electrode?
1:314:03How to Test a Gas Range Igniter & Oven Safety Valve | PartSelect.comYouTubeStart of suggested clipEnd of suggested clipNow to test these for continuity using a multimeter we'll simply insert both leads onto theMoreNow to test these for continuity using a multimeter we'll simply insert both leads onto the terminals for the igniter. And measure the resistance.
What happens if your oven igniter is bad?
If your oven igniter is bad, it will glow yet not produce any flames.
What to do if your oven igniter only glows?
To get your oven working again, you will need to replace it. Follow the steps in the oven igniter not working section to replace your oven igniter.
Where Is The Oven Igniter Located?

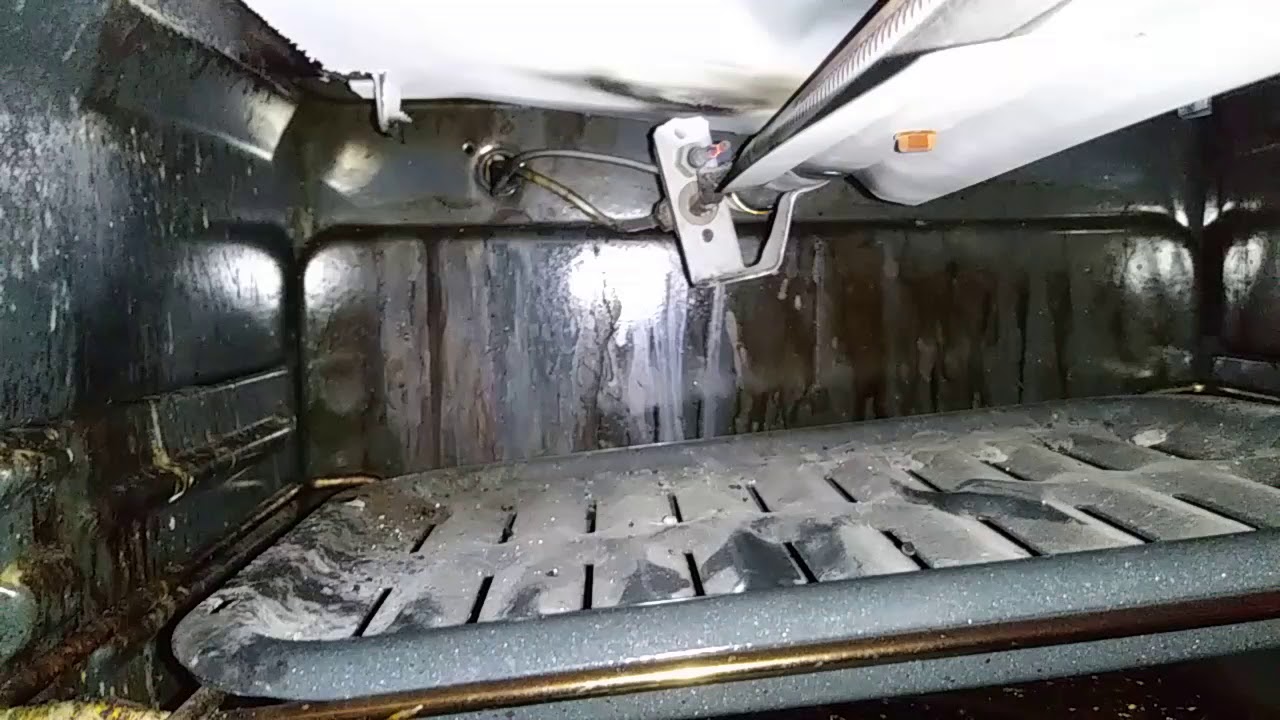

The igniter is located underneath the oven interior somewhere close to the back of the oven. You will need to take out the screws which hold the cover at the bottom of the oven to gain access to the igniter.
Why does my oven igniter keep clicking?
The first thing is food debris. You will need to scrub the food from the igniter. If your oven igniter has a cover over it, take out the screws which hold it in place. Carefully scrub the igniter with a toothbrush.
Why is my igniter clicking?
Your igniter may also be clicking because it’s damp. Take out the igniter and use a paper towel to absorb the moisture. Let the igniter air out for a couple of hours to dry.
Where is the burner cover on a gas oven?
Step 9: You will see the burner cover at the bottom of the oven interior, take out the two screws which secure it.
Can you bake with an oven without an igniter?
Without an igniter, you can’t actually bake with the oven. If you are experiencing some problems with your oven igniter that you don’t know how to fix, keep reading. In this article, we will show you solutions to your igniter problems.
How to check if a burner igniter is working?
Take a clamp-on type ammeter, and attach it to the circuit to determine whether the igniter is working efficiently enough to open the safety valve. Clamp your meter onto the wire that either goes to the bake burner igniter or the bake burner safety valve. Turn on the bake function, and see what current is drawn.
What causes a gas stove to turn on when there is no flame?
Trouble turning on your gas stove? If your igniter is glowing but there is no flame, then one of two components in your range are at fault. These components are the “safety valve” and the igniter itself.
How many amps does an oven igniter draw?
Turn on the bake function, and see what current is drawn. Typically your meter will show 2.8 – 3.0 amps for a normal current draw for a working igniter. If your meter is showing 2.7 or lower then you can assume that the igniter is not drawing enough current to actually ignite the flame, and therefore it won’t open the oven safety valve to allow ...
How to test a glow bar igniter?
For a “hot surface” or “glow bar igniter” you can test their power continuity using a multimeter. Simply insert both leads onto the terminals for the igniter and measure the resistance. If it shows resistance, it has continuity. No resistance? No continuity. Typically these will be somewhere between 80 and 175 ohms of resistance for a working igniter.
How to test oven safety valve?
The Oven Safety Valve. To test the oven safety valve, measure between the two terminals, on the valve and look for continuity. The resistance here is low, but you should be able to detect 1 to 1.5 ohms. If your model uses a dual valve, one for the broil burner and one for the bake burner, then you will have two bi-metals ...
What Are The Most Common Gas Range Igniter Problems?
The most common issue with gas burners is trouble getting the spark to ignite the gas.
Why won't my igniter light?
Igniter Won’t Light. A burner with a spark ignition may have trouble igniting after being cleaned, as left-over moisture may be on the igniter electrode . If the spark igniter electrode has been moved out of its position, it also may not ignite the incoming gas and click continuously.
How many sparks does a spark igniter produce?
Burner Color Changes. A properly operating spark igniter will produce about three to five blue sparks per second while igniting . If the sparks are very light in color, almost white, the igniter electrode may be weakened and will likely need to be replaced.
What happens if the spark igniter does not stop clicking?
If the spark igniter lights the burner but does not stop clicking, the igniter electrode is likely dirty, and the metal rod of the electrode should be scrubbed clean.
What happens if the spark igniter electrode is moved out of its position?
If the spark igniter electrode has been moved out of its position, it also may not ignite the incoming gas and click continuously.
How thick should the gap between the igniter electrode and burner base be?
The gap between the igniter electrode and burner base should be about the thickness of two dimes. If the burner is in the correct position, but the gas is still not igniting, check to make sure the porthole is clear by inserting a needle into the hole.
Why does my spark igniter keep clicking?
Igniter Constantly Clicks. After being scrubbed clean, if the spark igniter is still clicking continuously, the electrical polarity at the outlet may be reversed, or the outlet may not be grounded; this would likely only be the case if the range is newly installed.
