how do you adjust the valves on a briggs and stratton ohv engine

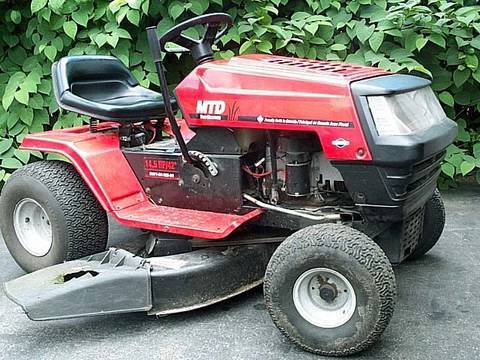

Adjusting the valves for your 18.5 horsepower Briggs & Stratton engine is a moderately easy task, provided you have the required tools. Open your lawn tractor's hood. Locate the square-shaped valve cover marked "OHV," mounted on the front side of the engine, secured to the engine block with four bolts.

Full Answer

How to adjust a governor linkage on a Briggs engine?

To adjust the governor on a Briggs and Stratton horizontal shaft engine, you would loosen the nut on the governor arm and push the governor arm down, clockwise. Then you would turn the governor shaft clockwise also and tighten the nut

How to adjust Briggs carburetor?

The Briggs and Stratton Carb Adjustment Diagram & Instructions

• You Must Check the Briggs and Stratton Carb Adjustment Diagram. Maintaining a proper air fuel ratio, that is not too rich, and at the same time not too lean is ...
• Keep In Mind These Points While Doing Carburetor Adjustment. ...
• This Video Will Help You Too! ...
• Overall Thoughts. ...

How do you adjust valves on 20hp engine?

turn the engine till number one is down, adjust number eight (8+1=9). Turn it over till the next valve goes down note its number, then subtract that number from nine, and the resulting number is the valve to adjust. Work through each valve in turn in this way till all valves are adjusted.

How to adjust valves on a generator?

The Valves Adjustment Procedure

• The generator has cooled down; that is to say, it’s not running, and it’s not hot.
• If your generator has an electric starter option, ensure the engine switch is in the off position.
• Drain out all the fuel from the generator’s engine tank. ...
• Remove the spark plug cap.

See more

What is the valve clearance on a Briggs & Stratton?

Clearances differ for the two valves and typically range from . 002 - . 004" to . 005 - .

How do you adjust the valves on a 17.5 Briggs and Stratton engine?

8:2216:21Adjusting the OHV valves on a Briggs 17.5 Intek - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you can loosen or tighten this nut by turning the wrench. And when you think you get it rightMoreAnd you can loosen or tighten this nut by turning the wrench. And when you think you get it right where you want it you don't want it binding tight you just want it you know slightly snug.

How do you adjust the valves on a OHV small engine?

4:027:38How to Adjust Valves on OHV Small Engines (Valve Clearance / lash)YouTubeStart of suggested clipEnd of suggested clipI always like to set two valves tight tight as possible. You need to Snug it tighten this bolt downMoreI always like to set two valves tight tight as possible. You need to Snug it tighten this bolt down just until you get a little bit of drag on it. Just a little bit of drags all you need.

What is the valve clearance on a 12.5 HP Briggs and Stratton?

Check the clearance between the top rocker arm and the corresponding valve stem, located in the center of the valve spring, using a feeler gauge. If the clearance reading falls outside of the acceptable range of . 005- and . 007-inch, the top exhaust valve is out of adjustment.

What should the valve clearance be?

Opinions may vary between piston and valve manufacturers, but a popular consensus is a minimum clearance of . 080-inch for the intake and . 100-inch for the exhaust. The exhaust valve expands more due to heat from combustion, and therefore needs additional clearance.

What is the valve clearance?

What are valve clearances? Valve clearances on motorcycle and car engines effectively relate to the gap between the top of the valve stem and the cam that operates it. The inlet valves in the engine open to allow air and fuel into the cylinder, while the exhaust valves let the burnt gases out.

How do you tell if your valves need adjusting?

When do I need to have a valve adjustment? You should have your valve lash inspected at manufacturers recommended intervals. A sure sign that it's time for a valve lash adjustment is if your engine is making a loud clicking or tapping noise when starting up or if you experience a loss in engine power.

What does OHV mean on a lawn mower?

Overhead ValveOverhead Valve (OHV) Engines As the name implies, Overhead Valve engines (OHV) have the valves located above the combustion chamber, in the cylinder head.

How do you adjust intake and exhaust valves?

To perform the procedure rotate the engine by hand, as soon as you see the exhaust valve begin to open adjust the intake valve. Once adjusted continue to rotate the engine until the intake valve opens entirely and just begins to close, now adjust your exhaust valve. That cylinder is now complete.

How do you find the top dead center on a Briggs and Stratton?

2:363:34How to Find Top Dead Center on Briggs and Stratton, THE ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipGo what it is and then you'll feel it start sliding back down. So you push it out. All right so thisMoreGo what it is and then you'll feel it start sliding back down. So you push it out. All right so this is as far as it. Goes.

How do you adjust tappet clearance?

Tappet clearance is adjusted after opening the lock nut above the rocker arm. This lock nut restricts the movement of tappet to ensure proper clearance setting. Open the nut using spanner of appropriate size ( Normally Ring Spanner are Used). Once the locknut is disengaged; tappet is free to move up and down.

How do you perform a valve job on a Briggs and Stratton engine?

10:1111:47How To Do A Valve Job On A Small Engine with Taryl - YouTubeYouTubeStart of suggested clipEnd of suggested clipJob it's just an overhead valve. You just don't have to grind the end of the stem. Because you getMoreJob it's just an overhead valve. You just don't have to grind the end of the stem. Because you get your adjustment. Through this through the tap it this is how you adjust the valve clearance.

How do I know which valve is intake and exhaust Briggs and Stratton?

2:2010:13How to adjust valves on Briggs and Stratton - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo let's determine what is the intake valve. Okay intake valve is moving followed by the exhaust.MoreSo let's determine what is the intake valve. Okay intake valve is moving followed by the exhaust. Valve.

How do you fix a stuck valve on a lawn mower?

1:533:21Checking For Stuck Valves On A Petrol Lawnmower (Briggs And ...YouTubeStart of suggested clipEnd of suggested clipAnd just reseat it. But just to show you how simple a larmor can be to fix if you know where to lookMoreAnd just reseat it. But just to show you how simple a larmor can be to fix if you know where to look in the right places. So if you've got a good spark. You know the diaphragm and gaskets good.

What is the valve clearance on a Honda gx390?

Valve clearance: 0.15 ± 0.02 mm (IN) 0.20 ± 0.02 mm (EX) ④. If adjustment is necessary, proceed as follows: a.

How long does it take to adjust valve clearance on Briggs and Stratton?

With some basic tools and a little mechanical aptitude, you can adjust the valve clearance on a Briggs & Stratton engine in about an hour. The procedure for adjusting the valves varies between models, but the basic steps are the same for all Briggs & Stratton engines. Advertisement.

What are the problems with Briggs and Stratton engine valves?

Improperly adjusted valves can lead to a variety of problems, including loss of power, stalling, excessive fuel consumption and backfiring. With some basic tools and a little mechanical aptitude, ...

How to turn a flywheel?

Turn the flywheel by hand until both valves are closed and the piston is at top dead center. Insert a dowel into the spark plug hole until it contacts the piston. Make a mark on the dowel even with the edge of the spark plug hole. Turn the flywheel until the piston is at its lowest point. Make another mark on the dowel.

How to determine valve clearance?

Check the manufacturer's documentation to determine the correct valve clearance for your engine. Slide a feeler gauge the thickness of the correct valve clearance between the rocker arm and the valve head.

How to adjust a rocker nut?

Hold the rocker nut with an open-end wrench. Loosen the setscrew in the rocker nut with a star-head driver. Turn the rocker nut clockwise to decrease the valve clearance and counterclockwise to increase the clearance. Adjust the rocker nut until the feeler gauge slides between the rocker arm and valve head with slight resistance.

How to change a valve spring compressor?

Step 1: Remove the spark plug and secure the spark plug lead away from the spark plug. Step 2: After removing the spark plug and securing the spark plug lead away from the spark plug, adjust the jaws of the valve spring compressor (part number 19063) until they touch the top and bottom of the valve chambe.

What to do if you feel a ridge on a valve?

If you feel a ridge, the valve stem is worn and should be replaced. The valve guide may also be worn and in need of a replacement. Step 3: Measure the thickness of the valve head, known as the valve head margin, using a caliper (part number 19199).

How to get to the valve chamber?

Follow these steps to do so. Step. Step 1: Remove the spark plug and secure the spark plug lead away from the spark plug. Step 2: Remove the muffler, crankcase breather and any other components that block access to the valve chamber.

How to install a new cylinder head gasket?

Install a new cylinder head gasket on the cylinder, insert the bolts in the cylinder and position the cylinder head on the cylinder. Step 6: Tighten the cylinder head bolts in increments, using a torque wrench. Turn each bolt a few turns, then proceed to the next bolt until each bolt is just snug.

How to restore valves to seal combustion chamber?

You can smooth out minor scoring and pitting of the valve face and seat to restore a valve's ability to seal the combustion chamber by lapping the valves. While lapping valves, make sure to check your progress often because it’s easy to remove the carbon building as well as the metal, further damaging the valve or seat.

How to turn crankshaft to top dead center?

Step 1: With each valve installed in its proper guides in the cylinder, turn the crankshaft (clockwise as viewed from the flywheel end of the crankshaft) to top dead center. Both valves should be closed. Then, turn the crankshaft past top dead center until the piston is 1/4" down from the top of the cylinder. Note: This procedure should be repeated for each cylinder on Opposed Twin and V-Twin engines.

How to remove a spark plug from a cylinder head?

Step 2: Remove the air cleaner assembly, fuel tank, oil fill tube, blower housing and rewind starter, muffler guard, muffler, carburetor and any other engine parts that block access to the cylinder head.

What is the difference between a valve tappet and a cam lobe?

The difference is if you adjust one valve while the other is fully compressed, the tappet is at roughly a right angle (90 degrees) to the cam lobe. You want the tappet you're adjusting to be directly opposite of the lobe, on the base circle. The sides of a cam lobe are not part of the base circle.

What is a soft grind on a mower?

Mower engines have what is called a "Soft" grind where the valves lift slowly, stay open for a long while & close slowly. This robs the engine of potential power but it makes the engine a lot more robust. Because of the soft grind there is a wide range of valve lashes over which the engine will run just fine.

How to adjust valve spring compressor?

Step 1: Remove the spark plug and securing the spark plug lead away from the spark plug. Step 2: After removing the spark plug and securing the spark plug lead away from the spark plug, adjust the jaws of the valve spring compressor (part number 19063) until they touch the top and bottom of the valve chamber.

How to make a valve spring?

Step 1: Place the valve spring into the valve spring compressor and rotate the tool's handle until the spring is fully compressed. Step 2: Insert the compressed spring into the valve chamber. Step 3: Brush the valve stem with valve stem lubricant. Then, lower the valve stem through the spring.

How to remove a valve retainer?

If your engine uses a keyhole retainer, line up the large slot in the retainer with the valves stem and release the spring slowly so that the stem slips through the large slot. Then, repeat the procedure for the other valve.

Why do engine valves stick?

Faulty or dirty valves may stick and can develop pits, cracks or grooves that cause the engine to lose power and fuel efficiency. Whether you’re having trouble with your engine or wanting to go through your routine valve maintenance, make sure you have our step-by-step guide on how to check your engine valves.

How to turn crankshaft to top of cylinder?

Step 1: With each valve installed in its proper guides in the cylinder, turn the crankshaft (clockwise as viewed from the flywheel end of the crankshaft) to top dead center. Both valves should be closed. Then, turn the crankshaft past top dead center until the piston is 1/4" down from the top of the cylinder.

What to do if valves are worn out?

If there are no signs of damage or valves wearing out after inspection, you can tune up the valves and seats so that the valves seal effectively (also known as “lapping the valves”).

How to reach valve chamber?

NOTE: Always wear safety eyewear when removing and installing valves. Step 1: Remove the spark plug and securing the spark plug lead away from the spark plug. Step 2: Remove the muffler, crankcase breather and any other components that block access to the valve chamber.
