The PFC calculation formula is: PFC = Voltage ÷ Zs (or Ze) How do you calculate prospective fault current? PSC can also be calculated by undertaking a Live Fault Loop Impedance measurement (in ohms) and dividing the voltage by this measurement.
What is the formula for fault current?
Fault current calculations are based on Ohm's Law in which the current (I) equals the voltage (V) divided by the resistance (R). The formula is I = V/R. When there is a short circuit the resistance becomes very small, and that means the current becomes very large.
How do I calculate prospective fault current?
How do you calculate prospective fault current? PSC can also be calculated by undertaking a Live Fault Loop Impedance measurement (in ohms) and dividing the voltage by this measurement. Voltage tests as 240 volts and the measured fault loop impedance between incoming line and neutral is 0.08. Click to see full answer.
How do you calculate fault current for transformer?
Transformer Fault Current Calculator: Enter the transformer rating in kVA (kilo Volt-Amp), Enter the secondary terminal voltage in volts and the percentage impedance in %. Then press the calculate button to get the transformer short circuit fault current in kilo Amps (kA). Reset button resets the input values. Transformers are the heavy-duty ...
What is an electrical fault current?
In an electric power system, a fault or fault current is any abnormal electric current.For example, a short circuit is a fault in which current bypasses the normal load. An open-circuit fault occurs if a circuit is interrupted by some failure.
How do you calculate PFC?
You'd do I = V/R, which is the same as PFC = V/Ze. I know R is resistance and Z is impedence, but that is the formlae and it's the calculation a tester makes when taking a PFC reading.
What is prospective fault current?
The Prospective Earth Fault Current is the maximum current that could flow between Live conductors and Earth. The higher of these two values will be noted down as the Prospective Fault Current (PFC).
How do you calculate the prospective fault current of a transformer?
Transformer short circuit fault current Calculations I(fault) = S(kVA) x 100 / (1.732 x V(V) x %Z). The %Z will lie between 4 to 10%. Example: A transformer's nameplate details are 25 kVA, 440V secondary voltage, 5% of percentage impedance, calculate the short circuit fault current.
Why do we measure prospective fault current?
A PFC test calculates the current that will flow in the event of an earth fault; i.e., Line to Earth. It is important that we conduct the tests to make sure that the protective devices installed within a circuit are rated at the correct breaking capacity.
Where is the highest value of PFC in an installation?
the source ofThe PFC will continuously be the highest at the source of the installation as the impedance/resistance is always the lowest there.
How do you find fault current in three phase?

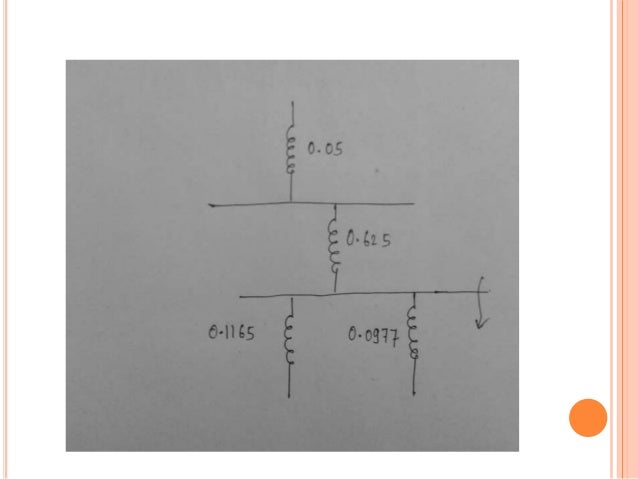

1:103:513 Phase Fault Calculation - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe have to first calculate the equivalent impedance at Point s 1 and s 2 and then draw theMoreWe have to first calculate the equivalent impedance at Point s 1 and s 2 and then draw the equivalent circuit. Along with the line impedance.
How are AIC ratings calculated?
Divide the FLC of the secondary of the transformer by the impedance. Example 2000KVA, 480V, 5.75% impedance. [2,000,000/(480*1.732)]/(. 0575) = 41,838 A.
What does Pfc mean in electrical terms?
PFC (power factor correction; also known as power factor controller) is a feature included in some computer and other power supply boxes that reduces the amount of reactive power generated by a computer.
What does IPF mean in electrical terms?
Prospective Fault Current (Ipf) is the general term used for the highest amount of current that will flow under fault conditions. On a single phase installation fault conditions can either be Prospective Earth Fault Current (PEFC) Line to Earth or Prospective Short Circuit Current (PSSC) Line to Neutral.
What does PSC stand for electrical?
The current which is likely to flow in a circuit if line and neutral cables are short circuited is called the prospective short circuit current (PSC). It is the largest current which can flow in the system. and protective devices must be capable of breaking it safely.
What is ICN in electrical?
The rated breaking capacity (Icu) or (Icn) is the maximum fault-current a circuit-breaker can successfully interrupt without being damaged. The probability of such a current occurring is extremely low, and in normal circumstances the fault-currents are considerably less than the rated breaking capacity (Icu) of the CB.
What is the NEC 110.24?
The National Electric Code (NEC) 110.24 (A) states: "Service equipment in other than dwelling units shall be legibly marked in the field with the maximum available fault current.
Why do we conduct short circuit studies?
A short circuit study is conducted so that the fault current can be calculated. This normally involves looking at the worst case scenario, which is the bolted three-phase fault condition. Based on this situation other fault condition can be approximated.
What causes fault currents?
Fault currents are caused by very low impedance short circuits. These may be shorts to ground or across phases. The resulting high current flow can result in overheating of equipment and conductors, excesses forces, and at times even serious arcs, blasts, and explosions.
How to calculate fault current?
Fault current calculations are based on Ohm's Law in which the current (I) equals the voltage (V) divided by the resistance (R). The formula is I = V/R. When there is a short circuit the resistance becomes very small, and that means the current becomes very large.
What are the different types of faults?
In an electrical system there are several types of possible faults: 1 A short circuit that results in the current bypassing the normal load. 2 A "ground fault" in which current flows into the ground. 3 In three-phase systems there may be a short between one or more phases. This type of fault typically creates the highest fault currents.
When is fault current calculation redone?
Any time there is a change in equipment the fault current calculation must be redone. This is specified in NEC 110.24 (B):
Which type of fault has the highest current?
Because the current flow was contained, the damage is typically limited. However, a bolted fault creates the highest fault currents. An arc fault results when there is not a solid connection, but conductors come close enough such that current jumps across the gap creating an arc.
Fault Current Calculations Are Required
Types of Faults
- In an electrical system there are several types of possible faults: 1. A short circuit that results in the current bypassing the normal load. 2. A "ground fault" in which current flows into the ground. 3. In three-phase systems there may be a short between one or more phases. This type of fault typically creates the highest fault currents. The fourth type of fault, an open-circuit fault, does no…
Sources of Content
- Before a fault current calculation can be performed, all of the possible sources of current must be identified. This can include some sources of current that may not have been considered. There are four possible sources of short-circuit fault current: 1. On-site electric generators: These are close and the fault current is only limited by the impedance of the generator itself and the electri…
Bolted Three - Phase Condition
- A short circuit study is conducted so that the fault current can be calculated. This normally involves looking at the worst case scenario, which is the bolted three-phase fault condition. Based on this situation other fault condition can be approximated. The fault current contribution from motors in the system is important. In many cases motors can contribute four to six times there …
