How to Install a Grab Bar on Drywall
- Turn on your stud finder and press it against your drywalled wall where you would like to install the grab rail.
- Mark the second mounting location in the same fashion. If mounting the grab bar vertically, the stud will be in line...
- Attach the grab bar to the wall. With the mounting flanges placed over the marks you made, screw...
How do you mount a grab bar to the wall?
If mounting the grab bar vertically, the stud will be in line with the first mark, but check just to be certain. Attach the grab bar to the wall. With the mounting flanges placed over the marks you made, screw the included screws into the flanges, through the drywall and into the wooden studs.
How do I install handicapped grab bars?
Similar to many home-improvement projects, installing handicapped grab bars starts with taking some measurements. Determine the drywall or plaster walls where grab bars will install, such as in a tub surround or a wall next to a toilet.
How do you drill a hole in a grab bar?
Reposition the grab bar and mark the holes over the new stud position. In most cases, the unused hole will be covered by the mounting plate on the grab bar. Once you are through the tile, to go through wood or cement board (behind the tile), change to a wood bit afterwards to finish drilling.
Can you put a grab rail on a drywall wall?
You may not know it, but almost anyone can install a grab rail even if your walls are drywalled. Drywall itself provides little purchase for screws to be secured to, but behind the drywall are strong wooden studs which make for an excellent mounting point.
Can grab bars be installed in drywall?
Grab bars can be installed on surfaces like drywall, tile, fiberglass, stone, concrete and wood paneling. For the most support, grab bars should be attached directly to the studs inside a wall.
How do you mount a handicap grab bar?
0:263:30Grab Bar Installation For An Accessible Bathroom - YouTubeYouTubeStart of suggested clipEnd of suggested clip3 screw positions on each flange. Making sure to are toward the top of the flange. And the third oneMore3 screw positions on each flange. Making sure to are toward the top of the flange. And the third one is toward the bottom drill pilot holes and secure with screws. Then position the covers.
How do you reinforce walls for grab bars?
Whole areas or walls can be reinforced as well. This is done by applying heavy plywood over a large area of studs to provide a base for the installation of grab bars in the future.
Will suction grab bars work on drywall?
There are a few limitations that suction grab bars present that are the reason we say they are unsafe to use on a constant basis. They must be placed on a dry, flat, non-porous and smooth surface. Not every shower or bathtub wall offers this. These will not work on drywall or painted walls.
Where should grab bars be located?
As per the ADA guidelines: grab bars should be provided on the side wall closest to the toilet (604.5). This will help someone with sitting or standing, or someone in transferring from a wheelchair onto the toilet seat. there should also be a grab bar placed on the wall behind the toilet.
What angle should a grab bar be installed?
Install one (1) 90 degree angle grab bar on each side, which combines the horizontal and vertical grab bars. Install one (1) 120 degree angle grab bar on each side, which similarly combines a horizontal and vertical grab bar at a special angle. Install one (1) straight grab bar on each side, at a diagonal angle.
How much weight can a grab bar hold?
250 lbsWhat is the ADA compliant weight capacity requirement for grab bars? According to federal ADA guidelines, it is required for a grab bar to be able to support up to 250 lbs (114 kgs) when installed in public places. This is because a grab bar is meant to support the user's full body weight.
What are the ADA requirements for grab bars?
Grab bars: Each side of the stall should have one grab bar. Each grab bar should be at least 42 inches long and start no more than 12 inches from the rear wall. The top of the grab bars should be 33-36 inches from the floor. Size: Ambulatory accessible stalls should be at least 60 inches deep.
Should grab bars be angled?
2:294:45KOHLER Grab Bars - Recommended Mounting Locations and Installation ...YouTubeStart of suggested clipEnd of suggested clipUsed when sitting down and standing up so it is recommended to pair a horizontal and vertical grabMoreUsed when sitting down and standing up so it is recommended to pair a horizontal and vertical grab bar together here or install a horizontal bar at a 45 degree angle.
Are adhesive grab bars Safe?
The type you bought has an adhesive mounting system that is far better. Not only is there no need for the clunky suction fittings, but these adhesive-mounted bars also meet consumer safety and ADA standards for grab bars rated for up to 250 pounds.
Are suction type grab bars Safe?
Yes, suction grab bars are safe, however, they do have their limits and installation obstacles.
What makes a grab bar ADA compliant?
Both types of bars have to be between 33 and 36 inches above the finished floor. Side wall grab bars should be at least 42 inches in length, with one end 12 inches or less away from the wall behind the toilet, and one end at least 54 inches away from that wall. Rear wall grab bars must be at least 36 inches long.
How high should vertical grab bars be installed?
Vertical Grab Bar Height: Vertical grab bars should be placed 39 to 41 inches above the floor. Horizontal Grab Bar Height: Horizontal grab bars should be placed 33 to 36 inches above the floor.
How do I install a shower grab bar without studs?
0:513:52Grab Bar Without Studs - YouTubeYouTubeStart of suggested clipEnd of suggested clipUsing an inch and a quarter hole saw I place the pilot bit on the center punch mark and bore a holeMoreUsing an inch and a quarter hole saw I place the pilot bit on the center punch mark and bore a hole for each mounting. Bracket. This oversized wall anchor is the key component in the secure mound.
How do you install grab bars on porcelain tile?
0:377:23How To Install Bathroom Grab Bars - YouTubeYouTubeStart of suggested clipEnd of suggested clipFor your grab bars you're going to install the templates for your wing it's as I'm doing here andMoreFor your grab bars you're going to install the templates for your wing it's as I'm doing here and there's two obviously one on each side. And then once you get those installed.
ADA Specifications
The American with Disabilities Act ( ADA) is a regulation that guarantees the equal treatment of people with disabilities. All public and commercial facilities in the United States are obliged to meet the ADA standards.
How to choose the right grab bar
Grab bars should be strong and sturdy. Also, they should be resistant to rust, mold and mildew. In these cases, stainless steel is the material par excellence. This material withstands high loads and temperature changes without deforming. Furthermore, its smooth surface prevents the accumulation of limescale and other debris.
Tools and materials for handicap bar installation
To install a grab bar the right way, you should first have the correct tools and materials at hand. Here’s a list of what you’ll need:
Choose the right place
Grab bars should be installed in a safe place inside the shower. They should be anchored to the wall studs to guarantee maximum stability and support. Also, they should be located at a suitable height so every family member can easily reach them.

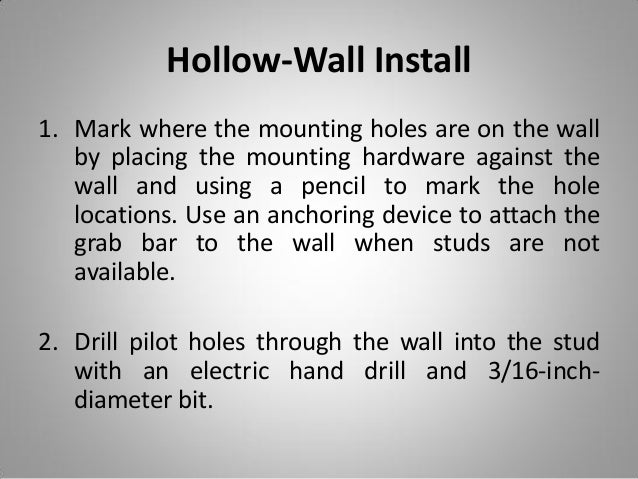

Install Handicap Grab Bars without Studs
First of all, put the grab bar in place. Then mark the points where the mounting holes touch the shower wall.
Useful Tips
When drilling tiled surfaces, don’t use regular twist drill bits because they’ll break very easily. Better use glass-tile drill bits 0.25-inch in diameter to drill studs or 0.5-inch in diameter to install wall anchors.
Conclusion
As you can see, you don’t need to be an expert to install handicap grab bars yourrself. First find the right drill bit depending on the type of material to be drilled. Use a professional stud finder so you don’t waste too much time looking for wall studs. Above all, make sure to meet each of the ADA specifications.
Know Before You Shop for Grab Bars
Tile might seem fragile, but it’ll seem like an impenetrable barrier to standard twist drill bits, which will crack your tile. Instead, use a 1/4-in glass/ tile drill bit for mounting bars over studs or a 1/2-in glass/tile drill bit for installations using special wall anchors. (Odds are you’ll need both.)
Where to Install Grab Bars
Try climbing in and out of your tub or shower—minus the water—to get an idea where grab bars should be placed, and mount them where they work best for everyone using that bathroom. Always mount grab bars into a stud that sits behind the wall. Or, if the stud can't be located, use an anchoring device.
Install Grab Bars in Your Bathtub Over Studs
Follow these steps if you're attaching the grab bars to wall studs. If no studs are available, follow the instructions in the next section: Mount Your Grab Bar with Wall Anchors.
Mount Your Grab Bar With Wall Anchors
The grab bar directions call for three screws per flange, which works fine for mounting on studs. But drilling that many 1/2-in holes in plain drywall can weaken the wall enough for the mounting area to break off. Instead, use two heavy-duty toggle-bolt anchors placed in the upper half of the flange with the metal channels positioned vertically.
We Can Help
Learn more about Lowe’s Livable Home products and installation services in select markets.*
How much weight can a grab bar hold?
Installed properly, good-quality grab bars are specifically manufactured to hold up to 250 pounds, giving you security and safety in your shower or tub. You can learn where to position grab bars and how to anchor them so they’re rock-solid.
What to do if grab bar doesn't have gasket?
If the grab bar doesn't have a gasket, put a little bit of silicone caulk behind and/or around the flanges. You don't want any water to get behind the walls.
How high should a shower grab bar be?
In general, the bar needs to be about waist high for the shower users. The bottom of the bar should be 6" to 10" (15 cm to 25 cm) above the top of the tub. If the wall is not tiled, use a stud finder to locate the two studs to screw the grab bar to.
How many mm holes do you drill into a stud?
Most anchors will recommend the appropriate hole size to drill. If mounting to wall studs, drill through the tile with a tile bit, then drill 1/8" (3 mm) holes into the stud with a wood bit.
Can a stud finder be used on tile?
Tiled shower walls are almost always covered by cement board, and a stud finder cannot detect studs through it and the tile . The grab bar will then be mounted using wall anchors in the cement board, as grab bars normally are.
Can you use a stud finder to find the studs above the tile?
If the wall is tiled, but not all the way to the ceiling, you could use a stud finder to find the studs above the tile. However, if there is cement board where you will mount the grab bar, you do not need to mount to the wall studs. If the wall is tiled to the ceiling, a stud finder probably could not be used.
Can grab bars be screwed into studs?
You must use 2" heavy screws, and they must be screwed into wall studs. The plate at each end of a grab bar has three holes for screws, so you must screw in one or two of the screws at an angle for three screws to go into a 2x4 wall stud. Thanks! Yes No.
How do handicap toilet grab bars work?
If you know how to install handicap toilet grab bars, you can prevent accidents from happening. By adding grab bars into your bathroom, you're minimizing the risk of falling and getting hurt in your home. If safety and protection are something that you always consider, it's time to find the best method to reduce your loved ones' injuries. Find out more about Grab Bars.
What is the diameter of a grab bar?
They come in different sizes; however, the most utilized bars are 18 inches long or 24 inches long and typically have a diameter of 1.5 inches. Texture and shape are added for protection to specific bars.
Is a grab bar linear?
These grab bars are not for your grandparents. They aren’t linear; rather, they have a wave pattern (it moves up so down), making things harder for others to catch and hang on to.
How to install a screw tip on a drill?
Install a screw-tip attachment in the drill. Hold outward pressure on the bar and tighten each toggle bolt in equal increments until the plates fit against the wall. Align the ends of the bar at the 34-inch marks, and tighten the bolts securely.
What is a handrail for the disabled?
By William Machin. Handrails for the disabled offer support when climbing exterior stairs. Shorter handrails, also known as grab bars, offer support when getting in and out of a bathtub. In some cases, grab bars are installed at several walls in bathrooms to assist the elderly.
Can you use toggle bolts in plaster?
Do not use toggle bolts in drywall or plaster or the bars may pull loose under weight. If necessary, enlist a contractor to install blocking in the wall where the plates attach and patch the drywall or plaster before installing the grab bar. Writer Bio.
When installing a straight grab bar, should it be horizontal?
If you're installing grab bars in a private bathroom, they can be positioned anywhere that makes them useful for the people using the bathroom.
How much weight can a grab bar hold?
Grab bars, on the other hand, can support 250 pounds or more.
How many screws do you need to secure a grab bar?
If the bracket does not overlap a stud and you're installing the grab bar on drywall, secure it with only two screws instead of three to avoid weakening the drywall with too many holes.
How high should a grab bar be on a bathtub?
Bathtubs: A bathtub without a permanent seat should have two 24-inch horizontal grab bars on the side wall, located 8 and 10 inches above the rim of the tub. There should also be a 12-inch bar on the control wall and a 12-inch bar on the back wall, each at a height of 10 inches from the rim. Showers: Shower grab bars can be straight, circular ...
Why do we need grab bars in the bathroom?
Grab bars prevent accidents on slippery bathroom floors. Image Credit: Vive Health. Everyone who uses the bathroom can benefit from grab bars, not just seniors and handicapped people. The tub, shower and bathroom floor all get wet, and a wet surface is hazardous. If someone slips, they may try to break their fall by grabbing onto a towel rack, ...
How big of a hole do you need to drill for a wood screw?
The size of the hole depends on the anchor, but it's usually about 1/2 inch in diameter.
How long should a toilet bar be?
Here are the key ADA requirements: Toilets: The side bar should be 42 inches long and extend at least 54 inches from the back wall. The rear bar should be 36 inches long and extend 12 inches to one side of the toilet centerline and 24 inches to the other side.
