How does a gas grill ignition system work?
The electronic ignition sets off a spark when an ignitor button is pushed. The ignition rod is placed in the gas flow that leads to the grill burners. The gas must first be turned on before the ignition button is pressed, or the grill burners will not light. Once lit, the flame is adjusted higher or lower for optimal cooking heat.
How does a spark igniter work on a barbecue?
Let’s find out! A spark igniter is a device that uses a battery to create sparks, which are then used to ignite the fuel in a barbecue. The spark igniter creates an electric arc between two electrodes.
What is the ignition system for barbecues?
This innovative ignition system for our barbecues shoots a jet of flame to light each burner individually. Single-handed ignition of your grill is worry-free, requiring no extra batteries or effort. With an ignition system for each burner, dependability is increased exponentially. Imagine lighting a barbecue with just a twist of the wrist.
How does the lighter in a BBQ grill work?
How does the lighter in a BBQ grill work? A BBQ grill ignitor. A BBQ lighter uses something called piezoelectricity to generate a nice spark that lights the grill. "Piezo," in Greek, means "pressure," and you find piezoelectric materials in a number of different places. For example, all of these products depend on the piezoelectric effect:
How does a BBQ grill igniter work?
The “click” igniter utilizes electrode prongs that generate a spark near the burners, thus turning the grill on. For either the battery or the 110v spark ignition, there is typically a separate button on the front panel to start the sparking, whereas the knobs strictly control the gas flow.

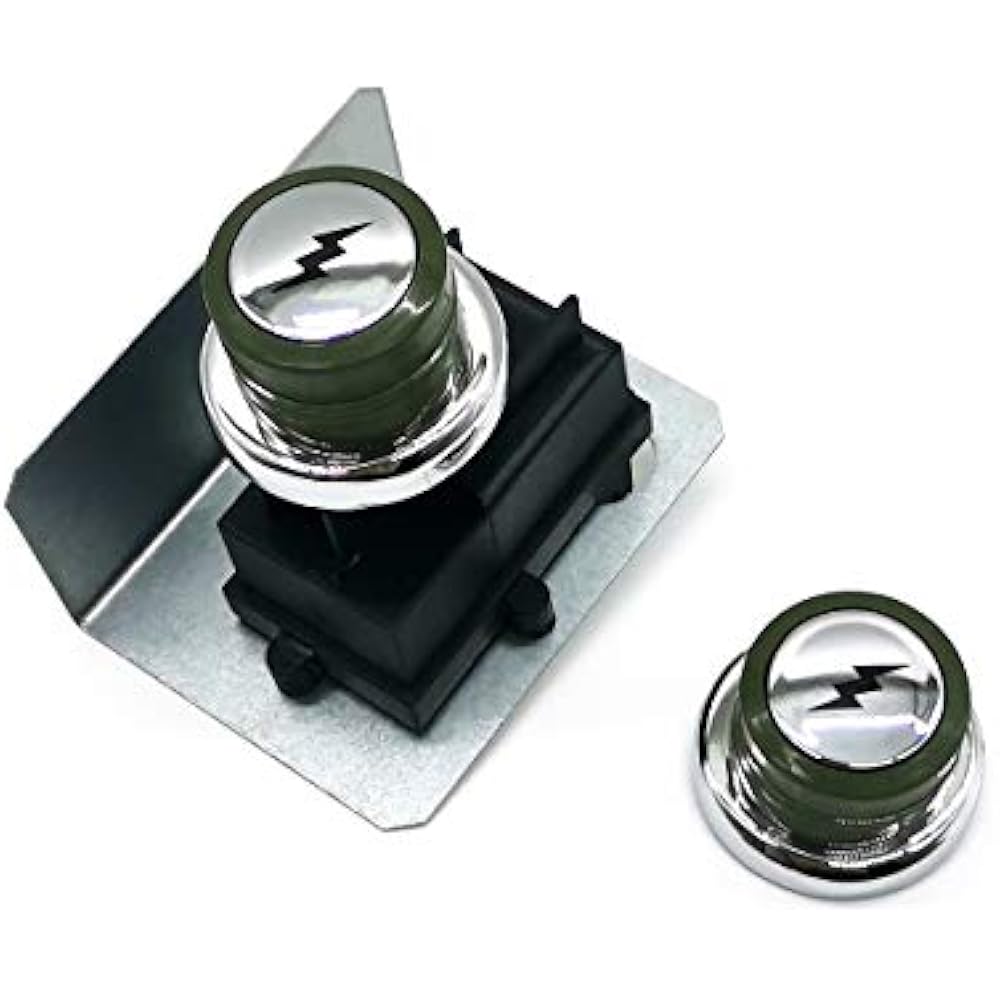

How does a push button igniter work?
It consists of a small, spring-loaded hammer which, when a button is pressed, hits a crystal of PZT. This sudden forceful deformation produces a high voltage and subsequent electrical discharge, which ignites the gas.
Do grill igniters have batteries?
0:101:03Outdoor Gas Grill: How to Fix the Igniter by Replacing the BatteryYouTubeStart of suggested clipEnd of suggested clipYou need a battery. Until so to replace the battery or to put a new battery in your electronic.MoreYou need a battery. Until so to replace the battery or to put a new battery in your electronic.
How do you fix an igniter on a BBQ?
0:111:39Fix Your Electric Igniter in 2 Minutes - YouTubeYouTubeStart of suggested clipEnd of suggested clipMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you mayMoreMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you may have to use a pair of pliers you should be able to get it with your fingers. Pull it out replace.
Why is my igniter not clicking?
DOES THE IGNITER MAKE A CLICKING NOISE? Make sure that the igniter is making a clicking noise when you press the igniter button. If it doesn't click, then the wires may not be connected properly, the battery may be dead or installed incorrectly, or the igniter module may have failed.
How do I light my grill if ignitor is broken?
0:000:58How to Light Your Grill Manually - YouTubeYouTubeStart of suggested clipEnd of suggested clipTurn on the gas to the burner closest to the hole and insert the lid match. After the first burnerMoreTurn on the gas to the burner closest to the hole and insert the lid match. After the first burner is lit turn on the adjacent burners to cross light.
How do you test a grill igniter?
Press on the ignitor button on the grill's control panel a few times, while watching the ignitor in the mirror. If you see a spark with each click, the ignitor is functioning properly. If no spark is visible, then the ignitor and ignitor wire need to be replaced.
How do I clean my grill igniter?
1:183:13Jackson Grills - How to Clean the Barbecue Ignition - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is the burner tube. And that's where the flame shoots out to ignite the burner. All I was doingMoreThis is the burner tube. And that's where the flame shoots out to ignite the burner. All I was doing was putting this down the inside of the tube. Twisting. Around pulling it out.
How does a battery powered BBQ igniter work?
When the rod is placed into a gas flow and sparks, the gas ignites. With a spark generator, the circuit is closed by either pushing a button or turning a knob. Electricity from the battery will flow through the wires and a spark or sparks will be generated between the electrode ignition rod and a ground plate.
Why do BBQ igniters fail?
Igniters are frequently subjected to dirt and debris from cooking fumes, grease, and food particles. If the electrodes are covered in gunk from months of grilling, your igniter won't be able to spark. Dirty electrodes are easy to fix—all you need to do is clean them using a cotton swab and a bit of rubbing alcohol.
Can you replace igniter on grill?
To replace the igniter button you have to remove the old one by unscrewing it from the BBQ housing and unplugging the wires that lead to the burner tubes. You install the replacement part in reverse by attaching the burner tube wires and then screwing it all into the front of the BBQ again. That's it!
Why does my gas grill not ignite?
Dirt and debris may be blocking the grill's burners. A clogged or damaged burner could be the culprit keeping your gas grill from igniting. Over time, dirt, grime, and even insects can clog the tubes and ports beneath the burners, leaving them less likely to ignite.
How do you wire an illuminated push button?
6:4011:073 ways to wire push button latching 12v switch with LED - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo for first off we'll do the switch in the pushed in on position. So we'll take the blue wire andMoreSo for first off we'll do the switch in the pushed in on position. So we'll take the blue wire and connect the blue without shorting everything out here take the blue and connect it to our load.
How do you turn the ignition on without starting the push start?
0:141:18How to Turn on the Ignition Without Starting the Engine on Newer BMW ...YouTubeStart of suggested clipEnd of suggested clipAnd then normally what people would think of doing to turn on the ignition. Without starting theMoreAnd then normally what people would think of doing to turn on the ignition. Without starting the engine on a push button system is without pressing the brake.
Do piezo igniters wear out?
How long does it last? While matches and lighters must be replaced or refilled, matchfree ignition systems are built to last for life. While malfunctions do occur, the average piezo lighter lasts for a minimum of ten years, far longer than even a whole box of matches!
How does an electronic ignition work?
The electronic ignition sets off a spark when an ignitor button is pushed. The ignition rod is placed in the gas flow that leads to the grill burners. The gas must first be turned on before the ignition button is pressed, or the grill burners will not light.
How does a spark generator work?
With a spark generator, the circuit is closed by either pushing a button or turning a knob. Electricity from the battery will flow through the wires and a spark or sparks will be generated between the electrode ignition rod and a ground plate.
What to do if piezo ignition doesn't work?
If the piezo electronic ignition no longer works after the ignition rod has been cleaned, the unit must be replaced. There are no user-serviceable parts on a piezo electronic ignition. Alternatively, if you have a spark generator electronic ignition that does not work, replace the batteries after cleaning the ignition rod, suggests Family Handyman. If the spark generator still does not work, the unit must be replaced.
How to clean a starter rod on a grill?
However, the rods can be cleaned, using rubbing alcohol on the tip of a cotton swab. Gently rub the swab over the ignitor rod tip and attempt to start the grill. You may have to clean the tip several times before the starter will work.
How does a piezo starter work?
According to Cheap Humidors, in the case of a piezo starter, a small hammer inside of the ignitor will forcefully contact a quartz crystal. This action causes a spark to jump off off of the ignition electrode rod onto a ground plate. When the rod is placed into a gas flow and sparks, the gas ignites. With a spark generator, the circuit is closed by ...
What is spark generator?
A spark generator uses the voltage from a battery to generate a spark. These have also become a common source of igniting a grill. If there is no battery pack on your grill, you have a piezo electric starter. Alternatively, if there is a battery pack on your grill, you have a spark generator.
Can you clean an ignition rod on a grill?
If the ignition rod gets covered with contaminants, it won't spark. However, the rods can be cleaned, using rubbing alcohol on the tip of a cotton swab.
