Boiler fill valves reduce the municipality water pressure to a suitable level for the boiler system to operate and heat the water properly. If the pressure in the system degrades than its ideal pressure, the valve automatically opens, and after coordinating the standard system pressure, it closes automatically.
What does the automatic water fill valve do on a boiler?
This automatic water fill valve is not adjustable by the consumer and is factory-set to add water to the heating boiler whenever the system pressure falls below 12 psi. The tank below the red arrow is, of course, an expansion tank. We discuss expansion tanks and their troubleshooting or maintenance
Why does my boiler fill valve keep tripping?
The main trick with the boiler fill valve is adding enough water pressure to the system to achieve an acceptable static pressure for the system to operate efficiently. Too much pressure will cause the pressure release valve to trip and not enough pressure will leave the house without heat.
How does a toilet fill valve work?
Inside the toilet tank is a system of interrelated parts working to ensure you always have enough water to keep the toilet clean. Among the parts in this setup is the toilet fill valve. It works by letting in water into the toilet tank after flushing and, when the tank is filled to a chosen level, sealing off the water inlet.
How does a water pressure reducer work on a boiler?
In this position water is fed into the boiler at street pressure. When the valve is "down" in the "closed" position, IF the shutoff valve before the pressure reducer is open, water is fed to the boiler if its pressure drops below the valve's pressure setting (adjusted by the lock-nut and screw on the valve top).

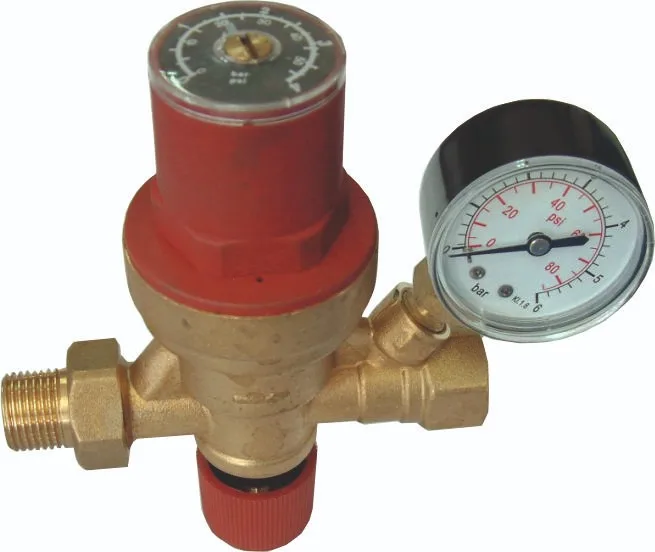

How does an automatic fill valve work?
It is installed on the water inlet piping in sealed heating systems, and its main function is to maintain the pressure of the system at a set value, automatically filling up with water as required. The valve is pre-adjustable, meaning it can be set to the desired pressure value before the system charging phase.
Should boiler feed valve be open or closed?
To fill the system, open the shut-off valve upstream of the Boiler Feed Valve. This valve must always be kept open when the system is in operation.
How do you adjust a boiler autofill valve?
1:091:58Boiler Auto Fill Valve | BIOTHERM SOLUTIONS - YouTubeYouTubeStart of suggested clipEnd of suggested clipBy backing out this nut and then opening opening the valve. So tightening this down is to increaseMoreBy backing out this nut and then opening opening the valve. So tightening this down is to increase the pressure and backing it out as to decrease the pressure.
What happens if filling loop left open?
A filling loop valve is open – Most hot water systems have a filling loop that connects the system to the water supply. If the valve of this filling loop is left open, even slightly, the system continuously adds more water and this can increase the boiler pressure.
How do you know if a boiler valve is open or closed?
A prime suspect for high pressure is these valves being left open accidentally. They turn by 90 degrees, and if the handle is aligned with the pipe, it means it's open. Make sure they are both closed – your system circulates its water, and rarely needs topping up.
Why do I have to keep filling my boiler up with water?
The most common reasons for a boiler to lose pressure are: Releasing air or water from a radiator when bleeding it. A leak from the appliance or on the system most commonly from radiator valves or system components.
How do you adjust autofill valves?
2:263:38Constant High Water Level - How to Fix with the Float Tec Float ValveYouTubeStart of suggested clipEnd of suggested clipSo the water level here is a bit high but you can see that I can adjust it here by moving itMoreSo the water level here is a bit high but you can see that I can adjust it here by moving it counterclockwise you see the float raising up. And then if I turn it clockwise.
What should the pressure on a boiler be?
between about 1-2 barsWhat should boiler pressure be? Normal boiler pressure should be between about 1-2 bars. The ideal boiler pressure is often marked as a range in green on the gauge itself.
How do I adjust the water pressure on my boiler?
Locate the filling loop, often found on the underside of your boiler. Open both valves to allow water into your heating system. Keep an eye on the pressure gauge and close the valves when the pressure reaches 1.5 bar. Switch on your boiler and reset the fault code (if necessary).
Can a boiler lose pressure without a leak?
Can a boiler lose pressure without a leak? Yes! A boiler can definitely lose pressure without a leak. A leak is the most common cause of a boiler losing pressure, but it could also be caused by an expansion vessel problem, a pressure relief valve problem, a filling loop problem, or by bleeding the radiators.
Should both valves on filling loop be closed?
After use the valves on the filling loop should be closed, the metal braided filling loop removed and the valves capped. The majority of people don't do this so there is always a chance that the valves can be opened accidentally or be faulty.
How do I know if my filling loop is closed?
Filling loops can come in different designs and can be detached from the boiler when not in use. With the black levers in this position the valves are OFF/CLOSED. Find the filling loop and check that both ends are securely attached.
What is a boiler feed valve?
Boiler feed valves provide make-up water to the system in the event of system leaks and allow rapid system fill and sustained air purge flow. Boiler feed valves provide make-up water to the system in the event of system leaks and allow rapid system fill and sustained air purge flow.
What is thermal shock in boilers?
Thermal shock occurs when cold water enters a hot boiler. When a boiler is running at or near full power, it is full of boiling water, so the sudden introduction of cold water will cause a serious reaction with the hot water currently in the boiler. This potentially powerful reaction is called thermal shock.
What is the difference between a ball valve and a butterfly valve?
Ball valves are some of the simplest types of valves, and butterfly valves work in a similar matter. Needle valves are usually the most precise flow control valves, as they offer more concise flow control. One of the main advantages of using this type of valve in a boiler is that it is an easy solution to flow control.
What is flow control valve?
Follow Us: The flow control valve on a boiler regulates the flow of hot water to the system. It is part of the hot water supply side of the boiler and one of the major components of a hot water boiler. A basic flow control valve opens and closes to adjust the rate of water in the boiler.
What are valves made of?
Depending on the system, these valves may be made of a variety of materials, including carbon steel, brass, zinc or stainless steel.
Why do I keep having to top up my boiler?
The leak will either be on your central heating (one of the joints or radiators), or one of the boiler’s components. Faulty expansion vessels and pressure release valves are likely suspects inside the boiler.
How to check boiler pressure?
If the pressure is too low or keeps dropping, repressurising your boiler and central heating system is very easy: 1 Firstly, identify the pressure gauge on your boiler. Most combi and system boilers require a pressure of 1 – 1.5 bar in order to operate. 2 Open the valve or valves on the filling loop. You should hear the sound of rushing water – the system is filling up. You should also see the needle on the pressure gauge rise. 3 When the needle indicates the target pressure, close the filling loop. 4 Use the controls on the front panel of your boiler to clear any low pressure fault codes. This may or may not be necessary, depending on the make and model of your boiler. 5 Congratulations – you have heating and hot water again!
What is a filling loop?
The filling loop itself consists of either a rigid section of pipe, or a braided hose. A filling loop can be either part of the boiler itself, or it can be fitted close by. Filling loops usually have a stop valve at one end and a double check valve on the other.
How to repressurise a boiler?
If the pressure is too low or keeps dropping, repressurising your boiler and central heating system is very easy: Firstly, identify the pressure gauge on your boiler. Most combi and system boilers require a pressure of 1 – 1.5 bar in order to operate. Open the valve or valves on the filling loop. You should hear the sound ...
What happens if your boiler pressure keeps dropping?
Faulty expansion vessels and pressure release valves are likely suspects inside the boiler. Either way, if your boiler pressure keeps dropping, you should get the leak fixed pronto. Regularly topping up the system with oxygen-rich mains water will encourage internal corrosion and the build-up of sludge.
Why is a central heating system temporary?
The requirement that the connection is temporary is because Water Regulations prohibit the backflow of water into the mains, which would risk contaminating it . The risk of contamination from a central heating system is even greater because of the corrosion and sludge which can build up inside ...
How to tell if a water pressure gauge is filling up?
Open the valve or valves on the filling loop. You should hear the sound of rushing water – the system is filling up. You should also see the needle on the pressure gauge rise.
What is the proper water pressure setting for a pressure-reducing valve or water feeder valve on a Hot Water Heating System?
What is the normal operating pressure of a hot water heating system boiler ?
What is a back flow preventer?
The back-flow preventer makes sure that water from inside the heating boiler cannot flow backwards into the building (and community) water supply. This prevents back-contamination of potable water piping from the boiler should the building water pressure fail.
Why does a hydronic system have a circulator pump?
Because a hydronic heating system's circulator pump has little "lift" capacity (it just pushes the water around the loop of boiler and heating piping and radiators), the heating system depends on its internal water pressure to lift hot water to radiators (baseboards, or convectors) on upper floors in the building.
How much pressure does a hydronic system need?
Hydronic heating systems (hot water) typically operate at about 12 psi cold and see a pressure increase to somewhere just under 30 psi when the system is at maximum temperature.
What is automatic water feeder?
On these older systems the "automatic water feeder" is often a bell-shaped device which opens and sends makeup water into the heating boiler and its piping whenever the heating system's internal water pressure falls below a normal level (perhaps 12 psi when the boiler is cold).
Why do you need to keep the water supply valve shut?
B&G wants you to keep the boiler water supply valve shut except during service - as a precaution that allows easy detection of a boiler leak by noticing the reduced water pressure in that system.
What is the pressure of an automatic water feed valve?
The automatic water feed valve reduces the incoming water pressure from the building supply side down to (typically) 12 psi. That's because the normal in-boiler water pressure, when the heating boiler is cold, is about 12 psi in a normal residential system.
What is a Glycol Make-up Unit?
Where freeze protection is a concern, we utilize a Glycol Make-up unit…inlieu of a Fill Valve. GMU’s are filled with premixed glycol and a pressure switch activates a pump to automatically + accurately control the minimum system fill pressure requirements. CHC has several options available for your system and glad to assist with sizing + pricing inquires.
How much pressure should I use for a basement boiler?
Note: If the Boiler was at the Top of the system, we’d want to see 38 psi (26 + 12) Fill Valve pressure in the basement.
Where is the boiler located in a 5 story dorm?
Let’s take a look at a quick example. A 5-story Dormitory with the boiler located in the basement.
What is a Toilet Fill Valve?
The toilet fill valve is a series of interconnected parts inside the toilet tank that’s responsible for controlling the water flow that refills the tank.
What is a float valve?
Internal Float Type Fill Valve. The internal float fill valve is named so as it has an internally floating mechanism with a small floater and lever to open and close the water inlet in the toilet tank. Given that the water inlet is also inside the fill valve, it’s very quiet and has been named the QuietFill valve.
How to adjust water in a toilet tank?
To adjust the amount of water that goes into the toilet tank, you bend the brass rod connecting the floating ball to the diaphragm up for more water and down for less water.
What is a plunger valve?
The plunger/piston fill valve uses a plunger or piston system to open and close the water inlet into the toilet tank. The inlet is the bottom-fill type which means that water is injected into the tank from below rather than from above.
How does a toilet floater work?
When the toilet is flushed, the floater moves downwards and moves the brass rod with it. This brass rod presses on top of the diaphragm which then opens the water inlet into the toilet tank. As the water fills up, it moves the floating ball upwards with it. The ball moves the brass rod which releases the pressure on the diaphragm.
How does a brass rod work in a toilet?
The brass rod moves the piston which opens the water inlet. As the water flows into the toilet tank and its level raises up, the ball is raised as well as the rod it is attached to. The rode raises the piston and slowly closes it until it’s completely closed when the tank is full.
What is the newest type of fill valve?
These are the most known types of fill valves, how they work and how to adjust them when you need more or less water in the toilet tank. The internal float fill valve is the newest of them all and is gaining lots of popularity.
