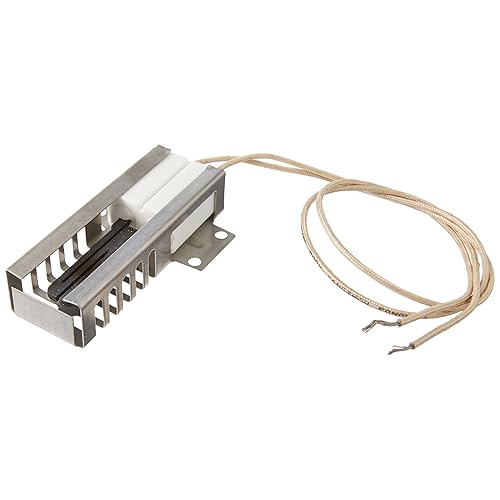

The gas igniter is an electrical device that is used to ignite the gas burner. The heating of the oven starts when current supplied to the igniter turns on a glowing filament inside it, which burns at high temperature; as a result, the gas is ignited.
How does an ignitor work on a gas stove?
Electrical current passing through the ignitor operates a small heater that warps an internal piece of bimetal to open the gas valve. As long as the burner flame continues to heat the ignitor, its electrical resistance remains low enough to keep the valve turned on.
What does it mean when your oven Ignitor is glowing?
As long at the ignitor is being powered, the control system (hydraulic thermostat or electronic control) is doing its job. The ignitor, while glowing, may not be allowing the proper amount of current to flow through it to the oven gas valve for it to open.
Where is the bake ignitor on a gas oven?
Note: The bake ignitor is normally hidden under the oven floor, which is easily pulled up and removed. There's usually a steel 'flame spreader' on top of the burner, which is also removed to access the bake ignitor. In ovens with an exposed broil ignitor (up on the oven ceiling), it's possible to confuse the two and replace the wrong one.
How does a gas oven work?
Let's look at how a gas oven works. The main components of a gas oven system are the safety valve, the burner assembly, the igniter, and some form of control. The control can either be a thermostat that we all are accustomed to, or an electronic control. The Burner Assembly
How do you test a gas oven igniter?
1:272:18Oven Not Heating? Igniter Testing – Gas Oven Troubleshooting - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow use a probe to touch one of the igniters terminals and the second probe to touch the otherMoreNow use a probe to touch one of the igniters terminals and the second probe to touch the other terminal. If the meter reading shows a result between 0 and 1,100 ohms of resistance.
How do I know if my oven ignitor is bad?
0:000:29Testing a faulty ignitor on your range or oven. Troubleshooting a gas odor.YouTubeStart of suggested clipEnd of suggested clipA faulty igniter can cause a poor air-to-fuel mixture. And create a gas smell while running the ovenMoreA faulty igniter can cause a poor air-to-fuel mixture. And create a gas smell while running the oven.
What causes oven igniter failure?
An oven igniter can fail when it's worn out, causing it not to draw enough current to open the gas valve and ignite the gas. The solution is to replace a worn out igniter — there may be some other issues with your oven system, but you would have found them at this point.
Why does my gas oven igniter glow but no flame?
Oftentimes, an oven igniter that worn out and lost efficiency or a faulty gas valve are the reasons why the igniter is glowing but no flame.
Can you manually ignite a gas oven?
Answer: No, this is not possible due to the gas being controlled by the gas safety valve. You need the ignitor to be working properly before gas is allowed out of the gas safety valve.
How much does it cost to replace a gas oven igniter?
between $150 and $300The cost to replace your gas stove igniter is between $150 and $300. You might need a replacement if your stovetop won't stop clicking, the pilot light goes out or your burner won't light.
How long do oven igniters last?
Even after the burner lights up, the HSI is on the entire oven cycle. If you do a lot of baking you can expect to live two to three years. You might not be able to find an oven with a pilot in a commercial range/oven.
How do you fix a gas oven igniter?
0:211:29Replacing an Oven Igniter in a Gas Range - YouTubeYouTubeStart of suggested clipEnd of suggested clipPull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out ofMorePull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out of the oven plug. The new igniter into the wire harness.
Do gas stove igniters wear out?
The igniter on your gas oven is a fundamental part when it comes to heating your oven up. A gas oven igniter works by sparking and heating the gas emitted from the oven, so without it, the oven will not be able to produce heat. However, as so much rests on this little igniter, they are prone to a bit of wear and tear.
How long should it take a gas oven to ignite?
approximately 30 to 45 secondsAnswer: Gas oven burners ignite in approximately 30 to 45 seconds. The infrared broil burner will light within 45 seconds. If it takes much longer than this to ignite, the burner may be experiencing delayed ignition, refer to Gas Oven Delayed Ignition for more information.
Why does my gas oven take so long to ignite?
A: The likely issue is a weak or failing oven igniter. Heat resistance igniters can lose resistance as they get hot over time and won't send enough resistance to the gas valve to allow the main valve to come on. This intermittent starting can happen when the igniter is getting weak and before it goes completely out.
How do I clean the igniter on my gas stove?
The igniter is situated at the gas orifice, which is often at the back of the oven. Use the toothbrush and a paste of baking soda and water or a 50/50 vinegar solution to clean the surface of the igniter. Avoid cleaners with bleach, ammonia or any other chemical that could produce noxious fumes.
Can I clean my gas oven igniter?
Clean the igniter with a toothbrush to remove dirt and debris. Gently scrub the surface of the igniter with the toothbrush and softly blow on it when finished to remove the debris. This will facilitate better sparking.
How long do oven igniters last?
Even after the burner lights up, the HSI is on the entire oven cycle. If you do a lot of baking you can expect to live two to three years. You might not be able to find an oven with a pilot in a commercial range/oven.
How do I fix my oven igniter?
0:211:29Replacing an Oven Igniter in a Gas Range - YouTubeYouTubeStart of suggested clipEnd of suggested clipPull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out ofMorePull the igniter forward and unplug the wire harness from the igniter. Pull the old igniter out of the oven plug. The new igniter into the wire harness.
Why does my gas stove work but not my oven?
If the gas igniter is working, the problem might be that the gas elements or burners are blocked. The easiest way to check them is to take them out and check that they aren't blocked in any way. If they are, give them a clean and then put them back into the oven and see if this solves the problem.
What is an ignitor in a gas oven?
The Gas Oven Ignitor. Ignitors used on gas ovens today need to be able to handle very high temperatures. They are made of silicon carbide making them capable of dealing with the intense heat. They are called ignitors but in reality they are electrically in the circuit anytime the burner is burning not just at ignition.
Why does the gas in my oven flex?
The increase in current flow within the circuit heats the bimetal inside the oven safety valve causing it to flex just enough to allow gas to flow into the burner assembly. Once the gas passes through the burner assembly and comes in contact with the now glowing red hot ignitor it ignites.
What is the bracket on a gas burner?
Most of the time the burner assembly has a bracket attached where the ignitor is mounted. This maintains the proper distance between the ignitor and the burner assembly to ensure proper ignition of the gas.
What is a burner assembly?
The burner is simply an aluminum tube that has been machined and drilled with precise outlets spread along the length of the tube to allow the flame to burn from one end of the burner, sometimes in the front and down the other side.
How does an oven safety valve work?
Oven safety valves used on today's modern gas ranges are designed to prevent gas from flowing to the burner assembly in the event that the igniter is not hot enough to ignite the gas, or if no electricity is present. Inside the oven safety valve is a strip called a bimetal that when not heated forces the gas valve closed. As mentioned before the igniter is electrically in series with the oven safety valve. Electricity flows from the control whether that be a thermostat or an electronic control whenever the oven is requesting a higher temperature. The electricity enters one side of the safety valve passing through the bimetal. When it comes out the other side it passes directly through the oven ignitor. As the oven ignitor heats up its resistance goes down causing the current flow in the circuit to increase. The increase in current flow within the circuit heats the bimetal inside the oven safety valve causing it to flex just enough to allow gas to flow into the burner assembly. Once the gas passes through the burner assembly and comes in contact with the now glowing red hot ignitor it ignites. As long as electricity is flowing through the igniter and the igniter is drawing sufficient current, the bimetal in the oven safety valve will stay flexed open allowing gas to flow.
What are the components of a gas oven?
The main components of a gas oven system are the safety valve, the burner assembly, the igniter, and some form of control. The control can either be a thermostat that we all are accustomed to, or an electronic control.
Why is my gas oven not glowing red?
That's because unlike in the past where most gas ranges and wall ovens used a freestanding pilot light, today's gas ovens rely on an oven safety valve that will not permit gas to flow to the burner unless the igniter is glowing red producing enough heat to ignite the gas when it reaches the igniter. And of course, the oven ignitor will not glow red ...
Where Is The Oven Igniter Located?
The igniter is located underneath the oven interior somewhere close to the back of the oven. You will need to take out the screws which hold the cover at the bottom of the oven to gain access to the igniter.
Why does my oven igniter keep clicking?
The first thing is food debris. You will need to scrub the food from the igniter. If your oven igniter has a cover over it, take out the screws which hold it in place. Carefully scrub the igniter with a toothbrush.
What to do if your oven igniter only glows?
To get your oven working again, you will need to replace it. Follow the steps in the oven igniter not working section to replace your oven igniter.
Why is my igniter clicking?
Your igniter may also be clicking because it’s damp. Take out the igniter and use a paper towel to absorb the moisture. Let the igniter air out for a couple of hours to dry.
What happens if your oven igniter is bad?
If your oven igniter is bad, it will glow yet not produce any flames.
Where is the burner cover on a gas oven?
Step 9: You will see the burner cover at the bottom of the oven interior, take out the two screws which secure it.
Can you bake with an oven without an igniter?
Without an igniter, you can’t actually bake with the oven. If you are experiencing some problems with your oven igniter that you don’t know how to fix, keep reading. In this article, we will show you solutions to your igniter problems.
What is a spark ignition system?
The spark ignition system is actually a two-level system. The spark module produces an extremely high voltage with very low amperage. The spark produced is used to ignite a low-pressure gas flow to a flame pilot light that remains lit until the oven’s thermostatic control is turned off. The pilot flame remains lit to ignite the gas flowing through the burner bar as the oven cycles on and off to keep it at the preselected temperature.
What is a spark electrode?
The spark electrode system employs a spark generator module and a spark electrode that functions much in the same way a spark plug functions to igni te the fuel-air mixture in your car’s engine.
What does it mean when an oven igniter goes bad?
Not only will a faulty igniter mean your oven will not produce any flame or heat, but it could mean that it continues to release natural gas as it tries to ignite. That is something that no one wants. If you believe your oven is having igniter problems, ...
What is happening when a gas igniter is not working?
The gas is released and built up until when it finally does ignite, it causes a small explosion . This signals slow ignition that most likely comes from dirty igniters.
What to do if igniter is not working?
Before beginning, you will want to disconnect your oven from its power source as well as to shut off the gas to it.
How to tell if an igniter is bad?
Most often, appliance owners are able to diagnose igniter problems through noise alone. By listening to your gas oven , you can actually tell if igniter problems are coming. Obviously, the most concrete sign is when your oven isn’t producing heat. As there is no electric element in a gas oven, when the igniter doesn’t work, the oven can produce no heat. Though often, signs of the igniter going outcome before this happens.
Why does my oven make a clicking noise?
One other noise to look out for is excessive clicking. Like gas burners on your stove, the oven igniter may click when it is trying to ignite the gas. However, if it keeps clicking, this means the igniter isn’t lighting the gas, but it is still trying.
What happens when the igniter doesn't work?
As there is no electric element in a gas oven, when the igniter doesn’t work, the oven can produce no heat. Though often, signs of the igniter going outcome before this happens. One noise you want to look out for is a loud boom noise.
How to remove old igniter?
You want to install the new igniter in that same position. You will want to begin by removing the mounts on the igniter and pulling upwards to reveal two wires. These need to be removed. Some igniters may be secured using wire nuts that will also need to be removed.
How does an ignitor work?
Electrical current passing through the ignitor operates a small heater that ‘warps’ an internal piece of bimetal to open the gas valve. As long as the burner flame continues to heat the ignitor, its electrical resistance remains low enough to keep the valve turned on. If, for any reason, the flame is extinguished, the igniter's resistance increases and the valve turns off the gas to the burner.
What type of ignition is used in a gas oven?
Most gas oven systems today are ‘electronic ignition’, and use a ‘glowbar’ type ignitor electrically in series with an oven valve.
What happens if your oven doesn't light?
If your oven doesn’t light, but you see the ignitor glowing, it will most likely be glowing a very dull red and not drawing enough current to operate the valve. Or, in some cases, it will operate the valve very slightly and you’ll smell some gas odor. Neither case is desirable or acceptable!
What happens when a gas flame is extinguished?
If, for any reason, the flame is extinguished, the igniter's resistance increases and the valve turns off the gas to the burner. While the valves are very reliable, the igniters have become the most common parts failure on these systems. Which is to be expected, I guess; they’re doing their job in a gas flame!
What to do if there is no glow in my ignitor?
If there’s no ‘glow’ at all, take a close look at the ignitor, and you’ll often see a crack, or it may even be obvious that it’s broken apart. You can use an ohmmeter to test for continuity if no cracks are visible.
How long does it take for an ignition to light?
If it takes more than 2 minutes to light, you’ll want to replace the ignitor; it’s the culprit in 90% of these. And this is the best way for you to diagnose your ignition system! In most cases, that’s all there is to it. You don’t even have to worry about wire polarity on the new ignitor – they can be wired either way.
Can ignitor be interchanged?
Igniters come in two basic types, ‘flat’ and ‘round’, seen below, and they can’t be interchanged. Each type operates at a particular amperage level, and is matched to the type gas valve it operates.
Where is the ignitor located on an oven?
They are located at the rear of the oven plate. Pull the oven plate out and you'll be able to see the ignitor. Remove the ignitor: Locate the ignitor and observe carefully how it is situated. You will install the new ignitor in exactly the same way. Unplug the two wires (or wire harness) connected to the ignitor.
How to remove ignitor from oven?
Unplug the two wires (or wire harness) connected to the ignitor. If the ignitor wires are joined to the appliance wires with wire nuts, untwist the wire nuts to free the wires. Remove the two screws that hold the ignitor in place and pull the ignitor from the oven. Install the new ignitor: Position the new ignitor in place, just like the old one. ...
Why is my oven not heating up?
If your oven isn't heating up, the problem may be with the electric oven ignitor. Those very words sound a little daunting and dangerous, but not to worry: with a few tools from the electrical toolbox and a little patience, you can change it yourself and save a little money.
What to do if you smell gas in an oven?
If you smell gas inside the oven when you open it, turn off the gas valve and open the windows to ventilate the area. Call a plumber or appliance technician to look at the oven; do not attempt to fix it yourself.
How to fix a gas smell in an oven?
If you smell gas inside the oven, turn off the gas valve and open windows to ventilate the area. Call a plumber or appliance technician to look at the oven; do not attempt to fix it yourself.
How to disconnect power to oven?
To do this, either unplug the appliance's cord from the wall or turn off the circuit breaker or fuse that supplies the power to the circuit.
How to test if an oven is working?
Install the oven racks and you are ready to test the oven's operation. Turn on the power: Turn on the power to the circuit feeding the oven or plug the cord in. Set the oven to heat to make sure it ignites immediately and warms up normally.
