The electronic ignition sets off a spark when an ignitor button is pushed. The ignition rod is placed in the gas flow that leads to the grill burners. The gas must first be turned on before the ignition button is pressed, or the grill burners will not light. Once lit, the flame is adjusted higher or lower for optimal cooking heat.
How does the igniter on a grill work?
0:212:37How to Light a Gas Grill | Ignition Types Explained | BBQGuys.comYouTubeStart of suggested clipEnd of suggested clipThese igniters emit a single spark using a piezo electric starter. The spark is normally fired byMoreThese igniters emit a single spark using a piezo electric starter. The spark is normally fired by pressing a button like this one while you turn the burner knob to get the gas flowing.
Do all grill igniters have a battery?
These igniters create clicking continuous sparks until the burners ignite. Battery systems will use either AAA, AA or 9 volt batteries to generate the power. There are some igniters that do not have the battery directly placed in the module.
How do I fix the igniter button on my grill?
0:111:39Fix Your Electric Igniter in 2 Minutes - YouTubeYouTubeStart of suggested clipEnd of suggested clipMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you mayMoreMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you may have to use a pair of pliers you should be able to get it with your fingers. Pull it out replace.
How do piezoelectric igniters work?
When the button on a Piezo electric ignitor is pressed, a spring loaded hammer strikes quartz in order to create a spark. This is the typical process used in such lighters. This creates the necessary amount of voltage to generate a spark. Piezoelectric devices are much longer lasting than devices that depend on flint.
How do I light my grill if ignitor is broken?
0:000:58How to Light Your Grill Manually - YouTubeYouTubeStart of suggested clipEnd of suggested clipTurn on the gas to the burner closest to the hole and insert the lid match. After the first burnerMoreTurn on the gas to the burner closest to the hole and insert the lid match. After the first burner is lit turn on the adjacent burners to cross light.
Why is my igniter not clicking?
DOES THE IGNITER MAKE A CLICKING NOISE? Make sure that the igniter is making a clicking noise when you press the igniter button. If it doesn't click, then the wires may not be connected properly, the battery may be dead or installed incorrectly, or the igniter module may have failed.
How do I know if my gas grill igniter is bad?
Manually light the grill with a match. If it lights, the problem is likely the igniter. If it doesn't light, the issue may actually be a clogged or dirty burner. Clean the burner and test the igniter again.
Why is my grill not sparking?
It could be a worn-out spark module, a loose wire or other connection, a dead battery, corrosion or dirt on the igniter tip, or cracked porcelain on the igniter element. If the grill doesn't light using the match, check for low or no gas flow. Your problem could be as simple as a low gas tank.
How do you install a push button igniter?
0:255:26How To Install Your Push Button Spark Ignition System - YouTubeYouTubeStart of suggested clipEnd of suggested clipSet the spark module into the three quarter inch hole from the back side and reinstall the tensionMoreSet the spark module into the three quarter inch hole from the back side and reinstall the tension nut insert a aaa battery with the positive side toward the button spring.
Do piezo igniters wear out?
How long does it last? While matches and lighters must be replaced or refilled, matchfree ignition systems are built to last for life. While malfunctions do occur, the average piezo lighter lasts for a minimum of ten years, far longer than even a whole box of matches!
Can you repair a piezo igniter?
There are no serviceable parts. How to Troubleshoot: To trouble shoot a piezo igniter you will need a good pair of insulated pliers (figure 2) and any tools that are needed to remove the igniter from the unit. Shut off any gas supply to the unit, and remove the piezo igniter.
What is the difference between piezo and electronic ignition?
Piezo ignition uses the impact upon a special crystal to create a spark and no electric connection is required. Electronic ignition is a push button electronic spark-generating device powered by battery or electric mains. Older styles will have a manual ignition where gas is lit with a match or hand-held sparking gun.
Do gas grill igniters have batteries?
0:101:03Outdoor Gas Grill: How to Fix the Igniter by Replacing the BatteryYouTubeStart of suggested clipEnd of suggested clipYou need a battery. Until so to replace the battery or to put a new battery in your electronic.MoreYou need a battery. Until so to replace the battery or to put a new battery in your electronic.
How do you change the battery in a igniter Weber grill?
0:020:39Weber Grill Ignitor Battery Replacement. - YouTubeYouTubeStart of suggested clipEnd of suggested clipPut a new battery in. And literally plug it back in and turn it clockwise I would expect to getMorePut a new battery in. And literally plug it back in and turn it clockwise I would expect to get about two or three years out of new battery.
How do you test a gas grill igniter?
0:312:00Test Barbecue Grill Igniter Module And Button Before Repair or ...YouTubeStart of suggested clipEnd of suggested clipWe may not always see the sparks without darkness. But we'll hear if the module is working placing aMoreWe may not always see the sparks without darkness. But we'll hear if the module is working placing a steel blade near the Spade will attract a stronger. Spark.
Why is my grill not sparking?
It could be a worn-out spark module, a loose wire or other connection, a dead battery, corrosion or dirt on the igniter tip, or cracked porcelain on the igniter element. If the grill doesn't light using the match, check for low or no gas flow. Your problem could be as simple as a low gas tank.
What is a BBQ lighter called?
A BBQ grill ignitor. A BBQ lighter uses something called piezoelectricity to generate a nice spark that lights the grill. "Piezo," in Greek, means "pressure," and you find piezoelectric materials in a number of different places.
How does a crystal microphone work?
In a crystal microphone, air pressure deforms the crystal enough to cause very small voltage changes in the crystal. These voltage changes are amplified and used to record or transmit sounds. Piezoelectric materials also work the other way -- if you apply a voltage across the crystal, the crystal will change shape.
What is the purpose of a crystal microphone?
In a crystal microphone, air pressure deforms the crystal enough to cause very small voltage changes in the crystal. These voltage changes are amplified and used to record or transmit sounds.
What is piezo ignition?
Piezo or Push-Button) The piezo ignition is one of the original ignition systems made to automatically light a gas grill. You would either push a button or turn a knob in a rotary style igniter and hear a hard click. Charbroil made the push button piezo ignition popular in many of their grill designs. Many high end brands opted for the rotary style ...
What is Charbroil's piezo ignition?
Charbroil made the push button piezo ignition popular in many of their grill designs. Many high end brands opted for the rotary style piezo igniters including TEC and Lynx.
How to check if spark generator is bad?
In a battery operated spark generator, check your battery. Simply unscrew your igniter cap and replace the battery. If you do not hear a series of clicks, the module may be bad.
Do you need electricity to power an ignition?
This is the latest innovation found mostly in high end grills (including Alfresco, Artisan, Lynx, Fire Magic and more). This means no more batteries. But you will need electricity to power the ignition. The ignition module is powered by a transformer and the electrodes get plugged into the module.
Does a spark igniter take a battery?
There are some igniters that do not have the battery directly placed in the module. For example, in the picture below, The spark ignition does not take a battery directly, rather the 9 volt gets places in a battery holder that gets plugged into the spark generator.
Why use butane lighters?
In the long run, they will save both money and time as they continually provide a reliable spark. For many purposes where a source of fire is needed, these lighters provide an ideal solution. Torch style butane lighters that utilize piezoelectricity are widely used for a broad array of purposes.
What is the process of a pizao electric lighter?
When the button on a Piezo electric ignitor is pressed, a spring loaded hammer strikes quartz in order to create a spark. This is the typical process used in such lighters. This creates the necessary amount of voltage to generate a spark. Piezoelectric devices are much longer lasting than devices that depend on flint.
What is piezo ignition?
It functions differently than a flint ignitor. Piezo electrical ignition creates enough energy that a small hammer strikes an object within the device.
What kind of lighter is used for cigars?
While there are many types of lighters including torch and flat flam e lighters on the market, cigar owners, fireworks enthusiasts, or people that simply enjoy using a torch lighter have a few things to consider when looking for their ideal product.
Can you use piezo lighters at high elevations?
However, if you need a device that will work at high elevations of 8,000 feet or more, piezo electric lighters will not work well. Otherwise, for people who enjoy smoking cigars or pipes, or for a multitude of other purposes, these lighters are superb solutions.
Does piezo use wires?
Piezo electricity does not utilize electrical connections, although there are some devices that use wires in order to direct the spark to a certain location. Such devices often use a push button in order to ignite. In comparison with standard lighters, piezo electric devices only produce a single spark.
Do piezo lighters have sparks?
In comparison with standard lighters, piezo electric devices only produce a single spark. They are easy to use and quite cost-effective over time. Piezo electric lighters are growing in popularity.
How to ignite a gas grill?
Igniting a gas grill is supposed to be simple: Push the spark igniter on your gas grill and you’re fired up and ready for steak. But after a few years, those piezo-style igniters stop working. They bind up and refuse to “click,” or they click but don’t produce a spark.
How much does it cost to install an electronic igniter?
You can install the inexpensive electronic igniter (about $20) in an hour with basic tools. By the DIY experts of The Family Handyman Magazine. You might also like: TBD.
How to install spark generator?
To accommodate those locking features, just cut side grooves in the freshly drilled hole with a rotary tool and a cutoff wheel ( Photo 2 ). Then insert the new spark generator, drop in a new battery, and twist on the push button cap. Connect the electrode wires ( Photo 3 ).
What ignition system does a grill use?
Many grills today use a battery ignition system like Charbroil , TEC, Delta Heat, Weber, Nexgrill and more. If you hear the continual clicking ... it works. If you do not .... it is broken and needs replacing. The spark generator will have one to eight outlets to plug in the electrode wires.
What are the parts of a grill ignition?
The main parts of a grill ignition will consist of a spark generator (module), electrodes, collector boxes (that hold the electrode in place) and wires. The spark generator comes in either a battery form or piezo. The battery spark generator may contain switch (button) or it will have a plug that for a trigger switch.
How to tell if your grill electrode is positioned correctly?
More often then not, an adjustment of the electrode will fix with igniter problem. The electrode will be mounted in a collector box near the burner and the metal tip will create a spark and ignite the burner. To see if your electrode is positioned correctly, you will need to remove the cooking grates and heat plates from the grill. You should be able to see the electrodes positioned next to the burner.

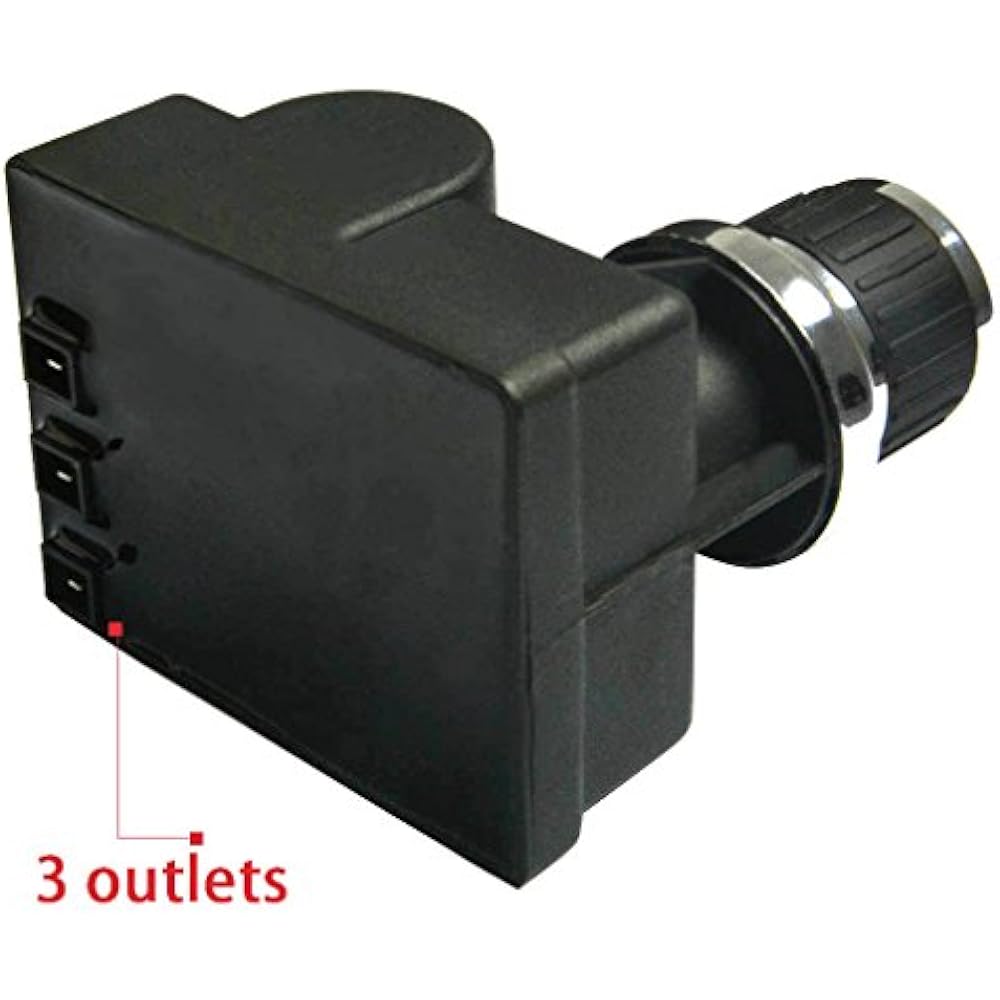

How many outlets does a spark generator have?
The spark generator will have one to eight outlets to plug in the electrode wires. Some grills will use one electrode to spark one burner and have carry over tubes to light the additional burners. While others have an electrode for each individual burner.
What is piezo ignition?
The piezo creates a hard snap. This type of ignition was used on older Weber, DCS and Viking Grills. Unscrew the cap on the battery spark generator and check the battery. The environmental elements can corrode the battery inside and damage the internal working of the spark igniter causing it to stop working.
What to do if you see a spark coming off the electrode tip?
If you see a spark coming off the electrode tip then you may need to adjust it closer to the burner.
Where is the electrode on a grill?
The electrode will be mounted in a collector box near the burner and the metal tip will create a spark and ignite the burner. To see if your electrode is positioned correctly, you will need to remove the cooking grates and heat plates from the grill.
