How does traffic light control system work?
Active infrared sensors emit low-level infrared energy into a specific zone to detect vehicles. When that energy is interrupted by the presence of a vehicle, the sensor sends a pulse to the traffic signal to change the light.
What is traffic light circuit?
As the name of the project “Traffic Light Control Circuit” suggests, the fundamental idea of this simple electronic project is to control the traffic via lighting signals. It can be used to avoid vehicular collisions and traffic jams as the system ensures the smooth flow of traffic even on the busy routes.
How do you make a traffic signal circuit?
Traffic Light ProjectStep 1: Take All Components As Shown Below. ... Step 2: Fold Pins of Transistors Like This. ... Step 3: Connect Red LED to Transistor. ... Step 4: Connect Green LED to Transistor. ... Step 5: Connect Yellow LED to Transistor. ... Step 6: Connect Emmiter of Transistors. ... Step 7: Connect 1K Resistors.More items...
How does a four way traffic light work?
3:125:16How do traffic lights work? - YouTubeYouTubeStart of suggested clipEnd of suggested clipAs well as radar. And sometimes weight sensors in the road. All of these sensors feed data to aMoreAs well as radar. And sometimes weight sensors in the road. All of these sensors feed data to a computer that chooses the timing of the light changes in order to ease the traffic flow.
Which relay is used in traffic light?
If you really want ton use 120 VAC traffic lights use 3-32 V SSR relays.
What are the components of a traffic signal?
A traffic signal system generally consists of three main components: a system control, field equipment, and communications.
How do you make a traffic light controller?
This is the circuit diagram for the traffic light controller by using Arduino. Connect LEDs on the breadboard as Red, Yellow, Green, respectively. Connect the negative terminal of the LED and connect the 220 Ohm resistor in series. Connect these negative terminals to the ground.
How do you make a 555 traffic light?
Place a 10K resistor between pin 7 and the positive rail. Now connect one leg of the 100K potentiometer with pin 7 and the other leg with pin 2. Connect pin 3 of the 555 ic with pin 14 (clock) of the 4017 ic. To the output pin of the 555 timer ic connect an LED as shown in the diagram.
How many LEDs are required to control the traffic signal at four ways Road intersection?
20 LEDs are used at four corners to represent the traffic lights (red, green, orange and blue) and 20 resistors for each LED.
Do traffic lights have sensors or timers?
In big cities, the traffic lights usually operate on timers, as there is a lot of traffic consistently throughout the day. However, in the suburbs and on country roads, traffic lights use detectors. They detect vehicles arriving at an intersection when too many cars are stacked up at an intersection.
What are the sensors on traffic lights?
Active infrared sensors emit low-level infrared signals into a specific zone. A vehicle is detected when it enters the zone and disrupts the signal. Passive infrared sensors do not emit signals of their own but instead detect the infrared energy emitted from nearby vehicles.
Are there sensors in the ground at traffic lights?
The sensors are cut into the ground within the lane. “Most lanes have several and some in advance of the intersection. There are multiple levels of detection. At most intersections the front-most ones are important because they are generally more sensitive for motorcycles and bikes,” said Mustafa.
What is the importance of traffic lights?
What is the purpose of a traffic signal? Traffic signals are designed to ensure an orderly flow of traffic, provide an opportunity for pedestrians or vehicles to cross an intersection and help reduce the number of conflicts between vehicles entering intersections from different directions.
What type of software is used in a traffic light system?
Traffic light systems are designed using software such as LINSIG, TRANSYT, CORSIM/TRANSYT-7F or VISSIM.
What are the different types of traffic lights?
There are two major kinds of traffic light signal operations: fixed period and vehicle triggered. Fixed-period traffic signals change according to pre-set timings (intervals) and have signal cycles all the time even when there are no pedestrian or vehicle demands.
How does a traffic light work Arduino?
Working of Arduino Traffic Light Controller After 5 seconds, the yellow light at signal 1 will light up to give an indication that the red light at signal 1 is about to come up and also to give an indication to the vehicles at signal 2 that the green light is about to light up.
How do traffic lights work?
However, in the suburbs and on country roads, traffic lights use detectors. They detect vehicles arriving at an intersection when too many cars are stacked up at an intersection. This detection mechanism controls the duration of the light. It also activates the arrow light when cars have entered a turn lane.
What is traffic light sensor?

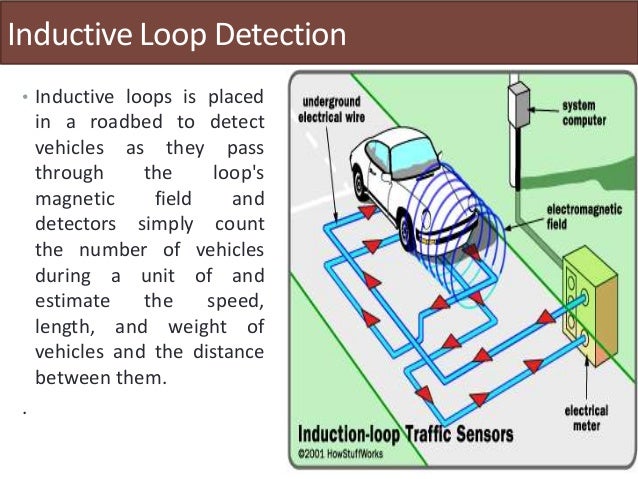

A traffic light sensor uses the loop in that same way. It constantly tests the inductance of the loop in the road, and when the inductance rises, it knows there is a car waiting! Advertisement. Originally Published: Apr 1, 2000.
How to detect cars?
There are all sorts of technologies for detecting cars -- everything from lasers to rubber hoses filled with air! By far the most common technique is the inductive loop. An inductive loop is simply a coil of wire embedded in the road's surface. To install the loop, they lay the asphalt and then come back and cut a groove in the asphalt with a saw. The wire is placed in the groove and sealed with a rubbery compound. You can often see these big rectangular loops cut in the pavement because the compound is obvious.
What is the most common technique used to detect cars?
There are all sorts of technologies for detecting cars -- everything from lasers to rubber hoses filled with air! By far the most common technique is the inductive loop. An inductive loop is simply a coil of wire embedded in the road's surface.
What is the coil of wire around a piece of iron?
What you see here is a battery, a light bulb, a coil of wire around a piece of iron (yellow), and a switch. The coil of wire is an inductor. If you have read How Electromagnets Work, you will also recognize that the inductor is an electromagnet. If you were to take the inductor out of this circuit, then what you have is a normal flashlight.
Why is the inductance of a traffic light sensor larger?
The inductance will be much larger because of the large steel object positioned in the loop's magnetic field. The car parked over the coil is acting like the core of the inductor, and its presence changes the inductance of the coil. A traffic light sensor uses the loop in that same way.
How does an inductor work?
The capacity of an inductor is controlled by two factors: The number of coils . The material that the coils are wrapped around (the core) Putting iron in the core of an inductor gives it much more inductance than air or any other non-magnetic core would.
What is a traffic light?
Traffic lights are also named as stoplights, road traffic lamps, traffic signals, stop-and-go lights which are signaling devices placed at road crossings, everyday pedestrian crossings and other locations to control competing flows of traffic. Traffic lights have been fixed allover the world in many cities.
What is the purpose of a traffic light controller?
The main objective of this traffic light controller is to provide sophisticated control and coordination to confirm that traffic moves as smoothly and safely as possible. This project makes use of LED lights for indication purpose and a microcontroller is used for auto changing of signal at specified range of time interval. LED lights gets automatically turns on and off by making corresponding port pin of the microcontroller “HIGH”.
How do LED lights work?
The LEDs get automatically switched on and off by making the corresponding port pins of the microcontroller high, based on the 8051 microcontroller and its programming done by using KEIL software. At a particular period of time, only the green light holds ON and the other lights remains OFF, and after sometime, the changeover traffic light control from green to red takes place by making the succeeding change for glowing of yellow LED. This process continues as a cycle and the timing for changing the LEDs can be displayed with the use of a seven-segment LED display in this project.
How many LEDs are in a traffic light?
In the above circuit diagram of traffic light controller,a seven-segment display is used as a counter display, and three LEDs are used for the purpose of traffic light control. An 8051 Microcontroller is the brain of this whole project and is used to initiate the traffic signal at the intersections on road. This circuit diagram makes use of a crystal oscillator for generating frequency clock pulses. The LEDs are interfaced to the Port zero of the microcontroller and are powered with 5v power supply. Seven-segment display is connected to the port2 pins of the 8051 microcontroller with a common anode configuration.
How many LEDs are in a junction?
Display Unit: It consists of 3 LEDs: Green, Red and Orange on each side of the junction– a total of 12 LEDs of three colors are placed at the junction.
What color are traffic lights in China?
Typically traffic lights consist of three types of colored lights such as red, orange and green. In a typical cycle, turning on of a green light allows traffic to continue in the way indicated.
When were traffic lights invented?
Traffic lights were first invented in the year 1868 at London’s House of Commons where traffic light signals were placed at intersections of George and Bridge Street. Later the traffic lights were developed in the year 1914 by an American Traffic Signal Company, which fixed green and red lights at corners of the 105th street ...
How does a traffic signal controller work?
Inside this cabinet is a traffic signal controller, essentially a simple computer that is programmed with specific logic to determine when and how long each light will last based on the information from the detectors. Actuated control gives a traffic signal much more flexibility to handle variations in traffic load. For example, if a nearby road is closed and traffic rerouted through a signal that doesn’t normally see such a high demand, it may need to be reprogrammed before the closure. A light equipped with actuated control will simply see the additional traffic and adjust its phasing accordingly. Same thing with special events, like concerts and sport games, that create huge traffic demands on irregular schedules, and even seasonal changes in traffic, like in major tourist destinations. Actuated systems can also keep you from waiting at a long light when no one’s crossing in the other direction. Finally, actuated control can help by giving priority to emergency vehicles and public transportation by using specialized detectors, like infrared or acoustic sensors, that communicate directly with certain types of vehicles.
Why are traffic signals so popular?
You can see why traffic signals are so popular. They aren’t a panacea for all traffic problems, but they do offer a very nice balance of the considerations we discussed before: Relatively low cost, minimal space requirements, and able to handle large volumes of traffic with only some interruption. In their simplest form, traffic signals are a set of three lights facing each lane of an intersection. When the light is green, that lane has the right-of-way to cross. When the light is red, they don’t. The amber light warns that the signal is about to change from green to red. Beyond this basic function, traffic signals can take on innumerable complexities to accommodate all kinds of situations. Let’s take a look at a typical intersection here in the U.S. to show how they work.
What is actuated signal control?
Actuated signal control is the term we use for signals that can receive input from the outside and use that information to make decisions about light timing and sequence on the fly. These types of signals rely on data from traffic detection systems. These detectors can be video cameras or radars, but most commonly they are inductive loop sensors embedded into the road surface. These are essentially large metal detectors which simply measure whether or not a car or truck is present, sometimes to the annoyance of bicycles, scooters, and motorcycles that may be too small to trigger the loop. Whatever the type of sensor, they all feed data into an equipment cabinet located nearby. You’ve probably seen hundreds of these cabinets without realizing their purpose.
What does an amber light mean?
When the light is red, they don’t. The amber light warns that the signal is about to change from green to red. Beyond this basic function, traffic signals can take on innumerable complexities to accommodate all kinds of situations. Let’s take a look at a typical intersection here in the U.S. to show how they work.
Why do traffic engineers put a lot of thought and analysis into the design of intersections?
For these reasons, traffic engineers put a lot of thought and analysis into the design of intersections and how to make them as safe and efficient as possible.
Why do arterial roads have at grade intersections?
Rather than ramps, overpasses, and access roads to control the flow of traffic, arterial roads use at-grade intersections through which only a few traffic streams can pass at a time. We call this “interrupted traffic flow” for obvious reasons.
What is the next revolution in traffic management?
On the complete opposite side of centralization, many believe that self-driving cars are the next revolution in traffic management. If every vehicle could communicate and coordinate with every other vehicle on the road, interrupted traffic control could eventually become a thing of the past.
Introduction
As time passes, the population of the world is increasing, and not just the population, but also the automotive industry is growing. Several decades back, there were very fewer vehicles on the street, and people usually traveled by foot. And, then the bicycle, cars, etc got invented.
Components Required for 4 way traffic light
So, to make this circuit, the first question would be: What is the major component of a traffic light controller? or what are the components of traffic lights? To be very precise, the circuit doesn’t need a lot more components. Thus, we made the below list to make it easier for you.
CD4017 Overview
CD4017 is one of the major components we are using in our circuit. It is a counter that contains a five D flip flop inside. The integrated circuit contains 16 pins. From those 16 pins, there are some control pins and some output pins. Every output has a buffer that drives the LED.

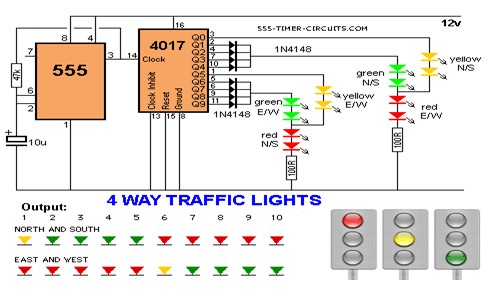

Working Explanation of 4 way traffic light Circuit
There are three stages of this circuit, the first timing, the second, counting, and the third lightning stage. For the first timing stage, we are using 555 timer IC. Here, we have set the values of timing resistors and capacitors to set the pulse value. These pulses then determine the timing interval.
Applications
As we have discussed earlier that it automatically helps to manage the traffic. For example, when there is a red signal for the east and west lanes, at that time there is a green signal at the north and south lanes. In the same vein, it helps to deal with all the traffic.
How does a power cord work on a circuit board?
The power cord would connect to the board’s power inputs and the lights connect to their respective places on the board. The controllers will have timing adjustments for the sequence and flashing modes. Many will also have additional features for turn arrows, multiple signals, or pedestrian signals. Most manufacturers will even be able to customize it for you in a way that would include an overlap (multiple sections come on together), a black-out period (no lights on, like in the old days on a red-green signal), or European sequences (red-yellow before green). Very cool!
How do bare leads work?
The bare leads would connect to the lights’ leads ( many times they’re connected via contacts on the terminal block inside the signal) and all would light up when plugged in. Furthermore, you could use blinking bulbs or flasher modules that get inserted into the sockets to make the lights randomly flash. But what if you want it to work like it did ...
What are the features of a turn arrow?
Many will also have additional features for turn arrows, multiple signals, or pedestrian signals. Most manufacturers will even be able to customize it for you in a way that would include an overlap (multiple sections come on together), a black-out period (no lights on, like in the old days on a red-green signal), ...
