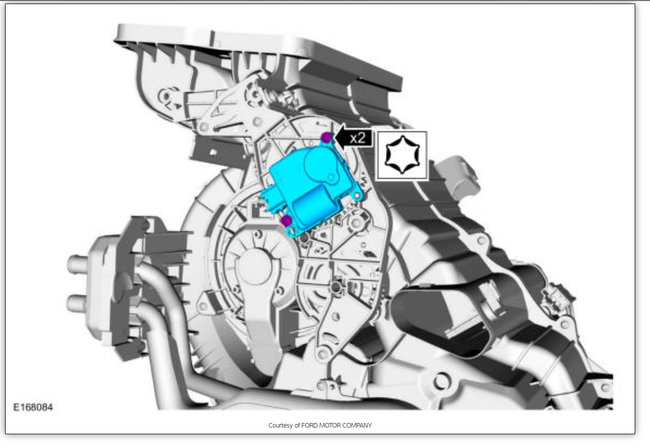

The AC actuator moves air distribution doors to two or more positions to direct air flow for heating and A/C vents. The AC actuator is located underneath the dashboard attached to air distribution doors in the hvac box. Doors can control warm air/cold air blending, recirculated/fresh air control, or dual zone splitting.
How does a blend door actuator work in a car?
How Does a Blend Door Actuator Work? A blend door actuator controls the temperature and the flow of the air in a car. If your vehicle is only releasing cold air, or if you are not able to change the airflow, it may be because of a malfunctioning actuator.
What does the AC actuator do on a car?
The AC actuator moves air distribution doors to two or more positions to direct air flow for heating and A/C vents. The AC actuator is located underneath the dashboard attached to air distribution doors in the hvac box. Doors can control warm air/cold air blending, recirculated/fresh air control, or dual zone splitting.
How does a car door lock actuator work?
The small computer tells your door lock actuator to either lock or unlock your car’s doors Your door lock actuator springs into action and either locks or unlocks your car’s doors In theory, you might not think that your vehicle has to do all that much to lock or unlock your car.
How does a rotary actuator work?
A switch within the main actuator shaft at the top and lower end stop the screw as it reaches the end of its movement or stroke. As the shaft reaches its end, the switch cuts off power to the motor. Electric rotary actuators use electrical energy to achieve rotational movement.
What does air door actuator do?
Temperature Blend Air Door Actuators: The temperature blend air door actuator controls the temperature of the air flowing from the vents by mixing hot and cold air from the heater core and the evaporator.
What happens when blend door actuator fails?
Knocking sounds can almost always be attributed to a failing blend door actuator. When you start your car or the AC system, the knocking sound will start, and that's when you know that you need to get your blend door actuator replaced.
How do I know if I have a bad actuator?
The most common symptom of the A/C Actuator going bad or when the Blend Door is stuck is when you feel inconsistent air flow coming in. The desired air you want whether it be hot or cold, is being diverted incorrectly, so you are not getting a consistent temperature out of the A/C system.
How does a mode door actuator work?
The mode door actuator controls which vent(s) air blows through. The door on this actuator has two positions: closed and open. Today, most actuators are controlled electronically. As actuators wear over time, the plastic gears inside may be stripped or broken, causing them to fail.
How do I reset my blend door actuator?
To reset a blend door actuator, you must remove the actuator, turn on maximum heat on the climate control. Turn the blend door shaft until maximum heat comes from the vents, then reinstall the actuator. Finally, turn on the air conditioner and test the blend door actuators before putting everything back together.
How do I test my blend door actuator?
To test the blend door actuator, disconnect your vehicle's negative terminals. If your vehicle has radio code, ensure you write it down, or better still, you might perform a calibration. You might decide to take your vehicle to a mechanic garage if you don't have a calibration machine.
What causes actuators to fail?
Normally, failure is caused by application errors, such as side loading, incorrect wiring, poor mounting fixity, excessive loading, and exceeding duty cycle.
How much does it cost to replace actuators?
The average cost to replace an AC actuator in a vehicle is about $350. This cost is inclusive of the prices of both labor and parts, where labor costs an average of $220, and parts cost an average of $130.
Does the blend door need to be open or closed for heat?
If replacing a blend door actuator, check to make sure the blend door position is completely closed before installing the new blend door actuator. If the blend door is left open, even slightly, the temperature inside the vehicle will not match the A/C temperature selected.
What controls the airflow in a car?
Q: What controls the vents in a car? The vents for modern vehicles are controlled by three or four electrical actuator motors, which can be adjusted by the climate control module; this electronically regulates and control the air ventilation system in your vehicle.
How many actuators does a car have?
Typically, vehicles have 3 or 4 actuators. Vehicles with rear controlled HVAC will often have additional actuators to control the auxiliary unit, bringing the total per vehicle to as many as 6. DID YOU KNOW?
How many actuators does the air conditioning have?
4 Types of Actuators in HVAC (Damper & Valve)
How do you know if you have a bad blend door actuator?
A bad blend door actuator may make a clicking sound when activated. You'll hear the noise coming from behind the dashboard.
How much does it cost to fix a blend door actuator?
Replacing the blend door actuator is actually a fairly simple process, and it should take no more than an hour. So the labor will cost you around $75 – $150 depending on labor rates at your local repair shop. In general, you can expect the total cost to be no more than $400.
Can I unplug blend door actuator?
Can I Unplug Blend Door Actuator? Yes, you can unplug the blend door actuator and still have your heater and AC work. The actuator is responsible for opening and closing the door that allows hot or cold air into the cabin. If it's unplugged, the default position is for the cold air to come in.
Is blend door open or closed for heat?
If replacing a blend door actuator, check to make sure the blend door position is completely closed before installing the new blend door actuator. If the blend door is left open, even slightly, the temperature inside the vehicle will not match the A/C temperature selected.
Why is my door actuator not working?
The main cause of door actuators failure is binding or restriction, caused by a distorted, worn or damaged plenum or a foreign object that is lodged in the door sweep. Another cause for failure is a broken crank arm on the door assembly.
How many wires does a bi-directional actuator use?
Bi-directional actuators use three wires for circuit feedback.
How long does it take to calibrate an air conditioning actuator?
The replacement of an automotive air conditioning actuator could take from 30 minutes in some cases up to one or two days job in some cars in which the removal of the entire dashboard is required to get access to it.
How to test the recirculation air door actuator motor?
There are some simple tests that could be done in order to determine if the vehicle is having issues with the recirculation air door actuator:
How does a 3 wire actuator work?
The three-wire actuators have a power, ground, and an input wire from the hvac control head. These actuators use a pre-programmed logic chip containing all the information to drive the motor in the requested direction. When a position change is requested by the vehicle operator, a circuit in the control head sends voltage to the actuator motor. As the motor moves, a potentiometer in the actuator compares the motor voltage to the output voltage from the control head. When both voltage readings are the same, the actuator motor stops. There is no feedback to the control head with this design.
What are the symptoms of a bad actuator?
Air coming out from the wrong vents, clicking noises coming from behind the dashboard or not being able to control the temperature or re-circulated or fresh air mode in your car is a sign of a bad air door actuator motor. Exhaust fumes inside the cabin.
What are the symptoms of a bad temperature blend door actuator?
Decreased air conditioning performance due to improperly mixed of hot and cold air inside the hvac box.
How to test the blend door actuator motor?
There are some simple tests that could be done in order to determine if the vehicle is having issues with the blend door actuator:
Why does my blend door make noise?
As the blend door open or closes to the heat or cold position it opposes the flow of air coming from the blower motor and makes a change in the intensity of the air noise. If you can�t hear this change in air noise intensity there is a problem with the blend door actuator, the blend door, the climate control set or the circuit connecting them.
How to tell if door actuator is bad?
The symptoms of a bad mode door actuator are clicking noise coming from behind the dashboard. The driver, passenger or both won�t be able to regulate the position from where the flow of air will come out of the vents. Weak or not at all flow of air coming out from the vents.
What is actuator in machine?
How to mount. Applications. An actuator is a part of a device or machine that helps it to achieve physical movements by converting energy, often electrical, air, or hydraulic, into mechanical force. Simply put, it is the component in any machine that enables movement. Sometimes, to answer the question ...
How is an actuator mounted?
In this method, the actuator is mounted in a stationary position with a shaft mounting bracket fixing it to the shaft. Common uses of this kind of mounting are to achieve action similar to pushing something head-on. For instance, this form of mounting is ideal for switching a button on or off. When deciding on this method, ensure that the mounting apparatus can handle the load of the actuator.
How does Linear Actuator work?
Electric and piezoelectric actuators, for instance, work on the input of electric current or voltage, for hydraulic actuators, its incompressible liquid, and for pneumatic actuators, the input is air. The output is always mechanical energy.
How to connect a linear actuator to a 4 pin connector?
Connect the wires. Connect the linear actuator to the 4-pin connector by twisting the right exposed wires together and covering it up with electrical tape.
What are the components of an actuator?
Following are the usual components that are part of the functioning of an actuator: 1 Power source: This provides the energy input that is necessary to drive the actuator. These are often electric or fluid in nature in the industrial sectors. 2 Power converter: The role of the power converter is to supply power from the source to the actuator in accordance with the measurements set by the controller. Hydraulic proportional valves and electrical inverters are examples of power converters in industrial systems. 3 Actuator: The actual device that converts the supplied energy to mechanical force. 4 Mechanical load: The energy converted by the actuator is usually used to make a mechanical device function. The mechanical load refers to this mechanical system that is being driven by the actuator. 5 Controller: A controller ensures that the system functions seamlessly with the appropriate input quantities and other setpoints decided by an operator.
How many pins does an electric linear actuator have?
Many electric linear actuators come with four pins these days and their connection is as simple as plugging them in. However, if your actuator does not have four pins, the process is slightly different. You will need to buy an additional connector, which often comes in 6- and 2-foot length. Prepare the wires.
Why do hydraulic actuators have pistons?
This is because liquids are almost incompressible. Single-acting hydraulic actuators have pistons that can move in just one direction and a spring is needed for reverse motion. A double-acting hydraulic actuator applies pressure at both ends to facilitate similar movement from both sides.
How Does a Door Lock Actuator Work?
You’ll gain a new appreciation for your car’s ability to lock and unlock your doors electronically when you know what a door lock actuator has to go through to complete this relatively simple task. Here is how the process plays out in matter of just a second or two:
Where Can You Have Door Lock Actuator Replacement Done?
If you know that you have a bad door lock actuator in your car and you want to get it fixed, it should be easy tracking down someone to help you with it. Just about any ASE-certified mechanic should be able to pop your old door lock actuator out and put a new one into its place in no time. It’s a relatively straightforward job that should only take about an hour or so to complete.
What Are the Symptoms of a Bad Door Lock Actuator?
You’ll find that a door in your car won’t lock and unlock like normal when you have a bad door lock actuator on your hands. But there are also some other signs that might suggest your door lock actuator is on its last legs when it’s about to go bad. Keep an eye out for these signs, which include:
What happens if a door lock actuator goes bad?
If a door lock actuator ever goes bad, it could make it difficult, if not impossible, to lock and unlock a car door. It’s why it’s going to be so important for you to pay the door lock actuator replacement cost in the event that one of your door lock actuators goes bad.
How many times do you lock and unlock your car door?
Depending on how much time you spend driving your car around, you might do it more than a dozen times each day. And that can really take a toll on your door lock actuators over time. When you’re constantly locking and unlocking your car doors, it’s eventually going to wear your door lock actuators out and put you in a position where you need to replace them.
How much does it cost to replace a door lock actuator?
But the parts that are necessary to replace a door lock actuator can cost over $200 in some cases. It’s what makes door lock actuator replacement on the costly side.
How does a small computer work?
The small computer accepts the signal from the button and learns whether you want to lock or unlock your car’s doors. The small computer tells your door lock actuator to either lock or unlock your car’s doors. Your door lock actuator springs into action and either locks or unlocks your car’s doors. In theory, you might not think ...
