What is the working principle of absorption refrigeration?
The lithium bromide solution acts like a compressor in drawing off “refrigerant vapour”, in this case water, from the evaporator, causing the pressure and saturation temperature to reduce to the required cooling temperature. This process is the basic principle by which the absorption cycle operates.
How does an absorption system work?
Absorption cycles produce cooling and/or heating with thermal input and minimal electric input, by using heat and mass exchangers, pumps and valves. An absorption cycle can be viewed as a mechanical vapor-compression cycle, with the compressor replaced by a generator, absorber and liquid pump.
How does a Vapour compression refrigeration system work?

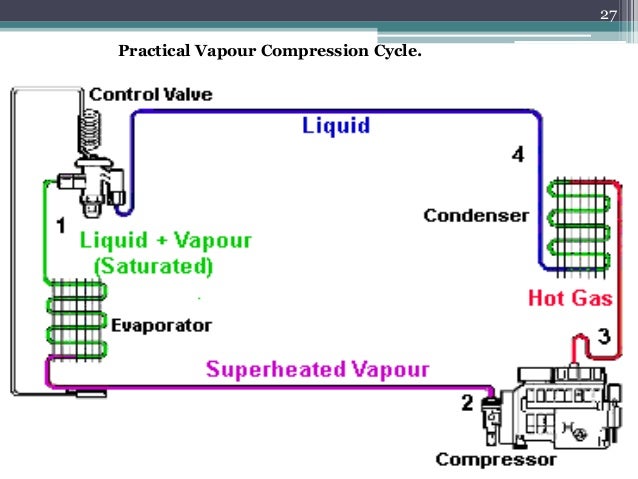

The Vapor Compression Refrigeration Cycle As the refrigerant circulates through the system, it is alternately compressed and expanded, changing its state from a liquid to a vapor. As the refrigerant changes state, heat is absorbed and expelled by the system, lowering the temperature of the conditioned space.
What is simple vapour absorption refrigeration system?
Simple Vapour absorption system consists of evaporator, absorber, generator, condenser, expansion valve, pump & reducing valve. In this system water vapor is used as refrigerant and solution used is LiBr+water. Strong solution of LiBr+water contains as much as water as it can and weak solution contains less water.
Which refrigerant is used in vapour absorption refrigerator?
Detailed Solution Ammonia-Water (NH3 – H2O) system for refrigeration applications with ammonia as refrigerant and water as absorbent.
What are the parts of vapour absorption refrigeration system?
Vapor absorption refrigeration system consists of evaporator, absorber, generator, condenser, expansion valve, pump & reducing valve. In this system ammonia is used as refrigerant and solution is used is aqua ammonia.
What is the energy used in vapor absorption refrigeration?
solar energyWhile in the vapour compression system the energy input is given in the form of the mechanical work from the electric motor run by the electricity. Thus, the Vapour absorption system works on low-grade thermal energy such as waste heat or solar energy.
What are the four main steps in a vapor compression refrigeration system?
The Vapor Compression Refrigeration Cycle, Step By StepStep 1: Compression. The refrigerant (for example R-717) enters the compressor at low temperature and low pressure. ... Step 2: Condensation. The condenser is essentially a heat exchanger. ... Step 3: Throttling and Expansion. ... Step 4: Evaporation.
How does a vapor cycle system work?
The vapor cycle system provides cooling to the cockpit and cabin of the aircraft on the ground and in flight. The compressor is driven by an electric motor at a constant speed, constant capacity. The compressor compresses the warm low pressure gas to a hot high pressure gas.
How does vapour absorption work?
Absorption cooling dissolves a vapour in a liquid (the absorbent), pumps the solution to higher pressure in the regenerator, and then uses heat to evaporate the refrigerant vapor out of the solution. The most common absorption cycle uses water as the refrigerant and lithium bromide (LiBr) as the absorber.
Where is vapour absorption system used?
The vapor absorption cycle is another refrigeration cycle sometimes used for space cooling (and heating, in the case of absorption heat pumps). Instead of using an electric compressor, it uses a thermal compression process.
What are the two cycles that make an absorption system work?
Within this kind of chiller there are two cycles: a main cycle, and an auxiliary cycle. The The chilled water is cooled down twice by the refrigerant from a double tray in the evaporator and the vaporized refrigerant is absorbed into concentrated solution which is coming from the 2nd generator.
How does absorption chiller work?
This absorption cooling cycle relies on three basic principles: When a liquid is heated it boils (vaporizes) and when a gas is cooled it condenses. Lowering the pressure above a liquid reduces its boiling point. Heat flows from warmer to cooler surfaces.
Is the COP of an absorption system good?
The COP is very low in absorption refrigeration systems, and producing a certain amount of cold consumes about four times more energy (in the form of heat).
What is the function of the heat exchanger in an absorption system?
A solution heat exchanger (SHE) is placed between the desorber and the absorber in order to recover the heat from the hot solution stream reducing the desorber heat load required and enhancing the system COP.
What Is Vapour Absorption Refrigeration System?
The Vapour absorption refrigeration systems include all processes in a vapor compression refrigeration system, such as compression, condensation, e...
Working of Vapour Absorption Refrigeration System:
The next component and analyzer send water particles back to the generator through this pipe for further processing. With this generator, the dilut...
Components in Vapour Absorption Refrigeration System:
#1. Evaporator The main function of the evaporator is to provide cooling to the area with which it is in contact. The cooled liquid will enter insi...
Single-Effect and Double-Effect Cycles:
In Vapour absorption refrigeration systems, the temperature of the heat source plays an important role. The heat given by the source can be used in...
How does absorption refrigeration work?
In compression refrigeration system we used a compressor which is run by electricity but absorption refrigeration system always runs by using a heat source. The heat firstly produced in the process will be used to provide the energy which runs the whole process of cooling.
How does refrigerant get evaporated?
At first the refrigerant are condensed in the condenser and it gets evaporated in the evaporator. Then the refrigerant starts cooling process in evaporator and releases the heat to the atmosphere via the condenser. The method of the suction and compression of the refrigerant in the refrigeration cycle will be the major difference between ...
How does ammonia go to the condenser?
Only anhydrous ammonia vapors go to the condenser. Liquid ammonia from the condenser goes to evaporator through an expansion valve for repeating the cycle. Hot weak aqua from the generator comes to absorber through the aqua heat exchanger and an expansion valve. This weak aqua again absorbs ammonia vapors and the cycle is repeated.
How does a rectifier work?
Then dry vapors will be sent to condenser through the rectifier. Rectifier is a closed cooler, In this ammonia vapors are indirectly cooled by water .Any small traces of water associated are removed by the rectifier. Water which is separated will goes back to the generator and is called DRIP.
What is vapor compression?
In the vapor compression system, the compressor sucks the refrigerant from evaporator and compresses it to the high pressure. The compressor also enables the flow of the refrigerant through the whole refrigeration cycle. In the vapor absorption cycle, the process of suction and compression are carried out by two different devices called as ...
What is the name of the water that is condensed from ammonia vapor and coming to generator?
9 = Water condensed from ammonia vapor and coming to generator called DRIP
Why do you cool the absorber?
Cooling will be done at the absorber so as to keep the temperature low.
What happens when the refrigerant enters the absorber?
When the refrigerant entering in the absorber is absorbed by the absorbent its volume decreases, thus the compression of the refrigerant occurs. Thus absorber acts as the suction part of the compressor. The heat of absorption is also released in the absorber, which is removed by the external coolant.
What is vapor absorption?
The vapor absorption refrigeration system comprises of all the processes in the vapor compression refrigeration system like compression, condensation, expansion and evaporation. In the vapor absorption system the refrigerant used is ammonia, water or lithium bromide. The refrigerant gets condensed in the condenser and it gets evaporated in the evaporator. The refrigerant produces cooling effect in the evaporator and releases the heat to the atmosphere via the condenser.
What determines the vapor pressure of a refrigerant?
The vapor pressure of the refrigerant-absorbent inside the absorbent determines the pressure on low-pressure side of the system and also the vaporizing temperature of the refrigerant inside the evaporator. The vapor pressure of the refrigerant-absorbent solution depends on the nature of the absorbent, its temperature and concentration.
How does a refrigerant work?
The refrigerant in the solution gets vaporized and it leaves the solution at high pressure. The high pressure and the high temperature refrigerant then enters the condenser, where it is cooled by the coolant, and it then enters the expansion valve and then finally into the evaporator where it produces the cooling effect.
How does a simple absorption system work?
Simple Absorption System and How it Works? 1) Condenser: Just like in the traditional condenser of the vapor compression cycle, the refrigerant enters the condenser at high pressure and temperature and gets condensed. The condenser is of water cooled type.
How does absoption work?
How Absoption Refrigeration System Works (Continued) The initial flow of the refrigerant from the evaporator to the absorber occurs because the vapor pressure of the refrigerant-absorbent in the absorber is lower than the vapor pressure of the refrigerant in the evaporator. The vapor pressure of the refrigerant-absorbent inside ...
What is vapor compression?
In the vapor compression system, the compressor sucks the refrigerant from evaporator and compresses it to the high pressure. The compressor also enables the flow of the refrigerant through the whole refrigeration cycle. In the vapor absorption cycle, the process of suction and compression are carried out by two different devices called as ...
What is an absorption refrigeration system?
Absorption refrigeration systems (AR) are a well-known alternative to vapor-compression systems to achieve a cold space, especially where electricity prices are high.
Why is Carré's absorption refrigeration important?
Carré's absorption refrigeration technique is an important vapor refrigeration technology, because it does not require a vapor compressor. It is based on dissolving the refrigerant vapor (ammonia) in a carrier liquid (water) and pumping this liquid to a high pressure.
What is the COP of a Carnot absorption refrigerator?
Determine the new Carnot absorption refrigeration COP, assuming all the other variables remain unchanged. Answer: (COP) Carnot absorption ref = 2.09.
What is absorption cycle?
The absorption cycle is a special type of vapor-compression refrigeration cycle, since it is driven by heat as opposed to work. Consequently, the coefficient of performance of an absorption cycle is not computed in the same way as a standard vapor-compression cycle, and the two COPs should not be directly compared.
What temperature is used for ammonia absorption refrigeration?
The tables are based upon cooling water to the condenser of 85 °F with 100 °F condensing temperature. Water from the condenser is used in the absorbers.
Why is the air cooled condenser spoiled?
The air-cooled condenser of the refrigeration system of a cold storage has got spoiled due to erosion caused by dust. It is proposed to replace it by a new air cooled condenser. Formulate the problem of optimizing the design of the condenser so that the performance of the system is not impaired.
What is the difference between a solar-operated refrigeration system and a conventional fossil fuel-fired system?
15.18. The difference between this system and the conventional fossil fuel–fired units is that the energy supplied to the generator is from the solar collector. There are two different possible ways of storing the energy in the system as follows:
How does ammonia water vapor absorption work?
The various parts of the ammonia-water vapor absorption refrigeration system and their working are explained below (please refer the figure above): 1) Evaporator: It is in the evaporator where the refrigerant pure ammonia (NH3) in liquid state produces the cooling effect. It absorbs the heat from the substance to be cooled and gets evaporated.
How is ammonia absorbed?
As the ammonia from evaporator enters the absorber, it is readily absorbed by water and the strong solution of ammonia-water is formed. During the process of absorption heat is liberated which can reduce the ammonia absorption capacity of water; hence the absorber is cooled by the cooling water.
How does ammonia work in a generator?
This cycle keeps on repeating continuously. Meanwhile, when ammonia gets vaporized in the generator, weak solution of ammonia and water is left in it. This solution is expanded in the expansion valve and passed back to the absorber and its cycle repeats .
What is the name of the heat exchanger that is cooled by water?
6) Rectifier or the reflex condenser: The rectifier is a sort of the heat exchanger cooled by the water, which is also used for cooling the condenser. Due to cooling the remaining water vapor mixed with the ammonia refrigerant also gets condensed along with some particles of ammonia. This weak solution of water and ammonia drains down to the analyzer and then to the generator.
What are the disadvantages of ammonia and water vapor absorption?
5) Analyzer: One of the major disadvantages of the ammonia-water vapor absorption refrigeration system is that the water in the solution has quite low vaporizing temperature, hence when ammonia refrigerant gets vaporized in the generator some water also gets vaporized. Thus the ammonia refrigerant leaving the generator carries appreciable amount of water vapor. If this water vapor is allowed to be carried to the evaporator, the capacity of the refrigeration system would reduce. The water vapor from ammonia refrigerant is removed by analyzer and the rectifier.
What is the ammonia water absorption system?
The working of ammonia-water absorption refrigeration system is based on the simple vapor absorption refrigeration system. In this system ammonia is used as the refrigerant and water is used as the absorbent. The ammonia-water absorption system is used in the domestic as well the commercial applications where the requirement of the temperature is above 32 degree F.
What happens if ammonia is left in a generator?
Thus the ammonia refrigerant leaving the generator carries appreciable amount of water vapor. If this water vapor is allowed to be carried to the evaporator, the capacity of the refrigeration system would reduce. The water vapor from ammonia refrigerant is removed by analyzer and the rectifier.
What is an absorption refrigerator?
t. e. An absorption refrigerator is a refrigerator that uses a heat source (e.g., solar energy, a fossil-fueled flame, waste heat from factories, or district heating systems) to provide the energy needed to drive the cooling process. The system uses two coolants, the first of which performs evaporative cooling ...
When was absorption refrigeration invented?
Absorption refrigeration uses the same principle as adsorption refrigeration (note that the second letter is different), that was invented by Michael Faraday in 1821, but instead of using a solid adsorber, in an absorption system, an absorber absorbs the refrigerant vapour into a liquid.
What is the difference between a compressor and an absorption refrigerator?
Common absorption refrigerators use a refrigerant with a very low boiling point (less than −18 °C (0 °F)) just like compressor refrigerators . Compression refrigerators typically use an HCFC or HFC, while absorption refrigerators typically use ammonia or water and need at least a second fluid able to absorb the coolant, the absorbent, respectively water (for ammonia) or brine (for water). Both types use evaporative cooling: when the refrigerant evaporates (boils), it takes some heat away with it, providing the cooling effect. The main difference between the two systems is the way the refrigerant is changed from a gas back into a liquid so that the cycle can repeat. An absorption refrigerator changes the gas back into a liquid using a method that needs only heat, and has no moving parts other than the fluids.
How does ammonia work in a refrigerator?
The presence of hydrogen lowers the partial pressure of the ammonia gas, thus lowering the evaporation point of the liquid below the temperature of the refrigerator's interior. Ammonia evaporates, taking a small amount of heat from the liquid and lowering the liquid's temperature. It continues to evaporate, while the large enthalpy of vaporization (heat) flows from the warmer refrigerator interior to the cooler liquid ammonia and then to more ammonia gas.
What is the function of an orifice valve?
The orifice or throttle valve creates a pressure drop between the high pressure condenser section and the low pressure evaporator section. The lower pressure in the evaporator section allows the liquid refrigerant to evaporate, which absorbs heat from the refrigerator food compartment.
How does ammonia gas transfer heat?
The pure ammonia gas then enters the condenser. In this heat exchanger, the hot ammonia gas transfers its heat to the outside air, which is below the boiling point of the full-pressure ammonia, and therefore condenses. The condensed (liquid) ammonia flows down to be mixed with the hydrogen gas released from the absorption step, repeating the cycle.
How many phases are there in the absorption cooling cycle?
The absorption cooling cycle can be described in three phases:
How does absorption refrigeration work?
The main difference between how absorption refrigeration works versus a compressor-type is how the refrigerant is converted from a gas back into a liquid, which allows the cycle to repeat. Absorption refrigera tors change the gas into a liquid by employing only heat, ...
How does the absorption cooling cycle work?
The absorption cooling cycle consists of three phases: Liquid refrigerant evaporates in a low pressure vessel, picking up heat from the interior of the refrigerator. Due to the low pressure, heat required for evaporation is low. Next, the now-gaseous refrigerant is absorbed by a special salt solution. Then the refrigerant-saturated liquid is heated, causing the refrigerant gas to evaporate out. This hot refrigerant gas passes through a heat exchanger, transferring its heat to the outside ambient-temperature air. This heat loss causes the gas to condense back into a liquid, which then supplies the evaporation phase, as the cycle starts over and continues to do this as long as it has heat applied to the burner or heating coil.
