How far away should a cooker switch be from the stove?
Why does my cooker have a neutral to earth fault?
Is a cooker switch mandatory?
Do you need to fork out for a cooker switch?
Is BS7671 wire statutory?
Is it worthwhile to do a risk assessment for kitchen fitters?
Can you hide a cooker switch?
See 2 more
Do you need a cooker control unit?
A cooker is regarded as a piece of fixed equipment unless it is a small table-mounted type fed from a plug by a flexible cord. Such equipment must be under the control of a local switch, usually in the form of a cooker control unit. This switch may control two cookers, provided both are within 2 m of it.
Where does a cooker switch need to be?
No, a cooker switch should be located at least 30cm (300mm) horizontally away from the hob.
Does an oven need an isolation switch UK?
Yes, the wiring regulations require a local isolator switch that is close by the oven, such that the oven can safely be isolated for both maintenance and in the event of an emergency.
Does a stove need an isolator switch?
Gas-only cooktops and gas ovens - the isolator needs to be accessible with the appliance in the fixed position - double pole isolation is required. Double pole isolation can be achieved by the use of a socket outlet and the isolator may be in a cupboard. Electric ovens - no specific isolation requirements.
Can I put cooker switch in cupboard?
Answer: It is acceptable to mount a cooker switch in a cupboard, provided that the switch is readily accessible.
Can you have a plug socket near a cooker?
An electrical accessory should not be located immediately above a cooker or hob due to the possibility of people reaching over suering burns or the exible cable of connected equipment being damaged.
What kitchen appliances require isolation switches?
What Appliances Need an Isolator Switch?Extractor fans. ... Showers. ... Refrigerators. ... Air conditioners. ... Other household appliances. ... Close to appliance. ... Accessible space. ... Single pole isolator switch.More items...•
Can an oven isolator be in a cupboard?
There is no regulation that requires local isolators for any appliances in your kitchen. Agreed, but if there are isolators, being installed in an adjacent cupboard is perfectly acceptable.
Does an oven need to be on an RCD?
Safety Switches and RCD's An electric oven is required to have a safety switch or an RCD installed along with it. They are located on a final sub-circuit in domestic and residential buildings and connected when new ovens are installed.
Does a cooker switch need to be above worktop?
In those circumstances you should relocate the electrical accessories to a safe location – this is best done before the new kitchen is fitted. Sockets, switched fused spurs, light switches, cooker switches and hob isolators should not be installed behind or directly above a hob or oven.
Can I plug my stove into a regular outlet?
When it comes to electricity usage, an electric stove is a powerhouse. Consequently, you can't just plug them into the standard 110-volt outlets that are most common in the United States—most stoves require a special 220-volt outlet instead.
Do cooker hoods need an isolation switch?
as others have said, a fan isolator switch is not needed.
What height should a cooker switch be?
Socket-outlets should be installed at a minimum of 450mm from the floor. 4. Accessories should be installed at a minimum of 300mm from the edge of kitchen sinks and draining boards.
Why do cooker sockets have two switches?
A cooker switch/control unit may be used to control two or more cooking appliances in the same room (such as an oven/grill and a separate hob unit), as shown in Fig 1, provided it has sufficient current rating.
Why do cooker switches have a socket?

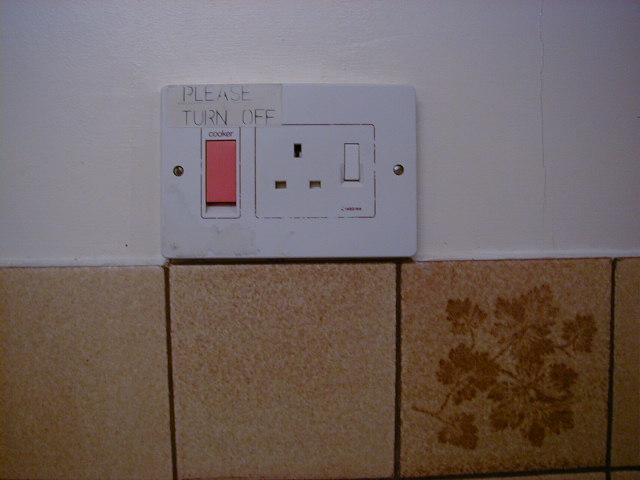

A cooker control unit contains both the cooker switch and a cooker socket, which can act as an isolator. A neon light is useful as it acts as a visual that identifies if power is being provided to the cooker.
Is a cooker switch an emergency switch?
The wiring regulations do make mention of a 'Cooker Control Unit Switch' which, when compliant with BS4177, is considered suitable for isolation, emergency switching and functional switching (table 537.4). As it can be used for emergency switching, other regulations apply including 537.3.
Is an isolator switch required for an electric oven (with gas hob)
I've just had my house rewired and the electrician has not fitted an isolator switch for the electric oven (4.5kW). The hob is gas. The oven is on its own circuit so I can isolate it by switching it off at the fusebox.
Is an isolator switch necessary for an electric hob. - MyBuilder
you should have a isolator for both parts but usually they wire both parts from the 45a cooker switch ,unless you have a large oven then you should probably had 2 supplies run in, best thing to do is talk to the electrician wiring the kitchen and ask for a certificate.
Isolation and Switching in Domestic Kitchens - the-Regs
Isolation and Switching in Domestic Kitchens… Let’s take a look at a few definitions first… Isolation: Function intended to make dead for reasons of safety all or a discrete section of the electrical installation by separating the electrical installation, or a section thereof, from every source of electrical energy. Emergency Switching: An operation intended to remove, as quickly as ...
Why do you use controls in a cooker?
In most cases, the controls incorporated in a cooker can be used to remove the source of heat if danger arises.
Can you link your electricians account to social media?
You can now link your account with social media by going to the following page. https://www.electriciansforums.net/account/connected-accounts/ We had this feature some time ago but I removed it when Facebook was found to be selling the data they collected without informing the users of what...
Can a cooker switch be used as emergency switch?
However, a cooker switch or cooker control unit may also be provided as a means of emergency switching if the designer of the electrical installation decides that it is necessary, in which case it must be located so as to be readily accessible.
What is the standard for cooker control units?
For cooker switches, they must comply with BS EN 60669-2-4 [1], and for cooker control units the applicable standard is BS 4177 [2].
Can you locate a cooker switch?
It is recommended not to locate a cooker switch or control unit in a central wall mounted control panel together with other switching devices, as this may result in the cooker switch/control unit not being under the control of persons relying on it for safety or otherwise not being suitably accessible.
Does BS7671 require a cooker switch?
No BS7671 does not and never has required a cooker switch. There was a requirement prior to BS7671, up until the 14th edition for a cooker switch. I believe there was a requirement in the 15th for a cooker switch used to control 2 cookers to be no more than 2m from each cooker. reply. jimsullivan_16.
Can a cooker switch be installed in a cabinet?
A cooker switch or control unit should not be installed in a cupboard or cabinet unless it will be accessible and convenient for use. In any event, wiring and other electrical equipment should not be fixed to any part of a cupboard or cabinet that is demountable in normal use.
What is a 45 amp double pole cooker switch?
A 45 amp double pole cooker switch is used as a means of local isolation. This is useful for maintenance, cleaning and periodic inspection and testing purposes. It is also used a a means of emergency isolation in case of a fire in the cooker for example.
What happens if you remove a switch in a kitchen?
It also probably indicates that the cable is running concealed down the wall in that location. If you remove the switch you will contravene electrical regulations. All electrical work in a kitchen must also be certified under part P, either by a self certifying competent person or via building control notification.
Can you turn off a cooker with a switch?
no this is not good practise if there is a fault with the cooker you can atleast turn it off with a switch . what would you do if the cooker became live??? quickest thing to do would be to turn if off. also its good to save energy by turning the cooker off
Do cookers need to be isolated?
No,as an appliance like a cooker has to have local isolation for maintenance and safety purposes, as it is double pole, ie, isolates live and neutral.
Can you isolate a 45 amp isolator?
In short No. By doing away with the 45amp isolator, you would be creating an electrical defect and the installation would not comply with BS7671:2008 as it would not be possible to isolate the cooker for safety reasons (e.g. in an emergency or when being cleaned/repaired etc). Strongly advise against removing it!
Can you remove a blank plate and replace it with a blank plate?
If you wanted to remove and replace with a blank plate to still indicate a cable in a prescribed zone this would be acceptable .#N#If the consumer unit was in close proximity to the cooker, this would also constitute a reasonable local means of isolation.
Is it necessary to keep an isolator?
In short, keeping the isolator, although not required, may well save you a load of money and bother further down the line.
Which countries have a cooker switch?
The UK and Ireland are the only countries I know of where most houses have a cooker switch.
How far away from a cooker do you need a control unit?
These local switches serve as local isolators, functional switches and emergency switches, hence the need for the cooker unit to be not more than 2mts from the cooker or cookers. Just because the regulations do not specifically request a cooker control unit does not meat than it is not needed. Regulations are a general guide to professionals, not 'Electrics for dummies', we have to apply them as we see fit.
What is the isolator on a stove?
The cooker isolator is twin pole and visible by anyone working on the cooker. Where the cookers own controls are where in the event of a fire you can't operate the isolator assuming mounted to one side of cooker allows one to switch it off quickly.
How far away from a stationary appliance?
within 6 feet of the appliance. Where two stationary cooking appliances are installed in one room, one
Is a cooker switch better than a MCB?
Switch off both. The cooker switch is a double pole switch so is a better means of isolation than the MCB.
Can voltage be cut off from every circuit?
voltage may be cut off from every installation, from every circuit thereof and from all. equipment, as may be necessary to prevent or remove danger.". Don’t know about the 15th edition, and haven’t bothered looking in the 18th. Always thought having the emergency switch so close to the cooker was a bit dumb.
Do all manufacturers fit the same cooker isolation switch?
All manufacturers will more than likely be the same, do the job properly, fit a cooker isolation switch.
What is a switch on a cooker?
The switch connects the cooker’s control unit to the electrical supply in your home. If you have an old cooker, then your home probably has the correct switch needed for the new one. Deactivate both switches each time you need to access the cooker’s wiring. It will help keep you safe.
How many amps does an electric cooker need?
Have a separate 32-amp circuit installed by an electrician. An electric cooker needs plenty of electricity to heat up, so it has to have its own powered circuit. If you already have an old cooker in place, then your home has the electrical circuit needed for the new one.
How to tighten a wire in an outlet box?
Tighten the screws to close the terminals and outlet box. Use a crosshead screwdriver to turn the terminal screws clockwise, tightening them . Make sure they are tight enough that you can’t pull the wires out of the terminals. When you’re done, cover the outlet box, tightening any screws used to hold it in place.
Why won't my electric cooker work?
If the wires are frayed or loose in the box, the cooker won’t work properly. Bad wiring could potentially damage your cooker or lead to other problems, so take your time with them before reactivating the power.
What color is the ground wire on a home generator?
For example, your unit may have a brown neutral wire on the left, a green and yellow ground wire in the middle , and a blue power wire on the right. It depends on the wire color scheme used in your country.
What to do if you are not sure how your home is wired?
If you’re not sure how your home’s electrical wiring is set up, ask an electrician to inspect it and make sure it is safe to use.
How many burners does an electric stove have?
An electric cooker, or stove, is a handy but powerful kitchen appliance. A standard one can have 4 burners and up to 2 ovens. Its utility means it runs on a strong current, so you have to take some special precautions when setting one up.
How far away from a cooker switch should a switch be?
For example, a cooker switch has to be within 2 metres of said cooker and not hidden in a cupboard. I would expect the same to be applicable to any appliance.
Why do you need a switch to isolate an appliance?
you need a switch to isolate the appliance so you can carry out work on it (repairs, removal etc) without isolating the entire kitchen circuit. Just as sockets can be isolated by tripping the MCB, rather than turning off the entire house electricity.
How many mm seperation on a hood switch?
Further, most hood mfrs insist on a DP switch with at least 3mm seperation.
Is half the wiring done in this country by registered competent electrical engineers substandard?
Half the wiring done in this country by registered competent "electrical engineers" is substandard in my opinion. And in all honesty you don't have to be that clever to do wiring.
Can you run FCU under a cupboard?
Not behind the chimney. How are you going to isolate it if its behind the chimney? Cable should be buried in a wall. But it is acceptable to run under cupboards, there is no option for pelmet lights etc. Run it in mini trunking. Neat and tidy that way.
How far away should a cooker switch be from the stove?
If you’re having a new kitchen, it is considered best practice for a cooker switch to be installed within two metres of the appliance, but not within 300mm of its hot surface and not directly above. If you need to shut the appliance off for whatever reason, that local source of isolation should be readily available.
Why does my cooker have a neutral to earth fault?
If your cooker has a neutral to earth fault that is causing the RCD to trip , then the lack of a two-pole cooker switch will leave you requiring disconnection of either the circuit or the appliance in order to reset the RCD.
Is a cooker switch mandatory?
Others would insist a cooker switch is mandatory and the installation is not compliant without one. Here’s my take on it…
Do you need to fork out for a cooker switch?
Although it’s not ideal, if you already have a kitchen where no cooker switch has been installed, you don’t need to fork out for one to be put in. It wasn't good practice for the installer to have omitted such, but there is no specific regulation insisting that one is mandatory.
Is BS7671 wire statutory?
It should be borne in mind that the BS7671 Wiring Regulations are non-statutory so you don't have to comply completely, although it is of course best practice to do so and any non compliance should be detailed on the final certificate with justifiable reasoning for any deviations. As the designer of a kitchen, whether new or remodelled, it's up to you to use your judgement alongside the requirements of the regulations to decide what is going to work best in any given installation. In the event of an incident or accident you may be required to justify your design and/or installation work in a court of law, so your best defence is to make it as compliant with BS7671 as possible.
Is it worthwhile to do a risk assessment for kitchen fitters?
Regarding that last point, if you're a kitchen fitter or builder by trade who may come across this kind of situation often, then it may be worthwhile to prepare a risk assessment that you can apply and, if necessary, tweak for each job.
Can you hide a cooker switch?
Hiding a cooker switch at the back of a cupboard or above kitchen units makes it not obvious or readily available to locate and isn’t good practice, however if a kitchen is small and lacks available wall space to accommodate a switch, then its better to have one than not, even if it is placed out of the way. It is recommended that wiring accessories of any kind should be mounted on the building fabric (i.e. screwed to the wall) and not fixed onto kitchen furniture.
Why The Different Standards?
Function of A Cooker Control Unit
- The cooker switch/control unit is often used to serve the following functions in respect of the cooking appliance. • A means of isolation (Regulation Group 537.2), such as to facilitate electrical connection or repair of the appliance without having to isolate at the consumer unit or distribution board • A means of switching off for mechanical maintenance (Regulation Group 537.3), such a…
Positioning
- The switch or control unit should be positioned so that it is accessible and convenient for use. It should not be positioned behind or above a cooking appliance such that a person would have to reach over the appliance in order to access the switch/control unit. The horizontal distance between a cooker switch/control unit and the appliance(s) it serves must be sufficiently short fo…
Particular Considerations For Cooker Control Units
- The installation of a cooker control unit can lead to accidents due to trailing cables and/or portable equipment being located near to or on hot surfaces. Where a cooker control unit is provided, it should be positioned so as to minimise the risk of such accidents. If this is not practicable, it is better to install a cooker switch (without a socke...
