What metal are exhaust valves made of?
Exhaust valves may be made from a martensitic steel with chrome and silicon alloys, or a two- piece valve with a stainless steel head and martensitic steel stem. On applications that have Page 3 higher heat requirements, a stainless martensitic alloy may be used.
What is intake and exhaust valves?
Intake and exhaust valves are elements whose function is controlling a liquid or gas flow; those ones used in the intake and exhaust of a four-stroke engine are usually seat valves.
Why do exhaust valves burn?
Exhaust valves burn when they fail to seat properly and, as a result, can't efficiently transfer heat to the cylinder. Ultra-hot gasses scorch these valves beginning at their thin rims. This damage erodes and weakens the valves, exacerbates the poor seating problem, and dramatically accelerates wear.
How are valves made?
Forging Valves Forged valves are created using a forging method that involves shaping metals and alloys while they're in their solid form. Heat and industrial-size tools deliver compressive forces to bend the metals and alloys, and dies are used to cut and shape the materials to create specific valves.
What does an intake valve do?
An intake valve is a valve that controls the amount of working fluid entering the cylinder of an engine.
What's a intake valve?
noun. a valve in the cylinder head of an internal-combustion engine that opens at the proper moment in the cycle to allow the fuel-air mixture to be drawn into the cylinder.

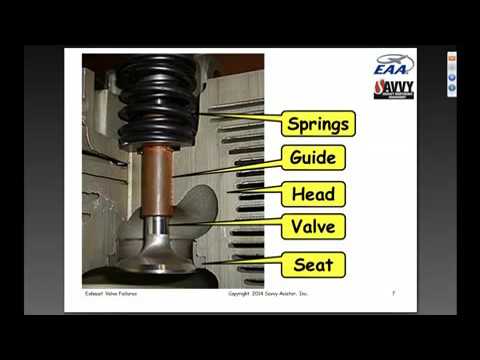

Where are intake and exhaust valves located?
cylinder head…the typical four-stroke-cycle engine, the intake and exhaust valves and the fuel-injection nozzle are located in the cylinder head (see figure).
What does a exhaust valve do in an engine?
An exhaust valve is a valve that releases burned gases from a cylinder. The exhaust valve closes during the initial part of the induction stroke. The inlet valve usually opens a little before top dead center and the exhaust valve remains open a little after top dead center.
What is the best material for exhaust valves?
Steel materials have proved a very popular choice of exhaust valve material for naturally aspirated engines. Austenitic steels such as 21-4N remain popular today for racing applications, and more than 40 years ago it was cited in technical papers and books on the subject of valves (2, 3). These days there are materials with slightly better mechanical properties in this category, such as DIN 1.4882
What is creep in exhaust valves?
Creep is a measure of the 'relaxation' of material, and is measured by observing time-dependent strain under a fixed load , or by observing time-dependent stress under fixed strain. Books containing relevant creep data include that by Conway (4).
Why is the intake valve bigger than the exhaust valve?
Many answer here focus on the size of the intake valve: the intake valve is “bigger” than the exhaust valve to allow more air/fuel mixture to enter the combustion chamber.
What is the best material for exhaust valves?
The most popular materials for exhaust valves, however, are austenitic stainless steel alloys such as 21-2N and 21-4N. Austenite forms when steel is heated above a certain temperature which varies depending on the alloy. For many steels, the austenitizing temperature ranges from 1600° to 1675° F, which is about the temperature where hot steel goes from red to nearly white). The carbon in the steel essentially dissolves and coexists with the iron in a special state where the crystals have a face-centered cubic structure. By adding other trace metals to the alloy such as nitrogen, nickel and manganese, the austenite can be maintained as the metal cools to create a steel that has high strength properties at elevated temperatures. Nitrogen also combines with carbon to form “carbonitrides” that add strength and hardness. Chromium is added to increase corrosion resistance. The end product is an alloy that may not be as hard at room temperature as a martensitic steel, but is much stronger at the high temperatures at which exhaust valves commonly operate.
What is the code for a low alloy intake valve?
SAE classifies valve alloys with a code system: “NV” is the prefix code for a low-alloy intake valve, “HNV” is a high alloy intake valve material, “EV” is an austenitic exhaust valve alloy, and “HEV” is a high-strength exhaust valve alloy.
What materials are used in valves?
Materials that are commonly used for performance valve applications include carbon steel alloys, stainless steels, high-strength nickel-chromium-iron alloys and titanium. The alloys that are most commonly used for performance engines include various high chromium stainless alloys for intake valves, and 21-4N (EV8) for exhaust valves.
What is inconel made of?
Inconel is the alloy of austenite steel nickel and chromium.
Why is heat treatment important for exhaust valves?
The heat treatment is very important because it determines the ultimate strength and hardness of the metal.
Why use stainless steel exhaust valves?
Stainless Steel is usually used for its antioxidative properties at temperature. I saw once that somebody used hastelloy but don’t remember on which engine. Some exhaust valves are sodium filled to let liquid help transfer the heat away from t he head of the valve. Some racing engines use titanium for lightness to help prevent valve float at high rpm’s. So I would say that there are a lot of materials that can be used depending on conditions and need for durability or lightness.
Why are intake and exhaust valves open?
Intake valves are opened to allow the flow of an air/fuel mixture into the engine’s cylinders prior to compression and ignition, while exhaust valves open to permit the expulsion of exhaust gases from the combustion process after ignition has occurred .
How does the intake valve work?
In the intake cycle, the intake cylinder piston cycles downwards as the intake valve opens. The piston movement creates negative pressure that helps draw the air/fuel mixture into the cylinder. Just after the piston reaches the lowest position in the cylinder (known as bottom dead center), the intake valve closes. In the compression cycle, the intake valve is closed to seal off the cylinder as the piston rises in the cylinder to the highest position (known as top dead center), which compresses the air/fuel mixture to a small volume. This compression action serves to provide a higher pressure against the piston when the fuel is ignited as well as pre-heating the mixture to assist with an efficient burning of the fuel. In the power cycle, the air/fuel mixture is ignited which creates an explosion that forces the piston back down to the lowest position and transfers the chemical energy released by burning the air/fuel mixture into the rotational motion of the crankshaft. The exhaust cycle has the piston again rising upward in the cylinder while the intake valve remains closed and the exhaust valve is now open. The pressure created by the piston helps force the exhaust gases out of the cylinder through the exhaust valve and into the exhaust manifold. Connected to the exhaust manifold is the exhaust system, a set of pipes that includes a muffler to reduce acoustical noise, and a catalytic converter system to manage emissions from engine combustion. Once the piston reaches the top of the cylinder in the exhaust cycle, the exhaust valve begins to close and the intake valve starts to open, beginning the process over again. Note that the cylinder pressure on intake helps to keep the intake valve opened and the high pressure in the compression cycle helps to keep both valves closed.
Why are intake valves exposed to thermal stress?
The intake valves on internal combustion engines are subjected to less thermal stress because of the cooling effects of the incoming air/fuel mixture that passes by the valve during the intake cycle. Exhaust valves, by contrast, are exposed to higher levels of thermal stress by being in the pathway of the exhaust gases during the exhaust cycle of the engine. In addition, the fact that the exhaust valve is open during the exhaust cycle and not in contact with the cylinder head means the smaller thermal mass of the combustion face and valve head has a greater potential for a rapid temperature change.
How do valves move?
When the camshaft is in the cylinder head, the engine is called an overhead cam (OHC) design; when the camshaft is in the engine block, the engine is called an overhead valve (OHV) design. Regardless of the engine design, the basic movement of the engine valves occurs by the cam riding against a lifter or a tappet that provides a force that presses against the valve stem and compresses the valve spring, thereby removing the spring tension that keeps the valve in the closed position. This movement of the valve stem lifts the valve off the seat in the cylinder head and opens the valve. Once the camshaft rotates further and the cam lobe moves so that the eccentric portion is no longer directly in contact with the lifter or tappet, the spring pressure closes the valve as the valve stem rides on the centric portion of the cam lobe.
What happens to the piston in an exhaust cycle?
The exhaust cycle has the piston again rising upward in the cylinder while the intake valve remain s closed and the exhaust valve is now open. The pressure created by the piston helps force the exhaust gases out of the cylinder through the exhaust valve and into the exhaust manifold.
Why are engine valves called mushroom valves?
They are also called mushroom valves because of the distinctive shape of the valve head.
What type of fuel does an engine valve run off?
Engine valves are common to many types of combustion engines, whether they run off a fuel such as gasoline, diesel, kerosene, natural gas (LNG), or propane (LP). Engine types vary by the number of cylinders which are the combustion chambers that generate power from the ignition ...
What is the intake valve made of?
For many late model engines (and performance engines), the intake valves are made of an alloy called “Silchrome 1” (Sil 1) that contains 8.5 percent chromium. Exhaust valves may be made from a martensitic steel with chrome and silicon alloys, or a two-piece valve with a stainless steel head and martensitic steel stem.
Why is wear resistance important for intake valves?
So for intake valves, wear resistance may be more important than high temperature strength or corrosion resistance if the engine will be involved in any kind of endurance racing.
Why do valves need ceramic coating?
Ceramic thermal barrier coatings may also be applied to the combustion side of the valve head to reflect heat back into the combustion chamber. The theory here is that a heat reflective coating helps the valves run cooler. This helps the exhaust valves run cooler and last longer, and reduces heat transfer from the intake valves to the incoming air/fuel mixture for a denser, more powerful mixture. Heat reflected back into the combustion chamber also improves burning efficiency and power.
How much does a titanium valve cost?
A single titanium valve may cost $70 to $90 or more . Spending $1,200 or more for a set of valves may be peanuts to a professional racer with deep pockets, but for the average guy that’s a lot of money. Yet titanium valves are being used in many street performance engines as well as everything else.
Why do valves have chrome plated stems?
Stock valves as well as performance valves usually have chrome-plated stems to protect the stem from galling when the engine is first started. Chrome-plating also helps reduce valve seal wear on engines that use positive valve seals.
Why do you need titanium valves?
Titanium valves are often coated with moly or another friction-reducing surface treatment to reduce the risk of stem galling. Coated valves are recommended for street performance applications, but may not be necessary in drag racing or circle track applications where engines are torn down and inspected frequently.
Do valve alloys work in stock engines?
As combustion temperatures go up, valve alloys that work fine in a stock engine may not have the strength, wear or corrosion resistance to hold up in a performance application. If you want the valves to last, especially in a highly modified racing engine, upgrading to better valve alloys will be a must.
