How are connecting rods attached to the piston?
The piston is attached to the connecting rod by a short hollow tube called a wrist pin, or gudgeon pin. This wrist pin carries the full force of combustion. The piston is not only subject to vertical forces during combustion, but also side forces caused by the continuously changing angle of the connecting rod.
Which way to install connecting rod?
- Important: Ensure that the arrow on top of the piston faces towards the front of the engine.
- Orient the connecting rod in the piston.
- Examine the lower end of the connecting rod.
- Locate the bump on the connecting rod lower end.
- This bump is at the top of the large end where it forms the connecting rod beam.
What is the purpose of a connecting rod?
- It is a rod which connects the piston to the crankshaft of the engine assembly
- It is usually found in all types of engines
- It is found in automobiles and small type of engines
How do you install piston rods onto Pistons?
You need to first partially insert the pin on the piston's side. Now line the connecting rod and the hole through which the pin will pass. Step 8 – Sliding the Pin. As a final step in the placement, continue sliding the pin. Keep sliding onto the rod and later through the piston’s other side. Step 9 – Torching
What is the function of connecting rod?
The main function of the connecting rod is to get forward and backward motion by the engine piston and transfer this motion to the crankshaft.
What causes connecting rod failure?
The main reasons for the connecting rod failure are given below: Overheating of the engineHydrolock problems. This problem occurs while you drive t...
What are the components of Connecting rod?

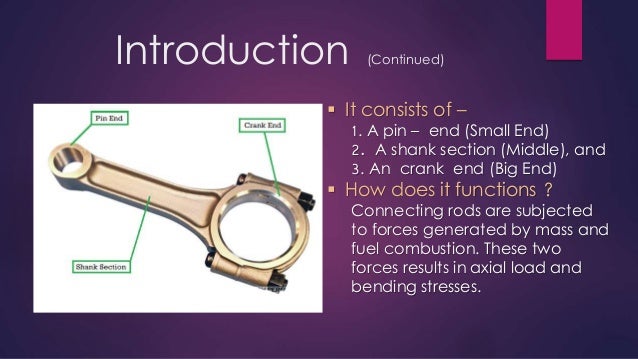

The connecting rod has the following components: Bearing capPistonWrist pinShankNut and BoltSmall EndBearing insertsLarge EndBushing
What are the types of connecting rod?
The connecting rods have the following types: Powered metal conrodsPlain type rodForged rodsFork and blade rodCast rodsBillet conrodsMaster and sla...
What is a connecting rod?
Connecting rod Definition: The connecting rod is defined as it is a mechanical component that helps to connect the piston and crankshaft of the engine. In other words, you can say it acts as an intermediate member between the piston and the cylinder.
Where is the hole in the connecting rod?
In pressure lubrication, the end of the connecting rod has a hole near the bearing, And there the oil pressure is sent for lubrication which we call pressure lubrication.
What is the transfer of pull and push in an engine?
The pull and push in the piston receive the piston pin, then the connecting rod acts as the transfer of the pull and pushes from the piston pin to the crank pin. That is, in any internal combustion engine with the help of it, the reciprocating motion is converted to rotary motion. In the design requirements of the rod, ...
What happens to the piston if the length is more?
In the same way, if the length is more then the ratio of l / k will be more. Due to this, the angularity of the rod will decrease, so due to this, the side thrust on the piston will also decrease which causes less wear is obtained in the cylinder.
What happens when the length of a piston is low?
If the length is low then the l/r ratio will also be low, Due to this, the rod will increase in angularity due to which the side thrust on the piston will increase which causes increasing linear wear.
Where is splash lubrication done?
Splash lubrication is done in the bearings in the big end of the crankshaft. And pressure lubrication is done in the small end bearing. In splash lubrication, a sprout is placed at an angle, so that whenever the rod is down, the sprout is inserted into the lubricating oil.
Which side of the piston is a small end?
The rod which is facing the piston side is termed as a small end. And which is on the crank side is termed as a bigger end.
How does a piston work?
The piston is connected to the crankshaft through a connecting rod , often shortened to rod or conrod . These parts together are known as the piston assembly . Both ends of the connecting rod are free to pivot: The part of the connecting rod which connects to the piston is called the small end , and the end that attaches around ...
How does the piston give power?
The power in an engine all comes from the force pushing on the top of the piston. That force is determined as the area of the piston multiplied by the gas pressure. Bigger pistons, and higher gas pressure will provide more power. On the whole, piston size is constrained by the design of the engine but the piston does have a vital role in maintaining high gas pressure by creating a gas-tight seal with the cylinder wall.
Why is my piston slap worse?
Piston slap will generally be worse when the engine is cold, before the piston has had time to warm up and expand. It can be cured by machining the cylinder and using an oversized piston.
How much clearance does a piston need?
A typical piston will have a clearance of 0.1mm (0.004”) between itself and the cylinder wall - that’s around the width of a human hair. To maintain this clearance, the piston must be precisely machined, and the alloy that it is made from will be exactly specified to account for thermal expansion.
What is the function of a piston?
The piston’s function is to act as a moveable plug in the cylinder, forming the bottom part of the combustion chamber. There’s a gas-tight seal between the piston and the cylinder wall - so the only way for the hot combustion gases to expand is by forcing the piston down. It’s the same principle behind a cannonball, ...
What is the top surface of a piston called?
The top surface of the piston is called the crown (also head or dome ).
Where does the heat from a piston go?
The heat from a piston goes to three places: As radiant heat into the combustion chamber, into the cylinder walls via the piston rings and down the connecting rod.
Bolt and Nut
When connecting rods are fitted to the cranks at the bottoms, both sides of the rods’ big ends are usually fastened with a few bolts and nuts. After this, connecting rods are ready for use.
Bush Bearing
Connecting rods are often fixed at both ends using bush bearings. Phosphor bronze bush, fitted with a solid eye, is attached to the small ends of connecting rods.
Wrist Pin
The wrist pin – called ‘gudgeon pin’ – is a hardened hollow steel tube connecting the piston to the connecting rod. This component moves through the short end of the con rod and then pivots on the engaged engine piston.
Bearing Insert
A bearing insert – found at the big end of a connecting rod – connects to the bearing cap. They usually come in two components that fit perfectly together on the crankshaft. At this position, the connecting rod travels conveniently in the reverse direction.
Piston

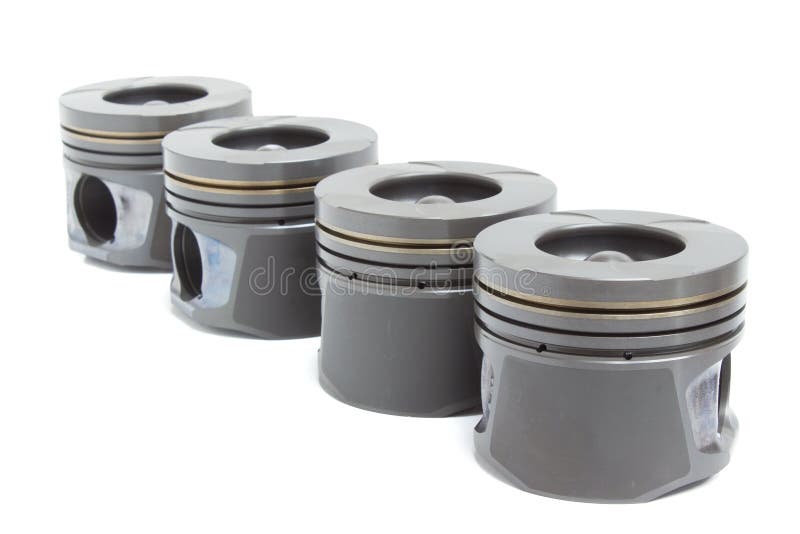

The piston is connected to the crankshaft via the connecting rod. The #1 purpose of the piston is to function as a movable plug within the cylinder which constitute the bottom of the combustion chamber.
Shank
As stated earlier, bolts and nuts connect the connecting rod to the bearing cap. A section beam called ‘shank’ is utilized here.
What is a piston pin?
A piston pin forms the connection or pivotal point of the pistons and connecting rod. They provide bearing support and help pistons to function properly. In other words, the pin facilitates the back and forth movement of the piston.
What is the area between piston rings called?
The areas or surfaces between these rings are called piston ring lands . The ring mounting grooves are designed to maintain the piston ring position, and you may hear something like tapered construction. The split design of the piston ring has several benefits.
What is the purpose of piston rings?
The primary function of piston rings is to seal off the combustion chamber and regulate lubricating oil usage. The rings also serve to conduct heat away to the cylinder bore. As mentioned before, most vehicle engine pistons feature three rings; two upper compression rings and a lower oil ring.
What is the function of a piston head?
Among the purposes it serves are: Creating swirl to make combustion uniform and regulate knocking.
What is the top ring of a piston called?
Compression ring – this is the top side ring and nearest the combustion chamber. It is also called the gas or pressure ring. The ring prevents combustion gases from leaking. Compression rings also help transfer heat from the piston to the walls of the cylinder.
What is piston oil control ring?
Oil control ring – the piston oil ring is the lower ring on the piston. It consists of two thin surfaces, with holes all around. The slots allow oil to flow back into the sump. As its name suggests, the function of the piston oil control ring is to remove excess oil from the cylinder walls.
Where are piston bearings located?
The bearings are piston parts that are located at the points where pivotal rotation takes place. The are usually semicircular metal pieces that fit in the bores of these points. Piston bearings include the shells found at the big end where the rod connects to the crankshaft. There are also bearings at the small end where the rod links to the piston.
Where is the connecting rod on a piston?
Connecting With a Rod. withgod / Getty Images. The connecting rod is connected to the bottom of the piston . The piston is domed and sealed at the top, but the bottom part of the piston is hollow.
How does a piston work in combustion?
Each piston has its own connecting rod, and each connecting rod is attached to the crankshaft at a different point. Not only are they spaced out along the long crankshaft, but they are attached at different points in the crankshaft’s rotation, as well.
What causes the piston to be thrust downward?
The explosion that happens in the cylinder causes the piston to be thrust downward toward the inside of the engine. The connecting rod connects the bottom of the piston to a certain point on the crankshaft, transferring the energy of the combustion (the explosion in the cylinder) from an up and down movement of the piston ...
Why is it important to have a connecting rod on a key?
This is important because, as the connecting rods cause the crankshaft to rotate, the point at which they are attached to the crankshaft shift slightly in relation to the center of the piston. This means it needs to wobble back and forth just a bit so that it doesn’t break off the first time you turn the key.
What is a piston in a car?
A piston, by design is something that goes up and down. An automotive piston has a much more brutal fate ahead of it. Not only does it go up and down, but it has to survive thousands of explosions every time you use your car or truck. A piston has a top and bottom.
What is a Cylinder?
The cylinder in an engine is just that, a tube. Inside this tube, however, is where all of the magic happens. Everything described below is happening in a tightly sealed tube called the cylinder. Most cars have at least four of them.
