What is the Little Man Computer?
The Little Man Computer ( LMC) is an instructional model of a computer, created by Dr. Stuart Madnick in 1965. [1] The LMC is generally used to teach students, because it models a simple von Neumann architecture computer—which has all of the basic features of a modern computer.
What does the Little Man do inside the processor?
The little man does all the important work inside the processor by following a process known as the 'Fetch Execute Cycle', which involves oddly enough, fetching instructions, and executing them. Before the little man can carry out an instruction, he needs to find out which instruction he has to carry out.
Why do we use LMC in Computer Science?
The LMC is generally used to teach students, because it models a simple von Neumann architecture computer—which has all of the basic features of a modern computer. It can be programmed in machine code (albeit in decimal rather than binary) or assembly code. [2] [3] [4]
How does the Little Man execute a program?
To execute a program, the little man performs these steps: Check the Program Counter for the mailbox number that contains a program instruction (i.e. zero at the start of the program) Fetch the instruction from the mailbox with that number.
What codes does little man computer use?
You can program the LMC using 'machine code'. Machine code is normally binary numbers that represent instructions to the computer. However, with the LMC, you use denary numbers.
How do you split on little man computer?
1:493:17Little Man Computer Tutorial - 3 - Multiplication and Division - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo it's do division we have to use subtraction to divide something we have to subtract X from YMoreSo it's do division we have to use subtraction to divide something we have to subtract X from Y until Y is 0. And then our resolves actually how many times we had to subtract.
How do I learn LMC?
0:002:11Little Man Computer Tutorial - 1 - Intro, Basics and Adding/SubtractingYouTubeStart of suggested clipEnd of suggested clipThis tutorial will go through the basics of how to use my computer I will include all the links andMoreThis tutorial will go through the basics of how to use my computer I will include all the links and information that you may need in the description.
What is an LMC code?
The LMC has nine instructions. Each instruction has an assembly mnemonic that is equivalent to a three-digit (decimal) instruction. In this numerical instruction, the first digit usually represents the instruction, and the second and third digits usually represent a mailbox address.
What does BRP do in LMC?
LMC Instruction SetMnemonicNameDescriptionBRPBRANCH IF POSITIVEBranch/Jump to the address given if the Accumulator is zero or positive.BRZBRANCH IF ZEROBranch/Jump to the address given if the Accumulator is zero.BRABRANCH ALWAYSBranch/Jump to the address given.HLTHALTStop the code7 more rows•Apr 28, 2017
What is machine code written in?
machine languageMachine code is a computer program written in machine language. It uses the instruction set of a particular computer architecture. It is usually written in binary. Machine code is the lowest level of software.
What is an operand and opcode?
Opcodes and operands The opcode is the instruction that is executed by the CPU and the operand is the data or memory location used to execute that instruction.
What is LMC in computer science?
The LMC is generally used to teach students, because it models a simple von Neumann architecture computer—which has all of the basic features of a modern computer. It can be programmed in machine code (albeit in decimal rather than binary) or assembly code. The LMC model is based on the concept of a little man shut in a closed mail room ...
How to use LMC?
To use the LMC, the user loads data into the mailboxes and then signals the Little Man to begin execution, starting with the instruction stored at memory address zero.
How many instructions are there in a LMC simulator?
Some LMC simulators are programmed directly using 3-digit numeric instructions and some use 3-letter mnemonic codes and labels. In either case, the instruction set is deliberately very limited ( typically about ten instructions) to simplify understanding. If the LMC uses mnemonic codes and labels then these are converted into 3-digit numeric instructions when the program is assembled.
How many mailboxes are there in a LMC?

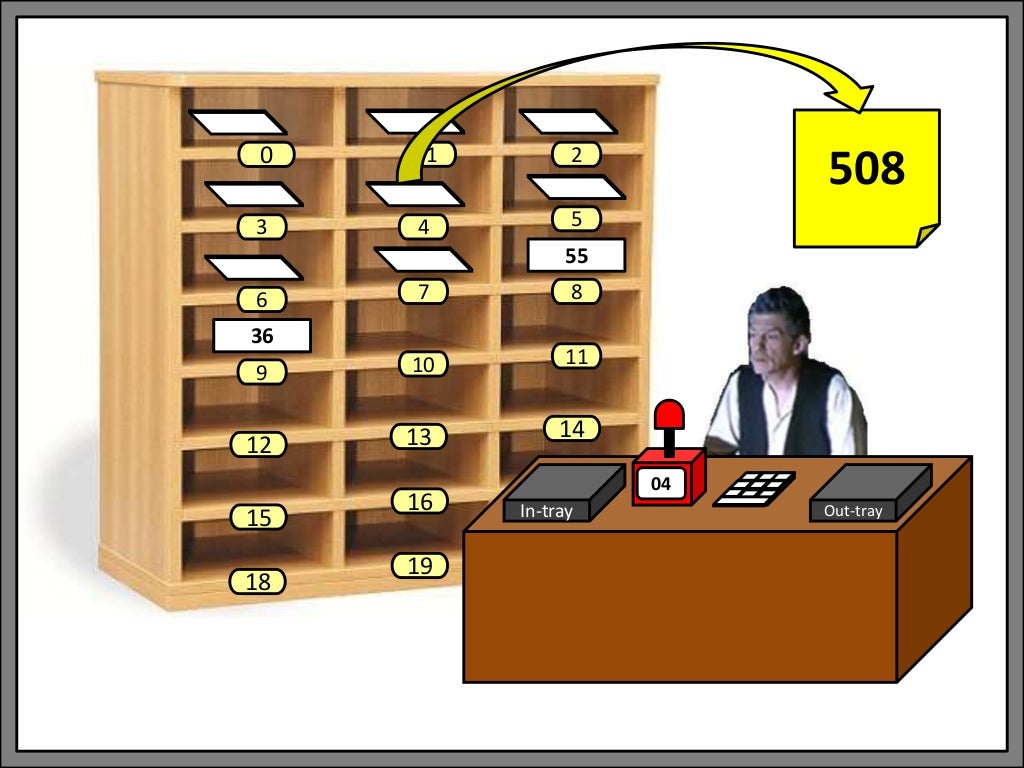

At one end of the room, there are 100 mailboxes ( memory ), numbered 0 to 99, that can each contain a 3 digit instruction or data (ranging from 000 to 999). Furthermore, there are two mailboxes at the other end labeled INBOX and OUTBOX which are used for receiving and outputting data. In the center of the room, there is a work area containing a simple two function (addition and subtraction) calculator known as the Accumulator and a resettable counter known as the Program Counter. The Program Counter holds the address of the next instruction the Little Man will carry out. This Program Counter is normally incremented by 1 after each instruction is executed, allowing the Little Man to work through a program sequentially. Branch instructions allow iteration (loops) and conditional programming structures to be incorporated into a program. The latter is achieved by setting the Program Counter to a non-sequential memory address if a particular condition is met (typically the value stored in the accumulator being zero or positive).
What is a Little Man computer?
This is the Little Man Computer, or LMC. It’s an instructional model of a computer created in around 1965. It models a simple Von Neumann architecture with all the basic features of a modern computer. 22.8. We can program the LMC using machine code. Machine code is normally binary numbers that represent instructions to the computer.
Where is the instruction set on a Little Man computer?
On the left hand side of the screen, you can see the Little Man Computer’s instruction set. The Xs are for addresses in RAM. So 550, for example, would be an instruction to load the number in address 50 into the accumulator. So let’s watch a little program using machine code.
What is a LMC computer?
Share this post. This is the ‘little man computer’, or LMC. It’s an instructional model of a computer , created in around 1965. It models a simple Von Neumann architecture, with all the basic features of a modern computer. We can program the LMC using ‘machine code’.
What is the Little Man computer used for?
The Little Man Computer can be used to square a number. The procedure is an extension of the process of multiplication.
What is LMC in programming?
The LMC can be used to create a countdown - a form of iteration, with the aid of BRZ and BRA loops. The user provides the programme with an input to generate a countdown. This is the code:
How to learn LMC?
The best way to learn the LMC is running set of codes, from the simplest to the more advanced gradually, rather than making an effort to understand the simulator fully at first. This is the approach adopted in this tutorial.
Can LMC multiply or divide?
The LMC can add or subtract numbers, but it can neither multiply nor divide. The obvious drawback actually makes programming even more interesting: the multiplication, in fact, can be carried out with the aid of addition!
The Program Counter
The little man uses the value in the program counter to decide which address in memory he should get the next instruction from. After getting the value, but before going and getting that instruction, he increments the program counter, so that it has the correct value in it when he visits it next time.
Memory
Memory can be used to store programs, and data. In the fetch phase of the fetch execute cycle we are only interested in the fact that we can get instructions from the memory.
The Input and Output Trays
These are what we use to communicate with the little man. We provide him with data via the input tray, and when he's ready, he provides us with data via the output tray.
The Calculator
On a 'real' computer, this would be the Arithmetic Logic Unit (ALU). The little man needs nothing so grand, and makes do with a simple three digit display calculator.
Memory (again)
Memory is accessed during the execute phase when we need to store or access data.
How many decimals are in LMC?
Each LMC instruction is a 3 digit decimal number. The first digit represents the command to be performed and the final two digits represent the address of the mailbox affected by the command.
Is the accumulator non destructive?
Note: the contents of the accumulator (calculator) are not changed (non-destruct ive), but contents of mailbox are replaced regardless of what was in there (destructive)
Overview
The Little Man Computer (LMC) is an instructional model of a computer, created by Dr. Stuart Madnick in 1965. The LMC is generally used to teach students, because it models a simple von Neumann architecture computer—which has all of the basic features of a modern computer. It can be programmed in machine code (albeit in decimal rather than binary) or assembly code.
The LMC model is based on the concept of a little man shut in a closed mail room (analogous t…
Execution cycle
To execute a program, the little man performs these steps:
1. Check the Program Counter for the mailbox number that contains a program instruction (i.e. zero at the start of the program)
2. Fetch the instruction from the mailbox with that number. Each instruction contains two fields: An opcode (indicating the operation to perform) and the address field (indicating where to find the data to perform the operation on).
Commands
While the LMC does reflect the actual workings of binary processors, the simplicity of decimal numbers was chosen to minimize the complexity for students who may not be comfortable working in binary/hexadecimal.
Some LMC simulators are programmed directly using 3-digit numeric instructions and some use 3-letter mnemonic codes and labels. In either case, the instruction set is deliberately very limite…
Labels
Without labels the programmer is required to manually calculate mailbox (memory) addresses. In the numeric code example, if a new instruction was to be inserted before the final HLT instruction then that HLT instruction would move from address 07 to address 08 (address labelling starts at address location 00). Suppose the user entered 600 as the first input. The instruction 308 would mean that this value would be stored at address location 08 and overwrite the 000 (HLT) instruc…
