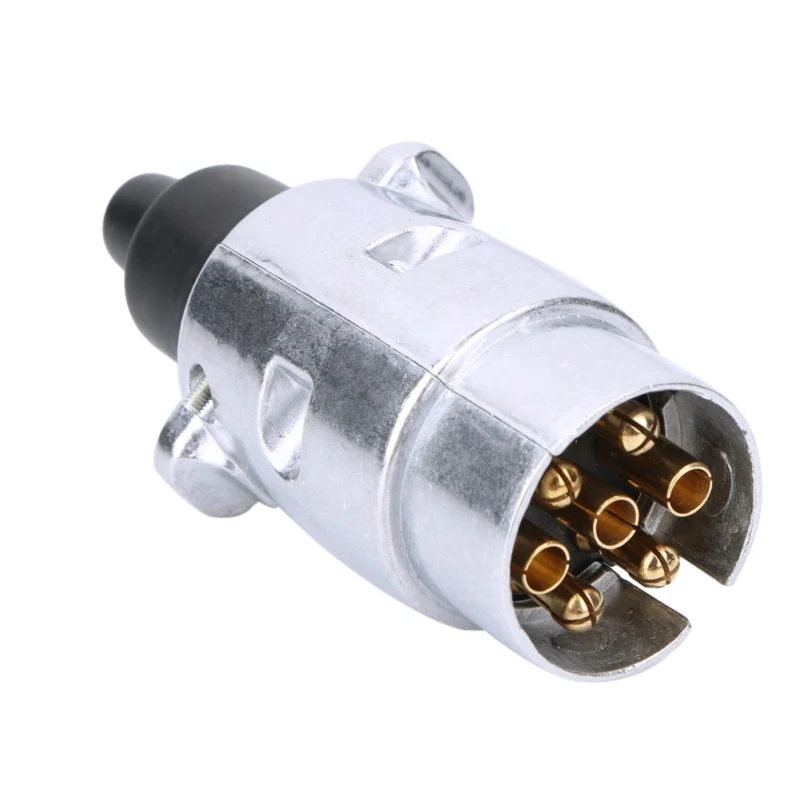

A 7-pin trailer plug connects power to a trailer when towed. You need your trailer to signal when you’re braking, turning, or backing up, and the connections made through a 7-pin trailer plug make that possible. The plug basically has seven different pins that represent the seven different connections it facilitates.
Can I use a 7 pin connector on an electric trailer?
Now if your trailer has electric brakes but no back up or aux power then it is advisable and wise to use a 7 pin connector. There is also the possibility of having to take off the taillight cover to get to the right wire connections on older models.
What is the difference between a 4 pin and 7 pin connector?
What is difference between a 4 pin and 7 pin trailer connector? A 4-Way trailer connector has the basic lighting functions only; running lights, left turn signal and brake lights, right turn signal and brake lights, and ground.
What is the difference between a 4-way and a 7-way trailer connector?
A 4-Way trailer connector has the basic lighting functions only; running lights, left turn signal and brake lights, right turn signal and brake lights, and ground. A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit.
What is the difference between a four-pin and seven-pin trailer connection?
Four-pin trailer connections typically provide basic light functions only for the trailer, including running lights, turn signals, and brake lights. If you’re using a seven-pin connection, you get all the same benefits but gain a 12-Volt circuit, an electric trailer brake circuit, and reverse lights.
What are the 7 way plugs on a trailer?
How to install a 7 way connector?
How to test trailer wires?
How to connect a 4 way plug to a 7 way?
What to do if your car connector is under the vehicle?
What is the quickest way to connect wires?
Where to install junction box on trailer?
See 4 more
About this website
What does the 7-pin trailer plug do?
The 7-Way Trailer Plug is around 2″ diameter connector that allows an additional pin for an auxiliary 12-volt power or backup lights. It is usually used for towing heavy-duty cargo trailers, aluminum trailers, dump trailers, utility / landscape trailers, equipment trailers, open car haulers and enclosed car haulers.
Does a 7-pin trailer plug control brakes?
Even though the 7-pin trailer plugin controls the brake lights, it doesn't engage the trailer's brakes. You still need a brake controller. However, your vehicle may already have a brake controller built into its electrical system. If so, you just plug your trailer into the port, and you're on your way.
What is the difference between 4 pin and 7-pin trailer plug?
Four-pin trailer connections typically provide basic light functions only for the trailer, including running lights, turn signals, and brake lights. If you're using a seven-pin connection, you get all the same benefits but gain a 12-Volt circuit, an electric trailer brake circuit, and reverse lights.
What is a 7-pin connection?
CURT 7-way connectors are designed to supply power to the trailer's taillights, turn signals, brake lights, electric trailer brakes, reverse lights, auxiliary power and ground connection.
Can I tow a travel trailer without a brake controller?
12:0814:31Here's How To Tow Heavy Without a Brake Controller - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt's semi-permanent it stays in your vehicle. And you can use it with a number of different trailersMoreIt's semi-permanent it stays in your vehicle. And you can use it with a number of different trailers without installing. Anything on your trailer just like with our prodigy RF. We have a manual.
Can I pull a trailer without trailer brakes?
Trailer Brakes In California, brakes are required on any trailer coach or camp trailer having a gross weight of 1500 lbs. or more. Usually the braking capacity on tow vehicles is good; however, it may not be good enough to safely stop the several hundred to several thousand additional pounds that your trailer weighs.
Can you convert a 4-pin trailer to a 7 pin?
If you just need a 4-pin to 7-pin trailer wiring adapter, then you can use part # C57672. This will plug into the 4-pin trailer connector on your brother's vehicle and give him the 7-pin socket for the trailer. Keep in mind, this will only give you trailer light functions.
Are all 7 way trailer plugs wired the same?
Are All 7-Pin Trailer Plugs the Same? The answer to this important question is no. First of all, there are different types of 7-pin trailer plugs in general – not all are wired for RVs. It's also important to know that not all manufacturers color-coordinate their plugs in the same way.
What is the most common trailer wiring?
The 7-way connector is the most popular trailer connection type found on late model SUV's, trucks and RV's and comes with everything the others come with along with the availability for backup lights. There are two different types of 7-way connectors, one with flat pins (blades) and one with round pins.
What's the difference between a 4 pin and 7 pin?
The difference between the 4 pin and 7 pin connectors isn't much. The 4 pin is to connect break lights, turn signals, emergency lights. The 7 pin connector is the same but adds electrical input for a trailer break, which isn't available on the Highlander and is really only used for very heavy trailer loads.
Does a 7 pin trailer plug charge battery?
Expert Reply: You would not be able to charge your battery through the wiring on your 4-way trailer connector. Since your truck has a 7-way connector, you could maintain the power to the battery but not charge it.
Do electric trailer brakes work without a controller?
0:080:41Can I Use Electric Brakes Without An Electric Brake Controller? - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd in short the answer is no the two main reasons firstly ADR which is federally legislated lawMoreAnd in short the answer is no the two main reasons firstly ADR which is federally legislated law states that you must be able to progressively. Increase in decrease a trailer brake response. From the
Which pin is for trailer brakes?
trailers use the center pin for electric brakes. Besides the three main lighting functions, additional pins for auxiliary power, trailer battery charging etc. are available.
Can I tow a trailer with electric brakes without a brake controller?
0:080:41Can I Use Electric Brakes Without An Electric Brake Controller? - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd in short the answer is no the two main reasons firstly ADR which is federally legislated lawMoreAnd in short the answer is no the two main reasons firstly ADR which is federally legislated law states that you must be able to progressively. Increase in decrease a trailer brake response. From the
Are all 7 pin trailer plugs the same?
The answer to this important question is no. First of all, there are different types of 7-pin trailer plugs in general – not all are wired for RVs. It's also important to know that not all manufacturers color-coordinate their plugs in the same way. This is frustrating, but it's an important fact to keep in mind.
Trailer Wiring Diagram For 4 Way, 5 Way, 6 Way and 7 Way circuits
6 Way System, Rectangle Plug. 3/4 inch by 1 inch 6 way rectangle connectors right turn signal (green), left turn signal (yellow), taillight (brown), ground (white). The red and blue wire can be used for brake control or auxiliary. Use on a small motorcycle trailer, snowmobile trailer or utility trailer.
What Does Trailer Wiring Do?
When you connect your trailer wiring to your tow vehicle, you’re sending power to various electronics on your trailer. This can include lights, turn signals, and even electric brakes.
Do Most Trailers Use 4- Or 7-Pin Connectors?
You’ll find trailer wiring using both four and seven-pin connectors. The type of connector on a trailer largely depends on the kind of trailer. You’re more likely to see four-pin connections on smaller trailers that don’t require the use of electric brakes or any auxiliary connections.
What is a 7 way trailer plug?
Trailers with electric brakes need them too. The 7-Way Trailer Plug is around 2″ diameter connector that allows an additional pin for an auxiliary 12-volt power or backup lights. It is usually used for towing heavy-duty cargo trailers, aluminum trailers, dump trailers, utility / landscape trailers, equipment trailers, open car haulers and enclosed car haulers.
How to cite 7 way RV plug diagram?
When referencing the 7-Way RV Plug diagram, make sure you are looking at the plug the way the diagram is showing you. Having the wires backward will cause problems. Keep in mind that it isn’t always as simple as matching the colors like you might be inclined to do. Match the functions, not the colors. Make sure your ground wire, which is typically white, is securely attached to the frame on both the truck and trailer side. The ground wire should be large enough to handle the entire load; do not depend on grounding through the ball.
How to keep copper oxide from building up on trailer?
Grease your trailer plug. A thin coat of grease will help prevent copper oxide from building up. That is the green stuff that forms when oxygen from the air or water comes in contact with copper. You may think the rubber caps protect the plug, but they tend to hold the water in.
How to connect a 7 pin trailer to a 4 pin connector?
There are 3 easy steps to connect the 7 pin trailer to a 4-pin connector. First, ground your 4-pin connector. This always needs to be done first. If you do not have a proper ground, then the connector may not work for it won’t have a completed circuit.
What is a 7 pin connector?
That is how the 7 pin connector got its name. It has 7 power connection options that make sure your trailer’s safety equipment is fully powered and ready to work. YO may not need to use a 7 pin connector if your vehicle already has a 4 pin installed underneath the bumper. Some vehicles may come with both the 4 and 7 pin connector ...
What is the wire on a trailer tail light?
What this connector controls is usually the right and left turning lights, the right and left brake lights and also the taillights. On this connector is a white wire and that is the ground. Make sure to attach it first before attaching the other wires to their trailer counterparts.
What is the blue wire on a reverse light?
The other exception to this feature is the 5 pin flat. The blue wire in this case operates the reverse lights and no pin connection operates the electric brake when using this style of connector.
What wire handles the electric break?
On all 5 to 7 pin connectors, the blue wire handles the electric break. There is an obvious exception to this rule. The 4 pin connector never operates the electric brake. Its main duties are to operate the taillights, the brake lights, and the turning signals. Those are the most important functions when towing a trailer.
How many pins are in a trailer connector?
Second, connect the 4 pin colored wires to their corresponding colors in the 7 pin trailer connector.
Why do cars come with connectors?
Most vehicles since the 1990s usually come with factory-installed connectors to make your towing life easier.
What is the difference between a 4 way trailer connector and a 7 way trailer connector?
What is the Difference Between a 4-Way and 7-Way Trailer Connector A 4-Way trailer connector has the basic lighting functions only; running lights, left turn signal and brake lights, right turn signal and brake lights, and ground. A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer… view full answer...
What is a 4 way trailer connector?
A 4-Way trailer connector has the basic lighting functions only; running lights, left turn signal and brake lights, right turn signal and brake lights, and ground. A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit.
What is the T-One # 22121?
For your Town & Country you can use the Tekonsha T-One # 22121 , which includes everything needed to install a fully functional 7-way connector. 71118
What is the difference between a Class II and Class III hitch?
What is the Difference Between a Class II and a Class III Hitch? The difference between the Class II and Class III hitches has to do with their Gross Trailer Weight (GTW), their Tongue Weight (TW), and their Hitch Receiver Size. Class II trailer hitch receivers have a 1-1/4 inch receiver and can be rated up to… view full answer...
Can you plug in a 2001 freightliner MT45?
There isn' t a custom plug-and-play harness available for your 2001 Freightliner MT45 (I really wish there was!). You'll need to go with a hardwire kit like the excellent Tekonsha # 119190KIT for the 4-Way connector. If you need a fully functional 7-Way, you'll then use the Wiring Kit # ETBC7 , which includes everything needed to convert the 4-Way to a 7-Way connector. 62129
Can a 7 way connector be used with a 9 pin connector?
There isn' t a clean adapter available that goes from a 7-Way to a 9-pin connector, but we do have still have solution. I've linked an informative answer page below that details the parts you will need. 63273
Can you hook up a 30717 tow ready?
If you were to just hook up an adapter like the Tow Ready # 30717 (without running those additional wires) you would only be able to activate/power the signal lights on your trailer. If the trailer has electric brakes a better option is the Wiring Kit # ETBC7 , which includes all the additional wiring needed to activate the rest of the circuits. You'll also need to add a brake controller like the Prodigy P2 # 90885 to your tow vehicle (if you haven't already). 62406
What hinges are needed for a 3x5 boat trailer?
Recommended Trailer Tongue Hinge Kit for 3x5 Inch Frame on Shorelander Boat Trailer w/ Surge Coupler For a 3x5 trailer tongue, I'd recommend the Fulton #FHDPB350101 coupler hinge kit. Keep in mind that this hinge isn't for use with aluminum trailer frames. You'll also need to install a piece of flex brake line like the #T0777300 that you… view full answer...
What size ratcheting wheel net should I use for a 16 foot car hauler?
Recommendations to Tie Down Various Vehicles on Car Hauler To secure vehicles in your 16 foot car hauler, I recommend using the Erickson Adjustable Ratcheting Wheel Net w/ Hooks #EM58522. These will fit 14 inch to 29 inch tires and includes 2 inch cam buckles to allow the webbing to be shortened or… view full answer...
What is the difference between a Class II and Class III hitch?
What is the Difference Between a Class II and a Class III Hitch? The difference between the Class II and Class III hitches has to do with their Gross Trailer Weight (GTW), their Tongue Weight (TW), and their Hitch Receiver Size. Class II trailer hitch receivers have a 1-1/4 inch receiver and can be rated up to… view full answer...
Do trailers need auxiliary power?
Some trailers may need an auxiliary power source to power additional 12 volt items on the trailer but this isn't as common as you might think. Now instead of aux power reverse lights are more common on vehicle side trailer connectors (and still not used by all that many trailers). If your trailer does not need aux power and you don't want ...
Can you leave a 7 way trailer hot?
But as long as nothing is drawing power on that circuit it would be fine to leave hot all the time.
What is OE connector?
Original equipment (OE) refers to the parts and equipment that originally come with a vehicle, straight from the vehicle manufacturer. An original equipment replacement connector is simply a wiring connector that plugs into the existing wiring on the vehicle.
How to plug a USCAR trailer into a vehicle?
Simply plug the USCAR connector into the vehicle socket , and your vehicle is ready to accept a trailer wiring plug!
What is the USCAR plug #56229?
If the USCAR socket on your vehicle is damaged or in need of replacement, the CURT USCAR plug #56229 offers the solution. This replacement connector comes with blunt-cut wires and is designed to splice into the existing wiring, providing a standard USCAR socket to plug in a CURT OE replacement connector.
What are the 7 way plugs on a trailer?
7-ways are some of the most common harnesses found on trailers. 7-ways provide the required running lights, turn signals, brake lights, and ground for the trailer. In addition, they provide three additional pins for a 12V hot lead, electric brakes, and reverse lights. Trailer wiring can be one of the most intimidating components of your towing setup, but it doesn't have to be. Most of us aren't electricians, but that doesn't mean wiring a trailer is beyond us. We'll walk you through the trailer-wiring process for 7-way plugs below, so you can get your trailer up and running in no time.
How to install a 7 way connector?
If you're replacing existing wiring, go ahead and remove the old wiring now by removing each terminal from the junction box. Cut any excess wiring from your new cable and strip the wires of insulation using a crimper. Next, crimp ring terminals onto the new wiring. Place the terminals onto their corresponding studs in the junction box (ground wire to ground wire, brake wire to brake wire, etc). When finished, reinstall the nuts. Secure any excess wire with wire clips.
How to test trailer wires?
If you aren't sure which wire is for the ground, the best option is to find the main trailer ground and trace a wire from that ground to the plug location. With the ground connected to the battery, you can apply each wire left to the positive battery terminal to see which light function activates. When you find a wire that doesn't activate any trailer lights, check to see if the wire color matches the wire color that comes from the trailer batteries - if it matches then that is most likely your camper's 12V hot lead. 80743
How to connect a 4 way plug to a 7 way?
If you have a 4-way plug, add a 7-way with a 4-to-7-way adapter Use a circuit tester to confirm wire function. Step 2: Make Vehicle Connections Your wiring harness will either plug into, clamp onto, or splice into your vehicle's existing lighting.
What to do if your car connector is under the vehicle?
If the vehicle connector is under the vehicle, use a mounting bracket to attach it to the vehicle. This will help prevent damage that may occur if the connector is left dangling.
What is the quickest way to connect wires?
Quick Splices: The quickest, easiest way to connect wires is by using a quick splice. Quick splices force a metal piece into two separate wires, thus connecting the circuit.
Where to install junction box on trailer?
If you're replacing existing wiring and your trailer already has a junction box, locate it (it's typically near the front) and remove the cover. Remove the nuts from each terminal. If you're installing a new junction box, find a suitable location for installation, such as on the inside edge of your trailer tongue.
