What is a bonded washer?
Bonded washers or sealing washers are used in applications that require a stronger seal than conventional washers might provide. Bonded washers are slightly conical metal washers with a bonded neoprene or EPDM rubber backing. They are available in galvanized steel and stainless steel and in a range of sizes.
What is a bonded seal?
A bonded seal is a type of washer used to provide a seal around a screw or bolt. Originally made by Dowty Group, they are also known as Dowty seals or Dowty washers. Now widely manufactured, they are available in a range of standard sizes and materials
What are the different types of washer seals?
316L Stainless Steel Bonded Sealing Washers , Inconel 601 Bonded Sealing Washers, 317L Stainless Steel Bonded Sealing Washers, Monel 400 Bonded Sealing Washers, Nickel 200 Bonded Sealing Washers, ,Manufacturer of rubber bonded washer seals,Hydraulic Bonded Washer Grasket Seal Dowty Seals
What is the tightest metal seal on a washing machine?
Metric High-Pressure-Rated Metal-Bonded Sealing Washers Able to withstand pressure greater than 7, 000 psi, these one-piece bonded washers create the tightest seals. They are zinc-plated steel for corrosion resistance in wet environments. The Buna-N rubber seal has excellent abrasion resistance and good oil, weather, and chemical resistance.
What are bonded sealing washers used for?
Sealing washers help seal joints, prevent leakage and provide cushioning under the head of the bolt or nut. Bonded washers are used in combination with a gasket. Rubber bonded washers are fabricated to very precise standards. The washer ensures a perfect fit because the rubber material will not slip.
How does a bonded seal work?
The Dowty Bonded Seal is a synthetic rubber sealing member that is bonded with heat and pressure to a zinc plated steel washer. The flexing action of the lips under pressure provides a positive and leakproof seal against a wide range of fluids, at, depending upon size, pressures up to 20,000 p.s.i. (1380 bar).
What is a bond washer?
A metal washer bonded to rubber, bonded washers (aka Dowty washers) are used to prevent leakage of media through fasteners of hydraulic fittings, pipe join flanges and valve bodies. A bonded washer consists of a flat metal ring with rubber bonded to the internal diameter that is wider than the metal washer.
What are sealing washers made of?
Sealing washers, standard design The washers are made of sheet steel, and are phosphated and coated with a preservative.
Can Dowty washers be reused?
Washers are reusable. Stainless steel washers are bonded to a PVC sealant that, when tightened, creates an impervious 360° seal around your fastener's threads. They are not reusable.
Are Dowty washers fuel resistant?
They are designed to seal along male BSP threads and are resistant against oil, water and fuel.
What are Dowty washers used for?
Dowty seals, also called bonded seals, are a washer kind of seal used to tighten the connection around screws and bolts. They are typically made of both a metal and an elastomer material.

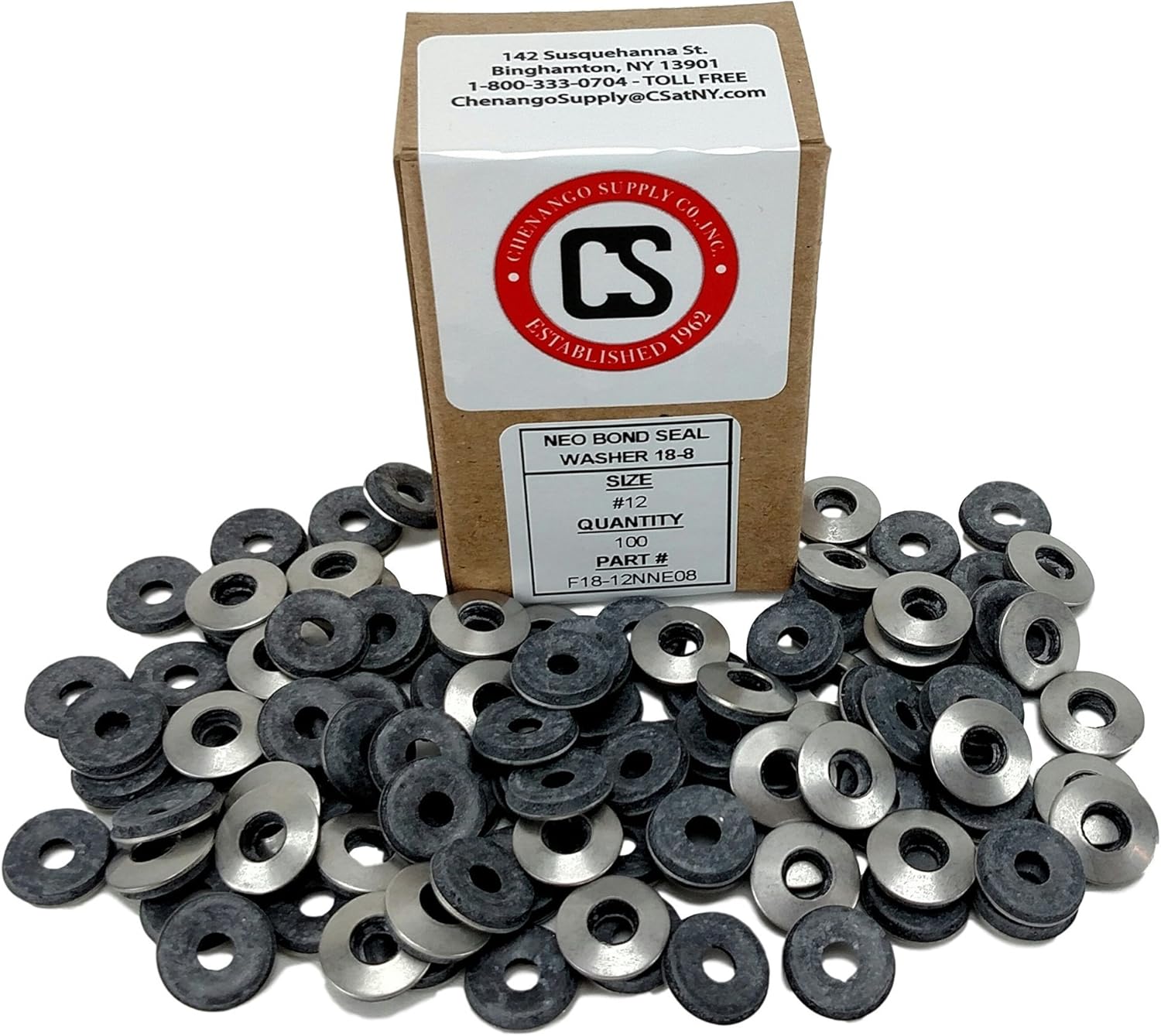

What are neoprene washers used for?
Neoprene washers are a unique combination of steel and rubber that serve a distinct purpose. Neoprene washers are steel washers coated or bonded with neoprene, a specific type of durable rubber used in wet suits, hoses, and in elastomeric roofing membranes.
How do you use a spring washer?
When used correctly, a spring washer will hold the nut or other threaded fastener in place. To help it accomplish this, put the spring washer on first, below the fastener. Ensure that the washer is flush against the fastener and the other surface to create a tight connection.
What is a composite washer?
Composite sealing washers. Parker Hannifin GmbH. Packing Division Europe. Composite sealing washer. The WX Parker composite sealing washer consists of a metal washer with a rectangular cross-section and an elastomer sealing lip with a trapezoidal cross-section that is vulcanised to the inside.
What are O rings made from?
The other reason o rings are so commonly used is down to the wide range of materials they can be made from. The majority of o rings are made from elastomers, which are a type of elastic polymer, but there are a huge variety of these elastomers available, each with different strengths, weaknesses and tolerances.
How are bonded seals made?
Bonded seals are metal washers with a vulcanized trapezoidal elastomer sealing lip being used as static seals for screw connections and flange seals. By tightening the screw, the elastomer sealing lip is compressed and thus generates the sealing effect.
How does a lip seal work?
How lip seals work. Lip seals work with a small contact area on the liner, which in turn is placed around the shaft. The seal works due to a hydrodynamic lubricating film between the lip seal and its counter surface, this area is called the sealing gap and the film thickness in general is a few microns.
What is a silicone washer?
They are one-piece rubber-to-metal bonded washers that create a stronger seal than metal or rubber alone. Made of 18-8 stainless steel, they have good chemical resistance and may be mildly magnetic. The silicone seal has excellent weather resistance. Washers are reusable.
What is a Buna N washer?
Also known as thread-sealing washers, use these under nuts and other washers. Rated to withstand pressure at or greater than 2, 000 psi, these one-piece metal-to-rubber bonded washers create a stronger seal than metal or rubber alone. They are zinc-plated steel for corrosion resistance in wet environments. The Buna-N rubber seal has excellent abrasion resistance and good oil, weather, and chemical resistance. Washers are reusable.
What is a one piece washer made of?
These one-piece washers are metal for strength with a bonded rubber seal that creates a tight grip. Made of neoprene, the seal has good oil and abrasion resistance. Washers are reusable.
Is stainless steel washer reusable?
Stainless steel washers are bonded to a PVC sealant that, when tightened, creates an impervious 360° seal around your fastener’s threads. They are not reusable. 304 stainless steel washers are more corrosion resistant than zinc-plated steel washers. They also have good chemical resistance. 316 stainless steel washers have excellent resistance to chemicals and salt water and may be mildly magnetic.
Is 18-8 stainless steel good?
18-8 stainless steel washers have good chemical resistance and may be mildly magnetic.
What is bonded washer?
A bonded seal is a type of washer used to provide a seal around a screw or bolt. Originally made by Dowty Group, they are also known as Dowty seals or Dowty washers. Now widely manufactured, they are available in a range of standard sizes and materials.
Where are bonded seals made?
Bonded Seals are made by Trelleborg in the United Kingdom to the original specification. A bonded seal consists of an outer annular ring of a hard material, typically steel, and an inner annular ring of an elastomeric material that acts as a gasket.
Why do seals retain gaskets?
Because the bonded seal itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket . This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.
What is bonded seal?
A bonded seal is composed of a metal washer with an elastomeric ring securely bonded inside the diameter. The metal washer limits deformation and prevents over-compression of the elastomeric ring. Bonded seals were originally designed to replace copper washers in high-pressure systems, and now they are an integral component in various mechanical, ...
Why are bonded seals so strong?
The strength of bonded seals serves to prevent over-compression and limit deformation of the elastomeric ring. They feature a low bolt torque compared to fully metallic seals. This makes for easier installation, limits handling damage, and ensures higher performance levels.
Why do washers have locking features?
These washers have a locking feature to resist loosening from vibration.
What is a crush washer?
Also known as crush washers, these compress when tightened to form a tighter, more durable seal than rubber washers. They are commonly used to seal fluids such as oil and fuel.
What is a one piece washer?
Create a stronger seal than metal or rubber alone. These one-piece washers are metal for strength with a bonded rubber seal that creates a tight grip.
