A half-section is a view of an object showing one-half of the view in section. Symmetrical parts can be shown in half sections. Half sections are commonly used to show both the internal and outside view of symmetrical objects.
How do I generate a half section view?
You generate a half section view by running the cutting plane through a portion of the length of the object being sectioned. Click . Click the view you want to use as the parent view. Click in the drawing area to indicate the start point of the section line. Click in the drawing area to indicate end point of the first segment of the section line.
What are the different types of sectional views?
Sectional Views 1 CUTTING PLANE 2 CUTTING PLANE LINE 3 SECTION LINING 4 FULL SECTIONS 5 HALF SECTIONS 6 BROKEN OUT SECTIONS 7 REVOLVFD SECTIONS 8 OFFSET SECTIONS 9 REMOVED SECTIONS
What is a half section?
Here is an object sectioned from two different directions. If the cutting plane is passed halfway through an object, and one-quarter of the object is removed, the resulting section is a half section. A half section has the advantage of showing both inside and outside configurations. It is frequently used for symmetrical objects.
What is a section in a drawing?
With these drawings, only a small portion of the object or space is shown in section. Instead of a section line, the portion that is shown in section is indicated by an irregular cut line. Revolving sections or view.
What is a half section in a drawing?
What is section view?
What is the cutting plane?
What is a full section?
What is a revolving section?
What is broken out section?
Where do stairs come from in a sectional view?
See 2 more
What is the difference between full section and half section?
Remember that only one fourth of the object is removed with a half section, whereas half of the object is generally removed with a full section.
What are half sections?

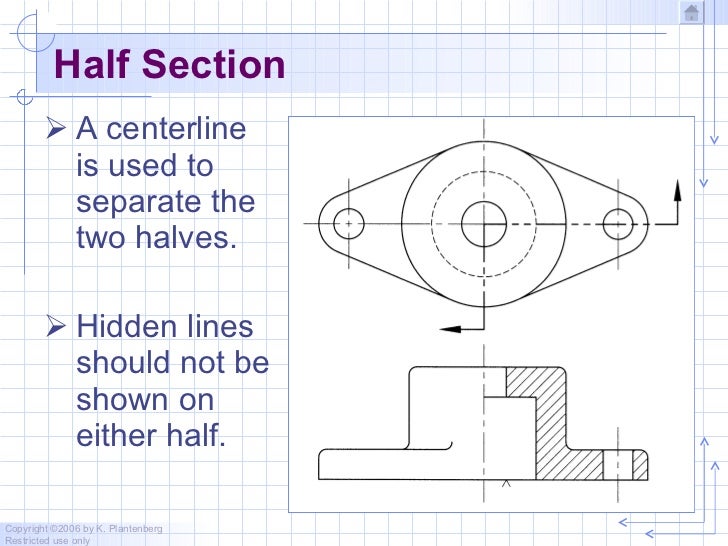

A half section exposes the interior of one half of an object while retaining the exterior of the other half. Half sections are used mainly for symmetric objects or assembly drawings. A centerline is used to separate the two halves.
What is full section and half section view?
This is the most common section (called a full section) with the imaginary laser cutting a line across the entire construction, offering a view of a portion of the building with the rest of it put to one side. Half sections or views. In this type of section, only half of the space or object is cut away.
What is a partial section view?
Partial section. Creates a section view that is limited by the length of the section line if the line does not span the entire view. Slice section. Shows only the faces cut by the section line.
What are the different types of sectional views?
There are a number of different types of sectional views that can be drawn. A few of the more common ones are: full sections, half sections, broken sections, rotated or revolved sections, removed sections, offset sections, and assembly sections.
What is a section view?
A sectional view represents the part of an object remaining after a portion is assumed to have been cut and removed. The exposed cut surface is then indicated by section lines. Hidden features behind the cutting plane are omitted, unless required for dimensioning or for definition of the part.
How do you draw a half section view?
To Create a Half Section ViewClick Layout tab Create View panel Section drop-down Half. ... Click the view you want to use as the parent view. ... Click in the drawing area to indicate the start point of the section line. ... Click in the drawing area to indicate end point of the first segment of the section line.More items...•
How do you draw a half section?
1:362:49Drawing Steps - Half Section View - YouTubeYouTubeStart of suggested clipEnd of suggested clipFor a symmetrical part like the one shown here there is no requirement of the hidden lines. A centerMoreFor a symmetrical part like the one shown here there is no requirement of the hidden lines. A center line is used to separate the two halves from each other.
What is a full sectional view?
A section view is a view used on a drawing to show an area or hidden part of an object by cutting away or removing some of that object. The cut line is called a “cutting plane”, and can be done in several ways.
What are the different types of sections?
Examples of different Section Types and how to use themHeadline.Row section.Columns section.Buttons section.Grid section.Side-by-Side section.Tabs section.News section.More items...•
How do I create a half section view in Autocad?
20:3837:11Half Sectioning a Hub in AutoCAD - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd there we go and so we can see that i have a full non-section view on the right side of thisMoreAnd there we go and so we can see that i have a full non-section view on the right side of this thing in a section view on the left side of the thing that's how it works right. That's pretty much it.
How do I create a half section view in Solidworks?
(Drawing toolbar) or Insert > Drawing View > Section. In the Section View PropertyManager, click Section or Half Section. You can use Tab to switch between Cutting Lines in Section or Half Section.
What is the meaning of broken section?
A broken section is a cut-away view of the interior of a part. It is a section view displayed inside a 2D boundary where an existing view of the part has been cut away.
What is a broken out section?
A broken-out section is part of an existing drawing view, that is used to remove material to a specified depth in order to expose inner details of a model. A closed profile, usually a spline, defines the broken-out section.
How to make a half section view?
You generate a half section view by running the cutting plane through a portion of the length of the object being sectioned.
How to relax constraint in a preview?
Tip:The preview is constrained to move in a direction perpendicular to the section line. To relax the constraint, tap SHIFT. To restore the constraint, tap SHIFT again.
What is a hidden line in a sectional drawing?
Hidden lines are usually not shown on the un-sectioned half unless they are needed for clearness or for dimensioning purposes. As in all sectional drawings, the cutting plane take precedence over the center line. Here is another example of a half section.
What is a manufacturer's drawing using both full and half section?
This manufacturer’s drawing, using both full and half section, illustrates the advantages of sectional views. The different line directions indicate different parts and materials used in the assembly of this valve.
What is the process of sketching the internal configuration of an object by showing it cut apart?
The process of sketching the internal configuration of an object by showing it cut apart is known as sectioning. Sectioning is used frequently on a wide variety of Industrial drawings.
What is offset section?
An offset section is a means of including in a single section several features of an object that are not in a straight line. To do this, the cutting plane line is bent, or “OFFSET” to pass through the features of the part.
What is a cutting plane?
Cutting Plane. A surface cut by the saw in the drawing above is a cutting plane. Actually, it is an imaginary cutting plane taken through the object, since the object is imagined as being cut through at a desired location.
How far apart are section lines?
When sketching an object or part that requires a sectional view, they are drawn by eye at an angle of approximately 45 degrees, and are spaced about 1/8” apart. Since they are used to set off a section, they must be drawn with care.
What is section lining?
Section Lining. The lines in the figure above, which look like saw marks, are called section lining. They are found on most sectional views, and indicate the surface which has been exposed by the cutting plane. Notice that the square hole in the object has no section lining, since it was not changed by sectioning.
What is a half section in a drawing?
Half sections or views. In this type of section, only half of the space or object is cut away. This allows you to see part of it in elevation, while the other part of the drawing gives a glimpse inside.
What is section view?
A section view provides architects and contractors another way of understanding how a construction will stand up, as it reveals details of the construction of walls and the thickness and height of beams and other supports. While a floor plan allows for a view of how the walls stand in relation to each other, a section shows where the wall meets the floor, and the distance that separates one floor from another.
What is the cutting plane?
A section is a view that one will never see in real life, as it’s the perspective on a room or building if part of it were sliced away. The place where the building is cut away is called the “cutting plane,” and the location of the imaginary cutting plane is typically indicated by a cutting plane line that consists of long dashes set off by two shorter ones.
What is a full section?
This is the most common section (called a full section) with the imaginary laser cutting a line across the entire construction, offering a view of a portion of the building with the rest of it put to one side.
What is a revolving section?
With this type of section, a space or detail is shown with a cutting plane at an angle, and then the section is rotated so that the cutting plane faces the viewer.
What is broken out section?
Broken out sections or broken views. With these drawings, only a small portion of the object or space is shown in section. Instead of a section line, the portion that is shown in section is indicated by an irregular cut line.
Where do stairs come from in a sectional view?
In the sectional view above you can see stairs coming from outside, up into the front door, from the front door, up to the second floor or from the basement up to the first floor.
