What is a pull disconnect? A disconnect is an added safeguard to quickly disconnect the electricity from an electrical device rather than disconnect it at the main breaker panel. In the event of a water leak from the water heater, you can immediately disconnect the electricity to avoid electrical shock or fire.
Full Answer
What is a disconnect?
A disconnect provides the means of disconnecting power or cutting it off completely. This is also known as providing a means to safely open an electrical circuit. In the case of activating a disconnect, power is shut off to the building or structure. There are different types of disconnects.
How do you pull out a disconnect switch?
Know how to pull out a disconnect switch before an emergency happens. Lift or open the door on your disconnect switch housing. Grasp the handle of the disconnect switch and pull the switch out of the housing. Turn the switch upside down and reinstall the switch inside the enclosure. The switch is labeled "Off" and "On."
What does it mean to disconnect a circuit breaker?
Article 100 Definitions. Disconnecting Means. A device, or group of devices, or other means by which the conductors of a circuit can be disconnected from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection (sometimes), or a group of the aforementioned devices.
How do safety and disconnect switches work?
When you install safety or disconnect switches, they can operate in two important ways. One, they give operators complete and near-instantaneous control over power where the switch is applied, allowing a complete cut in power at any time. Additionally, disconnect switches provide fault protection, monitoring and detecting shorts and overloads.

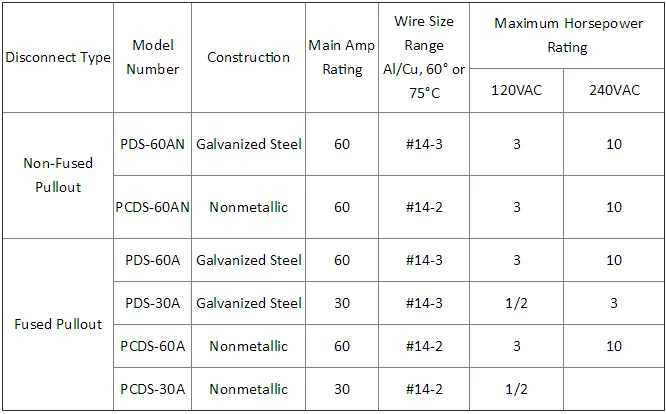

What is a pullout disconnect?
A pull-out disconnect switch gives a technician a safe way to work on high-voltage appliances without the need to access the appliance's circuit breaker.
How do you wire a pull out disconnect?
0:373:17How to Install an AC Disconnect - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd we're going to get a marker. And mark the holes. So we know where to drill. For our tapcons. AndMoreAnd we're going to get a marker. And mark the holes. So we know where to drill. For our tapcons. And um go to the next. Step. Okay so we got our new disconnect screwed on got the wires run up to it.
What is the purpose of disconnect?
A safety switch (also known as a “disconnect switch,” or “load break switch”) serves multiple purposes, but its primary functions are to function as a disconnect means for a service entrance and a disconnect means and fault protection for motors (heavy machinery).
Do I need a disconnect for AC unit?
Disconnects are not used for regular control of the circuit, but are employed as a safety precaution. The disconnect must be within sight from the AC unit to prevent someone who doesn't know the technician is working on the unit from turning the power on causing unit damage or human life concerns.
Does a breaker count as a disconnect?
Disconnecting Means. This can include a switch, a circuit breaker, a cord and plug connection (sometimes), or a group of the aforementioned devices.
Can I use a 60 amp disconnect on a 30 amp breaker?
As long as the circuit is on the proper size breaker, there's nothing wrong with using a 60 AmpDisconnect on a 30 Amp unit. The standard size for a/c pullouts is 60 Amp.
What is the difference between a breaker and a disconnect?
Circuit Breaker is a protection device (such as MCB, ACB, SF6, OCB etc) which disconnects the circuit in case of overload and short circuit faults. Disconnector and Isolator switches provide isolating function i.e. disconnecting the supply from all or a portion of installation e.g. in power plants.
When should you use a disconnect switch?
In industrial applications disconnect switches may be used to interrupt power to machinery and motors when there is a safety hazard or when repair is needed. In fact, disconnect switches are mandated by the National Electrical Code (NEC) to be used in all industrial and manufacturing facilities.
Where are electrical disconnects required?
This code states that any large and permanently-wired equipment must have a disconnecting means within sight distance. This applies to your HVAC unit, your attic exhaust fans, and other major household equipment. In addition, the NEC states that this disconnecting means must be a device included on their list.
What is a disconnect for HVAC?
Air Conditioning Disconnects (ACD) are located between a load center and an air conditioner. ACDs provide a visible disconnecting means when performing maintenance and are commonly referred to as disconnects, pullouts or air conditioning switches.
Do I need an AC disconnect for mini split?
You might be wondering, "Do I really need a disconnect?" All mini split systems require a dedicated circuit to supply power to the system. A disconnect box is required by code to be installed near the outdoor unit and allows for a technician to shut off power to the system when performing any service or repairs.
How far does a disconnect have to be from a condenser?
This distance is typically described as within 50 feet (15 meters), and in practice at most residential properties the disconnect is much closer (3-6 ft), on a wall or standard near the compressor/condenser unit.
Step 2
Grasp the handle of the disconnect switch and pull the switch out of the housing.
Step 3
Turn the switch upside down and reinstall the switch inside the enclosure. The switch is labeled "Off" and "On." When the switch is upside down, the word "Off" is right side up and the word "On" is upside down. If your switch is not labeled, do not reinstall it.
What does disconnecting mean?
Disconnecting Means. A device, or group of devices, or other means by which the conductors of a circuit can be disconnected from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection (sometimes), or a group of the aforementioned devices.
How many disconnects per circuit?
(A) General. The disconnecting means for each supply permitted by 225.30 shall consist of not more than six switches or six circuit breakers mounted in a single enclosure, in a group of separate enclosures, or in or on a switchboard or switchgear. There shall be no more than six disconnects per supply grouped in anyone location.
What does disconnecting power mean?
A Disconnect Shuts Off Power. A disconnect provides the means of disconnecting power or cutting it off completely. This is also known as providing a means to safely open an electrical circuit. In the case of activating a disconnect, power is shut off to the building or structure. There are different types of disconnects.
Where is the disconnect on a Milbank meter?
If using a meter socket that has no disconnecting means in it, then you will typically locate the disconnect below the meter socket or inside the house or building on a breaker panel.
Can you have both bypass and disconnect?
A Bypass and Disconnect Both in One Product. A bypass and disconnect are two different elements with two different functions, but they are not mutually exclusive. You can have a product that includes both a bypass and a disconnect in it! Because the two features have two different purposes, they can both be specified inside a single enclosure.
What Exactly Are Disconnect Switches?
Both the device and its function are fairly simple and straightforward. These devices are a simple component that integrates with a particular electrical device or generator system. When applied, they will monitor the flow of electricity within the device.
What Is a Fused Disconnect Switch?
The primary difference of the two most commonly used disconnect switches, fused and unfused, is all in the name. A fused disconnect switch allows for (and requires) the use of fuses to operate properly.
Fusible Disconnect Switches from PSI Power & Controls
PSI has been offering superior fusible and non-fusible disconnects for commercial businesses nationwide for decades. As a family owned and operated business, we take great pride in our ability to provide perfect products that meet a wide variety of commercial needs.
What is a quick disconnect?
Quick-disconnect fittings are normally rated for operation with certain pressures and temperatures. Depending on the heat of the liquid being fed through your system, the temperature may play a role in the amount of pressure that the fitting can withstand. That has more to do with the type of tube connection that the fitting is making than ...
How much pressure can a quick disconnect fitting handle?
Some of the smaller plastic fittings can handle up to 100 psi.
What is a quick release fitting?
A quick-connect fitting, as opposed to a quick-disconnect or quick-release fitting, provides a permanent seal to your tubing, making it much harder to remove. In a setting where you would need to disconnect the tubing from other tubing or filtration equipment on a consistent basis, a quick-release fitting would satisfy your needs.
How to connect a non valve water valve?
To connect the fittings, push the insert into the coupling body and push them together until it snaps. To release it, push the latch, and then pull it to disconnect the fittings.
