The quadplex breakers provide two double pole breakers in half the space of standard sized breakers. These triplex, 1/2-Inch frame breakers are ideal when new circuits are required in a panel that has no available spaces. Siemens strongly recommends against the use of "used" breakers.
What is a tandem/duplex breaker?
Tandem/duplex breakers are convenient for adding circuits to a full loadcenter and are sometimes used to reduce the physical size of the loadcenter . BD Breaker Class CTL (Circuit Limiting) .
What type of circuit breakers are included with the ground bar?
• Ground bar included • Includes (2) Type BR 15 Amp Single Poles and (1) Type BR 30 Amp Double Pole circuit breakers . EATON CORPORATION Residential Product Guide www.eaton.com 23
What types of circuit breakers are included in the Eaton products?
• Includes (2) Type BR 15 Amp Single Poles and (1) Type BR 30 Amp Double Pole circuit breakers . EATON CORPORATION Residential Product Guide www.eaton.com 23
What is the difference between DeadFront and duplex circuit breaker?
Deadfront –the inner door of a loadcenter that exposes the circuit breaker handles, but keeps a person from being able to touch live electrical parts . Duplex –A circuit breaker for 2 circuits that only takes up one space in the loadcenter .
What are the 3 types of breakers?
The three main types of circuit breakers are standard, GFCI and AFCI. Some models have dual functionality. Each handles different amp capacities and operates in different locations in the home.
Why would you use a 4 pole breaker?
4 pole circuit breakers have advantages in the case when one of the poles of the device will get damage, and it also provides isolation from neutral voltage. Normally, Neutral is not allowed to break in any conditions, (except special applications) for human & equipment safety.
What are the four types of circuit breakers?
There are four basic circuit breakers that are standard in most modern homes: single-pole, double-pole, GFCIs, and AFCIs. And don't worry, if you are unfamiliar with the different types of circuit breakers, we're here to help you understand the difference and explain their importance.
What are the 2 types of circuit breakers?
Standard circuit breakers come in two varieties: single-pole breakers and double-pole breakers. These are simpler breakers that monitor the cadence of electricity as it circulates an indoor space.
Where should you use a 4 pole breaker?
As such, it is a mandatory practice to isolate the two Neutrals. We can use 4-pole breakers or TPN Breakers when the system has two alternative sources and, in the event of power failure from the mains, change-over to the standby generator is done. In such a case, it is a good practice to isolate the neutral also.
What is the difference between 4 pole and 3 pole?
Originally Answered: What is the differrence between 4 pole and 3 pole isolators? A 3-pole isolator is no-load switch with isolating only 3-phases while a 4-pole isolator is no-load switch with isolating 3-phases and a neutral of 3-phase line.
How do I know what type of circuit breaker I have?
Circuit breakers have markings stamped on the side of them and are usually located inside the panel cover door. There is a label that will tell you what type of breaker is needed for installation in that particular panel. On the market, there are home and commercial circuit breaker panels.
How are the circuit breakers classified?
Generally, the types of circuit breakers fall into three major classes, which are: Standard Circuit Breakers. Arc Fault Circuit Interrupters, or AFCI Circuit Breakers. Ground Fault Circuit Interrupters, or GFCI Circuit Breakers.
Can 2 circuits share a breaker?
Yes, it's fine to combine circuits onto one breaker, at which point they become one circuit.
What type of breaker is used in most homes?
Arc Fault Circuit Interrupter (AFCI) Breaker Since then, the NEC has expanded AFCI protection requirements to include nearly every room in your house, except bathrooms and basements. In new construction and remodels, AFCIs are replacing standard breakers as the most common breakers in your panel.
What is the best type of circuit breaker?
The Best Circuit BreakersSquare D HOM115PCAFIC Circuit Breaker.Siemens Q2100 Circuit Breaker.Blue Sea Systems Circuit Breakers.Murray MP115 Circuit Breaker.T Tocas Circuit Breaker.Square D HOM230CP Circuit Breaker.Stetion Circuit Breaker.Rkurck Push Button Circuit Breaker.More items...•
What are modern circuit breakers called?
Residual-current device (RCD), or residual-current circuit breaker (RCCB) — detects current imbalance, but does not provide over-current protection. In the United States and Canada, these are called ground fault circuit interrupters (GFCI).
Which is better 2 pole or 4 pole motor?
2 pole motors have twice the speed of a 4 pole motor. Rotor of the 2 pole motor complete one cycle for every cycle of the source, while the rotor of the 4 pole motor completes only half a cycle for every single cycle of the source. Therefore, 4 pole motors consumes twice the energy of the 2 pole motors.
What is a 4 pole switch?
4-Way Switches Four-way switches are used to control lighting from three or more locations. Four-way switches are used in combination with 3-way switches. There are four terminals that provide two sets of toggle positions on a 4-way switch. Each set of terminals is one of the toggle positions.
What is a 4 pole isolator switch?
4-pole rotary isolator switch disconnector used to switch power to commercial / light industrial applications. Can be used as an emergency stop and can be locked in the off position using a padlock (not supplied). Switch is interlocked with the lid to prevent opening in the on position.
What is 3 pole circuit breaker?
Three pole circuit breakers deliver 480VAC through three hot wires. Consequently, the breaker needs three separate switches that will work together when needed. It's effectively three single pole breakers bound together. With connections for five wires, it's three times the width of the single pole breaker.
Special offers and product promotions
Create your FREE Amazon Business account to save up to 10% with Business-only prices and free shipping. Register today
Have a question?
There was a problem completing your request. Please try your search again later.
Product Description

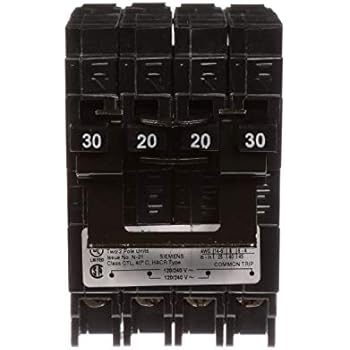

Siemens space saving, plug in circuit breakers are intended for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required.
What is a quadplex breaker?
Quadplex breakers are used in similar applications to the Duplex breakers . The Quadplex breakers create (4) circuits in (2) spaces, which al- lows for 240 Volts circuits, un- like the Duplex breaker which can only provide 120 Volts . Quadplex breakers are avail- able in many configurations:
What is the function of a circuit breaker?
The primary function of a circuit breaker is to protect the wire from overheating (referred to as an overload) and fault currents (referred to as a short-circuit) .
What is class CTL?
Class CTL (Circuit Limiting) . They will only fit onto loadcen-ter bus stabs that are notched to accommodate the rejection clip built into the bus bar contact on the breaker . This is a code requirement that limits the number of breakers that can be installed into a loadcenter .
What is a GFCI breaker?
GFCI breakers provide pro-tection for people from the hazards of electrical shock in areas where the electricity may come into contact with water . GFCIs are required in any application near water, such as kitchen countertops, bathrooms, swimming pools, hot tubs, outdoor receptacles, etc . (crawl paces and garages are also included) .
Who lists Eaton breakers?
According to the NEC®, the listing of a product is by an independent third party . Eaton Classified Breakers are listed by UL .
Does installing a breaker void warranty?
Note:Installing a breaker that has not been tested by UL voids the product warranty .
How many wires are needed for a breaker?
To wire this breaker, I would run three cables, lets say romex. two of the three would be identical - they would be 14/2 (14 gauge wire, with one hot, one neutral).
How many slots does a 30 amp 240V outlet have?
Focusing only on the 30 amp, 240v middle part: I run the 10gauge romex to a box and i install a 30 amp 240v outlet, that has 3 slots including ground slot. i would connect the two hots, and ground.
What type of plugs are factory wired?
There are devices factory-wired for these plug types in America. The most common example is dryers on a NEMA 14-30 plug, but also welders, electric car chargers, and some shop machinery also use the NEMA 6 or NEMA 14 series plugs sometimes.
Can you change a 30A breaker to a 20A breaker?
Part 2 is fine except you have to change that 30A breaker to a 20A breaker because of 210.21 (b) (3). Or you could change the receptacles to NEMA TT30 and power two campers, because that's about the only usable use for a 30A MWBC or 120V circuit.
