Where to put #66 orifices on a gas cook top?
Can you bang a spud against the opening?
What is a spud or burner orifice?

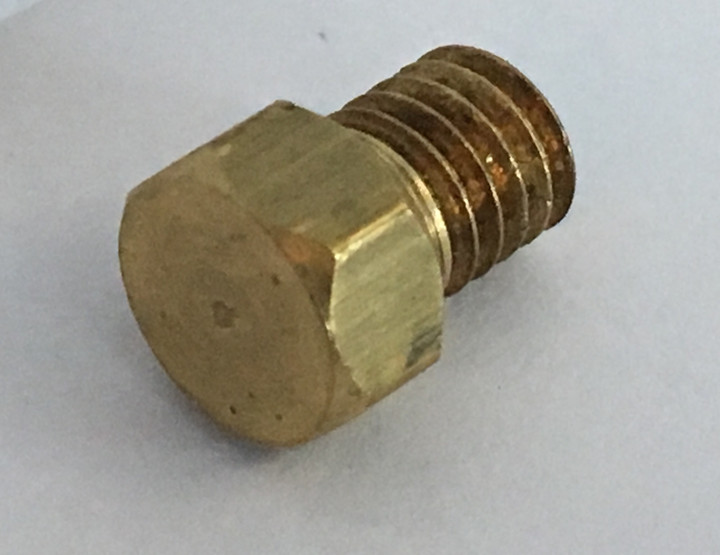

The orifice is not where the flame comes out of the burner.... that's the head. Orifice plugs are the small nuts (with the hole in them) that are replaceable and screwed into the orifice spud. The orifice spud is the threaded piece that is attached to your piping.
What is an orifice on a gas stove?
The gas orifice dispenses fuel into the combustion or burner tube through a small, high precision hole. The orifice delivers just the right amount of fuel to mix with the correct amount of air, to create just the right flame for the job in your appliance.
What is an orifice on a grill?
Orifices are responsible for the amount of gas that flows into the burners. Orifices are brass fittings that screw into (spud) or onto (hood) valves. These orifices will have various hole sizes as they determine the gas type either Propane or Natural Gas.
How do I know if my orifice is natural gas or propane?
Natural Gas orifices will have a larger hole as it is a lower pressure gas and Propane is a compressed gas and the orifices will have a smaller hole. They are not interchangeable. You never want to use an orifice that is drilled for Natural Gas on Propane or Propane for Natural Gas.
What is the purpose of orifice?
Orifices are used as fixed throttles that generate head loss. The head loss caused by an orifice can be used to determine the volume or mass rate of flow during flow metering. Orifices used in flow metering are preferably designed as a standard orifice.
What is the difference between a hole and an orifice?
A hole can be any opening, but a calibrated orifice is specially designed to precisely control fluid flow.
What does an orifice plate look like?
0:533:46ORIFICE Plate - YouTubeYouTubeStart of suggested clipEnd of suggested clipIn practice the orifice plate is installed in the pipe between two flanges acting is the primaryMoreIn practice the orifice plate is installed in the pipe between two flanges acting is the primary device the orifice constricts the flow of liquid to produce a differential pressure across the plate.
What are the main disadvantages of orifice plates?
DisadvantagesRelatively high permanent pressure drop.Their characteristic may change due to erosion and corrosion.It may cause clogs in slurries. Not good with fluid having high viscosity.The fluid must be in single phase and homogeneous.Square root characteristics.
Why do grills have holes on the bottom?
The vent on the bottom of the basin controls how much oxygen gets inside the grill, while the vent on the top determines how much heat exits the grill. Even when you're grilling with the lid off, you need to think about the bottom vent.
What happens if you run natural gas through a propane orifice?
Natural gas is a much lower pressure gas than propane and converting the appliance to one or the other gases requires that the differing pressure is compensated for. In other words, connecting a natural gas appliance to a propane piping system will result in appliance malfunction and possibly danger.
Can I drill out a propane orifice natural gas?
0:341:52Drilling a gas orifice - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd spin it by hand don't use an electric drill to drill these electric drill can get going too fastMoreAnd spin it by hand don't use an electric drill to drill these electric drill can get going too fast and make it round it too big just drill them by hand.
What takes bigger orifice propane or natural gas?
Due to the pressure from nearby gas lines, a natural gas orifice is larger than a propane orifice. The heat produced by natural gas should be comparable to the heat produced by propane. Changing the inlet orifice of the gas valve can allow you to convert an appliance that uses natural gas for propane.
How do you clean the orifice on a gas stove?
How to Clean a Pilot Assembly on a Gas StoveShut off all of the stove's burners and oven cabinet. ... Lift the hinged top of your gas stove to access the ignitors. ... Gently brush the ignitors and the surrounding area with a soft-bristled toothbrush to free caked-on debris.More items...
How do you change the orifice in a gas stove?
0:275:04Whirlpool Gas Range Replace Propane Orifice Kit #W10619560YouTubeStart of suggested clipEnd of suggested clipAnd remove the right front burner cap insert a seven millimeter nut driver through the hole in theMoreAnd remove the right front burner cap insert a seven millimeter nut driver through the hole in the burner head and use it to unthread the natural gas orphis from the holder.
How do I identify an orifice?
An orifice identification, whether it is for liquid measurement or for gas/air measurement, is identified by its tab; which is hanged outside. If it is up (with bore of up hole), then it is used to measure liquid, and if it is down (with bore of down hole) then it is used to measure gas/air.
Is orifice same as opening?
An orifice is an opening or a hole, most often in the body, such as your mouth or your nostril. We most often use orifice to describe a natural opening in our bodies, but it can an opening into any cavity, such as a hollowed out tree trunk, or the vent of a heating system.
What Does Orifice Size Mean?
The operating pressure of your machine is determined by the size of the aperture of the nozzle. As a general rule, the smaller the orifice, the greater the water flow restriction through the machine.
Do You Need a Natural Gas Orifice for Your Application?
An orifice is required for the operation of a gas grill. The size of the orifice hole dictates the BTU rating of the grill as well as the kind of gas it uses.
Where to put #66 orifices on a gas cook top?
two #66 orifices to be installed at the rear left and front right burners of the cook top. The manufacturer recommends that you save the natural gas orifices that you remove in case the cook top ever needs to be converted back from LP gas to natural gas.
Can you bang a spud against the opening?
Watch out: Take care not to bang the spud against the side of the opening or you may lose it.
