How to install an F connector on a coaxial cable?
Method 3 of 3: Installing a Right-Angle Connector
- Place the connector base over the wire. Most right-angle connectors have a base piece that holds the housing together.
- Loosen the screw inside the connector. The front portion of the connector housing has an internal screw that carries the signal.
- Touch the conductor to the screw and tighten it. ...
- Install the back housing of the connector. ...
How to connect RF connector to coaxial cable?
how to connect rf connector to coaxial cable 1.Cut the flush. 2. Trim the outer cover back 1/2″. 3.Be carefully when pullingback the inner braiding (second channel).Make sure that no braided wire gets wrapped around...
How to fit TV Connector ends to coax cable?
- Check your already stripped cable has no loose metal shards bridging the white plastic dielectric to touch the centre conductor. ...
- Line up your hex F connector, so that the bare conductor and shield of the coax cable will go through inner barrel.
- Slide the connector down the end of the cable until resistance is felt.
What coax cable should be used for cable television?
- Center conductor: Usually made from copper-clad steel.
- Center Conductor bond: In which the use of clean stripping polymer prevents moisture migration.
- Dielectric: Made from polyethylene for a high-VP closed-cell foam.
- First outer conductor: An aluminum-polymer-aluminum tape is bonded with the dielectric core to create a shield.
Is F connector the same as coax?
The F connector or F-type connector is widely used with TV coax cables for both satellite and terrestrial TV and other applications. The F connector or F-type connector is a form of coax cable connector that is widely used with domestic television equipment.
What is F connector used for?
F connectors are commonly used for connecting antennas and cable set-top boxes to TVs and other video equipment. The socket is marked "ANTENNA" or "ANT/CABLE" or "RF," the latter referring to the analog video "radio frequency" signal.
How do you use a coax F connector?
5:035:46COAX F-CONNECTOR - INSTALLATION - YouTubeYouTubeStart of suggested clipEnd of suggested clipI simply put it in and drop the back end of the connector down into the catch. Just like that. NowMoreI simply put it in and drop the back end of the connector down into the catch. Just like that. Now you simply squeeze the handles together. And that crimps the F connector to the coax cable.
Why is it called F connector?
Unlike other connectors like the RCA or BNC, the F connector is not named for its creator, nor is it named for its size or construction like the 1/8″ TRRS (commonly called the headphone plug.) It may have been named because it originally carried UHF or VHF signals to a TV.
How do I connect my F connector to my TV?
4:508:02How to wire an F connector - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo now the F connector. Simply. Simply goes over the end right. Over okay and then it's we screw itMoreSo now the F connector. Simply. Simply goes over the end right. Over okay and then it's we screw it on to the end of the cable and it will cut its own thread. Into the outer covering.
How do I connect my F-type connector to my TV?
0:122:19How to fit/replace an F type coaxial connector for Sky and ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipGo around the cable. And then bend and snap the end off like that pull the braid. Back. Get rid ofMoreGo around the cable. And then bend and snap the end off like that pull the braid. Back. Get rid of the sense of copper. Like that twist the braid.
What is the difference between BNC and F connector?
It therefore seems logical that the "true" meaning of the "BNC" acronym is perhaps "Bayonet Neil-Concelman". F-Type connectors are used for CATV, SATV and Digital TV in conjunction with either RG6 or RG11 cables. The copper-clad-steel inner conductor of the cable forms the inner "pin" of the connector.
How do you crimp F-type coax?
0:031:07How To Install F-Type Crimp Connector For RG6 Quad ShieldYouTubeStart of suggested clipEnd of suggested clipYou will need to flare out the outer jacket to make sure the connector is able to fully make contactMoreYou will need to flare out the outer jacket to make sure the connector is able to fully make contact apply pressure and twist as needed crimp.
Which coaxial cable is used for Internet?
Coaxial cables marked RG-6, RG-11, or RG-59 are used for applications such as video signals for TVs. RG-8 and RG-58 cables are commonly used for ethernet and internet connections.
Are there different types of F connectors?
The F connector is also knowsn as Threaded Connector. There are two main types: 7 mm (6.8mm) is the most common and most used in coaxial cables, and connector 5mm that it is used in a thin coaxial cable typically used in satellite systems.
Are all F connectors the same?
There are many types for F plugs for different size coaxial cables and plugs that terminate differently like screw on F plugs, crimp on and compression plugs but in essence they are very similar.
Which coaxial cable is best for digital TV?
RG-11Coaxial cable for HDTV (high-definition) The best coaxial cable for HDTV is RG-11. This type of cable offers a higher gauge than others, which provides more space for signals to transfer. This makes RG-11 cable adept at transferring strong HD signals at speed.
What Is an F Connector?
An F connector is a fitting that connects a coaxial cable to an electronic device or a wall jack. It contains threads that allow you to screw the cable onto a TV, cable wall outlet, or other electronic devices.
How to crimp a F connector?
Crimp-type F connector: Fit the crimp ring of the F connector over the end of the cable and slide it down over the outer jacket and shielding wires. Slide it until the white plastic layer makes contact with the hole inside the connector. You should see about 1/4 inch of copper wire inside the end of the F connector. Continue to the final step.
How to remove coaxial cable jacket?
First, you'll strip 3/4 inch of the black or white outer jacket from the end of the coaxial cable, using a utility knife . Carefully make a shallow cut all the way around the cable, cutting through the outer jacket only. Use your fingernails to peel away the jacket from the cable.
How far does the copper wire extend from the F connector?
Twist-on F connector: Fit the F connector onto the end of the cable and twist it clockwise until the white plastic layer contacts the hole inside the connector, and the copper wire extends about 1/16 inch beyond the front end of the connector. For twist-on connectors, your work is done.
What is coaxial cable?
A coaxial cable used to bring electronic signals to a television or other electronic device terminates in an F connector. There are several ways these F connectors can be attached to coaxial cable.
What type of cable do I need for a TV?
But they are less common now that high-definition and ultra-high-definition televisions make prevalent use of HDMI, fiber optical, and ethernet cables for many of their connections .
Can coaxial wires stab?
The metal shielding wires inside the outer sheath of a coaxial cable are very fine and have pointy tips. This means they can easily stab a finger, so be extra cautious working with them. Using gloves will make the job much harder to complete, so go for an ounce of prevention here.
Why do we not recommend female CoAx sockets?
Note : we do not recommend female CoAx sockets (except right angle types) because the design of the “in line” type is not conducive to reliability. Very few trade aerial suppliers sell them either, and that’s got to tell you something.
Can right angle connectors cause impedance mismatch?
When considering the use of right angle connectors there is a theory that some can cause impedance mismatch with a consequent effect on the signal. So, if you do experience signal problems when using a right angle connector try temporarily eliminating it and see if the fault clears.
Can a F connector be converted to a CoAx?
Various adapters are available to convert a F connector to a CoAx ( male to female and reverse ).
Can you use F connectors in place of CoAx?
F connectors can also be used in place of CoAx plugs (assuming there is a corresponding F socket obviously ! ) but it is very bad practice to use CoAxial plugs/sockets for satellite work. Note, albeit rarely, CoAx connectors are sometimes called as "Belling Lee" connectors, and also, somewhat inaccurately, IEC connectors.
Do FM tuners have a male or female connector?
Note that most FM tuners actually have a male connectors, so in that case a female CoAx is needed (or a male with a Back to Back coupler ). Also see fitting a CoAx plug and fitting a right angle CoAx plug. An F connector (sold here) is usually fitted on a lead from a satellite dish (or a DAB radio, a mast head amp or splitter) ...
Can you reuse CoAx plugs?
The alloy ones can become difficult to undo over time, particularly if the atmosphere is damp or water has seeped down your aerial cable. It is not advisable to reuse CoAx plugs as the " claw insert " becomes deformed when it is screwed up onto the cable, they aren’t that expensive anyway.
What is coaxial cable?
Coaxial Cable is used by cable operators, telephone companies and internet providers. If you have cable television, you have a coaxial cable installed in your home. Coaxial cables are also used for connecting VCRs to a television or connecting your television set or digital convertor box to a personal antenna.
How is Coaxial Cable Constructed?
Coaxial cable is constructed from a single copper or copper-coated steel wire as the center core which carries the high frequency signal. This wire is surrounded by a dielectric insulator, often made of plastic, which keeps a constant distance between the center conductor and the next layer. This insulator is wrapped with a metal shield made of woven copper, aluminum or other metal. This cancels outside electromagnetic interference. The final layer is a rubber wrapper that insulates the whole configuration.
How many ohms is a RG11 cable?
The RG11 cable is another 75 ohm cable with F-Type connectors. What separates it from the R6 is its range: whereas the R6 tops out at 50 feet, the RG11 ranges from 50 to 100 feet and features lower loss.
How long is a 50 ohm cable?
These are 50-ohm, pro-grade coaxial cables designed for large installations from 7,500 to 50,000 square feet. Cable length ranges from 50 to 1000 feet, spooled. Your installer will typically apportion the cable into shorter lengths to cover the range of the installation while maintaining quality signal strength.
What is a ham radio?
Ham radio is a means for people to communicate over the air waves. Coaxial cable connected to the antenna provide a stronger signal. Ham radios can be set up in the middle of nowhere and do not require the internet or cell phone technology.
How does an antenna work?
An antenna is installed on the outside of your house, an amplifier boosts cell phone signal on the inside of your house, a second antenna is installed on the inside of your house. The coaxial cable ties the three devices together. Using this technology, you can boost a weak cellular 3G & 4G signal.
Where is copper cable plugged into?
The copper-based cable is piped into your house from the cable service provider. You then plug the connector into a router or cable modem, which then is plugged into your television or computer for internet and cable viewing access.
Overview
The F connector (also F-type connector) is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or with RG-59/U cable.
The F connector was invented by Eric E. Winston in the early 1950s while working for Jerrold Electronics on their development of cable television. In the 1970s, it became commonplace on V…
Description
The F connector is an inexpensive, gendered, threaded, compression connector for radio frequency signals. It has good 75 Ω impedance match for frequencies well over 1 GHz and has usable bandwidth up to several GHz.

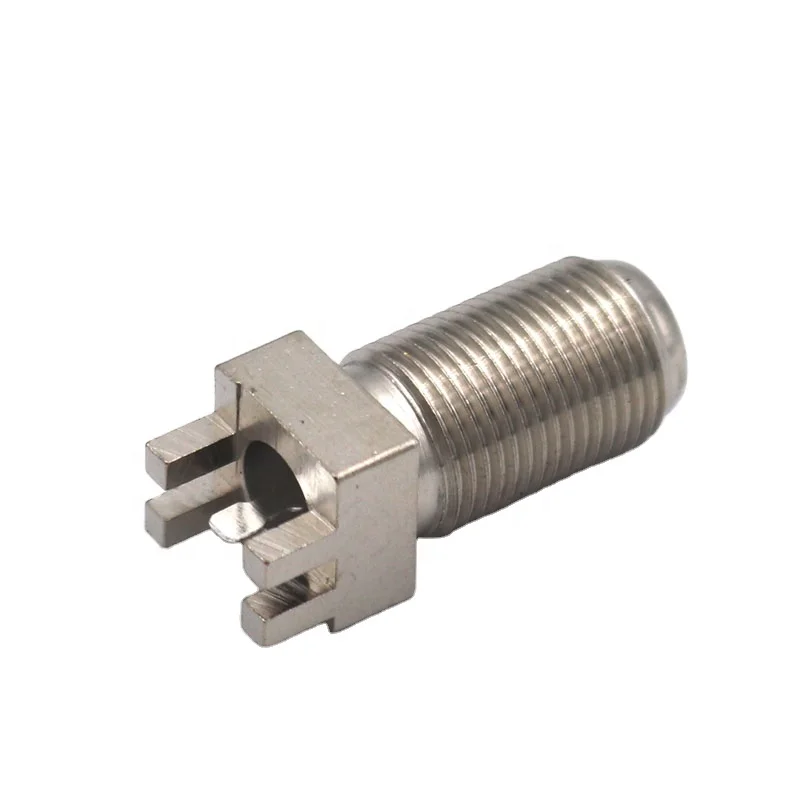

Connectors mate using a 3/8-32UNEF thread. The female connector has a socket for the center conductor and external threads. The male connector has a center pin, and a captive nut with inte…
Usage
The cable and satellite television entities (as a near standard practice) use compression fittings with F connectors on customer premises. In Europe, block down-converted satellite signals (950–2150 MHz) from LNBs and DC power and block signalling from satellite receivers are near exclusively passed through F connectors.
Flex F connectors
Push-on (aka Flex) F connectors provide poorer shielding against microwave signals of high field strength. This leakage problem is more an artifact of bent or partly broken push on connectors, but is mostly not observed with compression connectors. Nearby television, FM radio, mobile & cordless phones, government radiolocation (54–1,002 MHz) transmitters can potentially interfere with a CAT…
