What is the difference between Crisp and fuzzy logic?
Crisp logic: If Ben showed up precisley at 12, he is punctual, otherwise he is too early or too late. Fuzzy logic: The degree, to which Ben was punctual, depends on how much earlier or later he showed up (e.g. 0, if he showed up 11:45 or 12:15, 1 at 12:00 and a linear increase / decrease in between).

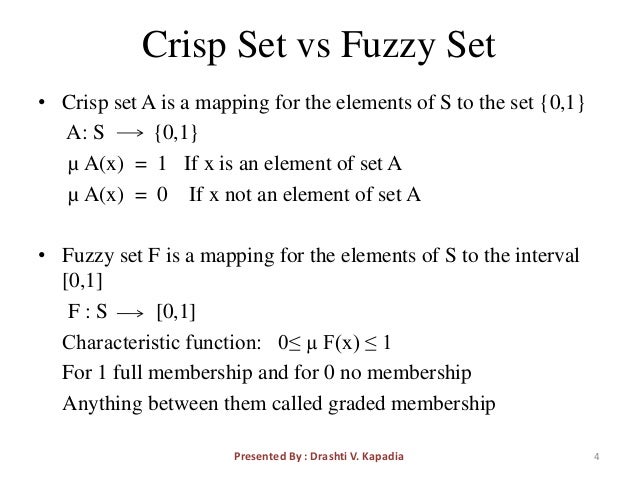

What is a crisp set in logic?
Crisp logic asserts a hypothesis as true or false, i.e. crisp sets have only two states of membership: 0 or 1. This implies that if an element belongs to a crisp set, it could not belong to its complement and vice versa (this is known as Law of Non Contradiction).
What is the difference between Crisp probability and fuzzy probability?
Prob is still a kind of crisp logic, where an element is either in a set or not, but the best you can do is state the probability that it is in each set. Fuzzy means that the element is in both sets to differing degrees. This section of the Wikipedia entry seems to be saying it the way I remember it.
What is a fuzzy set in logic?
Fuzzy logic temperature. Fuzzy sets are often defined as triangle or trapezoid-shaped curves, as each value will have a slope where the value is increasing, a peak where the value is equal to 1 (which can have a length of 0 or greater) and a slope where the value is decreasing.
What is crisp function in fuzzy logic?
A set defined using a characteristic function that assigns a value of either 0 or 1 to each element of the universe, thereby discriminating between members and non-members of the crisp set under consideration. In the context of fuzzy sets theory, we often refer to crisp sets as “classical” or “ordinary” sets.
What is crisp number in fuzzy logic?
Crisp set defines the value is either 0 or 1. Fuzzy set defines the value between 0 and 1 including both 0 and 1. It is also called a classical set. It specifies the degree to which something is true.
What is crisp set and example?
Crisp sets are the sets that we have used most of our life. In a crisp set, an element is either a member of the set or not. For example, a jelly bean belongs in the class of food known as candy. Mashed potatoes do not. Fuzzy sets, on the other hand, allow elements to be partially in a set.
What is crisp in AI?
CRiSP is able to identify the risk factors related to your keywords through an AI-fueled understanding of the colloquial nuances of digital media language.
Is crisp and Boolean same?
Crisp logic (crisp) is the same as boolean logic(either 0 or 1). Either a statement is true(1) or it is not(0), meanwhile fuzzy logic captures the degree to which something is true.
What is crisp variable?
Fuzzy logic term for a variable that takes on a precise value as opposed to a fuzzy membership value between 0 and 1. Crisp variables must be measurable quantities. Copyright 2022 American Meteorological Society (AMS).
What is difference between fuzzy relation and crisp relation?
But fuzzy relations have infinite number of relationship between the extremes of completely related and not related between the elements of two or more sets considered. A crisp relation represents the presence or absence of association, interaction, or interconnectedness between the elements of two or more sets.
Is every fuzzy set is crisp set?
A fuzzy set is determined by its indeterminate boundaries, there exists an uncertainty about the set boundaries. On the other hand, a crisp set is defined by crisp boundaries, and contain the precise location of the set boundaries.
What are the properties of crisp set?
Properties of crisp set: All at one placeCommutativity: Commutativity property states that the operation can be performed irrespective of order of the operand. ... Associativity: ... Distributivity: ... Absorption: ... De Morgan's Laws:
What is crisp model?
CRISP-DM, which stands for Cross-Industry Standard Process for Data Mining, is an industry-proven way to guide your data mining efforts. As a methodology, it includes descriptions of the typical phases of a project, the tasks involved with each phase, and an explanation of the relationships between these tasks.
What are the 6 CRISP-DM phases?
Those steps are Business Understanding, Data Understanding, Data Preparation, Modeling, Evaluation, and Deployment.
What are the advantages of fuzzy logic over crisp logic?
The benefits of using Fuzzy Logic systems are as follows: It is a robust system where no precise inputs are required. These systems are able to accommodate several types of inputs including vague, distorted or imprecise data. In case the feedback sensor stops working, you can reprogram it according to the situation.
What is crisp relation?
A crisp relation represents the presence or absence of association, interaction, or interconnectedness between the elements of two or more sets. This concept can be generalized to allow for various degrees or strengths of relation or interaction between elements.
How do you convert crisp value to fuzzy value?
The first step is to take the crisp input x and determine the degree to which the input belongs to each of the appropriate fuzzy sets. Fuzzification is the process of mapping crisp input x ∈ U into fuzzy set A ∈ U.
What are the properties of crisp set?
Properties of crisp set: All at one placeCommutativity: Commutativity property states that the operation can be performed irrespective of order of the operand. ... Associativity: ... Distributivity: ... Absorption: ... De Morgan's Laws:
Can a crisp set be a fuzzy set *?
3) A Fuzzy logic is an extension to the Crisp set, which handles the Partial Truth. Answer: a) True.
What is fuzzy logic?
But if you are willing to drop the difference between Fuzzy Logic and Probability for the sake of simplicity, you may say that the scores produced by a suitable classifier are fuzzy, meanwhile the decision for a class based on the score is crisp. For example in a direct mail campaign, you can calculate a score how likely it is that a customer will respond, but in the end you have to perform a crisp decision which customers you will send an actual letter.
Is crisp logic the same as boolean logic?
As far as I remember, crisp logic is the same as boolean logic. Either a statement is true or it is not, meanwhile fuzzy logic captures the degree to which something is true.
What is fuzzy logic?
In logic, fuzzy logic is a form of many-valued logic in which the truth value of variables may be any real number between 0 and 1 both inclusive. It is employed to handle the concept of partial truth, where the truth value may range between completely true ...
How does fuzzy logic work?
Fuzzy logic works with membership values in a way that mimics Boolean logic. To this end, replacements for basic operators AND, OR, NOT must be available. There are several ways to this. A common replacement is called the Zadeh operators :
What is the biggest challenge in fuzzy logic?
A major challenge is how to derive the required fuzzy data. This is even more challenging when one has to elicit such data from humans (usually, patients). As it said "The envelope of what can be achieved and what cannot be achieved in medical diagnosis, ironically, is itself a fuzzy one" [Seven Challenges, 2019]. How to elicit fuzzy data, and how to validate the accuracy of the data is still an ongoing effort strongly related to the application of fuzzy logic. The problem of assessing the quality of fuzzy data is a difficult one. This is why fuzzy logic is a highly promising possibility within the CAD application area but still requires more research to achieve its full potential. Although the concepts of using fuzzy logic in CAD is exciting, there are still several challenges that fuzzy approaches face within the CAD framework.
Why is fuzzy logic important?
Since medical and healthcare data can be subjective or fuzzy, applications in this domain have a great potential to benefit a lot by using fuzzy logic based approaches.
Why are non-numeric values used in fuzzy logic?
In fuzzy logic applications, non-numeric values are often used to facilitate the expression of rules and facts.
When was the first fuzzy relational database created?
The first fuzzy relational database, FRDB, appeared in Maria Zemankova 's dissertation (1983). Later, some other models arose like the Buckles-Petry model, the Prade-Testemale Model, the Umano-Fukami model or the GEFRED model by J.M. Medina, M.A. Vila et al.
Where was fuzzy logic first used?
Many of the early successful applications of fuzzy logic were implemented in Japan. The first notable application was on the subway train in Sendai, in which fuzzy logic was able to improve the economy, comfort, and precision of the ride.
How is fuzzy logic used?
Fuzzy Logic is used with Neural Networks as it mimics how a person would make decisions, only much faster. It is done by Aggregation of data and changing into more meaningful data by forming partial truths as Fuzzy sets.
What is fuzzy input?
crisp numbers into fuzzy sets. Crisp inputs are basically the exact inputs measured by sensors and passed into the control system for processing, such as temperature, pressure, rpm’s, etc.
What is defuzzification in inference?
DEFUZZIFICATION: It is used to convert the fuzzy sets obtained by the inference engine into a crisp value. There are several defuzzification methods available and the best-suited one is used with a specific expert system to reduce the error.
What is the difference between 1.0 and 0.0 in fuzzy logic?
In the boolean system truth value, 1.0 represents the absolute truth value and 0.0 represents the absolute false value. But in the fuzzy system, there is no logic for the absolute truth and absolute false value. But in fuzzy logic, there is an intermediate value too present which is partially true and partially false.
What is the rule base of fuzzy theory?
RULE BASE: It contains the set of rules and the IF-THEN conditions provided by the experts to govern the decision-making system, on the basis of linguistic information. Recent developments in fuzzy theory offer several effective methods for the design and tuning of fuzzy controllers. Most of these developments reduce the number of fuzzy rules.
How many types of fuzzifiers are there?
There are largely three types of fuzzifiers:
Is fuzzy logic easy to understand?
The construction of Fuzzy Logic Systems is easy and understandable.
Why use fuzzy logic?
Following are some reasons to use fuzzy logic in neural networks −. Fuzzy logic is largely used to define the weights, from fuzzy sets, in neural networks . When crisp values are not possible to apply, then fuzzy values are used.
Why is fuzzy logic so difficult?
The difficulty is related with membership rules, the need to build fuzzy system, because it is sometimes complicated to deduce it with the given set of complex data.
What is the number that indicates the value in fuzzy systems called?
The number which indicates the value in fuzzy systems is called the truth value. In other words, we can say that fuzzy logic is not logic that is fuzzy, but logic that is used to describe fuzziness. There can be numerous other examples like this with the help of which we can understand the concept of fuzzy logic.
What does fuzzy mean in science?
The word fuzzy refers to things which are not clear or are vague. Any event, process, or function that is changing continuously cannot always be defined as either true or false, which means that we need to define such activities in a Fuzzy manner.
What is a proper subset?
The term “proper subset” can be defined as “subset of but not equal to”. A Set X is a proper subset of set Y (Written as X ⊂ Y) if every element of X is an element of set Y and |X| < |Y|.
Is FIS output crisp?
The output from FIS is always a fuzzy set irrespective of its input which can be fuzzy or crisp.
Is an empty set a finite set?
An empty set contains no elements. It is denoted by Φ. As the number of elements in an empty set is finite, empty set is a finite set. The cardinality of empty set or null set is zero.
What is crisp logic?
Crisp logic is like binary values. That is either statement answer is 0 or 1. In sampler way , It's define as either value is true or false. Only two value it's varying like binary. But in case of fuzzy we could able to take the intermediate value. In short value in between 0 or 1.
How can we understand fuzzy logic?
We can understand fuzzy logic by understanding what is the basic idea behind crisp logic, and some problems which could not be solved by it, so that we know what was the need for fuzzy logic in the first place.
What is the difference between probability and fuzzy logic?
But the difference arises in the fact that probability is a measure of how likely an event is to occur, whereas with fuzzy logic, in a sense, we are answering the question how true (or false) is a statement .
What is the difference between fuzzy and classical logic?
In classical logic, a truth assignment to a statement assigns it a value of either 0 or 1 , whereas in fuzzy logic, the truth assignment is between 0 and 1 inclusive. In fuzzy logic, if and are any two statements, and is our truth assignment, we have the following properties: Note that the above properties are also satisfied for our classical ...
What are intermediate values in fuzzy logic?
In case fuzzy logic. We can take intermediate value like slow, medium, fast, and very fast. Here we define 4 value instead of only 2 value. With fuZZY we can define more than what we defined here in this example
Which theory captures partial truth?
In short, we can say that Fuzzy Logic captures the meaning of partial truth whereas Probability theory captures partial knowledge.
Is fuzzy logic related to probability theory?
Yes, both fuzzy logic and probability theory are closely related, the key difference is their meaning. Probability is associated with events and not facts, and those events will either occur or not occur. There is nothing fuzzy about it. Where as in fuzzy logic we basically try to capture the essential concept of vagueness. Fuzzy Logic is all about degree of truth.
Fuzzy Logic
Difference Between Crisp Logic and Fuzzy Logic
- Crisp : 1. Binary logic 2. It may be occur or non occur 3. indicator function Fuzzy logic : 1. Continuous valued logic 2. membership function 3. Consider about degree of membership
Fuzzy Systems
- Crisp logic (crisp) is the same as boolean logic(either 0 or 1). Either a statement is true(1) or it is not(0), meanwhile fuzzy logic captures the degree to which something is true. Consider the statement: “The agreed to met at 12 o’clock but Ben was not punctual.” 1. Crisp logic: If Ben showed up precisley at 12, he is punctual, otherwise he is to...
Membership Function
- The membership function (MF) of a fuzzy sets is a generalization of the indicator function in classical sets. Fuzzy logic, it represents the degree of truth (degree of 1’s) as an extension of valuation. Degrees of truth are often confused with probabilities factor, although they are conceptually distinct because fuzzy truth represents membership in vague defined sets not likeli…
Definition
- For any set A, a membership function on A is any function from A to the real unit interval [0,1]. Membership functions on A represent fuzzy subsets of A. The membership function which represents a fuzzy set \tilde A is usually denoted by \mu_A. For an element A of A, the value \mu_A(x) is called the membership degree of A in the fuzzy set \tilde A. The membership degre…
