How does a dark sensor work?

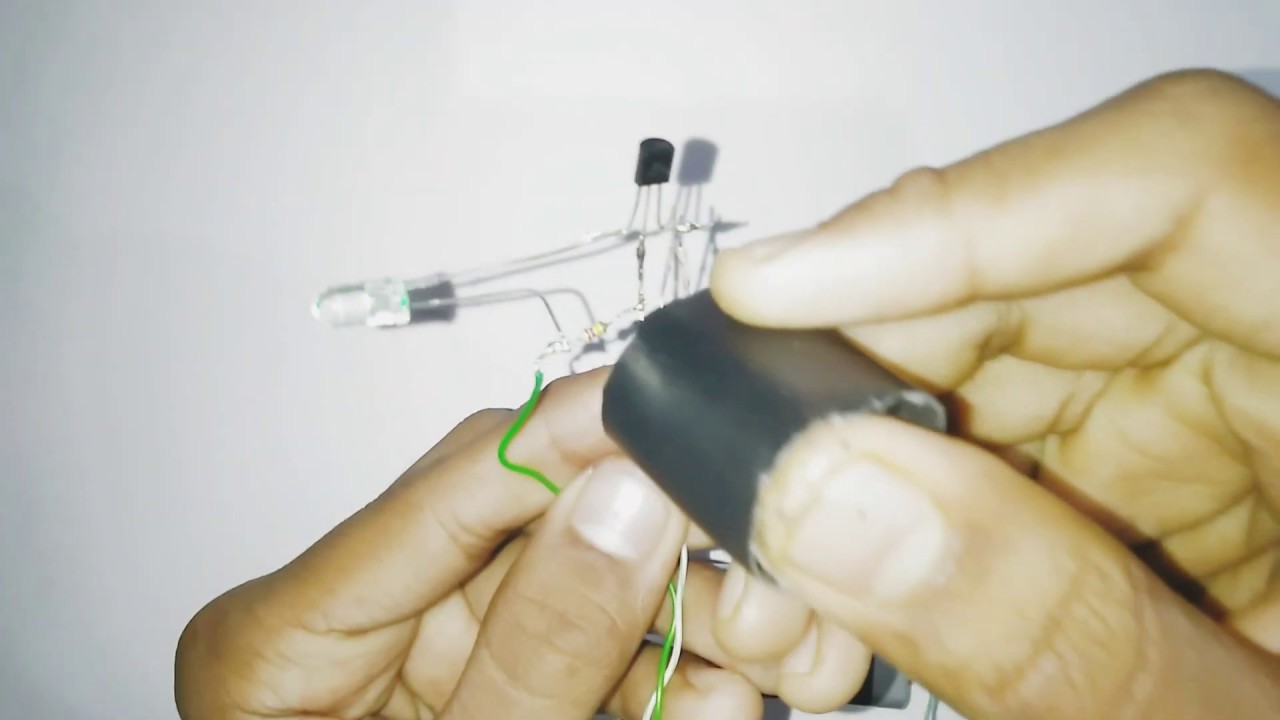

The key of dark sensor is the light dependent resistor (ldr) component - where when there is strong intensity of light the resistance increase otherwise when the light is weak or no light at all then the resistance will reduce greatly. Here is a simple video how a dark sensor is made base on ldr and transistor you can experiment it yourself.
What is dark sensor or LDR?
Dark sensor or LDR is basically a light activated sensor whose resistance values changes with the intensity of light. In short words more the light on the sensor less the resistance.
What is automatic street light control system or dark sensor?
Here is my new simple Electronics project about Automatic Street Light Control System or Dark Sensor. it is a simple and powerful concept , which uses transistor ( BC 547 NPN) as a switch to switch ON and OFF the street light system automatically .
What is the difference between a dark sensor and a transistor?
The only difference between these circuits are the placement of LDR (light dependant resistor and 100kR resistor). Dark sensor works in the way that then the LDR comes to the darkness, or in other words, if no light falls on it, the transistor turns on.
How does a dark sensor work?
Working principle: Dark sensor works in the way that then the LDR comes to the darkness, or in other words, if no light falls on it, the transistor turns on. Then transistor turns on, it lets the current flow trough it and also the right branch of the circuit is now active. LED starts emmiting.
What is dark sensor circuit?
Darkness Detector or Dark Detector is a circuit that detects darkness or absence of light. In this project, we have implemented a simple Darkness Detector Circuit using the simplest of all light sensors: the LDR (Light Dependent Resistor).
How do you make a dark sensor?
0:204:06How To Make A Dark Sensor On A Breadboard [HD] - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo these are the components you require to make a dark sensor. First place the BC 5 to 7 times downMoreSo these are the components you require to make a dark sensor. First place the BC 5 to 7 times down the breadboard. Now connect the LDR from the base and emitter of the bc547c. Stirrer.
What is the use of light sensor?
Light sensors detect light and convert light energy to an electrical signal output. Once converted into electrical energy, the radiant energy within the infrared to ultraviolet light frequency spectrum source can then be measured.
How do LDR sensors work?
When the light level decreases, the resistance of the LDR increases. As this resistance increases in relation to the other Resistor, which has a fixed resistance, it causes the voltage dropped across the LDR to also increase.
What are the advantages of LDR?
LDR advantages High sensitivity (due to the large area it can cover). Easy employment. Low cost. There is no union potential.
What is the symbol of LDR?
PhotoresistorTypePassiveWorking principlePhotoconductivityElectronic symbolThe symbol for a photoresistor1 more row
What are the applications of LDR?
Applications of LDR These devices are used where there is a need to sense the presence and absence of light is necessary. These resistors are used as light sensors and the applications of LDR mainly include alarm clocks, street lights, light intensity meters, burglar alarm circuits.
What is LDR module?
The LDR Sensor Module is used to detect the presence of light / measuring the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of the signal detection can be adjusted using potentiometer.
What are the types of sensors?
There are many different types of sensors, the main categories are;Position Sensors.Pressure Sensors.Temperature Sensors.Force Sensors.Vibration Sensors.Piezo Sensors.Fluid Property Sensors.Humidity Sensors.More items...•
How many types of light sensors are there?
There are different types of light sensors available; mainly Photoresistor, Photodiodes, and Phototransistors.
What is a color sensor?
A color sensor is a type of "photoelectric sensor" which emits light from a transmitter, and then detects the light reflected back from the detection object with a receiver.
What is a light sensor circuit?
What is a Light Sensor Circuit? The light sensor circuit is a simple electrical circuit, which can be used to control the (switch on and off) electrical load appliances like lights, fans, coolers, air conditioners, street lights, etc., automatically.
What are the applications of LDR?
Applications of LDR These devices are used where there is a need to sense the presence and absence of light is necessary. These resistors are used as light sensors and the applications of LDR mainly include alarm clocks, street lights, light intensity meters, burglar alarm circuits.
How do you make a light sensor circuit?
0:052:07How to make simple light sensor easy at home - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow connect led and 330 ohm resistor with collector. Now connect LDR with base and second side ofMoreNow connect led and 330 ohm resistor with collector. Now connect LDR with base and second side of resistor.
What does a Photoresistor do?
A photocell or photoresistor is a sensor that changes its resistance when light shines on it. The resistance generated varies depending on the light striking at his surface. A high intensity of light incident on the surface will cause a lower resistance, whereas a lower intensity of light will cause higher resistance.
What is a dark sensor?
Dark sensor is also known as automatic street light sensor. it is a simple and powerful concept , which uses transistor ( BC 547 NPN) as a switch to switch ON and OFF the street light system automatically .
What is the sensor that turns off the lights?
it automatically switches OFF lights when Sunlight fall on it ( e.g in morning ) , by using a sensor called LDR (Light Dependent Resistor) which senses the light just like our eyes.
What is a dark sensor circuit?
The dark sensor circuit is very useful to Automatic Switch ON and OFF any appliance by Detection of Light and Dark. LDR is a photoresistor that is used for the detection of light. When Light intensity high on LDR, The Resistance through it Decrease and When Light intensity is Low on LDR, then the resistance through it will Increase and Go very High. This Property is very useful in the operation of Dark Detector circuits. LDR is Light-dependent Resistor. LDR is a special type of Variable resistor which value can be increased or decreased according to light falling on it. As its specified property LDR act as the light and Dark sensor. When Light falls on LDR the Resistance of it goes very high about in MEGA OHM.
What is LDR in electronics?
LDR is Light-dependent Resistor. LDR is a special type of Variable resistor which value can be increased or decreased according to light falling on it. As its specified property LDR act as the light and Dark sensor. When Light falls on LDR the Resistance of it goes very high about in MEGA OHM.
What happens when light falls on LDR?
When Light Fall on LDR then the internal resistance of LDR will minimum and all voltage come through R1 dropped with the ground and become 0V, then no sufficient power at the base of the transistor get to turn on and light is switched Off. At Dark Resistance will be Very High and very less power dropped with the ground because of LDR holds by high resistance and transistor gate terminal get sufficient voltage to turn ON and the Light is switched ON
Can you use a relay with a dark activated switch?
If you want to connect any high load or AC Then you need to use Relay, Below the circuit diagram shows the Relay connection with the Dark Activated automatic Light switch. Use DC supply 0f 9-12v for the circuit operation or use any adaptor or can be used homemade AC to DC converter for circuit input. If BC547 get Hot And not able to handle the relay then you can use 2N222A transistor Or SL100. But If you use Small size Pcb Relay then BC547 can handle easily. These circuits are very useful in the automatic street light.
How does a dark sensor work?
Dark sensor works in the way that then the LDR comes to the darkness, or in other words, if no light falls on it, the transistor turns on. Then transistor turns on, it lets the current flow trough it and also the right branch of the circuit is now active. LED starts emmiting.
How can dark sensors be made more controllable?
The dark sensor could be made more controllable by switching the R1 resistor with variable resistor, thus:
Why do we call a photoelectric sensor dark on?
With photoelectric sensors, instead of normally open or normally closed we refer to light-on operate or dark-on operate because we are referring to the presence or absence of light at the sensor’s receiver.
Why are retro-reflective and through beam sensors considered light-on sensors?
Retro-reflective and through-beam sensors function as light-on operate sensors because under normal operating conditions there is a reflector or a light emitter providing a light beam back to the sensor receiver. If no object is blocking the light beam to receiver the output is on, normally closed. If the target or object is in between ...
What is diffuse mode?
Since the diffuse mode of operation requires the target or object to reflect the light source back to the receiver, it functions as a dark-on operate, normally open. If no object or target is placed in front of the sensor, no light will be reflected back to the receiver. When the object is present, the output changes state from normally open ...
What is the output of a light on sensor?
The output of a light-on operate sensor is on (enabled, high, true) when there is sufficient light on the receiver of the sensor. Conversely, the output of a dark-on operate sensor is on when the light source is blocked or no light can reach the receiver.
Can a sensor turn on and off?
The short answer is yes, but I think it justifies more of an explanation. In the world of proximity sensors, capacitive sensors, and mechanical switches when the target is present the output changes state and turns on or turns off; there is no ambiguity.
