What are the benefits of flashless forging over closed die forging?
Benefits from flashless forging over closed die forging Material waste:- in closed die forging operation, flash averages 15-30% of original work piece.
What is flashless precision forging?
In the past, flashless precision forging processes have been industrially established for rotationally symmetric parts such as gearwheels and simple, long flat parts such as connecting rods. For this project, we developed a flashless forging sequence in the laboratory for a simple two-cylinder crankshaft.
What is forging process?
INTRODUCTION FORGING:- Forging is a Bulk Deformation Process in which the work is compressed between two dies to get a useful required shape According to the degree to which the flow of the metal is constrained by the dies there are three types of forging: 1. Open die forging 2. Impression die (closed die) forging 3.
What is FLASH-reduced forging?
Flash-reduced forging is a promising alternative for the forging of complex heavy-duty parts. The use of flashless preforming operations is one possible approach in achieving this.

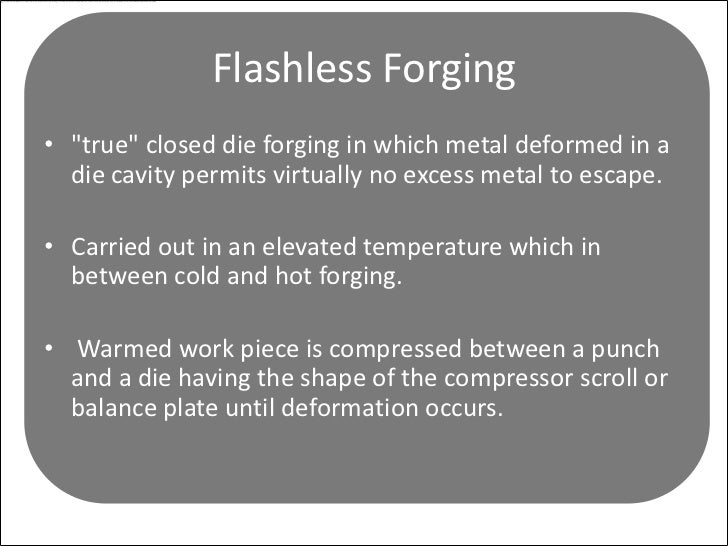

What is flash and Flashless forging?
Actually, a thin fin or ring of flash may form in the clearance between the upper punch and die, but it is easily removed by blasting or tumbling operations, and does not require a trim die. The process is therefore called "flashless forging", and is sometimes called "enclosed die forging".
What is flash forged?
Flash — Metal in excess of that required to fill completely the blocking or finishing forging impression of a set of dies. Flash extends out from the body of the forging as a thin plate at the line where the dies meet and is subsequently removed by trimming.
Why flash is used in forging?
Second, flash provides useful constraint of metal flow during forging, which helps in filling the die impressions. Before complete closure of the dies, the presence of some flash metal at the periphery of the workpiece promotes containment of the workpiece metal within the die impressions.
What is meant by precision forging?
Precision forging is defined as a flashless near net-shape forging operation which generates high quality parts concerning surface quality and dimensional accuracy. In the past, precision forging processes have been industrially established for axis-symmetric parts, e.g. gearwheels and steering pinions.
What is slug in forging?
SLUG: The blank, cut from wrought material, from which a forging is made, see “BILLET.” SPLIT DIE: A type of die construction where the two pieces are split vertically to make possible the forging of shapes with cavities or undercut details.
What is drop forged steel?
Steel drop forging is a production process in which a hammer is used to reshape heated metal into a particular die or tool shape. The metal must be preheated to make its structure easier to shape. Once the material begins to cool, it can be transformed into the desired shape.
What is gutter in forging?
A shallow impression machined around the periphery of a forging die impression outside the flash land that acts as a reservoir for excess metal.
What is cold shut in forging?
Definition of cold shut (Entry 2 of 2) 1 : the freezing of the surface of liquid metal during the pouring of an ingot or casting due to interrupted or improper pouring also : an imperfection thus caused. 2 : the imperfect weld caused in a forging by the inadequate heat of one surface under working or by an oxide film.
What is meant by flash and gutter?
Gutter flashing is a long piece of aluminum or plastic material that fits between your gutter and your roof line. The purpose of flashing is to prevent water from going behind your gutter.
What are the benefits of precision forging?
Advantages of precision forging High material utilization. ... Good working performance. ... Complicated shape parts are available in precision forging. ... High precision.
What is isothermal forging?
Isothermal forging is a closed-die process in which the dies and the workpieces are heated to the same temperature, so that forming can take place without loss of temperature in the workpiece.
What is forging and types of forging?
Forging is a manufacturing process involving the shaping of metal using localized compressive forces. When it comes to forging, there are four main ways to forge a part. Those four are impression die forging, cold forging, open die forgings, and seamless rolled ring forging.
What is flash reduced closed die forging?
Flash-reduced closed-die forging faces more challenges than conventional forging processes. A flashless preform, for example, cannot use the flash to compensate for process tolerances, such as the billet mass or the positioning of the billet in the die cavity. Changing these parameters within the process changes the required spring forces. Consequently, the design of the closing dies and punches is more complex than the design of conventional forging tools.
Why are closing dies in lateral extrusion processes and flashless closed-die forging similar?
Because the requirements for closing dies in lateral extrusion processes and flashless closed-die forging are similar, these concepts were taken into account in developing an advanced closing mechanism. These concepts could be divided into two groups: mechanical closings driven by the main working press and closing mechanisms working with additional gears.
