Introduction to Guided Transmission Media
- Introduction. A communication channel that conveys data from the sender to the recipient is known as transmission media.
- Guided Transmission Media. Guided Transmission Media, also known as Wired or Bounded transmission media, is the physical medium through which the signals are transmitted.
- Frequently Asked Questions. ...
What is guided transmission medium?
Guided Transmission Medium Guided transmission media are also called bounded media or wired media. They comprise cables or wires through which data is transmitted. They are called guided since they provide a physical conduit from the sender device to the receiver device.
What is guided media?
Guided Media It is defined as the physical medium through which the signals are transmitted. It is also known as Bounded media. Types Of Guided media:
What is the function of the transmission media?
The transmission media function maintains the data in the form of bits through LAN (Local Area Network). In data communications, the definition of the data and the transmission medium is more precise. The transmission medium is generally free space (i.e., air), metallic cable or fiber-optic cable.
What is The Unguided transmission media?
The other transmission medium is the unguided transmission media which does not incorporate any physical medium for the transmission of the information. We will discuss unguided transmission in some other content. In this section, we will discuss the different kinds of guided transmission media.
What is guided transmission media in computer network?
Guided − In guided media, transmitted data travels through cabling system that has a fixed path. For example, copper wires, fibre optic wires, etc. Unguided − In unguided media, transmitted data travels through free space in form of electromagnetic signal. For example, radio waves, lasers, etc.
What is guided transmission give an example?
Twisted-pair cable, coaxial cable, and fiber-optic cable are examples of guided transmission media that offer a channel from one device to another. The physical boundaries of the medium direct and contain a signal flowing via any of these mediums.
What is meant by guided media?
Guided media is like a physical medium via which the signals are transmitted. The guided media is used to provide a conduit from one machine to another that can have twisted-pair, coaxial cable and fibre-optic cable. It is also known as Bounded media.
What is guided transmission media and explain each type in detail?
Guided media, which are those that provide a conduit from one device to another, include twisted pair cable, coaxial cable, and fiber-optic cable. A signal traveling along any of these media is directed and contained by the physical limits of the medium.
What are 4 types of transmission media?

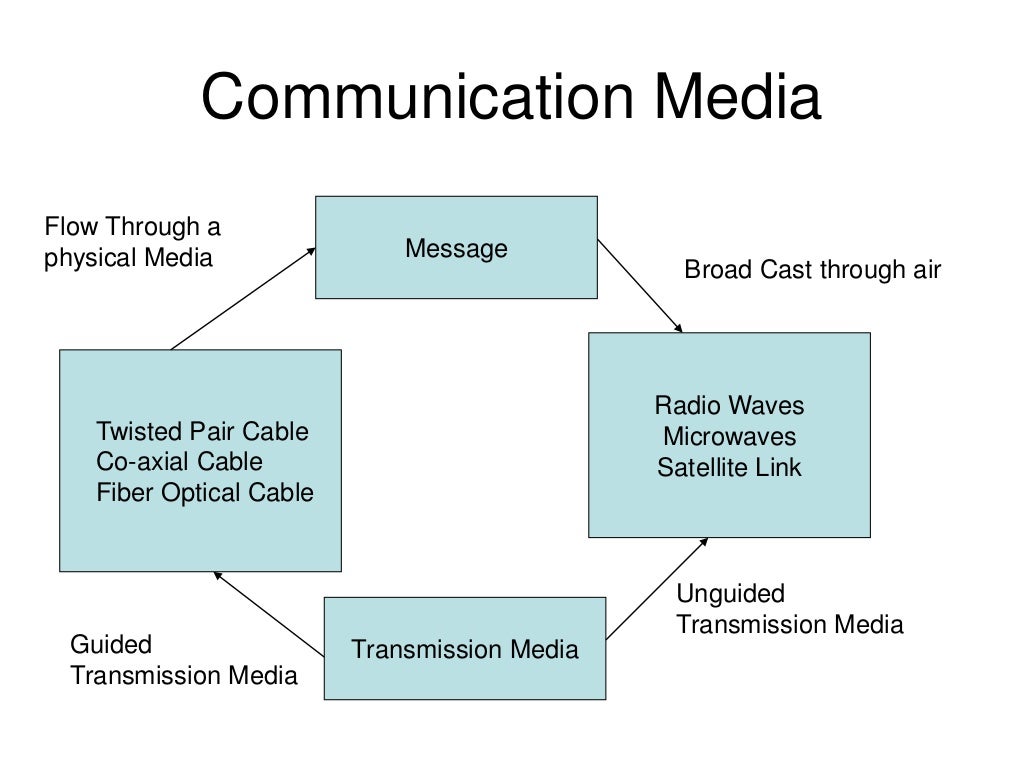

Transmission Media is broadly classified into the following types:Guided Media: It is also referred to as Wired or Bounded transmission media. ... (i) Twisted Pair Cable – ... Advantages: ... Advantages: ... (ii) Coaxial Cable – ... (iii) Optical Fiber Cable – ... (iv) Stripline.
What are the three types of guided media?
There are three types of Guided Transmission Media: Twisted Pair cable. Coaxial cable. Fibre Optic Cable.
What are two types of transmission media?
There are two types of transmission media, namely guided and unguided. Guided transmission media are cables like twisted pair cables, coaxial cables, and fiber optic cables. Unguided transmission media are wireless, such as infrared, radio waves, and microwaves.
What is guided transmission media PDF?
Guided media provide a physical path along which the signals are propagated; these include twisted pair, coaxial cable, and optical fiber. Unguided media employ an antenna for transmitting through air, vacuum, or water. •
Which one is the example of guided media?
With guided transmission media, the waves are guided along a physical path; examples of guided media include phone lines, twisted pair cables, coaxial cables, and optical fibers.
What guided media examples?
With guided transmission media, the waves are guided along a physical path; examples of guided media include phone lines, twisted pair cables, coaxial cables, and optical fibers.
What is guided transmission media PDF?
Guided media provide a physical path along which the signals are propagated; these include twisted pair, coaxial cable, and optical fiber. Unguided media employ an antenna for transmitting through air, vacuum, or water. •
What is a guided transmission?
Guided transmission media are also called bounded media or wired media. They comprise cables or wires through which data is transmitted. They are called guided since they provide a physical conduit from the sender device to the receiver device. The signal traveling through these media are bounded by the physical limits of the medium.
What is an unguided medium?
Unguided transmission media are also called wireless media. They transport data in the form of electromagnetic waves that do not require any cables for transmission. These media are bounded by geographical boundaries.
What is transmission medium?
The transmission medium can be defined as a pathway that can transmit information from a sender to a receiver. Transmission media are located below the physical layer and are controlled by the physical layer. Transmission media are also called communication channels. Transmission media are of two types −. Guided Transmission Medium.
What is Guided Transmission Media in Computer Network Explain with Example?
The transmission media is nothing but a path where data and information is transferred from one computer (sender) to another computer (receiver).
Unguided Media in Computer Network
The unguided transmission media in computer networks are also called “Wireless Communications”.
Which is the Example of Economical Guided Media?
The twisted pair is the type of guide transmission media that is a physical media or method which is used to transmit data and information.
Get in Touch
I have also written and compiled some articles on computers and telecommunications, and please go through them.
What is the difference between coax and unshielded twisted pair?
Coax is another common means of transmission (known to many friends as “coax” and pronounced “coax”). It offers better protection and higher bandwidth than unshielded twisted pairs, allowing it to travel longer distances at higher speeds.
Why are wires twisted?
The wires are twisted in a spiral, like a DNA molecule. Twisting is performed because two parallel cables constitute a thin antenna. When the cables are twisted, the waves of different turns are canceled and the cable radiates less efficiently. As a rule, the signal is transmitted as a voltage difference between two wires of a pair.
Why are twisted pairs used?
Twisted pairs can be used to transmit analog or digital information. The bandwidth depends on the thickness of the cable and the distance traveled, but in many cases, it can reach several megabits per second for several kilometers. Because of their adequate performance and low cost, twisted pairs are widely used and will likely remain so for many years.
What is the role of the physical layer in a computer?
Guided Transmission Media – The role of the physical layer is to transfer bits from one computer to another through the channel. Different physical media can be used for the actual transfer. Each of them has its place in terms of throughput, time, cost and ease of installation and maintenance. Operators are grouped roughly in managed environments, such as copper and fiber optic cables, and in unmanaged environments, such as global wireless networks, satellites, and live lasers.
What is the optical transmission system?
The optical transmission system has three key components: the light source, the transmission medium, and the detector. As a general rule, a light pulse indicates bit 1 and the absence of light indicates bit 0. Ultra-thin fiberglass is the transmission medium. The detector generates an electrical pulse when the light hits it.
What type of cable is used for digital transmission?
Two types of coaxial cables are widely used. One type, a 50-ohm cable, is typically used when it is designed for digital transmission from the start. The other type, a 75-ohm cable, is commonly used for analog transmission and cable television.
What is coaxial cable?
The coaxial cable consists of a hard copper wire surrounded by an insulating material. The insulation is covered with a cylindrical conductor, often similar to a dense woven mesh.
What is the core of a WDM?
The core is surrounded by a less dense glass or plastic covering called the cladding. It is used for the transmission of large volumes of data. The cable can be unidirectional or bidirectional. The WDM (Wavelength Division Multiplexer) supports two modes, namely unidirectional and bidirectional mode.
What is twisted pair cable?
Twisted Pair is of two types: Unshielded Twisted Pair (UTP): This type of cable has the ability to block interference and does not depend on a physical shield for this purpose. It is used for telephonic applications.
What is the purpose of coaxial cable?
Cable TVs and analog television networks widely use Coaxial cables. It uses the concept of reflection of light through a core made up of glass or plastic. The core is surrounded by a less dense glass or plastic covering called the cladding. It is used for the transmission of large volumes of data.
What is unguided media?
Unguided Media: It is also referred to as Wireless or Unbounded transmission media.No physical medium is required for the transmission of electromagnetic signals. There are 3 types of Signals transmitted through unguided media: These are easy to generate and can penetrate through buildings.
What are the different types of guide media?
Generally, several such pairs are bundled together in a protective sheath. They are the most widely used Transmission Media. Twisted Pair is of two types:
How many types of signals are transmitted through unguided media?
There are 3 types of Signals transmitted through unguided media:
What is transmission medium?
In data communication terminology, a transmission medium is a physical path between the transmitter and the receiver i. e it is the channel through which data is sent from one place to another. Transmission Media is broadly classified into the following types: 1. Guided Media:
What are the factors that affect transmission?
Some factors need to be considered for designing the transmission media: 1 Bandwidth: All the factors are remaining constant, the greater the bandwidth of a medium, the higher the data transmission rate of a signal. 2 Transmission impairment: When the received signal is not identical to the transmitted one due to the transmission impairment. The quality of the signals will get destroyed due to transmission impairment. 3 Interference: An interference is defined as the process of disrupting a signal when it travels over a communication medium on the addition of some unwanted signal.
What is transmission impairment?
Transmission impairment: When the received signal is not identical to the transmitted one due to the transmission impairment. The quality of the signals will get destroyed due to transmission impairment.
What is interference in a communication?
Interference: An interference is defined as the process of disrupting a signal when it travels over a communication medium on the addition of some unwanted signal.
What is the function of transmission media?
The main functionality of the transmission media is to carry the information in the form of bits through LAN (Local Area Network). It is a physical path between transmitter and receiver in data communication. In a copper-based network, the bits in the form of electrical signals.
How are the characteristics and quality of data transmission determined?
The characteristics and quality of data transmission are determined by the characteristics of medium and signal.
What is distortion in a signal?
Distortion: Distortion occurs when there is a change in the shape of the signal. This type of distortion is examined from different signals having different frequencies. Each frequency component has its own propagation speed, so they reach at a different time which leads to the delay distortion.
Which layer of OSI is transmission media available?
The transmission media is available in the lowest layer of the OSI reference model, i.e., Physical layer.
Magnetic Media
Twisted Pair Cable
- Though we have a trusted magnetic media still some applications need an online connection. Twisted pair media provides an online connection. Let us discuss the physical structure of the twisted pair cable. We all are familiar with the structure of the twisted pair cable. It involves two copper wires that are insulated and are twisted around each other in a helical pattern just like th…
Co-Axial Cable
- The coaxial cable also incorporates two cables for transmitting information from one system to another like the twisted pair cable. But the difference is in their structure and performance. The coaxial cable is able to transmit signal with a higher frequency range. Let us now discuss the physical structure of the coaxial cable. The coaxial cable has two conductors where there is a o…
Power Lines
- We don’t require the transmission media only for television and telephone connection. So, for what else we require the transmission media, its for electrical supply. The power line supplies the electrical power to the houses. Earlier the power line was used for transmitting information from one system to the other. The concept of using power line f...
Fibre Optic Cable
- Fibre optic cable is the fastest media for transmitting information from one system to another. It transmits the information with the speed of light. Let us discuss the physical structure of the fibre optic cable. Fibre optic cable is a thin fibre made of glass or plastic. It has a diameter thin as human hair. The optical fibre cable has three encasing the core, cladding and jacket. The innerm…
