What is infrared communication (IR)?

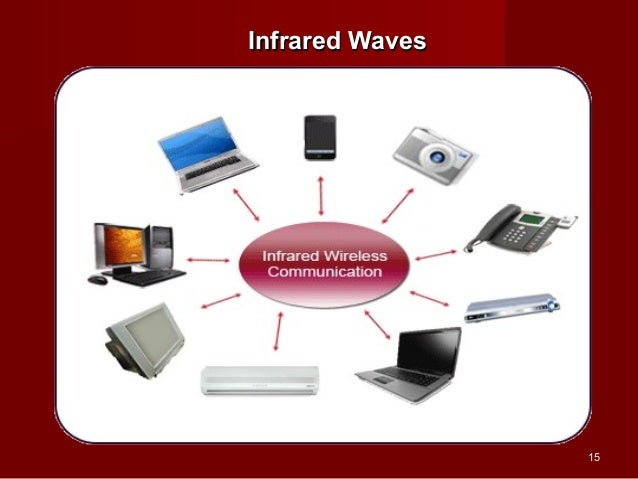

Infrared communication (IR) is a wireless mobile technology used for device communication over short ranges. Unguided infrared and millimeter waves are widely used for short-range communication. How it works? IR light-emitting diodes (LED) are used to transmit IR signals, which pass through a lens and focus into a beam of IR data.
What is IR-infrared?
The IR-Infrared tutorial covers Infrared features, IR network operation, IR spectrum, Infrared applications, Infrared advantages and disadvantages. Introduction: As we know infrared (IR) devices are used in wireless personal area networks spanning coverage range of about 30 feet which involves laptops, computers, PDAs and cellular phones.
What are the infrared devices?
Infrared Devices-LED and Laser. There are two infrared components used in IR devices viz. LED (light Emitting Diode) and Laser Diode. LED has wider transmission beam and suitable for diffuse mode of configuration as described below. It is most commonly used. It is used as transmitting element in Infrared communication.
What are the advantages and disadvantages of infrared technology?
Following are the advantages of Infrared: • It is secure way of communication as communication is point to point or line of sight. It is not feasible for intruder to come in between and hack the data. • IR devices have low power consumption and hence battey will last for longer period.
What is infrared communication?
Infrared communication is among the simplest wireless communication methods, and it serves as a cost-effective way of transmitting a few bits of data wirelessly. It’s safe to assume anyone reading this has used many different remote controls at home or work, and most of those simple devices communicate with the receiver via infrared pulses.
Why do we use IR LEDs?
The sender has to pulse the LED on and off to transmit data because many other objects emit IR radiation. Otherwise, the receiver wouldn’t be able to differentiate between actual messages and noise.
What is the purpose of NEC protocol?
The NEC protocol uses pulse distance encoding to distinguish between logic states in transmitted messages. The message itself consists of a synchronization sequence, typically followed by an eight-bit address and command.
How to transmit binary values with an IR LED?
The simplest method for transmitting binary values with an IR LED would be to turn the infrared LED on (to send a logical 1) or to leave it turned off (which could represent a logical 0) for a certain period. The sender could do this until all the data bits have been transmitted. Unfortunately, this won’t work in reality since many other sources emit IR radiation. The receiver would not be able to filter out unwanted signals from other sources.
What is the frequency of a NEC?
The standard NEC protocol uses a carrier frequency of 38 kHz. The logic states are encoded by using pulses of different lengths to distinguish between HIGH and LOW.
What does flashing an IR LED on and off mean?
The technique of flashing the IR LED on and off to represent data bits has nothing to do with IR communication protocols. Such protocols describe how the data bits have to be laid out so that both parties can understand what they mean.
What is language protocol?
In communications, language is referred to as a protocol, which is nothing more than an agreement between the sender and the recipient of the data. The two parties agree to follow a predefined pattern and transmit the information in a certain way. The simplest method for transmitting binary values with an IR LED would be to turn ...
What are the advantages of infrared?
Following are the advantages of Infrared: • It is secure way of communication as communication is point to point or line of sight. It is not feasible for intruder to come in between and hack the data. • IR devices have low power consumption and hence battey will last for longer period.
What does the name Infrared mean?
Hence the name Infrared stands for light which has low frequency or long wavelength than red light spectrum.
Why do scientists use infrared waves?
Meteorologists use infrared waves to study temperatures of land/water surfaces and can easily detect storm forming on oceans, and thus, raise alarms before it could hit the land and cities.
What is infrared light?
Infrared waves can be used for medical purposes, such as heat therapy. There is a device called an infrared Lamp, which emits red light. Knee pain, back pain, neck pain, and other joint pains can be relieved through infrared waves
How does infrared telescope help us?
Infrared astronomy has helped a great deal in studying the universe. Astronomers use infrared telescopes at a higher altitude to help understand the universe more effectively. Space telescopes have brought a huge change in the field of astronomy.
What is the most dominant example of the use of infrared in military purposes?
Heatseeker missile is the most dominant example of the use of Infrared in Military purposes. Pin-point accuracy of missiles is critical in this stage of technology dominance, and infrared serves best in the scenario.
What is infrared spectroscopy?
This is the study of the bond between molecules by analysts. This mechanism is also referred to as “Infrared vibrational spectroscopy,” in which infrared radiation involves interaction with matter. The infrared is widely used in spectrometric research.
Does infrared radiation cool?
Infrared radiations passed through clear and dry air of certain wavelengths leave behind a strong cooling effect. In the direct sunlight, the material can remain cool as far as radioactive cooling is applied.
