What is multivalued attribute of an entity?
A multivalued attribute of an entity is an attribute that can have more than one value associated with the key of the entity.
What is a multivalued dependency?
Multivalued Dependency(MD) • Multivalued dependency occurs when two attributes in a table are independent of each. other but, both depend on a third attribute. • A multivalued dependency consists of at least two attributes that are dependent on a. third attribute that’s why it always requires at least three attributes.
What is an example of removing multivalued attributes?
Removing multivalued attributes is one such case. You will also see an example of this when we deal with many-to-many relationships between entities, later in this chapter. The existence of more than one phone number turns the phone number attribute into a multivalued attribute.
How do you handle multiple values of the same attribute?
As a general rule, if you run across a multivalued attribute, this is a major hint that you need another entity. The only way to handle multiple values of the same attribute is to create an entity of which you can store multiple instances, one for each value of the attribute (for example, Figure 4.3 ).
What is multivalued attribute in ER diagram?

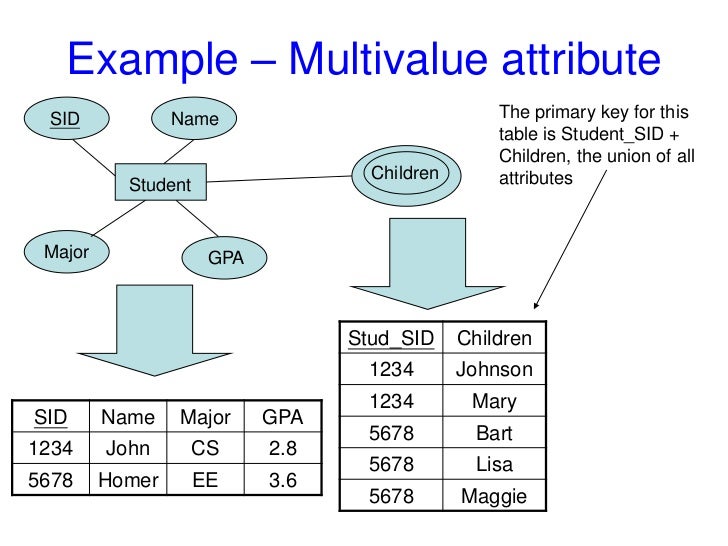

Multivalued attribute: An attribute that can hold multiple values is known as multivalued attribute. It is represented with double ovals in an ER Diagram. For example – A person can have more than one phone numbers so the phone number attribute is multivalued.
What is multivalued in DBMS?
The concept of MVD or Multivalued dependency refers to having multiple rows in a given table. Thus, it implies that there is a presence of multiple other rows in the very same table.
What is difference between multivalued and composite attribute?
For example, Location as the attribute of an entity called ENTERPRISE is multivalued, because each enterprise can have one or more locations. Composite Composite attributes are not atomic because they are assembled using some other atomic attributes.
What does a multivalued attribute look like?
A multivalued attribute is represented using a double oval with the name of the attribute inside the oval.
What is Multivalue attribute with example?
A multivalued attribute of an entity is an attribute that can have more than one value associated with the key of the entity. For example, a large company could have many divisions, some of them possibly in different cities.
Which is a multivalued function?
A multivalued function or multifunction f(z) has two or more distinct values. for each value of z. Important multivalued functions are. √ z, n √ z, √(z − a)(z − b), log z, zα, sin−1 z, and cos−1 z.
What are the 4 types of attributes?
Attributes can also be subdivided into another set of attributes. There are five such types of attributes: Simple, Composite, Single-valued, Multi-valued, and Derived attribute.
Which symbol is used for multivalued attributes?
A double ellipse represents Multi-valued attribute in ER-diagram. Symbols of ER Model. Strong Entity has its own attribute.
Is email a multivalued attribute?
A Student can have more than one Address i.e Permanent Address and Temporary Address. So, it can also be called a multivalued attribute. For example, A student can have more than one e-mail address.
What is multivalued field?
What Does Multivalued Field (MVF) Mean? A multivalued field (MVF) allows for the storage of more than one value in a database field. MVFs are somewhat controversial, with many arguing that they violate one of the very sacred tenets of database design as laid out by E.F.
How do I create a multivalued attribute?
The only way to handle multiple values of the same attribute is to create an entity in which you can store multiple instances, one for each value of the attribute (for example, Figure 5-9). In the case of the employee entity, we would need a dependent entity that could be related to the employee entity.
What is multivalued dimension?
There are situations when your data needs to represent a many to many relationships such that your dimension members are at a lower grain than related facts; aka multivalued dimension. In these cases, a single fact record should relate to multiple dimension values.
What is multivalued dimension?
There are situations when your data needs to represent a many to many relationships such that your dimension members are at a lower grain than related facts; aka multivalued dimension. In these cases, a single fact record should relate to multiple dimension values.
What is multivalued and join dependency?
Therefore, a multivalued dependency is a special case of tuple-generating dependency. The multivalued dependency plays a role in the 4NF database normalization. A multivalued dependency is a special case of a join dependency, with only two sets of values involved, i.e. it is a binary join dependency.
What is functional and multivalued dependency?
3. Multivalued Functional Dependency. In Multivalued functional dependency, entities of the dependent set are not dependent on each other. i.e. If a → {b, c} and there exists no functional dependency between b and c, then it is called a multivalued functional dependency.
Is multivalued function a function?
A multivalued function, also known as a multiple-valued function (Knopp 1996, part 1 p. 103), is a "function" that assumes two or more distinct values in its range for at least one point in its domain.
What is a multivalued attribute?
A multivalued attribute is capable of storing more than one value in a single attribute i.e nothing but it can hold multiple values for the single attribute.
What is attribute in a database?
Attributes define what type of data is stored in a database table for example student table stores details of Student name, roll no, marks, attendance, etc all these details corresponding the properties or attributes of the student table
Introduction
Attributes (like phone numbers) that are explicitly repeated in a class definition are not the only design problem that we might have to correct. Suppose that we want to know what hobbies each person on our contact list is interested in (perhaps to help us pick birthday or holiday presents). We might add an attribute to hold these.
Using UML Multiplicity for multivalued attributes
In UML, we can again use the multiplicity notation to show that a contact may have more than one value for hobby.
Mapping to the relational model
As you should expect by now, we can’t represent the multivalued attribute directly in the Contacts relation scheme. Instead, we will model it using its own relation scheme. Thus, we remove the old hobbies attribute and create a new scheme, very similar to the one that we created for phone numbers in the repeated attribute design pattern.
