What is the cost in OSPF?
The cost is a routing metric that is used in the link-state calculation. To set the cost of routes exported into OSPF, configure the appropriate routing policy. metric —Cost of the route. Default: By default, the cost of an OSPF route is calculated by dividing the reference-bandwidth value by the bandwidth of the physical interface.
What is OSPF metric and SPF algorithm?
This tutorial explains OSPF Metric calculation formula and SPF algorithm step by step in detail with examples. Learn how SPF (Shortest Path First) algorithm calculates cumulative cost of route to build the Shortest Path Tree (SPT) and how OSPF Metric Formula can be manipulated by changing reference bandwidth value.
What does OSPF stands for?
OSPF Stands for Open Shortest Path First, it is a routing protocol that is used in Internet Protocol (IP) networking. OSPF uses link state routing algorithms and it operates within a single autonomous system.
What is OSPF bandwidth bandwidth?
What is OSPF Metric value Cost and OSPF default Cost Reference Bandwidth Bandwidth OSPF Cost 100 Gbps 1 40 Gbps 1 10 Gbps 1 1 Gbps 1 6 more rows ...
What is the metric used in OSPF?
cost metricOSPF uses a cost metric that represents the status of the link and the bandwidth of the interface in an algorithm to determine the best route to a destination. The algorithm used is called the SPF (shortest path first) or Dijkstra algorithm.
What is the OSPF metric for a serial interface?
With the default of 100 Mbps, and default bandwidth, a serial interface's default OSPF cost is 100 / 1.544, or 64 (rounded down).
What is metric in network?
A metric is a value that's assigned to an IP route for a particular network interface. It identifies the cost that's associated with using that route. For example, the metric can be valued in terms of link speed, hop count, or time delay.
What is Eigrp metric?
EIGRP determines the value of the path using five metrics: bandwidth, load, delay, reliability and MTU. EIGRP uses five different messages to communicate with its neighbor routers. EIGRP messages are Hello, Update, Query, Reply, and Acknowledgement.
What is E1 and E2 in OSPF?
E1 routes indicate cumulative cost to reach the destination i.e. int indicates cost to reach ASBR + cost to destination from ASBR. E2 route reflects cost only from the ASBR to destination. This is the default used by ospf for redistribution.
How RIP and OSPF calculate metric value?
OSPF uses a reference bandwith of 100 Mbps to calculate the cost value. The formula used to calculate the cost is 100000000 (100 Mbps converted to Bps)/Actual Bandwidth of the link in Bps. Following are some of the factors to choose a best path to destination.
What is metrics in protocol?
Routing protocol algorithms use metrics, which are numerical values that are associated with specific routes. These values are used to prioritize of prefer routes learned by the routing protocol from the most preferred to the least preferred.
What is ad in OSPF?
Administrative distance (AD) or route preference is a number of arbitrary unit assigned to dynamic routes, static routes and directly-connected routes. The value is used in routers to rank routes from most preferred (low AD value) to least preferred (high AD value).
What is a metric analysis?
Metrics are measurements. A software development project is an experiment that is based on a number of assumptions theories and estimates. To confirm these measurements are taken for all significant processes and then analyzed. The results of the analysis are used to make decisions.
What are OSPF LSA types?
OSPF LSA Types ExplainedLSA Type 1: Router LSA.LSA Type 2: Network LSA.LSA Type 3: Summary LSA.LSA Type 4: Summary ASBR LSA.LSA Type 5: Autonomous system external LSA.LSA Type 6: Multicast OSPF LSA.LSA Type 7: Not-so-stubby area LSA.LSA Type 8: External attribute LSA for BGP.
What is K value in routing?
K values are integers from 0 to 128; these integers, in conjunction with variables like bandwidth and delay, are used to calculate the overall EIGRP composite cost metric. The table below lists the K values and their defaults. Table 2: EIGRP K-Value Defaults. Default Value.
What is BGP port number?
Among routing protocols, BGP is unique in using TCP as its transport protocol. BGP peers are established by manual configuration between routing devices to create a TCP session on port 179.
Which parameter does OSPF derive its routing metric?
OSPF uses the cost as the route metric. Each OSPF-enabled interface has a cost value. The formula used to calculate the cost is: Cost = 100M/Interface bandwidth.
What is the metric for RIP?
RIP uses the number of hops, or hop count, to determine the best possible route to a host or network. The term hop count is also referred to as the metric. In RIP, a hop count of 16 means infinity, or that the destination cannot be reached.
Which of the following formulas will calculate the OSPF metric correctly?
OSPF uses the following formula to calculate the path cost when interface bandwidth is available: OSPF path cost = ((auto-cost × reference-bandwidth + interface bandwidth) -1) / interface bandwidth.
What is the ad value for OSPF?
110The range for administrative distance is 0–255. The default value is 120 for RIP routes and 110 for OSPF routes.
What is LSA in OSPF?
As we know upon initialization or due to any change in routing information an OSPF router generates a LSA. This LSA (Link State Advertisement) contains the collection of all link-states on that router. Router propagates this LSA in network. Each router that receives this LSA would store a copy of it in its LSA database then flood this LSA to other routers.
What is OSPF neighborship?
OSPF neighborship is built between two routers only if configuration value of Area ID, Authentication, Hello and Dead interval, Stub Area and MTU are matched. This part explains these parameters and OSPF adjacency in detail with examples.
What is reference bandwidth?
Reference bandwidth was defined as arbitrary value in OSPF documentation (RFC 2338) . Vendors need to use their own reference bandwidth. Cisco uses 100Mbps (10 8) bandwidth as reference bandwidth. With this bandwidth, our equation would be
What algorithm does a router use to select the best route?
After database is updated, router selects a single best route for each destination from all available routes. Router uses SPF algorithm to select the best route.
What is the default bandwidth for serial interface?
For example serial interface has a default bandwidth value of 1544k. Until we change this value with bandwidth command, it will be used where it is required.
How many routes are there in 20.0.0.0/8?
We have three routes to get 20.0.0.0/8 network. Let’s calculate the cumulative cost of each route.
Does 56kbps have more overhead than 100Mbps?
Logically a packet will face more overhead in crossing a 56Kbps serial link than crossing a 100Mbps Ethernet link. Respectively it will take less time in crossing a higher bandwidth link than a lower bandwidth link. OSPF uses this logic to calculate the cost. Cost is the inverse proportional of bandwidth. Higher bandwidth has a lower cost. Lower bandwidth has a higher cost.
What is the default bandwidth for OSPF?

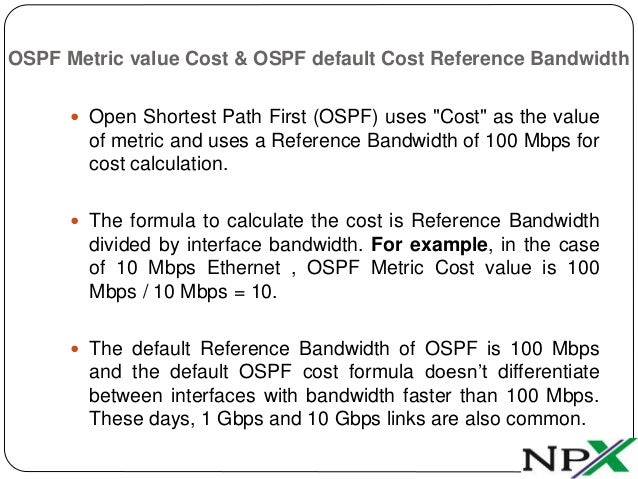

The default Reference Bandwidth of OSPF is 100 Mbps and the default OSPF cost formula doesn’t differentiate between interfaces with bandwidth faster than 100 Mbps. These days, 1 Gbps and 10 Gbps links are also common.
What is the metric for Open Shortest Path First?
Open Shortest Path First (OSPF) uses "Cost" as the value of metric and uses a Reference Bandwidth of 100 Mbps for cost calculation.
What is OSPF area?
OSPF Areas. An autonomous system can be divided into areas; these help in reducing the link state advertisements and other overhead traffic that will be otherwise sent to the network. Start Your Free Software Development Course. Web development, programming languages, Software testing & others.
How OSPF Works?
When it is configured, it listens to its neighbours in the networks, and it gathers all the link state data available. This data is then used to make a topology map that contains all available paths in the network. This database is saved for use, and we call it Link State Database.
Why is routing protocol so complex?
It is a processor-intensive protocol to use. Because it maintains more than one copy of routing information, it consumes more memory. It is a more complex protocol to understand and learn compared to other Internet Protocols.
Which is better: OSPF or Open Short Path?
OSPF is the first widely deployed routing protocol. It can converge with a network in a few seconds, and it is one of the protocols that can provide loop-free paths. Aside from these features, Open Short Path First allows the imposition of policies for the propagation of routes in the network. Open Short Path First is better at load sharing on ...
What is NSSA in OSPF?
It is an area that does not receive advertisements external to the autonomous system (AS) Not So Stubby Areas: NSSA is a type of stub that is able to import AS external routes and send them to any other area. However, it is unable to receive AS external routes from other areas of the network. Transit Areas: It is an area with 2 or more OSPF border ...
Does Windows NT 4.0 have OSPF?
Microsoft’s Windows NT 4.0 Server, Windows 2000 Server and Windows Server 2003 all have OSPF v2 in the Routing and Remote Access Services. Microsoft Removed the support with the Windows Server 2008 and later version of Server Operating Systems by the company.
Does Netware support OSPF?
Multi-Protocol Routing module in Netware has support for OSPF.
How to calculate OSPF route cost?
Default: By default, the cost of an OSPF route is calculated by dividing the reference-bandwidth value by the bandwidth of the physical interface. Any specific value you configure for the metric overrides the default behavior of using the reference-bandwidth value to calculate the cost of the route for that interface.
What OS is support for multitopology routing?
Support for Multitopology Routing introduced in Junos OS Release 9.0 for EX Series switches.
What is the default bandwidth for serial interface?
Serial interfaces have a default bandwidth setting of either 128 Kbps (WIC-2A/S) or 1544 Kbps (WIC-2T). This will result in OSPF cost of either 781 or 64, respectively. On serial interfaces, the default bandwidth setting is not automatically adapted to reflect the clock rate.
Is OSPF cost computed?
Philip, the OSPF cost is indeed computed as you indicate, i.e 100 Mbps / interface bandwidth. However, the "interface bandwidth" here refers to the value of the bandwidth command and not to the actual transmission speed or clockrate. This is an important thing to mention - neither OSPF nor EIGRP take the real interface speed into account, rather, they always compute the metric using the value of the bandwidth command.
Is there a wild card mask for OSPF?
WILD CARD MASKS ARE ***NOT*** USED FOR EITHER OSPF ADDRESS SUMMARIZATION TYPES, BOTH AREA RANGE AND SUMMARY-ADDRESS USE NORMAL SUBNET MASKS – REALLY MENTALLY NOTE THAT FOR TEST TIME!
Does NSSA change the total stub area?
It did not change the NSSA Total Stub area much at all , aside from changing the N2 Redistributed routes into N1’s, and changing that seed metric / cost in the route table from 20 to 21. I am not sure if this is because the next hop router R1 (ABR and ASBR) is directly connected via FastEthernet or if it is something to do with the Area type, however it wasn’t a big enough change in cost to really drive the point home so I looked at R2’s previous OSPF route table before and after the metric-type change:
What is OSPF routing?
As OSPF is a Link State routing protocol , the router will learn about all the destinations in its area, the links to get there, and their cost. The router will select routes based on the lowest cost to get to the destination, and that's the route that will make it into the routing table.
Why is the default reference bandwidth a hundred?
The reason that the default reference bandwidth is a hundred, by the way, is that OSPF has been around for a long time. When OSPF first came out , we were back on ethernet networks , like old-style classical ethernet of 10 Mbps.
Can you change OSPF cost?
But if you want to use a different path, you can manipulate that by manually changing the bandwidth or the OSPF cost on interfaces. It's recommended to use cost because the bandwidth setting can affect many features of OSPF, such as QoS.
Can you manipulate OSPF metric?
However, you might want to manipulate this. For example, say you 've got a high latency satellite link, which has higher bandwidth, but you want to prefer the lower bandwidth interface. You can do that by manipulating the OSPF metric.
Can OSPF manipulate cost?
With OSPF we manipulate the cost rather than the bandwidth, but both would have the same effect. In the example below, on R1, I've said:
OSPF Areas
How OSPF Works?
- When it is configured, it listens to its neighbours in the networks, and it gathers all the link state data available. This data is then used to make a topology map that contains all available paths in the network. This database is saved for use, and we call it Link State Database. Once the Link State Database is made, it is used to calculate the shortest path to subnets/networks using an al…
Router Types in OSPF
- Internal Router:This router contains all interfaces that belong to each other in the same area.
- Area Border Router:ABR connects one or more areas with a backbone network. An ABR is considered a member of all the areas it is connected to. It keeps multiple Link State databases in the memory, o...
- Backbone Router:A router that has an interface to a backbone area is called a backbone router.
- Internal Router:This router contains all interfaces that belong to each other in the same area.
- Area Border Router:ABR connects one or more areas with a backbone network. An ABR is considered a member of all the areas it is connected to. It keeps multiple Link State databases in the memory, o...
- Backbone Router:A router that has an interface to a backbone area is called a backbone router.
- Autonomous System Boundary Router:ASBR is a router that is connected to the network with more than one routing protocol. ASBR exchanges routing info with routers autonomous systems. These run an ex...
Applications of Open Shortest Path First
- OSPF is the first widely deployed routing protocol. It can converge with a network in a few seconds, and it is one of the protocols that can provide loop-free paths. Aside from these features, Open Short Path First allows the imposition of policies for the propagation of routes in the network. Open Short Path First is better at load sharing on exte...
Implementations of Open Short Path First
- Microsoft’s Windows NT 4.0 Server, Windows 2000 Server and Windows Server 2003 all have OSPF v2 in the Routing and Remote Access Services. Microsoft Removed the support with the Windows Server 2008...
- OpenBSD Operating system has an implementation of OpenBGPD protocol which has OpenOSPFD implementation.
- Microsoft’s Windows NT 4.0 Server, Windows 2000 Server and Windows Server 2003 all have OSPF v2 in the Routing and Remote Access Services. Microsoft Removed the support with the Windows Server 2008...
- OpenBSD Operating system has an implementation of OpenBGPD protocol which has OpenOSPFD implementation.
- BIRD implements OSPFv2 and OSPFv3 both.
- GNU Zebra is a GPL routing suite that supports OSPF for Unix-Like systems.
Conclusion
- Open Shortest Path First, as a routing protocol, has an important place in internet infrastructure. Finding the shortest path easily and quickly helps reduce unnecessary network load, and the ability to find another path in case of error at the optimal one helps increase the stability of the network.
Recommended Articles
- This has been a guide to What is OSPF? Here we discussed the works, Implementation, application, advantages, and disadvantages. You can also go through our other suggested articles to learn more – 1. What is a Binary Tree in Java? 2. Introduction To Computer Network 3. What is a Greedy Algorithm? 4. What is IPv6?
