When would you apply resection method in plane table survey?
Resection is a method of plane table surveying in which the location of the plane table is unknown and it is determined by sighting it to known points or plotted points. It is also called the method of orientation and it can be conducted by two field conditions as follows.
What is the difference between resection and intersection?
In resection, the one point with unknown coordinates is occupied and sightings are taken to the known points; in intersection, the two points with known coordinates are occupied and sightings are taken to the unknown point.
What is 2 point resection?
Traditionally, the two-point resection problem, which is coordinating an unknown station from which lines to two control stations and the included angle are measured without setting up on the control stations (free stationing), is accomplished by solving the triangle formed.
What is 3 point resection surveying?
The three-point resection method (also known as the “three-point problem”) is used to compute the coordinates of an unknown point by occupying the resected point and measuring angles and distance toward three known points, since the angles between three known points are determined at the unknown point (ElHassan, 1986).
How do you perform a resection?
1:473:40Land Navigation: Intersection and Resection - YouTubeYouTubeStart of suggested clipEnd of suggested clipStart by getting the magnetic azimuth to the first object and converting that to a grid asmath. ThenMoreStart by getting the magnetic azimuth to the first object and converting that to a grid asmath. Then convert that to a back Asthma.
What is resection in map reading?
Resection is a method of finding one's own location on a map by sighting two known landmarks. The procedure is as follows: Find at least two landmarks on the map that can be also identified on the ground. With a compass measure an azimuth to each of the landmarks on the ground. Adjust for declination.
How many points is a resection?
As a minimum you need to have two points to resect off. You can shoot the resection point in the direct or reverse face. You can take multiple shots to the same resection point. There is no limit to the amount of points you can resect off.
How do you calculate survey resection?
3:5312:203 Point Resection Calculations - YouTubeYouTubeStart of suggested clipEnd of suggested clipTwo is green to orange. And angle three is orange to blue. So that means that when we add these twoMoreTwo is green to orange. And angle three is orange to blue. So that means that when we add these two angles. Together. We get 72 degrees 10 minutes 34 seconds plus 74 degrees 30 minutes and 21 seconds.
How do you resection a total station?
The Rules for Setting Up a Resection with a Total Station.Use a Methodical numbering system for your Resections.Always use 3 or more control points for the Resection.Don't use small angles for Resections.Try to use control points that give a 90degree angle for the total station.More items...
What is intersection in surveying?
Intersections are the group of planar surveying calculations where we use two control points (three in the case of resection) with known coordinates and certain angle/distance measurements to compute the coordinates of an unknown point.
What is the difference between resection and intersection in surveying?
In resection, the one point with unknown coordinates is occupied and sightings are taken to the known points; in intersection, the two points with known coordinates are occupied and sightings are taken to the unknown point.
What is the meaning of the phrase the intersection?
1 : a place or area where two or more things (such as streets) intersect. 2 : the act or process of intersecting. 3a : the set of elements common to two or more sets especially : the set of points common to two geometric configurations.
What is intersection in surveying?
Intersections are the group of planar surveying calculations where we use two control points (three in the case of resection) with known coordinates and certain angle/distance measurements to compute the coordinates of an unknown point.
What is intersection method of plane table surveying?
2.INTERSECTION METHOD PROCEDURE: 1) Select two points P and Q such that the points (building corners) to be plotted are visible from their stations. 2) Set the table on P and locate on the sheet. 3) Pivot on P bisect Q draw a ray. 4) Measure the distance PQ and locate Q on the sheet to a convenient scale.
What is the characteristic of resection?
The characteristic feature of resection is that the point plotted on plane is the station occupied by the plane table.
What is the process of determining the plotted position of the station occupied by the plane table?

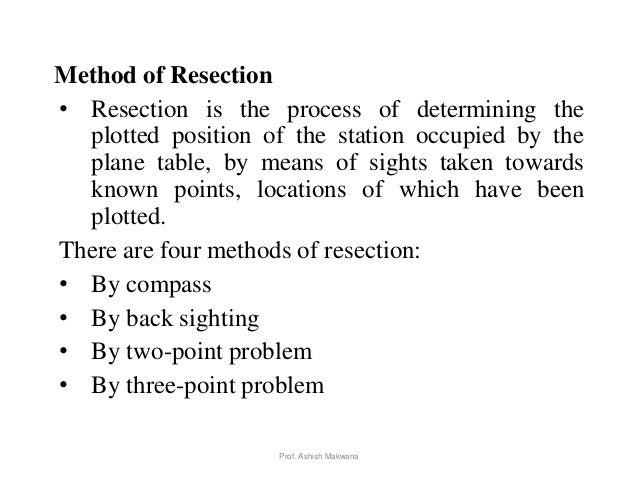

Resection is the process of determining the plotted position of the station occupied by the plane table, by means of sights taken towards known points, locations of which have been plotted.
How does resection work?
Resection simply reverses the intersection process by using crossed back bearings, where the navigator's position is the unknown. Two or more bearings to mapped, known points are taken; their resultant lines of position drawn from those points to where they intersect will reveal the navigator's location.
What is resection in surveying?
Resection and its related method, intersection, are used in surveying as well as in general land navigation (including inshore marine navigation using shore-based landmarks). Both methods involve taking azimuths or bearings to two or more objects, then drawing lines of position along those recorded bearings or azimuths.
How does resection affect accuracy?
When resecting or fixing a position, the geometric strength (angular disparity) of the mapped points affects the precision and accuracy of the outcome. Accuracy increases as the angle between the two position lines approaches 90 degrees. Magnetic bearings are observed on the ground from the point under location to two or more features shown on a map of the area. Lines of reverse bearings, or lines of position, are then drawn on the map from the known features; two and more lines provide the resection point (the navigator's location). When three or more lines of position are utilized, the method is often popularly (though erroneously) referred to as triangulation (in precise terms, using three or more lines of position is still correctly called resection, as angular law of tangents (cot) calculations are not performed). When using a map and compass to perform resection, it is important to allow for the difference between the magnetic bearings observed and grid north (or true north) bearings ( magnetic declination) of the map or chart.
What is resection in nautical?
Resection is a method for determining a position (position finding) using a compass and topographic map (or nautical chart ).
What is the reverse of the intersection method?
The reverse of the intersection technique is appropriately termed resection.
Is resection still used today?
Resection continues to be employed in land and inshore navigation today, as it is a simple and quick method requiring only an inexpensive magnetic compass and map/chart.
What is resection in surveying?
Added an answer on November 23, 2020 at 2:12 pm. Resection is also known as free stationing in surveying which is a method of determining a location of one unknown point in relation to know points. In resection, the one point with unknown coordinates is occupied and sightings are taken to the known points; in intersection, ...
What is the process by which the position of an unknown points at which plane table is set is determined and plotted answer?
The process by which the position of an unknown points at which plane table is set is determined & plotted o the plan with the help of two or more well-defined station whose position are already plotted on the plan. In this method, the line of sight passes from unknown points to known points & the ray drawn is called as resector.
What is resection in physics?from land-navigation.com
Resection involves identifying on the terrain at least two mapped features--for example, a mountain top and a radio tower--and determining the direction of each relative to you.
How far apart should you shoot resection?from land-navigation.com
When using resection, try to have at least 45 degrees difference between the way the distance terrain features line up. With two terrain features, ideally they would be 90 degrees apart. With three terrain features, ideally they would be 60 degrees apart from one another. Of course, ideal situations seldom occur, so 45 degrees is a good number to shoot for. If your terrain features line up too closely, you lose accuracy in fixing your position. If they line up perfectly--that is the are exactly 180 degrees apart--you can't fix your position at all.
