What is a multimeter Multitester?
A multimeter or a multitester, also known as a volt/ohm meter or VOM, is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter may include features such as the ability to measure voltage, current and resistance.
What is scale in ohmmeter?
Ohmmeters contain internal sources of voltage to supply power in taking resistance measurements. An analog ohmmeter scale is “backwards” from that of a voltmeter or ammeter, the movement needle reading zero resistance at full-scale and infinite resistance at rest.
What are the types of Multitester?
Multimeters are divided into two types depending on the way the indication is displayed: analog and digital.
What are the 4 function of multimeter?
A typical multimeter can measure voltage, resistance, and current, in which case it is also known as a volt-ohm-milliammeter (VOM), as the unit is equipped with voltmeter, ammeter, and ohmmeter functionality. Some feature the measurement of additional properties such as temperature and capacitance.
What is define of scale?
1. : a graduated series of musical tones ascending or descending in order of pitch according to a specified scheme of their intervals. : something graduated especially when used as a measure or rule: such as. : an indication of the relationship between the distances on a map and the corresponding actual distances.
How do you explain a scale?
A scale is shown as a ratio, for example 1:100. A drawing at a scale of 1:100 means that the object is 100 times smaller than in real life scale 1:1. You could also say, 1 unit in the drawing is equal to 100 units in real life.
What are the types of Multitester and their functions?
Multimeter, also known as avometer, is a tester used to measure electrical voltage, current, resistance and so on. Multimeters are mainly of two types, analog and digital. Both are used for measuring and fault detection in electrical circuits.
Why is it called Multitester?
The multimeter can make many tests, so it is often called "multitester". When measuring resistance it acts as an ohmmeter, showing ohms. For volts it would be a Voltmeter.
What is the best Multitester?
We performed hands-on testing with some of the best multimeters, so keep reading to learn about what we found.BEST OVERALL: Greenlee DM-45 Multimeter.BEST BANG FOR THE BUCK: Klein Tools Digital Multimeter.BEST CLAMP: Klein Tools CL390 Digital Clamp Meter.BEST COMBO KIT: Fluke Kit Multimeter and Clamp Meter Combo Kit.More items...•
Where is multimeter used?
A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
What are the symbols on multimeter?
What are voltage, current, and resistance?VariableSymbolSymbolVoltageVVCurrentIAResistanceRΩ
What is importance of use multimeter?
The voltmeter, or more often the multimeter, is an incredible tool, capable of troubleshooting nearly every electrical system and fault in existence. No matter how often they are used, and what job they perform, there is always more you can accomplish with knowledge of how they work.
What is scale and example?
Definition of Scale When we draw a real-world object on a piece of paper, we use a scale to describe our measurements accurately. For example, a scale of 1:5 means that the size of 1 unit in the drawing would represent 5 units in the real world.
What is scale and its types?
Each of the four scales (i.e., nominal, ordinal, interval, and ratio) provides a different type of information. Measurement refers to the assignment of numbers in a meaningful way, and understanding measurement scales is important to interpreting the numbers assigned to people, objects, and events.
What does it mean to scale points?
any scale for measuring some construct or attribute in which participants' responses to a series of multiple-choice questions are given numerical values (points). The final score is the total points earned. See also Likert scale; semantic differential.
How do you measure an ohmmeter scale?
When looking straight at the display, read the position of the needle along the scale. There will usually be several different scales, one to correspond with the range (1 ohm, 1K ohm, 100K ohm, 1M ohm) to which you have set the meter. Be sure you are reading the position of the needle against the correct scale.
What are the parts of a multitester?

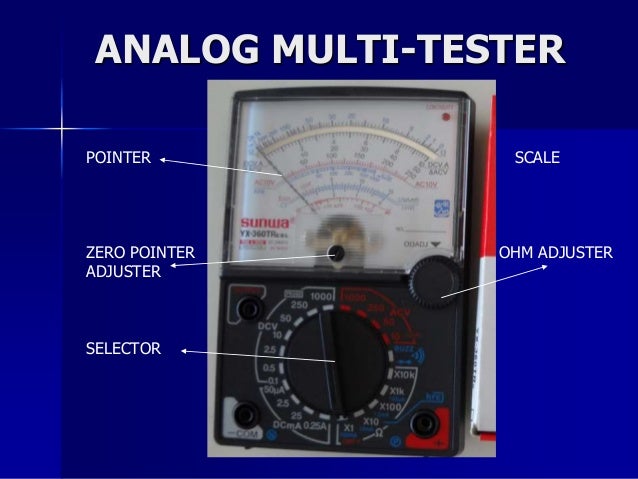

The parts of a multitester are a scale, a needle or pointer, an adjustment screw, a zero-ohm selector , a range selector knob, some ports and test probes. In the following, we will read more about each of these components, their roles and how they work. 1. Scale: This is how you read the value being measured. For an analog multitester, this is ...
What is a multimeter?
A multimeter that is also known as a multitester or VOM, is a standard electronic measuring instrument for technicians and electricians in the electrical and electronic industries used to measure various electrical parameters such as voltage, current, and resistance. Some other multimeters can also measure other electrical characteristics ...
What is the difference between a red and black multimeter test?
Red test probes connect to the positive terminal, and black test probes connect to the negative terminal. The best multimeter test leads are well insulated, strong, and low cost – while bad test probes can be expensive and fragile. For a simple handheld multimeter, the strong low-cost test leads are usually sufficient.
What are the holes in a multimeter called?
6. Ports : The holes at the front of the multimeter are known as ports. You need to plug your test probes into the appropriate ports to allow the multimeter to measure the parameter that you’re interested in.
What is a test probe?
Test Probes: A test probe or a test lead is an instrument used to connect a multimeter to a Device Under Test which is known as DUT . Test probes are flexible, insulated wires. They are able to establish an electrical connection between a multimeter and the DUT without exposing electrical workers to live conductive parts.
What is a multimeter used for?
A multimeter is an electrical measuring instrument that is used to measure several electrical properties, such as current, voltage, resistance, and frequency.
What is an analog multimeter?
Analog Multimeters: As the name suggests, analog multimeters are old-fashioned meters that display the measured value with a needle on an analog scale.
How Do Multimeters Work?
A multimeter is a device that combines multiple circuits into one. A multimeter that measures current , voltage , and resistance simultaneously functions as an ammeter, voltmeter, and ohmmeter. A simple turn of the circular knob on top of the multimeter will switch it from voltage measurement mode to current measurement and more.
What is the best way to test a small circuit?
For testing small circuits, a standard handheld or benchtop multimeter is perfect. If the current through your appliances is high enough to be harmful to measure with a multimeter, however, a clamp meter is your best option.
How much does a multimeter cost?
Multimeters range in price from $50 to thousands of dollars. So, before buying a multimeter, you should clearly define what your needs are and make the right choice for them.
What are the applications of multimeters?
Industrial Applications: Multimeters can be used in a myriad of industrial applications. Several engineering tasks require using multimeters, such as measuring the temperature of instruments, conducting continuity tests, evaluating current flow, or analyzing circuits via infrared imaging. A few modern multimeters are even capable of sending live feeds wirelessly.
Do you need a multimeter for home use?
Even though no brand specifically designs multimeters for home use, any multimeter capable of measuring basic parameters would work.
Where is the resistanc E scale located?
As you can see in the image below, resistanc e scale is located in the top most part of a meter panel. You may have noticed a descending order of number. From left (∞) to right (0). In practice, reading values always starts from zero. Therefore we will read resistance values from right to left which is zero (0) to infinity (∞) .
How many ohms are in a scale?
1–2 — also divided by 5 scales. Each scale has a value of 0.2 ohm. Therefore 0.2 ohm multiplied by 5 scales is equal to 1 ohm. Adding all the value from zero, we get a total of 2 ohms.
What is the highest resistance?
Please note that the highest resistance scale is only limited to 2k or 2 kilo-ohm resistance. If you need to measure resistance which is higher than 2 kilo-ohms, set the ohmmeter range to a higher multiplier range and so on.
How many settings does an ohmmeter have?
These are the 4 range of an ohmmeter, as you can see in the image below. An ohmmeter is divided by four main settings.
How precise is a digital multimeter?
Precision refers to a digital multimeter’s ability to provide the same measurement repeatedly.
Why is it important to use a multimeter?
Knowing what those measurements mean is even more important. Accuracy and precision ensures the measurements you take will be useful; higher precision enables easier repeatability and higher accuracy means the your readings will be closer to perfect.
What is the range of a multimeter?
Digital multimeter range and resolution are related and are sometimes specified in a digital multimeter’s specifications.
How to test 1.5V battery?
If a digital multimeter has a resolution of 1 mV on the 3 V range, it is possible to see a change of 1 mV while reading the voltage. The user could see changes as small as one one-thousandth of a volt, or 0.001 at the 3 V range.
What is the accuracy of a 100.0 V multimeter?
A reading of 100.0 V on a digital multimeter with an accuracy of ±2% can range from 98.0 V to 102.0 V. This may be fine for some applications, but unacceptable for more sensitive electronic equipment.
What is precision in a multimeter?
Precision refers to a digital multimeter’s ability to provide the same measurement repeatedly.
What is the smallest increment a tool can detect and display?
Resolution is the smallest increment a tool can detect and display.
