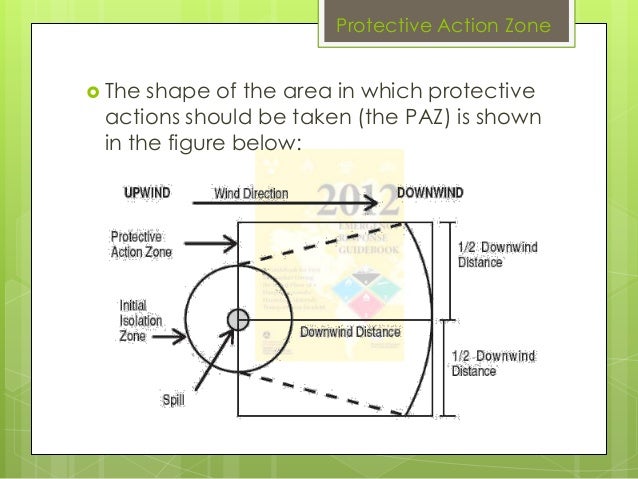

How do I plot a protective action distance for a spill?
To plot a protective action distance, first specify a location and wind direction below. Once a distance is plotted, you can drag the spill or right click the map to move the spill to a new location. Select the direction of the wind at your location. Is the material involved in a fire?
What is the main route of exposure to chlorine gas?
Outdoor Air: Chlorine can be released into outdoor air as a gas. Agricultural: If chlorine is released as a gas, it is highly unlikely to contaminate agricultural products. ROUTES OF EXPOSURE: Inhalation is the main route of chlorine gas exposure.
Do hazard zone a gases release quantities for large spill entries differ?
Result: For large spill entries, representative release quantities for Hazard Zone A gases are typically much lower than for materials authorized for bulk transportation
What is the boiling point of chlorine?
Not applicable, because chlorine is a gas above its boiling point of 93.2°F (34°C). In the event of a poison emergency, call the poison center immediately at 1-800-222-1222.
See more
What is the STEL for chlorine?
ACGIH: The threshold limit value (TLV) is 0.5 ppm averaged over an 8-hour workshift and 1 ppm as a STEL (short-term exposure limit).
What is the initial isolation distance for a large spill of phosgene?
500 ftINITIAL ISOLATION AND PROTECTIVE ACTION DISTANCES: First isolate in all directions 500 ft (150 m). Then protect persons downwind during the day: 0.8 mi (1.3 km). Then protect persons downwind during the night: 2.0 mi (3.3 km). Large spills (involving quantities greater than 52.83 gallons (200 liters))
What is the initial isolation distance for a small spill of cyanogen?
IMMEDIATE PRECAUTIONARY MEASURE: Isolate spill or leak area for at least 100 meters (330 feet) in all directions.
Is chlorine considered a hazardous material?
Chlorine is a common hazardous material found in most communities in the United States as a gas or in compound with other chemicals that can release the chlorine when in contact with water or other chemicals.
What is initial isolation distance?
These guides recommend an initial isolation of 75 feet in all directions. Responders at any hazardous material scene should keep unauthorized personnel away from the area and always try to position themselves uphill, upwind, and upstream of the incident.
What is the guide number for chlorine?
Chemical IdentifiersCAS NumberUN/NA NumberUSCG CHRIS Code7782-50-51017CLXNIOSH Pocket GuideInternational Chem Safety CardChlorineCHLORINE
What is considered a small spill in ERG?
The ERG identifies small spills as those that involve quantities that are less than 200 liters for liquids and less than 300 kilograms for solids; and large spills than involve quantities that are greater than 200 liters and greater than 300 kilograms of solids.
How far should you isolate a spill in all directions?
Isolate spill or leak area for at least 100 meters (330 feet) in all directions.
When using the Table of Initial Isolation and Protective Action distances A small spill is considered one involving?
The definitions are as follow: Small Spill: A spill that involves quantities that are less than 208 litres (55 U.S. Gallons) for liquids and less than 300 kilograms (660 pounds) for solids. Generally involves a single small package, a small cylinder, or a small leak from a large package.
What is the hazard rating of a chlorine?
TRANSPORT INFORMATION Chlorine (liquefied gas) can be shipped according to transport regulations for dangerous goods, hazard class 2.3, Toxic gases; subsidiary risk class 8 Corrosive.
What ppm can you smell chlorine?
The odor threshold for chlorine is 0.002 ppm in air and 0.31 ppm in water.
What is the first safety measure operators should take when entering a chlorination room?
1. Turn on the light and visually ensure that the room is safe to enter (there may be visible signs of damage). 2. Put on appropriate personal protective equipment (be specific about the type of equipment).
What is the downwind isolation distance daytime for a small spill of acetyl bromide?
100 ftERG Table 1: Initial Isolation and Protective Action DistancesName of MaterialSmall Spills (from a small package or small leak)Large Spills (from a large package or many small packages)First Isolate in all DirectionsThen Protect DownwindAcetyl bromide (when spilled in water)100 ft0.6 mi1 more row
What is the recommended initial evacuation distance for a large spill without fire from a rail car posting a placard of 1086?
LARGE SPILL: Consider initial downwind evacuation for at least 800 meters (1/2 mile).
What term does the ERG use for the distance from a spill or leak that all persons should be evacuated in all directions?
After determining the hazardous material(s) involved in the incident, responders must determine how closely they may approach a spill. The ERG2008 defines the “Initial Isolation Distance” as: “a distance within which all persons should be considered for evacuation in all directions from the actual spill/leak source.
Which ERG section contains the minimum isolation distance for an inhalation hazard quizlet?
The minimum initial isolation distance given by Table 1 in the ERG will always be at least: 100 feet (30 m).
What happens if you get exposed to escaping liquid chlorine?
Exposure to escaping liquid chlorine may result in frostbite injury and/or chemical burns.
How long does it take for respiratory symptoms to resolve after exposure to chlorine?
TIME COURSE: Respiratory symptoms may be immediate or delayed for several hours or days after exposure to chlorine. Symptoms generally resolve within 6 hours after mild exposures, but may continue for several days after severe exposures. Deterioration may continue for several hours.
What are the dangers of chlorine?
In water, it forms hydrochloric acid (HCl) and hypochlorous acid (ClHO). Chlorine attacks plastic, rubber, coatings, and many metals in the presence of water.
What is chlorine used for?
It is widely used as bleach in the manufacture of paper and cloth and in manufacturing solvents, pesticides, synthetic rubber, and refrigerants. Chlorine has also been used as a chemical warfare choking agent.
What elements are halides of chlorine?
Chlorine forms halides with all elements except helium, neon, and argon.
How long does it take for a person to recover from exposure to chlorine?
DELAYED EFFECTS OF EXPOSURE: For previously healthy individuals with an acute exposure to chlorine, pulmonary function usually returns to pre-exposure levels within 7 to 14 days. Individuals who survive a single, acute exposure usually have no long-term adverse health effects, although persistent effects have been reported. For example, exposure to chlorine may cause reactive airways dysfunction syndrome (RADS), a chemical irritant-induced type of asthma. For exposed individuals who have underlying cardiopulmonary disease or for those who suffer complications (for example, pneumonia) during therapy, the risk for developing chronic airway inflammation is increased.
How to contact the CDC?
For information on who to contact in an emergency, see the CDC website at emergency.cdc.gov or call the CDC public response hotline at (888) 246-2675 (English), (888) 246-2857 (Español), or (866) 874-2646 (TTY).
When are DOT placards required?
Hazardous materials placards (DOT placards) are required when shipping hazardous materials in the United States, Canada and Mexico. These pages provide US DOT definitions for each hazmat placard.
What is the code of Federal Regulations for shipping hazardous materials?
To ensure regulatory compliance when transporting hazardous materials or dangerous goods, one must receive proper training and certification from a qualified instructor and refer to the current year's Code of Federal Regulations Title 49 (49CFR) or your country's shipping regulations. In matters regarding workplace safety, refer to current OSHA regulations (29CFR) and NIOSH guidelines or your own country's health and safety regulations. No one should ever enter into a hazardous environment without proper training from qualified instructors.
How many decontamination corridors are there in a warm zone?
Position the decontamination corridor upwind and uphill of the hot zone. The warm zone should include two decontamination corridors. One decontamination corridor is used to enter the warm zone and the other for exiting the warm zone into the cold zone. The decontamination zone for exiting should be upwind and uphill from the zone used to enter.
How to prevent vapor cloud drift?
Keep combustibles (e.g., wood, paper, and oil) away from the spilled agent. Use water spray to reduce vapors or divert vapor cloud drift. Avoid allowing water runoff to contact the spilled agent.
What to consult with incident commander?
Consult with the Incident Commander regarding the agent dispersed, dissemination method, level of PPE required, location, geographic complications (if any), and the approximate number of remains.
Why do containers explode?
Containers may explode when heated or if they are contaminated with water.
Do you have to touch a spilled agent?
Do not touch or walk through the spilled agent if at all possible. However, if you must, personnel should wear the appropriate PPE during environmental decontamination. See the PPE section of this card for detailed information.
Is cyanogen chloride a chemical?
DESCRIPTION: Cyanogen chloride (CK) is a highly volatile and toxic chemical asphyxiant that interferes with the body’s ability to use oxygen. Exposure to cyanogen chloride (CK) can be rapidly fatal. It has whole-body (systemic) effects, particularly affecting those organ systems most sensitive to low oxygen levels: the central nervous system (brain), the cardiovascular system (heart and blood vessels), and the pulmonary system (lungs). Cyanogen chloride (CK) has strong irritant and choking effects. Its vapors are extremely irritating and corrosive. Cyanogen chloride (CK) is a chemical warfare agent (military designation CK). It is used commercially in chemical synthesis and fumigation.
