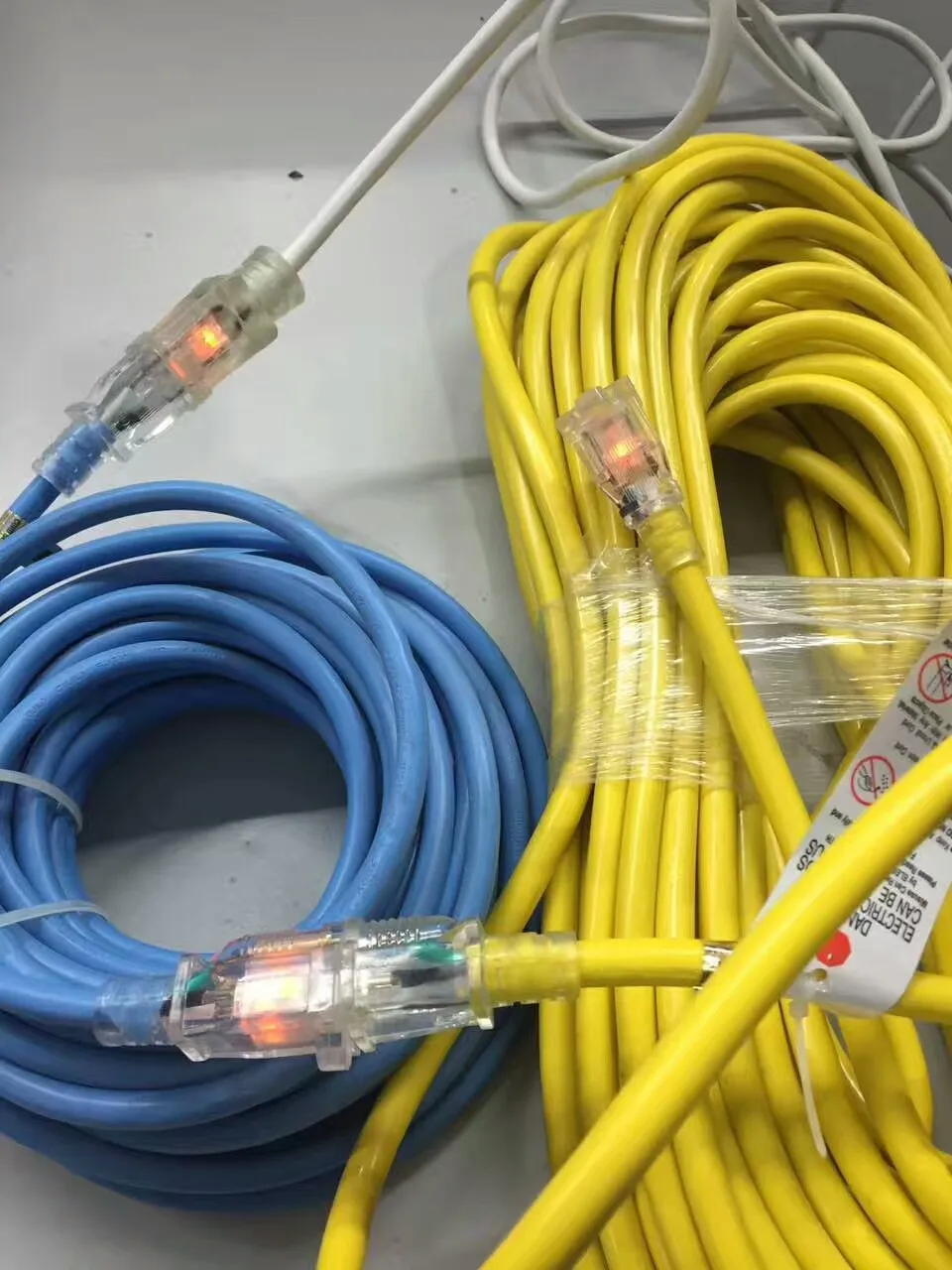

Where do the wires go on an extension cord?
The white wire goes on the silver terminal, the black wire on the brass one and the green wire on the green one. Loosen each terminal screw, hook the wire around it and put the screw down tightly. When you're done, join the two halves of the plug casing and tighten the screws to hold it together.
How do you repair an extension cord?
cut the outer plastic covering and usually some insulation fibres. i go slow and cut gently and stretch a bit. keep making cuts till your through. you don't want to cut through into the other wires. 3 wires will be sticking out. tad more than an inch long . take a wire stripper and cut the outer covering off the 3 wires. just the ends tho about the length of that thumb nail you see. you'll trim excess later so don't worry. give a twist to wires to keep them tight and together.
How do you make an extension cord?
You'll need a computer cable, wire strippers/cutters, screwdriver, and a new end for your new extension cord. Step One: Cut and Strip the Cord I'm using a computer power cable that I had laying around, these can be purchased from places like Goodwill or surplus stores for about $1 so they make good cheap cords!
Why is my extension cord Hot?
Why Is My Heavy Duty Extension Cord Warm?
- Extension Cord Styles. Most extension cords use a three-pronged connection. ...
- Construction. The construction of an extension cord is simple. ...
- Heat Production. Electricity produces warmth when it is conducted through a material. ...
- Causes of Warmth. If you can feel the warmth on your extension cord, something is wrong. ...
Which wire is hot on 3 prong plug?
The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.
Which side of electrical cord is hot?
When wiring a grounded power cord to an appliance: The SMOOTH (right) side is hot = connect to BLACK. The GROOVED (left) side is neutral = connect to WHITE.
What side is positive and negative on a extension cord?
2:494:34how to know positive and negative wire - YouTubeYouTubeStart of suggested clipEnd of suggested clipThat's designating positive so two wire rib side corresponds to the white blade on the plug smoothMoreThat's designating positive so two wire rib side corresponds to the white blade on the plug smooth side designates the straight prong on the plug. So general rule of thumb.
Which wire is ribbed on an extension cord?
Two-Wire Flat Cords The hot wire is always smooth on the outside of the cord, while the neutral wire is ribbed on the outside. For flat cords with polarized plugs on the end, the larger prong (or terminal) is the neutral wire.
Which is the hot wire on a 2 prong plug?
smaller prong smaller prongWhich side of a 2-prong plug is positive? Because we use A/C current, prongs don't have have a positive and negative. Instead, the two prongs have a 'hot' and 'neutral' side. The wider prong connects to the neutral wire and the smaller prong smaller prong is the hot side of the circuit.
Which black wire is hot?
Here's a rundown of electrical wires: The black wire is the "hot" wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, it takes any unused electricity and current and sends it back to the breaker panel.
How do you find out which wire is positive and which is negative?
3:376:03How to identify positive and negative electrical wires - YouTubeYouTubeStart of suggested clipEnd of suggested clipBut the side that if you have it like this if you have one like this the smooth side is positive andMoreBut the side that if you have it like this if you have one like this the smooth side is positive and the flared side is negative now when you look at the wire. I hope this comes up you'll see ribs
What side is neutral on extension cord?
The ribbed side of the line cord indicates the neutral wire, the smooth side, the hot wire. If we are wiring a line cord plug, the ribbed wire would connect to the wider space or neutral space on the plug itself.
What type of cord do I need for a dryer?
The cord you have is a standard 120 volt cord, with the white wire as neutral and the green wire as ground. You need a 240 volt outlet and a 4 wire cord, with black, white, red and green wires, with the green wire to be connected to the dryer frame. I have a 3 prong cord with a green, a white, and a black wire.
What is the wide pin of an AC system called?
One of the poles of an AC system is grounded, and it is called neutral. That is the pin that is less dangerous than the other straight pin. Therefore, the wide one is Neutral and the narrow one is the Hot conductor, otherwise called the phase conductor even on a single phase system. The ground pin is the round one.
What is the difference between a two prong plug and a two prong plug?
So if you align the plug with the receptacle you will immediately know which prong is neutral, which is hot. If for a two prong plug, the wider prong is the neutral, the narrower is the hot.
What is the difference between a neutral and a hot prong?
The neutral (wider prong) gets connected to the ribbed conductor, the hot (narrower prong) gets connected to the non-ribbed conductor. The ribs might be a little difficult to see, but they are easy to feel. If you purchase a repair two prong plug it typically will not be polarized. Grounding Plugs.
What happens if a plug is reversed?
If the plug is reversed so the switch is effectively on the neutral wire, then portions of the device may be powered even with the switch off. This is especially a problem in lamp sockets, where a reversed cord would result in the exposed shell of the socket being electrified even with the switch off.
Can a white wire be hot?
NOTE: The neutral white wire (wider flat prong) can become HOT if it is not connected to Neutral, and the device has been turned on. Always turn off power through the breaker or fuse and certainly turn off the wall switch, when working on the Line (black) or Neutral (white) (or Ground - green) wires.
Where is the ground on a 120V outlet?
The standard position of the 120VAC outlets on the wall is that the ground is at the bottom while the one on right side, the narrow on, is hot or energized with 120V. The wide one on the left is for the Neutral. There is no potential difference between the Neutral and the ground.
How many amps can a 100 foot extension cord run?
With that in mind, you typically don’t see 100-foot cords exceeding 15- amp (15A) capacity.
Can an undersized extension cable melt?
An undersized extension cable will heat up over time. Use it in that state for too long, and the wire insulation could melt. This particularly holds true if you keep the wire in a coil, which creates resistance and a magnetic field that heats up.
