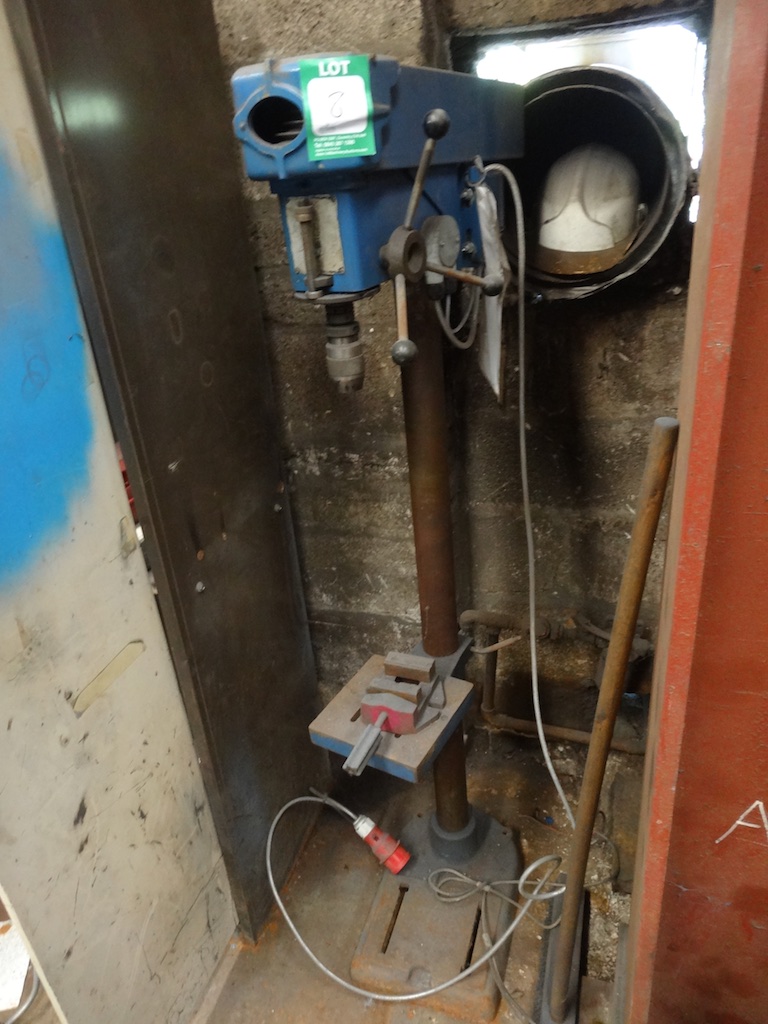

A pedestal drill is a power tool that can be mounted to a stand or bolted to a workbench or the floor. It is often referred to as a drill press as well as a pillar drill
Drill
A drill is a tool fitted with a cutting tool attachment or driving tool attachment, usually a drill bit or driver bit, used for boring holes in various materials or fastening various materials together with the use of fasteners. The attachment is gripped by a chuck at one end of the drill and rot…
How does a pedestal drill work?
The pedestal drill has a long column which stands on the floor. This means it is capable of being used to drill large pieces of materials and produce larger holes. This is because the table can be lowered allowing long pieces of material to be positioned into the machine for drilling. Click to see full answer.
What are the different types of pedestal drills?
The 2 types of pedestal drills include the following: The bench drill is a smaller version of a pedestal drill. It’s usually secured to a bench, so it doesn’t fall over. It’s often used to drill through lightweight material such as plastic or thinner pieces of wood. The pillar drill is larger than a bench drill.
What is a drill used for?
Drills are commonly used in woodworking, metalworking, machine tool fabrication, construction and utility projects. Specially designed versions are made for medicine, space, and miniature applications.
Can you leave a pedestal drill running unattended?
Never leave a pedestal drill running unattended and always ensure you remain near the machine until it comes to a complete stop. Be sure your work area is well-ventilated with good airflow, especially when using sanding drums or abrasive accessories.
What does pedestal drill mean?
A drill press (also known as a pedestal drill, pillar drill, or bench drill) is a style of drill that may be mounted on a stand or bolted to the floor or workbench. Portable models are made, some including a magnetic base.
How do you use a pedestal drill press?
0:192:50How to use a Drill Press - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd pull the motor towards the front of the drill press to slacken the belt. The fastest speed hasMoreAnd pull the motor towards the front of the drill press to slacken the belt. The fastest speed has the belt located on the top pulleys. While the slowest speed sees it located at the bottom.
What is the use of bench drill?
The bench drill is a smaller version of the pillar drill. This type of machine drill is used for drilling light weight pieces of material. The example below shows the machine operator drilling a thin piece of perspex. The perspex is held safely in a hand vice which is held in the hand.
What is the purpose of Chuck in pedestal drilling machine?
Drill chucks are devices used to hold a drill or other cutting tools on a spindle. They are available in keyed, keyless or hybrid systems, allowing for quick changes of a drill bit.
What can I make with a drill press?
1:223:2410 clever things to do with a drill press - YouTubeYouTubeStart of suggested clipEnd of suggested clipLine a simple strip of wood can serve as a fence if you have a pair of clamps. Two fences canMoreLine a simple strip of wood can serve as a fence if you have a pair of clamps. Two fences can securely hold small parts as well.
How do you drill a straight hole with a drill press?
1:022:39How to drill a perfectly straight hole every single time using ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipCut all right so now that i did that all i have to do is cut off another piece about four inchesMoreCut all right so now that i did that all i have to do is cut off another piece about four inches long. And that's really about it now i'm going to take those two pieces. And line them up perfectly.
Where are pillar drills used?
Pillar drills are free standing machine tools used by engineers that use high powered motors to rotate drill bits at varying speed. These bits are then used to accurately machine, drill or tap holes in a variety of materials such as metal and wood.
What must be removed from a pedestal drill before starting it?
Remove the chuck key before starting the drill press.
What is a column drilling machine?
The round column section upright drilling machine or pillar drilling machine consists of a round column that rises from the base which rests on the floor,an arm and a round table assembly, and a drill head assembly. The arm and the table have three adjustments for locating work pieces under the spindle.
How do you drift with a drill?
1:072:37How To Use a Drift On a Drill Press - YouTubeYouTubeStart of suggested clipEnd of suggested clipHere. So you hold this and just tap. This there you go and it pops it out see a little tab. And thenMoreHere. So you hold this and just tap. This there you go and it pops it out see a little tab. And then you can change it out with whatever else you want whether it's a drill chuck or or whatever.
Why chucks are used in lathe?
A lathe chuck is mounted on the headstock of a lathe and can be actuated manually or under power. Typically, it is used to hold a rotating workpiece, such as a bar, and some can also hold irregularly shaped objects that lack radial symmetry.
How does drill chuck work?
The jaws are brought together or separated when the shell on the outside of the chuck moves. If that shell rotates clockwise, the jaws come together to clamp the drill bit in place so that you can use it. When the shell turns counterclockwise, the jaws come apart and release the drill bit so that you can replace it.
What is pedestal drill?
The pedestal drill has a long column which stands on the floor. This means it is capable of being used to drill large pieces of materials and produce larger holes. Employees and learners should be made aware of the following hazards. Long hair, loose clothing etc, can become entangled in moving parts of the drilling machine. Chuck keys, broken drills, swarf, work pieces, etc, can be violently ejected. Unexpected spinning of hand held work pieces could cause injuries to hands. Rebecca Johnson
Why do craftsmen need a drill press?
The primary reason why each craftsman ought to have a drill press is accuracy. abundant woodwork involves exactly trained holes, and a drill press is capable of making equally spaced holes of the precise depths, widths, and angles a style demands. A craftsman will clamp a bit of wood firmly into pos. Continue Reading.
What type of drill is used for earth drilling?
Types. There are many types of drills: some are powered manually, others use electricity (electric drill) or compressed air ( pneumatic drill) as the motive power, and a minority are driven by an internal combustion engine (for example, earth drilling augers).
What is a corded drill?
A hand-held corded electric drill. A lightweight magnetic-mount drill. A drill or drilling machine is a tool primarily used for making round holes or driving fasteners. It is fitted with a bit, either a drill or driver, depending on application, secured by a chuck. Some powered drills also include a hammer function.
How does a hammer drill work?
The hammer action of a hammer drill is provided by two cam plates that make the chuck rapidly pulse forward and backward as the drill spins on its axis. This pulsing (hammering) action is measured in Blows Per Minute (BPM) with 10,000 or more BPMs being common. Because the combined mass of the chuck and bit is comparable to that of the body of the drill, the energy transfer is inefficient and can sometimes make it difficult for larger bits to penetrate harder materials such as poured concrete. A standard hammer drill accepts 6 mm (1/4 inch) and 13 mm (1/2 inch) drill bits. The operator experiences considerable vibration, and the cams are generally made from hardened steel to avoid them wearing out quickly. In practice, drills are restricted to standard masonry bits up to 13 mm (1/2 inch) in diameter. A typical application for a hammer drill is installing electrical boxes, conduit straps or shelves in concrete.
What is a rotary hammer drill?
The rotary hammer (also known as a rotary hammer drill, roto hammer drill or masonry drill) . Generally, standard chucks and drills are inadequate and chucks such as SDS and carbide drills that have been designed to withstand the percussive forces are used. A rotary hammer uses SDS or Spline Shank bits. These heavy bits are adept at pulverising the masonry and drill into this hard material with relative ease. Some styles of this tool are intended for masonry drilling only and the hammer action cannot be disengaged. Other styles allow the drill to be used without the hammer action for normal drilling, or hammering to be used without rotation for chiselling. In 1813 Richard Trevithick designed a steam-driven rotary drill, also the first drill to be powered by steam.
What is a right angle drill?
Right-angle drill - used to drill ordrive screws in tight spaces. Hammer drill - combines rotary motion with a hammer action for drilling masonry. The hammer action may be engaged or disengaged as required. Drill press - larger power drill with a rigid holding frame, standalone mounted on a bench.
How many watts does a rotary hammer drill use?
Most electric hammer drills are rated (input power) at between 600 and 1100 watts.
How many mm drill bits are needed for a hammer drill?
A standard hammer drill accepts 6 mm (1/4 inch) and 13 mm (1/2 inch) drill bits.
What are the slots on a drill press called?
The slots in a drill press base are called t-slots and they are there for fastening longer work pieces that won’t fit between the table and the quill. The table swings out of the way and you mount your work to the base (you can mount a vice or jig to hold the work). They are just like the slots in the drill press table.
How many holes do you need to bolt a drill press to the floor?
The bases of most drill presses have two to four holes for bolting the drill press to the floor. The drill press is a top heavy tool and is more likely to topple over than almost any other tool in your shop. It is dangerous and can easily damage the tool. If you are going to bolt down your drill press, these holes are how you do it.
Can you bolt down a drill press?
It is dangerous and can easily damage the tool. If you are going to bolt down your drill press, these holes are how you do it. There are a bunch of concrete and expansion type bolts that can be used to bold down a drill. My favorite method is to drill holes and chemcrete threaded rod into the slab. Then you place the drill press base over ...
