What is meant by Sanger sequencing?
Listen to pronunciation. (SANG-er SEE-kwen-sing) A low-throughput method used to determine a portion of the nucleotide sequence of an individual's genome. This technique uses polymerase chain reaction (PCR) amplification of genetic regions of interest followed by sequencing of PCR products.
What are the three main steps of Sanger sequencing?
Sanger Sequencing Steps (1) The double-stranded DNA (dsDNA) is denatured into two single-stranded DNA (ssDNA). (2) A primer that corresponds to one end of the sequence is attached. (3) Four polymerase solutions with four types of dNTPs but only one type of ddNTP are added.
Why is Sanger sequencing still used?
Sanger sequencing is still widely used for small-scale experiments and for "finishing" regions that can't be easily sequenced by next-gen platforms (e.g. highly repetitive DNA), but most people see next-gen as the future of genomics.

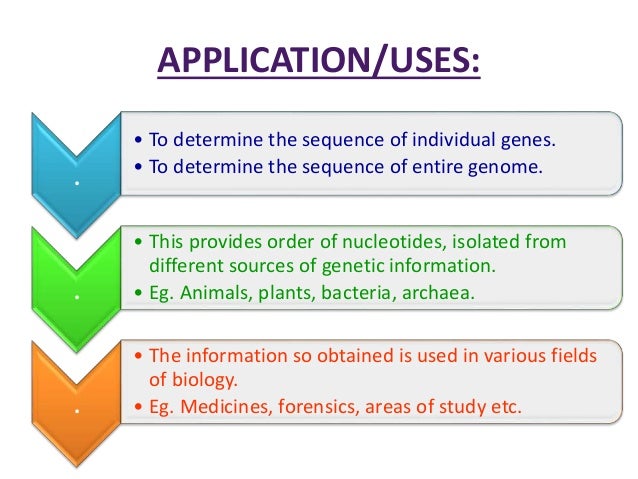

What are the applications of Sanger sequencing?
Sanger DNA sequencing is widely used for research purposes like (1) targeting smaller genomic regions in a larger number of samples, (2) sequencing of variable regions, (3) validating results from next-generation sequencing (NGS) studies, (4) verifying plasmid sequences, inserts, mutations, (5) HLA typing, (6) ...
What are the steps of DNA sequencing?
Steps and Process in DNA sequencing:Sample preparation- DNA extraction.DNA fragmentation.Adapter ligation and Library Preparation.Library enrichment- amplification.Library purification.DNA sequencing.Data collection and sequence analysis.
How many ddNTPs are used in Sanger method?
The ddNTPs may be radioactively or fluorescently labelled for detection in automated sequencing machines. The DNA sample is divided into four separate sequencing reactions, containing all four of the standard deoxynucleotides (dATP, dGTP, dCTP and dTTP) and the DNA polymerase.
What is the main enzyme component of Sanger sequencing?
What is the main enzyme component of Sanger sequencing? Explanation: The chain-termination or dideoxy method of DNA sequencing capitalizes on two unique properties of DNA polymerase enzyme.
What are the methods of DNA sequencing?
Long-read sequencing methodsSingle molecule real time (SMRT) sequencing.Nanopore DNA sequencing.Massively parallel signature sequencing (MPSS)Polony sequencing.454 pyrosequencing.Illumina (Solexa) sequencing.Combinatorial probe anchor synthesis (cPAS)SOLiD sequencing.More items...
What is Sanger sequencing used for?
Sequencing is used to study genomes that allow the identification of genetic mutations, and their associations with diseases. Sanger sequencing has...
How is Sanger sequencing different from PCR?
Sanger sequencing differs from PCR in two important ways: 1. Sanger sequencing uses dideoxynucleotides in addition to deoxynucleotides, whereas PC...
How does the Sanger sequencing work?
The major technique involved in the Sanger sequencing method is polymerase chain reaction, or PCR. Like PCR, in vitro DNA replication takes place i...
What are the 3 basic steps of sequencing DNA?
The 3 basic steps of sequencing DNA are mentioned below: 1. Chain termination PCR 2. Size separation of DNA fragments by gel electrophoresis 3....
What are the 4 basic components of the Sanger sequencing reaction?
The 4 basic components of the Sanger sequencing reaction are as follows: 1. DNA template 2. A primer 3. DNA polymerase 4. Dideoxynucleotides an...
What is Sanger sequencing?
Sanger sequencing is a method that yields information about the identity and order of the four nucleotide bases in a segment of DNA. Also known also as the “chain-termination method”, it was developed in 1977 by Frederick Sanger and colleagues, and is still considered the gold standard of sequencing technology today since it provides ...
How many tubes are used for Sanger sequencing?
Figure 1. Comparison of DNA fragment separation and sequence determination by traditional Sanger sequencing (left) and modern Sanger sequencing (right). (Left) Originally, Sanger sequencing reactions were performed in four separate tubes, each containing one of the four chain-terminating ddNTPs, which were radiolabeled; following incorporation of the ddNTPs, the four reactions (G, A, T, C) were run in four separate lanes of a high-resolution, denaturing polyacrylamide slab gel, and the bands visualized by autoradiography. (Right) Today, capillary electrophoresis (CE) is used to separate the fluorescently labeled DNA fragments.
What is the most accurate DNA sequencing method?
Sanger sequencing has undergone many changes over the last 40 years, but it remains the most commonly used DNA sequencing technology worldwide. With 99.99% accuracy, it is the gold standard for most applications—both research and clinical. However, Sanger sequencing is best suited for medium- to low-throughput targeted sequencing projects; higher-throughput DNA sequencing technologies based on fundamentally different methods have emerged in the last decade. Called next-generation sequencing (NGS), these massively parallel technologies have revolutionized the study of genomics and molecular biology.
What is DNA denatured in PCR?
During PCR and cycle sequencing, the DNA is first denatured (the double-stranded DNA template becomes single-stranded DNA). A subsequent annealing step allows for hybridization of the oligonucleotide primer close to the sequence of interest. In the extension step, the DNA polymerase extends the primer from its 3´ hydroxyl group to synthesize a new strand. An adenine base (A) is paired with every thymine (T) on the template and a cytosine (C) with every guanine (G) and vice versa. Occasionally, one of the four chain-terminating ddNTPs will be inserted by chance, stopping elongation of the DNA strand. The elongation reaction is repeated for 30–40 cycles.
How is DNA separated in sequencing?
Following sequencing clean-up, the newly synthesized DNA fragments are separated by electrophoresis. The fragments are run through a single long glass capillary filled with a gel polymer, where they migrate according to their length. By using an optimized combination of a very thin capillary, appropriate choice of gel or polymer, and electric field parameters, CE can separate DNA strands up to ~1,000 base pairs in length with single-nucleotide resolution.
When was the first sequencing of DNA?
In the mid-1970s, Sanger wasn’t alone in the race to sequence DNA; almost in parallel, two American scientists, Maxam and Gilbert, developed a technique in which DNA is chemically treated to break the chain at specific bases. Following electrophoresis of the cleaved DNA, the relative lengths of the fragments—and thus the positions of specific nucleotides—can be determined and the sequence inferred [1]. This is considered the birth of first-generation sequencing. However, the advent of Sanger’s chain-termination method in 1977 would be the breakthrough that propelled sequencing into the future [1]; many years after its development, Sanger sequencing was used to sequence the entire human genome. (To learn more about the history of sequencing technologies, see the article titled “What is sequencing”.)
Is Sanger sequencing automated?
Automation of Sanger sequencing has been made possible with the development of a variety of DNA sequencing instruments and platforms; one of the latest innovations is the Applied Biosystems SeqStudio Genetic Analyzer, which uses a cartridge-based system rather than an individual reagent configuration. (For Research Use Only. Not for use in diagnostic procedures.)
What is Sanger sequencing?
Sanger sequencing, also known as the “chain termination method,” was developed by the English biochemist Frederick Sanger and his colleagues in 1977. This method is designed for determining the sequence of nucleotide bases in a piece of DNA (commonly less than 1,000 bp in length). Sanger sequencing with 99.99% base accuracy is considered ...
How many steps are there in Sanger sequencing?
Sanger Sequencing Steps. The Sanger sequencing method consists of 6 steps: (1) The double-stranded DNA (dsDNA) is denatured into two single-stranded DNA (ssDNA). (2) A primer that corresponds to one end of the sequence is attached.
What is the purpose of a Sanger primer?
In Sanger sequencing, a DNA primer complementary to the template DNA (the DNA to be sequenced) is used to be a starting point for DNA synthesis. In the presence of the four deoxynucleotide triphosphates (dNTPs: A, G, C, and T), the polymerase extends the primer by adding the complementary dNTP to the template DNA strand.
How many genes can be sequenced in NGS?
The development of NGS technologies has accelerated genomics research. NGS can simultaneously sequence more than 100 genes and whole genomes with low-input DNA. Sanger sequencing remains widely used in the sequencing field as it offers several prominent advantages: (i) cost-efficiency for sequencing single genes and (ii) 99.99% accuracy, especially suitable for verification sequencing for site-directed mutagenesis or cloned inserts.
What is the Sanger method?
Sanger’s method involves in vitro DNA synthesis using dideoxynucleotides. In vitro means “in a test tube,” as opposed to in a living cell. The prefix “dideoxy” means “deoxygenated twice.”.
Who developed the first sequencing method?
The first widely used sequencing method was developed by Frederick Sanger in 1977. This method, called Sanger Sequencing, earned Sanger the 1980 Nobel Prize, and was the basis of the techniques used to sequence the entire human genome, a feat that was completed in 2001 as the culmination of the Human Genome Project.
Why did Sanger use dideoxynucleotides?
Sanger used dideoxynucleotides to bring about chain termination during in vitro DNA synthesis.
Where is the third cytosine in DNA polymerase?
That’s because the third cytosine is nine nucleotides away from the 3′ end of the template strand, and that’s where DNA polymerase will insert the third ddGTP. No. No. DNA polymerase is going to read the template DNA in the 3′ to 5′ direction, and lay down new complementary nucleotides.
What did Sanger do?
What Sanger did was to clone many copies of this sequence, using gene cloning techniques that you can learn about in the first first tutorial in this module about genetic engineering. After 1983 this type of cloning could have been done using PCR.
What is sequencing DNA?
Sequencing is taking a sample of DNA – anything from a small fragment to the entire genome of an organism – and figuring out the specific sequence of A, T, C, and G nucleotides that make it up. This tutorial will explain one method by which that can be done.
Where do fragments start in gel?
Both of these fragments will start in the well near the negative pole of the gel. The fragment with one nucleotide will migrate to fragment length row 1. That’s because that fragment is (not including the primer) only one nucleotide long. The fragment that’s seven nucleotides long will migrate to fragment length row 7. You do the rest (and don’t be afraid to guess).
