What do the symbols on a multimeter mean?
What are the Different Symbols of a Digital Multimeter?
- Probes. These are color-coded: black for negative and red for positive. ...
- S-shaped curved line. This line normally shows on the metering device and shows with either an A or V symbol along with their corresponding prefixes.
- Brightness button. ...
- Alternating current test. ...
- Continuity check. ...
- Ohms setting. ...
- Diode check. ...
- Range button. ...
- Hold button. ...
- AC voltage symbol. ...
How do you check Hertz on a generator?
- Turn off the power supply to the unit by unplugging it from its outlet.
- Check voltage at the terminals of the battery. ...
- Connect the probe leads onto the two terminals of the battery. ...
- Attach the ground wire to the chassis of the generator.
- Plug the AC cord back into the wall socket.
Which instrument can be used for measuring frequency in hertz?
frequency meter, device for measuring the repetitions per unit of time (customarily, a second) of a complete electromagnetic waveform. Various types of frequency meters are used. Many are instruments of the deflection type, ordinarily used for measuring low frequencies but capable of being used for frequencies as high as 900 Hz.
How to test the Hertz in a generator?
Run the load test for the required period and monitor the generator’s output.
- For example, heavy-duty portable generators, such as those used by contractors, might be tested for 4-8 hours. ...
- Output numbers to monitor include voltage, amperage, kilowatt load, and hertz.
- If you are running a 50 amp load test on a 220-volt generator, make sure that the readings for amps and volts on the load bank stay at these numbers ...
How do you read Hz on a multimeter?
Digital multimeters with a frequency symbol on the dialTurn the dial to Hz. ... First insert the black test lead into the COM jack.Then insert the red lead into the V Ω jack. ... Connect the black test lead first, the red test lead second. ... Read the measurement in the display.
What does the Hertz symbol look like?
The hertz (symbol: Hz) is the unit of frequency in the International System of Units (SI), equivalent to one event (or cycle) per second.
What are the symbols on multimeter?

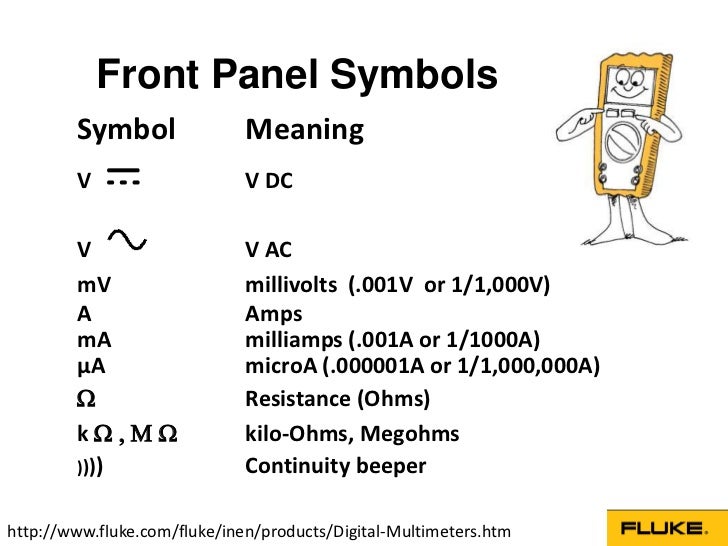

Multimeter Symbols You Need to Know“V” with a wavy line over it = AC voltage.“V” with one dotted and one solid over it = DC voltage.“mV” with one wavy line or a pair of lines, one dotted and one solid, over it = AC or DC millivolts.
What instrument measures Hz?
A frequency meter is an instrument that displays the frequency of a periodic electrical signal. Various types of mechanical frequency meters were used in the past, but since the 1970s these have almost universally been replaced by digital frequency counters.
What is the frequency symbol?
symbol fFrequency is denoted by the symbol f, and is measured in hertz (Hz) - formerly called cycles per second (cps or c/s) - kilohertz (kHz), or megahertz (mHz). See diagrams under RADIO SPECTRUM, SIMPLE HARMONIC MOTION, SPECTRUM.
What is Hz in electrical?
Frequency is the rate at which current changes direction per second. It is measured in hertz (Hz), an international unit of measure where 1 hertz is equal to 1 cycle per second. Hertz (Hz) = One hertz is equal to one cycle per second. Cycle = One complete wave of alternating current or voltage.
What do the settings on a multimeter mean?
The selection knob allows the user to set the multimeter to read different things such as milliamps (mA) of current, voltage (V) and resistance (Ω). Two probes are plugged into two of the ports on the front of the unit. COM stands for common and is almost always connected to Ground or '-' of a circuit.
What does the continuity symbol look like?
Generally, the continuity mode will have a diode symbol, which is a triangle with a line on the right side. It may also have a symbol that looks like soundwaves.
What is the symbol for voltage?
VWhat is Ohm's Law?QuantityOhm's Law symbolUnit of measure (abbreviation)VoltageEVolt (V)CurrentIAmpere, amp (A)ResistanceROhm (Ω)
What multimeter can measure?
A digital multimeter is a test tool used to measure two or more electrical values—principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
How does a Hertz meter work?
A frequency meter has a small device which converts the sinusoidal voltage of the frequency into a train of unidirectional pulses. The frequency of input signal is the displayed count, averaged over a suitable counting interval out of 0.1, 1.0, or 10 seconds. These three intervals repeat themselves sequentially.
What is the most accurate way to measure frequency?
The actual frequency can be calculated by multiplying the resulting frequency measurement by the divide down value. With this frequency method, the larger the divide down value, the slower the resulting frequency, and more accurate the measurement result.
What does Hz stand for?
hertzhertz, unit of frequency. The number of hertz (abbreviated Hz) equals the number of cycles per second.
What color is hertz?
The Hertz logo is composed of an underlined wordmark and uses just two colors — black as a main, and yellow for an accent.
What is hertz frequency?
Hertz is a unit of frequency (of change in state or cycle in a sound wave, alternating current, or other cyclical waveform) of one cycle per second.
What does Hz mean in sound?
hertzThe units of frequency are called hertz (Hz). Humans with normal hearing can hear sounds between 20 Hz and 20,000 Hz. Frequencies above 20,000 Hz are known as ultrasound.
What is the symbol for a multimeter?
Depending on where you reside, the multimeter usually measures between 100-240 volts AC. This multimeter symbol is identified as a capital ¨V¨ with a wavy line above it.
When to use the multimeter button?
This button is typically useful when you can´t see the multimeter while you are testing with the probes.
What is a dial switch multimeter?
The buttons offer you different options and positioning, depending on the kind of multimeter you opt for. The dial/rotary switch allows you to choose the unit of measurement you require. And, the input jacks/ ports are places where you put your test leads.
What is continuity symbol?
To be more precise, the symbol of continuity looks like the symbol of sound. What is its function? Well, it is basically an effective way for finding short circuits, or open circuits.
What is a multimeter?
A multimeter, in a nutshell, is basically an electronic device/tool that measures voltage, resistance, and current. It is, thus, a unit that has multiple measurement functions integrated into it. There are mainly two types of multimeters— digital meters and analog multimeters. Analog meters use a needle to render measurement while digital ...
Where is the range button on a multimeter?
The range button is most often found across the top of your multimeter. It has a ¨Lo/Hi¨ symbol. The range button is used to cycle between different ranges of your meter.
Where is the red jack on a multimeter?
This is the other red jack, usually on the right-hand side of your multimeter.
What is a hertz?
Hertz is a measurement of frequency that equals one cycle per second. Circuits can use fixed or variable frequencies, and you’ll want to know which you’re dealing with when measuring frequency.
What is a multimeter?
Multimeters are incredibly useful tools that are helpful for a wide range of tests and measurements. If you ever deal with electricity, a quality multimeter is a must-have item. They’re fairly simple to use, but the symbols on the front of these devices almost appear to be hieroglyphs! If you don’t speak the language of multimeter symbols, they can be quite difficult to decipher. Luckily, we’ve put together this list of the 20 multimeter symbols that you must know to successfully use one of these versatile tools.
How to measure capacitance?
Capacitors are devices that collect and store electrical energy. When using the capacitance setting on a multimeter, you can easily measure how much energy a capacitor is holding. Capacitance is measured in farads, though you’ll usually need to use fractions of a farad to express the measurement.
How many milliamps are in a standard amp?
A milliamp is 1/1000 of a standard amp. When you’re measuring a low-current electrical circuit, you’ll want to switch from amps to milliamps to get an accurate reading.
How many ohms are in a kilo ohm?
When ohms just aren’t going to describe the high amount of resistance in a system, you’ll need to switch to kilo-ohms. A single kilo-ohm is equal to 1,000 ohms.
What is relative mode on a multimeter?
Relative mode allows you to zero out the multimeter using a measurement you’ve previously taken. This makes it easy to compare additional measurements to the first one, which is incredibly useful for things such as measuring the voltage drop across a system. For instance, you can measure the voltage at your home’s electrical panel, then hit the relative button. When you measure the voltage at an outlet, you’ll be shown the difference between the original measurement and the voltage at the outlet.
What is a diode test?
A diode test measures the voltage drop across a diode. When you set the multimeter to this setting, the test leads will produce a small voltage. Touching them to the proper sides of the diode will cause the voltage to flow through, allowing the meter to measure the difference between input and output.
What does yellow mean on a fluke multimeter?
No single model contains all these functions. On many models, some function icons are displayed in yellow. This indicates the digital multimeter’s yellow function button must be pressed to select those measurements.
Do all meters have an input jack?
Not all meters off an input jack for milliamps (mA) and microamps (μA).
