he Jackson cross-cylinder (JCC) is used to refine both the cylinder axis and cylinder power and give a large change for the patient to give us better responses while keeping the focus on the retina. The lens is composed of two settings: one corresponding to a white dot setting and one corre- sponding to the red dot setting.
What is Jackson’s cross cylinder technique?

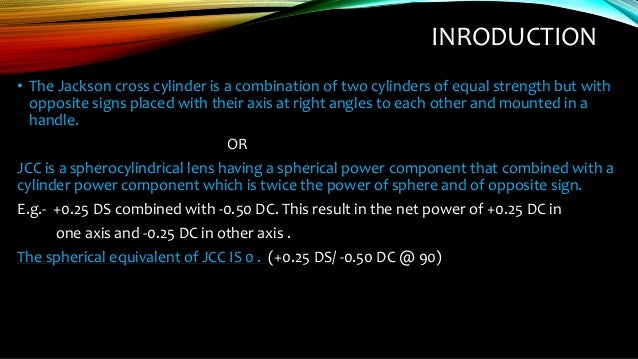

It is used to verify the strength and axis of the cylinder prescribed. It is a combination of two cylinders of two cylinders of equal strength but of opposite signs placed with their axis at 90° degrees to each other and mounted in a handle. Jackson’s cross cylinder ( JCC) technique is also called the flip cross technique.
What is a cross cylinder?
It is a combination of two cylinders of two cylinders of equal strength but of opposite signs placed with their axis at 90° degrees to each other and mounted in a handle. Jackson’s cross cylinder ( JCC) technique is also called the flip cross technique. • Stokes described the original concept of cross cylinder in 1849.
How do you read the label on a Jackson cross cylinder?
Contd.... 0.5 D Jackson cross-cylinder in primary orientation. The handle is down to the right and at 45º to the horizontal. The label +.50 is in the usual orientation for reading; -.50 reads upward. The markings are in red (as here) and white (shown black here). JCC (Sharma IP) 14.
What is flip cross cylinder?
• The common term used for the rotating the handle is known as flipping. • Hence, the JCC is often termed as flip cross cylinder. To check the power of the cylinder, the cross cylinder of (+-)0.25 D is placed with its axis parallel to the cylinder in the trial frame first with the same sign and then with opposite sign.
Why do we use JCC?
The Jackson cross cylinder (JCC) is an instrument used by ophthalmologists, orthoptists and optometrists in their routine eye examination, particularly in determination of corrective lens power in patients with astigmatism. It is also used for testing near point of the eye.
What is the power of Jackson cross cylinder?
Jackson Cross Cylinder A JCC is any lens power that is a spherical equivalent plano-powered lens. Examples include +0.25 sphere with -0.50 cylinder or +0.50 sphere power with -1.00 cylinder power, otherwise specified as ±0.25 or ±0.50.
How do you use a Jackson cross cylinder Phoropter?
8:279:52How to Perform a Manifest Refraction - YouTubeYouTubeStart of suggested clipEnd of suggested clipMake sure to listen for the click. Then you'll be flipping the Jackson cross and chasing the redMoreMake sure to listen for the click. Then you'll be flipping the Jackson cross and chasing the red determine. The amount of cylinder. Using half diopter steps.
What is cross cylinder lens?
The cross cylinder is a lens having the effect of two cylindrical lenses, one convex the other concave, of equal strength, placed with their axes at right angles to each other. It is mounted in a ring, which has a small round handle, easily rotated between the thumb and finger.
Who invented Jackson cross cylinder?
No–8.00 D cyl. In 1885, W. S. Dennett improved the lens mounting and tried to popularize the instrument. Edward Jackson realized the instrument's potential for determining cylinder power and reported his results in 1887.
Who invented JCC?
On a historical note, Edward T. Jackson invented the JCC, in 1897. JCC techniques are used to refine the axis and power of the astigmatic correction, after the initial MPMVA has determined the tentative spherical prescription. To begin your JCC testing, you have two options.
How does a cross cylinder work?
The JCC is a Stokes lens composed of cylinders of low power (typically of +0.25 DC, or ±0.50 DC), with their axes crossed at 90°. It is designed to flip around an axis at 45° from the minus and plus axes, so that after one rotation of 180° the plus and minus axes are exchanged [2].
Why do ophthalmologists use plus cylinder?
Ophthalmologists prefer plus cylinder for a number of non-historical reasons. When planning surgery, incisions placed at the plus cylinder axis will reduce astigmatism. Plus cylinder notation is the simpler choice. Also, sutures removed along the plus cylinder axis will reduce astigmatism.
What is Duochrome eye test?
The duochrome test examines the position of the focus of the green and red wavelengths with respect to the retina and theoretically enables precise determination of the spherical correction or of the Circle of Least Confusion (COLC).
What is Cross compound power?
A lens that combines spherical and cylinder curves is called a compound lens or toric. The convention of the power cross helps conceptualize the compound lens. The power cross is a representation of the two major meridians of the lens surface. The simplest combination to visualize is a plano with +4.00 D cylinder.
What is the principle of retinoscopy?
The basic principle of retinoscopy is the Foucault test. In this test, a knife edge placed on the principal axis of an optical system (S) intercepts a bundle of rays coming out of (S). Depending on the position of the knife edge, various distributions of light and shadow can be observed on the anterior surface of (S).
What is binocular balancing?
Binocular balancing is the step in subjective refractions that involves matching the accommodative stimulus for the two eyes. It also has a secondary purpose in that it relaxes the accommodation as a result of both eyes being open.
What will be the end point of JCC?
Therefore, the end point of the JCC test is reached when the modulus of the residual refractive error is equal for the two flip positions.
What is Cross compound power?
A lens that combines spherical and cylinder curves is called a compound lens or toric. The convention of the power cross helps conceptualize the compound lens. The power cross is a representation of the two major meridians of the lens surface. The simplest combination to visualize is a plano with +4.00 D cylinder.
What is Sturm's Conoid?
Sturm conoid - in optics, the pattern of rays formed after passage through a spherocylindrical combination. Sturm interval - the distance between the anterior and posterior focal lines in a spherocylindrical lens combination.
What is fogging test for eye?
With regard to ophthalmology and optometry, fogging refers to the technique of adding plus sphere power during refraction and/or retinoscopy in an attempt to control accommodation.
When was the Jackson Crossed Cylinder lens first used?
However, the present technique was first promulgated and described by Jackson for the determination of cylinder power in 1887 and for axis in 1907. The Jackson Crossed-Cylinder (JCC) lens in position before the phoropter's lens aperture, as would occur. during assessment of cylinder power of the right eye.
Who created the cross cylinder?
The original concept of crossed cylinders was described by Stokes in 1849, who combined cylinders. of +4.00 DC and -4.00 DC so that they could be rotated in opposite directions, giving a variety of powers from. plano to a +4.00 OS sphere combined with -8.00 DC cylinder.
What is the white dot on a cylinder?
cylinder (white dots) is aligned with the axis of the correcting cylinder.
When was the cylinder power technique first used?
However, the present technique was first promulgated and described by Jackson for the determination of cylinder power in 1887 and for axis in 1907.
When was the Stokes lens first used?
The Stokes lens was used in a variation of the present technique by Dennet in 1855. However, the present technique was first promulgated and described by Jackson for the determination of cylinder power in 1887 and for axis in 1907.
What is a cross cylinder?
Cross cylinder examination (otherwise known as Jackson's cross cylinder) is an examination used for the final fine-tuning of the axis and strength of astigmatism after its determination through retinoscopy, stellate cycle or automatic refractometry.
How to tune the power of a cylinder?
With the axis in place, we can accurately tune the power of the cylinder. We do that by turning the axis of the cylinder parallel to that of the trial spectacles. By repeating the same process as previously we can increase or decrease the astigmatic lens in jumps equal to the power of the cylinder. When the patient perceives no difference the trial lens is correct.
Does a cylinder change the position of the Sturm cone?
As the spherical equivalent of the cylinder is zero placing it in front of the patient doesn’t change the position of the Sturm cone, it can however reduce or increase the astigmatic error.
