When the depth of flow changes gradually over a length of the channel then the flow will?
If for a given length of channel, the velocity of flow, depth of flow, slope of the channel and cross section is not constant, the flow is said to be non-uniform. If the depth of the flow in a channel changes gradually over a length of the channel is said to be Gradually Varied Flow.
Which one of the following is gradually varied flow?
nonuniform flow characterized by gradual variations in flow depth and velocity (small slopes and no abrupt changes) and a free surface that always remains smooth (no discontinuities or zigzags). flows (RVF).
What is the equation of gradually varied flow?
The basic governing equation of the steady GVF in open channels is given by [22], [23](1) dy dx = S 0 - S f 1 - F 2 where y = depth of flow (m), x = distance along the channel, measured positive in the downstream direction (m), dy/dx = slope of the free surface at any location x, S0 = longitudinal slope of the channel ...
What causes the flow in an open channel to be varied or nonuniform )?
Varied flow or non-uniform flow occurs when depth or velocity change over a distance, like in a constriction or over a riffle.
What is streamline flow and steady flow?
Distinguish Between Streamline Flow and Turbulent FlowStreamline FlowTurbulent FlowIt is a steady motion where liquid flows in parallel layersIt is a chaotic motion where the liquid is not traveling in parallel layers and there is high lateral mixing of liquid2 more rows
What is steady flow and uniform flow?
An example of steady flow is a fluid travelling through a tapering pipe. Uniform flow, on the other hand, has the cross-sectional area and velocity of the fluid the same at each successive cross section. For example, flow in a pipe, with uniform cross-section, running full.
What is steady state flow process?
A process during which a fluid flows through a control volume steadily is called steady- state process. A large number of devices such as turbines, compressors, and nozzles operates under the same conditions for a long time and can be modeled (classified) as steady-flow devices.
What is called afflux in gradually varied flow?
Afflux: It is defined as a maximum increase in water level due to obstruction in the path of the flow of water. The profile of rising water on the upstream side of the dam is called a backwater curve. Hence, the backwater curve is the profile of the rising water on the upstream side of the obstruction.
What is steady state flow?
Steady-state flow refers to the condition where the fluid properties at a point in the system do not change over time. Laminar flow means the flow is smooth with layers (or lamina) of fluid sliding smoothly past each other (i.e. there is no convective mixing).
How do you know if a flow is supercritical or subcritical?

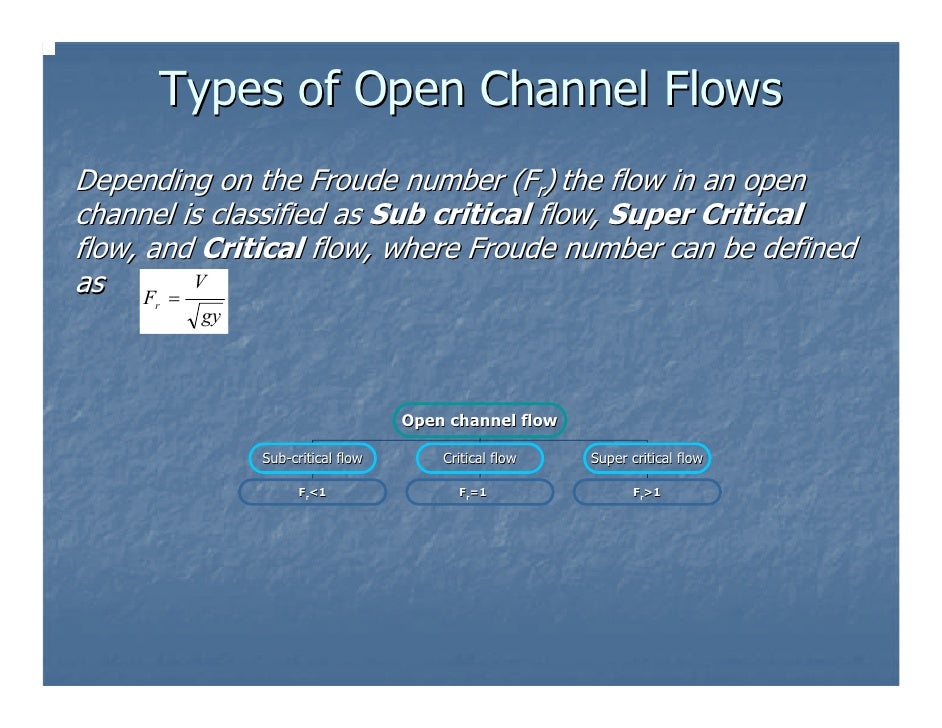

If Fr is greater than 1.0, flow is supercritical; if it is under 1.0, flow is subcritical. Fr is 1.0 for critical flow conditions. 3. Critical Slope: Critical slope is that channel slope for a particular channel and discharge, at which the normal depth for uniform flow will be the same as the critical depth.
What is subcritical and supercritical flow?
Subcritical occurs when the actual water depth is greater than critical depth. Subcritical flow is dominated by gravitational forces and behaves in a slow or stable way. It is defined as having a Froude number less than one. Supercritical flow is dominated by inertial forces and behaves as rapid or unstable flow.
What are the types of flow condition in open channel?
If time is used as the criterion, open-channel flow is classified into steady and unsteady flows. If at a given flow section the flow characteristics remain constant with respect to time, the flow is said to be steady. If flow characteristics change with time, the flow is said to be unsteady.
What are the 3 types of flows?
The different types of fluid flow are: Steady and Unsteady Flow. Uniform and Non-Uniform Flow. Laminar and Turbulent Flow.
What are the 3 types of fluid flow?
There are three fluid flow regimes: laminar, turbulent, and a transition region. The conditions that lead to each type of flow behavior are system-specific.
What is gradually and rapidly varied flow?
Rapidly Varied Flow (RVF) is a significant change in water depth or velocity of flow over a short distance. This distance can be a few times the water depth. Gradually Varied Flow (GVF) is the flow where the water depth changes gradually over a large distance.
What are the 4 different types of fluid flow?
The six different types of fluid flow are:Steady and Unsteady.Uniform and Non-Uniform.Laminar and Turbulent.Compressible and In-compressible.Rotational and Irrotational.One, Two, and Three -dimensional Fluid Flow.
What type of flow is in an open channel?
The flow of liquid through the open channel can be of several types like steady and unsteady flow, laminar or turbulent flow or uniform or non-uniform flow and finally sub-critical, critical and supercritical flow.
What is the flow in a channel?
As mentioned above, the flow in the channel can be of: 1. Steady and Unsteady Flow. In an open channel flow, if the flow parameters such as depth of flow, the velocity of flow and the rate of flow at a particular point on the fluid do not change with respect to time, then it is called as steady flow. If v is the velocity of the fluid, Q is the rate ...
What is an unsteady flow?
And is at any point on the open channel flow, the flow parameters like depth of flow, the velocity of flow and rate of flow do change their value with respect to time, then it is called as an unsteady flow. It is hence given by :
What is the Reynolds number of a flow called?
If the Reynolds number Re is less than 500 or 600, then the flow is called laminar flow. If the Reynolds number is more than 2000, then the flow is said to be turbulent.
What is open channel flow?
The flow of liquid through a channel with a free surface is defined as open channel flow. This free surface of the liquid is subjected to atmospheric pressure. Hence, open channel flow can also be defined as the flow of liquid through a passage at atmospheric pressure. The flow in an open channel takes place due to gravity that is achieved by providing a bed slope.
What is non uniform flow?
The Non-uniform flow can be again defined as Rapidly varying flow (R.V.F) and Gradually Varied Flow (G.V.F). In the case of R.V.F, the depth of flow rapidly changes over a smaller length of the channel. It rises up suddenly for a short length and settles back. While in a G.V.F, the depth of flow changes gradually over a longer length of the channel.
Is the flow in a channel uniform?
The flow in the channel is said to be uniform, if, for a given length of the channel, the velocity of flow, the depth of flow remains constant. i.e.
