Where is the crankcase ventilation located?
The breather is often located in the oil cap. Many breathers had a cup or scoop and were located in the air stream of the engine radiator fan. This type of system is called "Pressure-Suction" type and air is forced into the scoop of the breather and by vacuum is draw out by the road draft tube.
What is crankcase vent valve?
The PCV regulates the pressure to bleed the crankcase of blow-by gases. By conducting away the blow-by gases, the pressure-regulating valve reduces the vacuum effect in the crankcase. This prevents damage to the engine seals (which could be blown out if the pressure gets too high).
What happens when a crankcase breather goes bad?
Common signs of a faulty PCV valve include excessive oil consumption, oil leaking, a blocked breather filter, and reduction in overall performance.
Where is the PCV valve normally located on the engine?

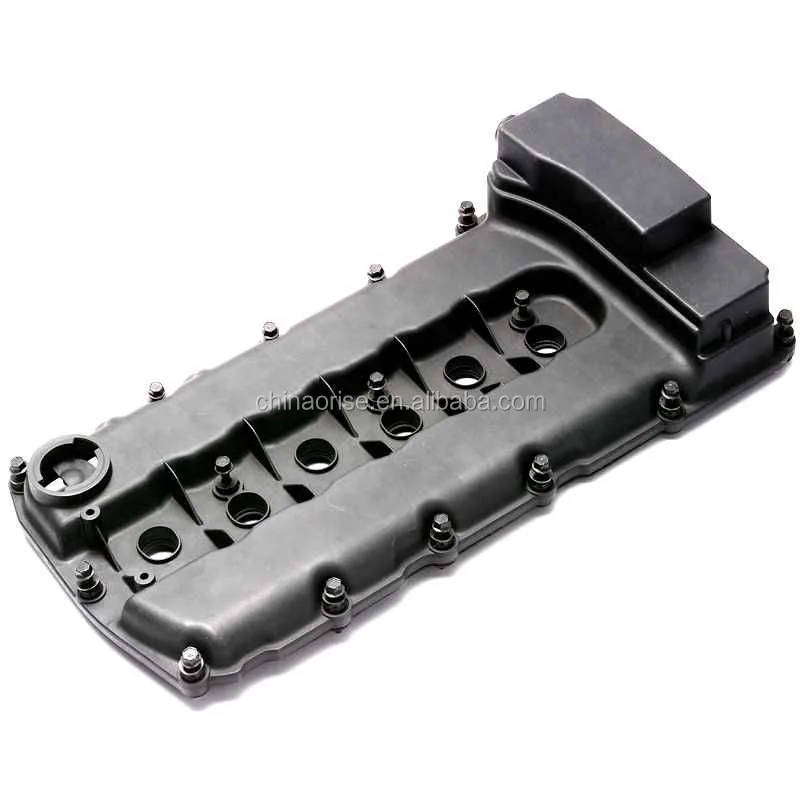

The PCV valve is usually located on the valve cover or cylinder head. while the engine is idling. No vacuum indicates a plugged PCV valve.
How do you check a crankcase ventilation?
0:263:10How To: Diagnose and Replace a PCV Valve - YouTubeYouTubeStart of suggested clipEnd of suggested clipComing out of the tailpipe or excessive oil consumption if the PCV valve is stuck in the openMoreComing out of the tailpipe or excessive oil consumption if the PCV valve is stuck in the open position it will draw excess vapors from the crankcase. And burn more oil than expected.
Will replacing PCV valve Stop oil leak?
The re-circulating air removes moisture and combustion waste from the crankcase, preventing sludge. This extends not only the life of your oil, but the engine as well. The PCV relieves pressure in the crankcase, preventing oil leaks.
What are the symptoms of a bad crankcase breather hose?
Common signs include poor fuel economy, the Check Engine Light coming on, engine misfires while idling, and noise from the engine.
What causes oil to come out of crankcase breather?
Too much oil in the crankcase (overfilled!) Engine speed is too high. Oil filler cap or oil fill gasket is damaged or missing. Breather mechanism is dirty, damaged or defective.
How do you clean a crankcase ventilation system?
To clean a sludged-up hose, make a pull-through by hooking the end of a length of stiff wire around a small piece of cloth. Thread the wire through the hose and use it to draw through the cloth. On reassembly, make sure that all hoses fit firmly and make an airtight joint. Air leaks cause erratic engine idling.
What happens if PCV valve is blocked?
If the PCV valve or the hoses are blocked, the crankcase will push up oil into the combustion chambers, which will cause oil to burn inside the engine and go out through the exhaust pipe. This will cause a lot of blue smoke from the exhaust pipe.
How do you clean a dirty PCV valve?
1:143:18How to Clean Plastic PCV Valves / What can I Use to Clean my PCV ...YouTubeStart of suggested clipEnd of suggested clipWay of using any other plastic safe degreaser that you may use to clean your pcb bar allow it toMoreWay of using any other plastic safe degreaser that you may use to clean your pcb bar allow it to soak for 20. Minutes as you may be able to notice the color of the cleaning.
What is a crankcase ventilation system?
A crankcase ventilation system removes unwanted gases from the crankcase of an internal combustion engine. The system usually consists of a tube, a one-way valve and a vacuum source (such as the intake manifold).
What was the first refinement in crankcase ventilation?
The first refinement in crankcase ventilation was the road draught tube.
How does an intake manifold vacuum work?
Intake manifold vacuum is applied to the crankcase via the PCV valve. The airflow through the crankcase and engine interior sweeps away combustion byproduct gases. This mixture of air and crankcase gases then exits, often via another simple baffle, screen, or mesh to exclude oil droplets, through the PCV valve and into the intake manifold. On some PCV systems, this oil baffling takes place in a discrete replaceable part called the 'oil separator'. Aftermarket products sold to add an external oil baffling system to vehicles, which were not originally installed with them, are commonly known as " oil catch tanks ".
How does a PCV system work?
In order for the PCV system to sweep fumes out of the crankcase, the crankcase must have a source of fresh air. The source of this fresh air is the "crankcase breather", which is usually ducted from the engine's intake manifold. The breather is usually provided with baffles and filters to prevent oil mist and vapour from fouling the air filter.
Why do engines use positive crankcase ventilation?
Positive crankcase ventilation (PCV) systems— first used in the 1960s and present on most modern engines— send the crankcase gases back to the combustion chamber, in order to reduce air pollution. Two-stroke engines with a crankcase compression design do not need a crankcase ventilation system, because normal operation of ...
When does the PCV valve close?
The PCV valve closes when the manifold vacuum is high, restricting the quantity of crankcase gases entering the intake system. When the engine is under load or operating at higher RPM, a higher quantity of blow-by gases are produced.
Where is the draught tube located on a lawn mower?
The draught tube routes all blow-by gases back into the intake mixture and is usually located between the air filter and carburetor .
How to tell if PCV valve is faulty?
Common signs of a faulty PCV valve include excessive oil consumption, oil leaking, a blocked breather filter, and reduction in overall performance. 1.
How does a positive valve work?
The PCV valve directs these gases back into the combustion chambers via the intake manifold. This plays a large role in engine efficiency, improving emissions and the overall operation of your vehicle. A bad PCV valve will affect the performance of your vehicle, so there are a few signs to watch out for before the valve completely fails:
Why is my PCV valve failing?
This is due to the increased pressure building up in the crankcase, which pushes water vapor through the breather element. The water gets mixed with the gas, which causes the buildup and can increase fuel consumption in your vehicle. One way to check this part is to physically inspect the filter for buildup. Another way is to measure the gas mileage on your vehicle. If it starts to go down seemingly without reason, the PCV valve may be going bad.
What happens if a PCV valve goes bad?
This can be exhibited by a buildup of pressure in the exhaust or the engine could stall out. The bad PCV valve may not close all the way, so oxygen may get into the combustion chamber.
Why does my PCV leak?
1. Excessive oil consumption and leak. A bad PCV valve may have a leak, which will cause excessive oil consumption. In addition, you may also notice oil leaking through the seals and dripping on to the floor of your garage. This is because the pressure in the crankcase may increase when the PCV valve fails, so the oil is pushed out through ...
Where is the breather valve on a crankcase?

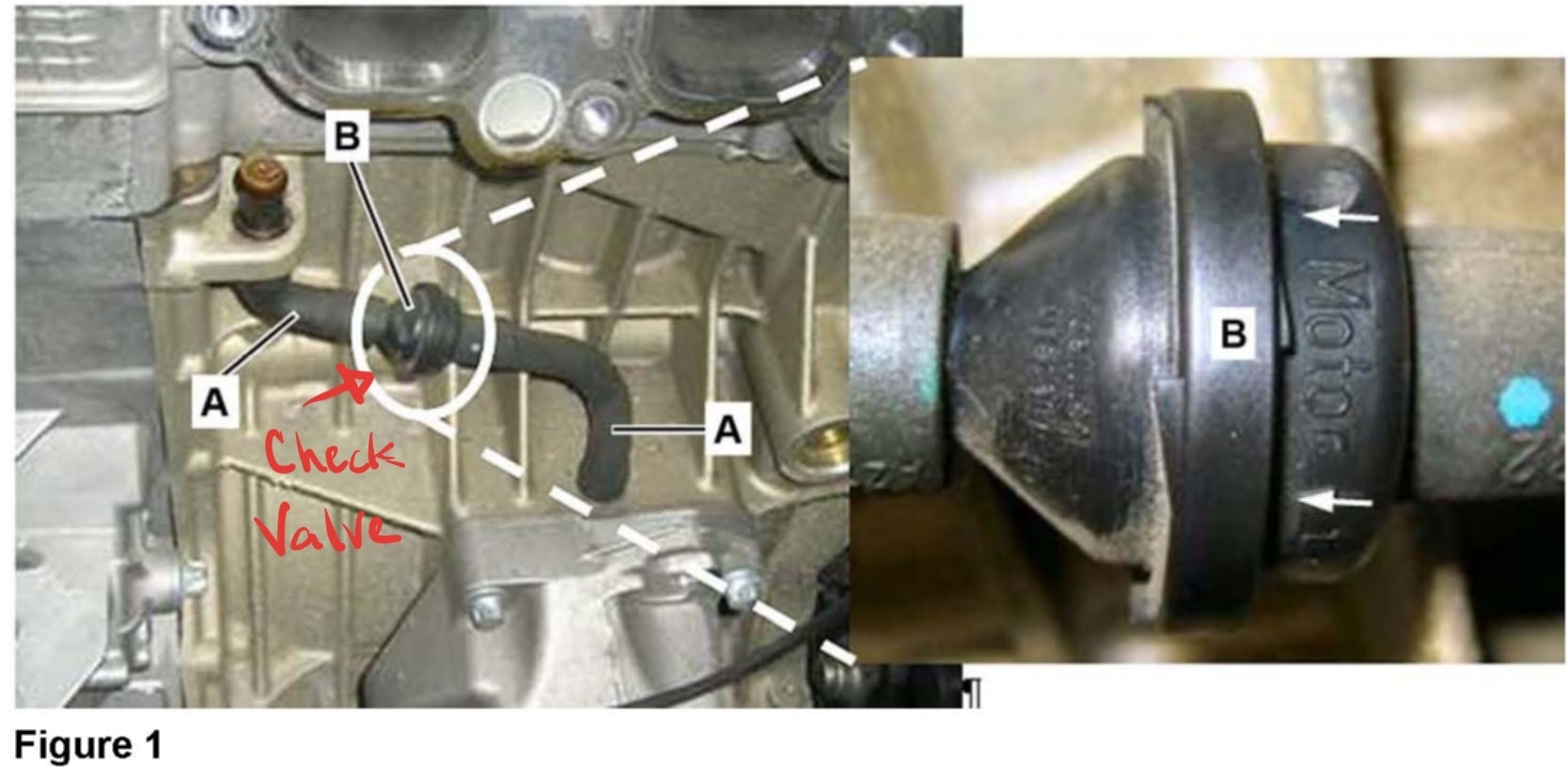

The breather valve is located below the intake manifold, behind the throttle housing mount surface. When replacing your crankcase breather valve, I suggest replacing all the vent hoses and the oil drain hose to the dipstick tube. They become brittle over time from exposure to engine oil and heat.
What are the parts of a crankcase breather?
Crankcase breather parts: hose to valve cover (green arrow), crankcase breather valve (yellow arrow), drain hose (purple arrow), hoses to the intake manifold (blue arrows). Disconnect the negative (-) battery cable.
What happens when a crankcase breather valve fails?
When a crankcase breather valve begins to fail, engine drivability suffers. You may have a rough idle, hard start or a check engine light that is on with fuel trim faults. If your engine is consuming oil or smoking, checking the crankcase vent valve is a good place to start. The crankcase breather has also been known to emit a honking ...
Crankcase Vent Hose, Genuine BMW - E46 M3 05-06, Z4M (11157834056)
2005-2008 models. Plastic vent hose transferring oil vapor to intake manifold.
Crankcase Vent Hose, Genuine BMW - E46 M3 01-04, MZ3 - 11157831311
2001-2004 models. Plastic vent hose transferring oil vapor to intake manifold.
Overview
Positive crankcase ventilation (PCV)
Although the modern purpose of a positive crankcase ventilation (PCV) system is to reduce air pollution, the original purpose was to allow an engine to operate underwater without the water leaking in. The first PCV systems were built during World War II, to allow tank engines to operate during deep fording operations, where the normal draught tube ventilator would have allowed water to enter th…
Source of crankcase gases
Blow-by, as it is often called, is the result of combustion material from the combustion chamber "blowing" past the piston rings and into the crankcase. These blow-by gases, if not ventilated, inevitably condense and combine with the oil vapour present in the crankcase, forming sludge or causing the oil to become diluted with unburnt fuel. Excessive crankcase pressure can furthermore lead to engine oil leaks past the crankshaft seals and other engine seals and gasket…
Atmospheric venting
Until the early 20th century, blow-by gases escaped from the crankcase by leaking through seals and gaskets. It was considered normal for oil to leak from an engine and drip onto the ground, as this had also been the case for steam engines in the decades before. Gaskets and shaft seals were intended to limit the leakage of oil, but they were usually not expected to entirely prevent it. The blow-by gases would diffuse through the oil and then leak through the seals and gaskets into th…
Alternatives
Two-stroke engines which use crankcase compression do not require a crankcase ventilation system, since all of the gases within the crankcase are then fed into the combustion chamber.
Many small four-stroke engines such as lawn mower engines and electricity generators simply use a draught tube connected to the intake system. The draught tube routes all blow-by gases back into the intake mixture and is usually located between the air filter and carburetor.
