Where is the float switch on a Whirlpool dishwasher?
A dishwasher's float switch will sit below the float assembly. So find your float assembly inside your dishwasher, and your switch will be located directly below it in the access area. It will likely be either on the left or the right hand side.
What does the float do on a dishwasher?
A dishwasher’s float assembly is crucial to providing the dishwasher with an adequate water supply. The float prevents overfilling by rising with the water level in the dishwasher. Once the appropriate level is reached, it triggers the float switch to close the water inlet valve.
How do you test a float switch on a dishwasher?
How to test a dishwasher float switch: Note: Disconnect the power source to your dishwasher before you conduct this or any other test. Either unplug the unit from the wall outlet, remove the appropriate fuse from the fuse box, or flip the appropriate breaker in the circuit breaker panel. Your float assembly is found inside the dishwasher's tub,...
How do you remove a switch from a dishwasher?
The switch is attached through the bottom of the dishwasher tub to the float inside the tub and is held in place with screws or a clip. Remove the switch by undoing the screws or removing the clip. Replace the defective switch by installing a new one with the screws or clip and reattaching the wires.

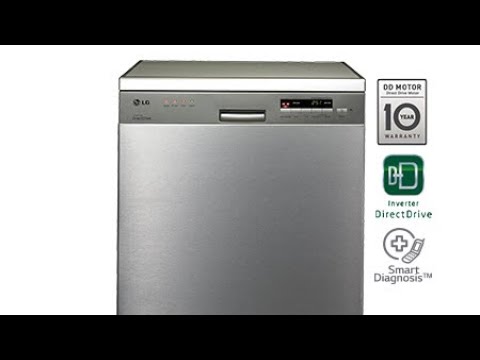

Where is the LG dishwasher float switch?
Your float assembly is found inside the dishwasher's tub, on the bottom. The water that fills your dishwasher lifts the float, and when it reaches a certain level, it acts as a trigger for the float switch. The float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher.
Where is the float and float switch on a dishwasher?
0:041:31Dishwasher float switch - How to locate and simple test - YouTubeYouTubeStart of suggested clipEnd of suggested clipAll right looking in the dishwasher down here is what's called the float. And as the dishwasherMoreAll right looking in the dishwasher down here is what's called the float. And as the dishwasher fills up with water. This floats and tells the dishwasher to stop adding water so if you wonder.
Where is the float switch located?
For horizontal units the float switch will be located in the secondary drain pan. For horizontal units without a secondary drain pan or vertical units, the float switch will be on the drainpipe.
How do I fix the float switch on my dishwasher?
1:022:21Replacing the Overfill Float Switch on a Dishwasher - YouTubeYouTubeStart of suggested clipEnd of suggested clipPosition the toe panel on the dishwasher. And then position the access panel in front of the toeMorePosition the toe panel on the dishwasher. And then position the access panel in front of the toe panel insert. The mounting screws. And tighten the screws firmly reconnect the user interface.
How do I know if my dishwasher float switch is bad?
If the float becomes stuck and can not rise, the float switch will not be activated, and your dishwasher will overflow. If your float is moving freely, but your dishwasher is still overflowing, the float switch could be the problem. If the switch is faulty, it will have to be replaced.
Where is the flood switch on a dishwasher?
2 — Use a screwdriver to remove the screws that hold the lower cover in place on the base of your dishwasher. It's a little awkward but doable. You can see the water and also towards the back you can see the anti-flood device activation switch. It's the white polystyrene float that's in the water.
How do you fix a tripped float switch?
With a shop vacuum suck the water out of the secondary pan to a level low enough to allow the switch to go down to its lowest position. Once the water level is low enough for the switch to reset, the system should come back on.
How do you fix a float switch?
0:081:14How to Replace a Sump Pump Float Switch - YouTubeYouTubeStart of suggested clipEnd of suggested clipTo install your new switch follow the same steps in the opposite. Order free hooks the metal top ofMoreTo install your new switch follow the same steps in the opposite. Order free hooks the metal top of the switch. Back on to the pump. And reattach the rubber loop back to the bottom of the pump.
How do you test a float switch?
Attach the MultiMeter leads to the float switch wires. The Multimeter should be set to the Ohms. The MultiMeter should read zero when the float hangs in the down position. Lifting the float will change the zero to one.
How do I know if my float switch is bad?
1:464:42How to Troubleshoot & Test a Float Switch - Instruments #1 - thePLCtechYouTubeStart of suggested clipEnd of suggested clipAs you can see you can hear let's switch toggling. This meter is reading the same either wayMoreAs you can see you can hear let's switch toggling. This meter is reading the same either way indicating that the float switch is bad.
How do I fix my LG dishwasher error code AE?
There is a float switch in the base that will detect this overflow and display the AE / E1 error code. To check if water is in the base, TURN OFF THE BREAKER and then you can easily remove the kickplate and check in the bottom middle of the dishwasher to see if the base is accessible.
Where is the water float in a dishwasher?
The float valve is located at the bottom of the dishwasher. This rises up when water fills the appliance and cuts off the water when it reaches a certain height – just like the float valve in a toilet cistern.
Why isn't the water draining from my dishwasher?
It's likely the result of a full garbage disposal that won't allow the drain water to enter from the machine, so it backs up in the bottom of the dishwasher. Barring that, the problem is probably a kink in the drain hose, or a clog in the hose, the drain, or the air gap.
How do I check the water flow in my dishwasher?
7:3010:09How To Test A Dishwasher Water Inlet Valve (The Right Way) - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow turn on your power supply or plug in your test. Cord. If the water valve is good the waterMoreNow turn on your power supply or plug in your test. Cord. If the water valve is good the water should flow out of the valves at a steady. Rate. If no water comes out of the valve.
Where is the float on my GE dishwasher?
0:181:19GE Dishwasher Float Replacement, Repair #WD12X334 - YouTubeYouTubeStart of suggested clipEnd of suggested clipOff lift off the float cover and the old float. Install the new float by positioning it on the stem.MoreOff lift off the float cover and the old float. Install the new float by positioning it on the stem. Replace the float cover reposition the support rod on the heating element.
Where is the float switch on a dishwasher?
This will leave the dishwasher without enough water. The float switch is behind the dishwasher’s lower access panel. If the wires are damaged and/or the switch has a lack of continuity with multimeter testing, it requires replacement.
How to check LG dishwasher float?
Here’s how to check an LG dishwasher float assembly: Turn off the dishwasher’s water and power supply. Remove the lower dishrack. Locate the float assembly on the base of the dishwasher tub. Your user manual can confirm the exact location. Manually lift the float to make sure it moves freely up and down.
How to stop LG dishwasher from overfilling?
The float prevents overfilling by rising with the water level in the dishwasher. Once the appropriate level is reached, it triggers the float switch to close the water inlet valve. If the float gets stuck in a low position, you’ll find your LG dishwasher not filling with enough water. Turn off the dishwasher’s water and power supply.
How to unclog LG dishwasher water inlet valve?
Follow these steps to unclog an LG dishwasher water inlet valve: Unplug the dishwasher and turn off the water supply. Locate the water inlet valve. Refer to your user manual for the valve’s location on your model dishwasher. Remove the valve and rinse it and its filter under running water. Replace the valve.
Why won't my LG dishwasher fill?
Along with detergent and power, water is essential for any dishwasher to operate correctly. How do you fix a LG dishwasher that won’t fill? A clogged water valve could be the problem. Inspect the valve for clogs, removing any debris that could block waterflow. Determine how to check an LG dishwasher not filling with water for fast and effective troubleshooting.
Why is my LG dishwasher not getting water?
Is your LG dishwasher not getting water at all, or very little? The water inlet valve may be clogged. This valve opens and closes to allow water to enter the dishwasher from your home’s water supply. However, food particles, mineral deposits and other forms of debris can clog the valve and its filter , preventing water from flowing .
What happens when the dishwasher door closes?
When the dishwasher door closes, the latch hits the door switch, an electrical component that then signals a wash cycle to start. If the door switch is defective, it wont send the electrical signal needed for the dishwasher to start filling with water.
Where is the float switch on a dishwasher?
So find your float assembly inside your dishwasher, and your switch will be located directly below it in the access area. It will likely be either on the left or the right hand side.
How to access switch on dishwasher?
You can gain access to your switch by removing the lower kickplate panel located just below the dishwasher door. This panel is usually held in place with a few screws. You might need to open the dishwasher door to gain access to and remove the screws. The door will have to be closed again so that you can remove the panel.
Why does my dishwasher float?
The water that fills your dishwasher lifts the float, and when it reaches a certain level , it acts as a trigger for the float switch. The float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher. A defective switch may interfere with your dishwasher's filling and/or draining ability.
