What are universal joints in cars?
Universal joints are X-shaped parts typically made of steel with a bearing cap at each end that allows the vehicle's rigid driveshaft to connect to the transmission and rotate freely.
What is a U joint on a drive shaft?
U-joints can be located along driveshafts, 4WD transfer case shafts, and even axle shafts. U-joints are different in design from constant velocity joints, and are sometimes referred to as Cardan joints or Spicer Joints.
What is a U-joint on a car?
U-joints, which are found in pairs on the driveshaft, compensate for the height misalignment between the transmission and the rear axle, all the while transferring power to move the vehicle. This allows each end of the driveshaft, and its associated universal joint,...
What is a ball joint on a car?
A type of universal joint used mostly on axle shafts found on vehicles with independent suspension setups, where the range of up-and-down wheel travel is greater. At the end of the axle shaft is a ball-shaped piece, and at the end of the shaft connected to the wheel is a cup-shaped piece.
What does a failing universal joint sound like?
What does a bad u-joint sound like? A u-joint that's dry (from a lack of grease) or worn out will usually make a cyclical squeaking or clicking sound. Because a typical driveshaft operates around three times faster than the wheels, the noise does not directly correspond to the rotational speed of the tires.
How do I know if my universal joint is worn?
4:496:39Bad U-Joint? Here's How To Tell - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf those u joints are bad it'll jam up whenever you're turned real sharp like this. And the lastMoreIf those u joints are bad it'll jam up whenever you're turned real sharp like this. And the last thing you can do is just take a marker.
How much does it cost to replace a universal joint?
The u-joint replacement cost is estimated between $225 and $300. Labor makes up about $100 to $125, while the parts should be between $125 and $200. However, these prices vary based on what make and model vehicle you drive.
Are U-joints hard to replace?
Replacing these joints is a fairly straightforward job, though it takes some prior experience. To begin, you'll need a universal joint pressing tool. You can also take advantage of the loaner tools program at your local Advance Auto Parts store. Then follow these step-by-step instructions on how to change U joints.
What happens if u-joint breaks while driving?
Vehicle Cannot Move When the universal joint breaks down, the driveshaft will drop, no longer able to transfer power. At that point, you may not be able to get away with just a U-joint replacement; the entire driveshaft might need to be changed.
What causes U joints to break?
This usually happens because of corrosion, excessive jolting or vibration, or because the bolts were not properly torqued into place. A worn or cracking transmission or differential housing can also cause this.
How long does it take to replace a universal joint?
On a typical labor book, a U-joint replacement is one or two labor hours, meaning that a $25 part can cost substantially more once someone else installs it for you and charges around $100/hour.
How long do u joints usually last?
about 100K milesU-joints don't last forever. They usually last about 100K miles. Like all car parts, U-joints develop wear and tear over time. When your U-joints fail, it's very important to replace them as soon as possible.
How do you fix a universal joint?
1:373:47How to Fix a Drive Shaft (U-Joint Replacement) - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo take two opposite ends off one two slide it in then put one cap in and push it off. And turn itMoreSo take two opposite ends off one two slide it in then put one cap in and push it off. And turn it over and put the other cap in and start hammering. And once you get one cap.
How do you replace a u-joint without a press?
5:078:31How to Replace a U-Joint (Without a Hydraulic Press) - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd a little trick here to get it started straight is to slide your u-joint out from the bottom. AndMoreAnd a little trick here to get it started straight is to slide your u-joint out from the bottom. And make sure it slides in the top nice and easy just put the difference.
Can a tight u-joint cause vibration?
Common signs of a faulty u-joint include a squeaking noise, clunking sound when shifting, vibrations in the car, and transmission fluid leaking.
How do you install a universal joint?
12:3314:23How To Replace U-Joints 2 Ways - YouTubeYouTubeStart of suggested clipEnd of suggested clipThey need to tap the snap ring into place definitely make sure it's seated in its groove same thingMoreThey need to tap the snap ring into place definitely make sure it's seated in its groove same thing as. Before. We've replaced the u-joint. On this type of u-joint that has a zerk fitting that goes
How often do u-joints need to be replaced?
U-joints don't last forever. They usually last about 100K miles. Like all car parts, U-joints develop wear and tear over time.
How do I test my u-joint axle?
When I had to look at my front U-Joints I put the front axle on jack stands. Then spin each tire as a friend turns the steering wheel lock to lock. This is how I found my driver side U-Joint to be bad. As the tire was turned left or right it would start to bind, and then stop.
When should you change u-joints?
In most cases, you have to grease your u-joints every 5,000 miles or so. When you fail to service your u-joints on a regular basis, they will fail. You don't have to worry about this problem with maintenance free u-joints. Misalignment: This happens when you change the vehicle's ride height.
Can a tight u-joint cause vibration?
Common signs of a faulty u-joint include a squeaking noise, clunking sound when shifting, vibrations in the car, and transmission fluid leaking.
What is a ball trunnion joint?
It is a combination of both universal and slip joints in one assembly. The ball trunnion type joint is consists of a ball-type head that are fastened to one end of the propeller or drive shaft.
What happens when a drive shaft rotates?
When the driving shaft is rotating the driven shaft also rotates, and at the same time, the universal joint allows angular motion. Hence the power is transmitted from the gearbox to the propeller shaft at an angle.
Why does the propeller shaft change angle?
Thus, the propeller shaft also changes its angle due to the rise and fall of the differential at the same time the propeller shaft is rotating.
What happens when the input shaft is connected straight?
If the shaft is connected straight, the input shaft will rotate the cross, and the cross will turn the output shaft. It is obvious that both the input and output shafts will rotate at the same speed.
What is universal joint?
A universal joint is considered the oldest of all flexible couplings. It is commonly known for its application in automobiles and trucks. It is located where two shafts are to be joined at an angle to transmit torque.
How many arms are in a cross piece?
The cross piece consists of a four- arms (trunnion) that are connected to both ends of the yokes. Four bearings were also provided for each arm of the cross-piece. These bearings allow the yoke to move around the trunnion while simultaneously removing the driving and driven shafts at an angle.
How many yokes are in a universal?
The universal consists of two yokes, one is a driving yoke and another is a driven yoke, to form the joint.
How to put on bearing caps?
Pack the new bearing caps (that came with your kit) with u-joint lubricating grease, then fit them onto the prongs of your new cross piece. Depending on the design of your vehicle's yoke, you may be putting on the bearing cups before or after the new cross piece is inserted into the yoke. Coat all parts that make contact with one another with lubricating grease as well. Install the new clips in the same fashion you removed the old ones. You've now got a new universal joint installed, so go ahead and re-install your driveshaft.
What is a U-joint strap?
U-joint straps are a style of bracket used to secure a cross piece to a driveshaft yoke. They fit around the bearing caps, and bolt onto the yoke piece. Straps are different from U-bolts, but serve a similar function.
What is a U bolt?
U-bolts are u-shaped bracket pieces used to secure a cross piece onto a driveshaft yoke. They fit around the bearing caps, and bolt onto the yoke piece. U-bolts are different from U-joint straps, but serve a similar function.
How many ears does a yoke have?
A yoke is fitted at the end of each rotating shaft, and typically has two ears (round openings) for a cross-piece to fit into. Two different rotating shafts can be conjoined with a u-joint, with two of the four cross piece prongs inserted into the yoke of each shaft.

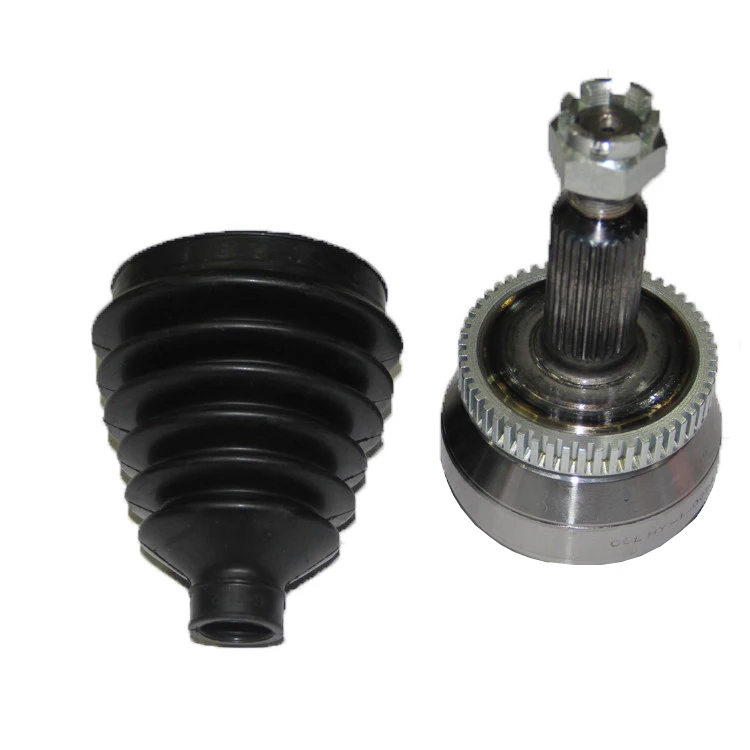

Why do front wheel drive vehicles have CV joints?
CV joints are mostly found on front-wheel-drive vehicles because they can best accommodate steering angle variations in addition to up-and-down wheel travel. Unlike traditional UV joints, CV joints are fully encased in a rubber boot in order to prevent the lubricating grease they are submerged in from escaping. Many modern rear-wheel-drive cars with independent rear suspension setups use CV joints at the ends of rear axle half-shafts as well as driveshafts.
What are the caps on a U joint?
Refer to Item #6 in the above illustration. Inside the caps are small seals, roller bearings, and washer pieces. The caps are packed with lubricating grease to prevent heat buildup and part failure.
Why do U joints fail?
Because u-joints are under high stress loads and friction, they can wear out and fail due to improper lubrication or abnormal operating conditions such as overloading or incorrect operating angles. Noticeable warning signs that failure may be imminent are binding, clunking, and squeaking of the driveshaft along with increasingly rough vibrations. When a u-joint fails completely, one end of your driveshaft will fall to the pavement - leaving you stranded and in need of a tow.
What does vibration mean in a car?
This vibration means that the universal joint bearings have now worn enough to allow the driveshaft to move outside its normal rotational path, causing imbalance and vibration.
What is a universal joint?
Universal joints (“u-joints” for short) are components of the driveshaft assembly fitted to most rear-wheel drive trucks, four-wheel drive trucks and SUVs, or off-road vehicles . U-joints, which are found in pairs on the driveshaft, compensate for the height misalignment between the transmission and the rear axle, all the while transferring power to move the vehicle. This allows each end of the driveshaft, and its associated universal joint, to bend with each rotation of the driveshaft in order to handle the misalignment (as a side note, rear-wheel drive cars now mostly utilize constant-velocity joints for the same purpose, which permit far smoother flexibility of drive shaft rotation).
Why do U joint bearings squeak?
Since the bearing portion of each universal joint twists a small amount with each rotation of the driveshaft (but always in the same location) the grease can evaporate, or be thrown out of the bearing cup. The bearing becomes dry, metal-to-metal contact is made, and the u-joint bearings will squeak as the drive shaft rotates. The squeak usually cannot be heard once the vehicle moves faster than 5-10 mph because of other vehicle noise. The squeak is a warning that the universal joint should be serviced by a professional mechanic. You can certainly extend the life of your existing u-joints by doing so.
What does a squeaking sound mean?
Squeaking noise when starting to move (forward or reverse) 2. “Clunk” with a ringing sound when shifting from Drive to Reverse. 3. Vibration felt throughout the vehicle while moving forward at speed. 4. Transmission fluid leaks from the rear of the transmission. 5. Vehicle cannot move under its own power; driveshaft dislocated.
Why does my U joint squeak?
The squeak usually cannot be heard once the vehicle moves faster than 5-10 mph because of other vehicle noise. The squeak is a warning that the universal joint should be serviced by a professional mechanic.
What is failure mode for universal joint?
This is the ultimate failure mode for a universal joint – literally breaking, and allowing the drive shaft to drop to the pavement, no longer transferring power. Repair at this point will include much more than the universal joint, and may require full driveshaft replacement or more.
Where does transmission fluid leak?
4. Transmission fluid leaks from the rear of the transmission
What are the drawbacks of universal joints?
The main drawback with many current car models is that the universal joints cannot normally be separated from the propshaft. When the joints wear, the propshaft must be renewed. A worn joint causes the propshaft to vibrate. As wear increases, vibration worsens.
How to tell if your car is worn?
Another sign of wear is a clonk when you accelerate or decelerate, or a regular knock when the car is moving.

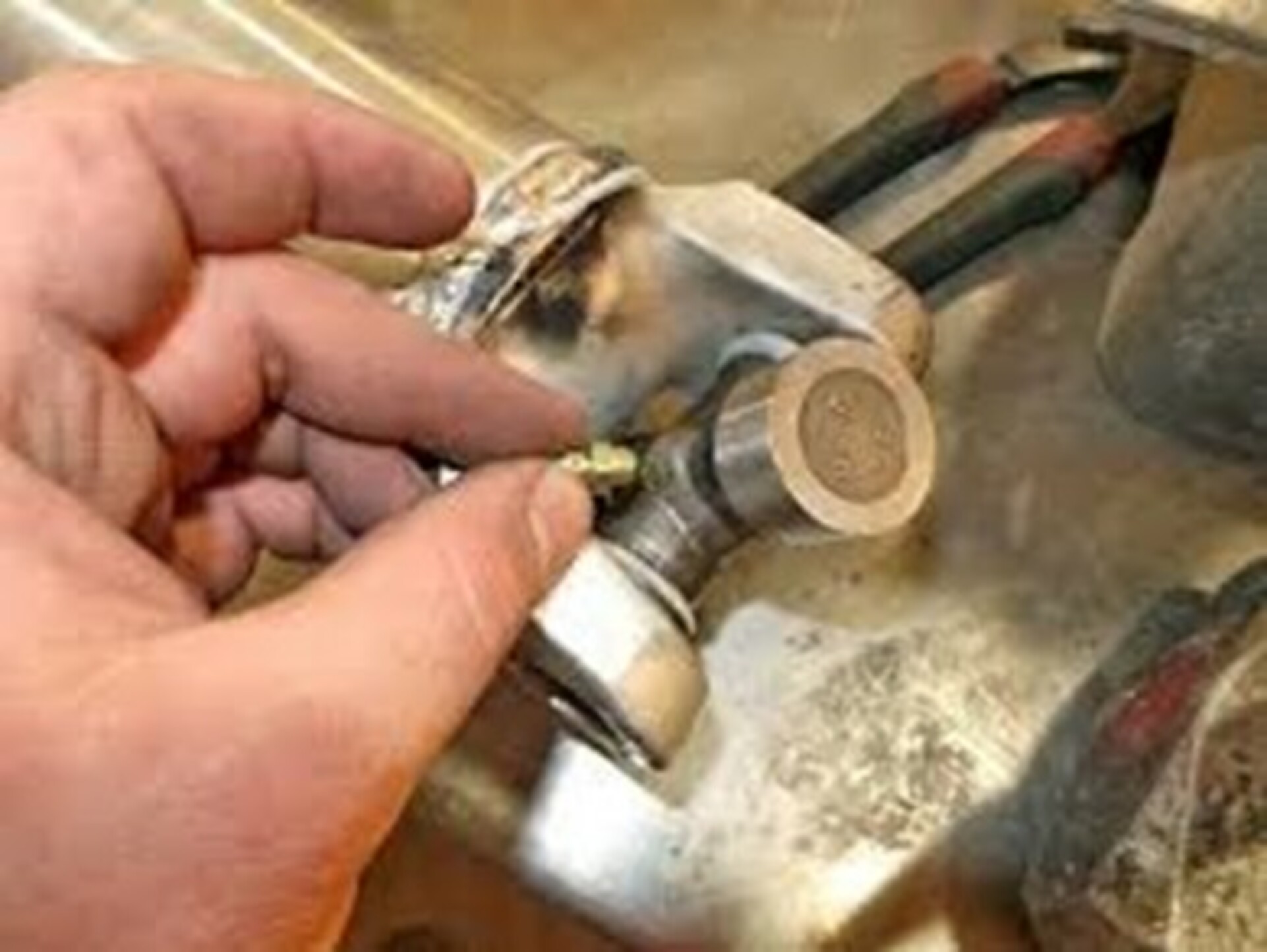

Can you lubricate a propshaft?
In most modern cars the joints are sealed for life and cannot be lubricated. In older cars, they can be dismantled from the propshaft, checked and lubricated or replaced. If the propshaft joints on your car have grease nipples, check with the manufacturer's service schedule for greasing intervals.
How to check for wear when no dust is evident?
To check for wear when no dust is evident, grip one side of the joint firmly and try to turn the other side against holding pressure . There should be no play in the joint at all.
What are needle rollers held in?
The needle rollers are contained in steel caps, held in position by circlips.
Do propshafts have universal couplings?
Some propshafts also have a universal coupling fitted at the centre.
What is Thompson coupling?
A Thompson coupling is a refined version of the double Cardan joint. It offers slightly increased efficiency with the penalty of great increase in complexity.
What is a double cardan joint?
A double Cardan joint consists of two universal joints mounted back to back with a center yoke ; the center yoke replaces the intermediate shaft. Provided that the angle between the input shaft and center yoke is equal to the angle between the center yoke and the output shaft, the second Cardan joint will cancel the velocity errors introduced by the first Cardan joint and the aligned double Cardan joint will act as a CV joint.
What is a double cardan joint drive shaft?
A configuration known as a double Cardan joint drive shaft partially overcomes the problem of jerky rotation. This configuration uses two U-joints joined by an intermediate shaft, with the second U-joint phased in relation to the first U-joint to cancel the changing angular velocity. In this configuration, the angular velocity of the driven shaft will match that of the driving shaft, provided that both the driving shaft and the driven shaft are at equal angles with respect to the intermediate shaft (but not necessarily in the same plane) and that the two universal joints are 90 degrees out of phase. This assembly is commonly employed in rear wheel drive vehicles, where it is known as a drive shaft or propeller (prop) shaft.
What causes a Cardan joint to wear?
The Cardan joint suffers from one major problem: even when the input drive shaft axle rotates at a constant speed, the output drive shaft axle rotates at a variable speed, thus causing vibration and wear. The variation in the speed of the driven shaft depends on the configuration of the joint, which is specified by three variables:
What is a universal joint?
A universal joint ( universal coupling, U-joint, Cardan joint, Spicer or Hardy Spicer joint, or Hooke 's joint) is a joint or coupling connecting rigid rods whose axes are inclined to each other, and is commonly used in shafts that transmit rotary motion.
How are vectors fixed?
vectors are fixed by the gimbal connecting the two axles and so are constrained to remain perpendicular to each other at all times.
What plane of rotation does the axle 1 attach to?
These planes of rotation are perpendicular to the axes of rotation and do not move as the axles rotate. The two axles are joined by a gimbal which is not shown. However, axle 1 attaches to the gimbal at the red points on the red plane of rotation in the diagram, and axle 2 attaches at the blue points on the blue plane.
What should the measured dimension be on a U-joint?
On all U-joint styles, the measured dimension should be slightly less than the dimensions you’ll use to look up the part number. Make sure to take note of the type and location of grease fittings and to write down your measurements.
Can you identify universal joint part numbers?
Many times, universal joint part numbers cannot be easily identified, especially by application. Using the online catalog database, MOOG ® makes it easy to correctly determine a replacement MOOG universal joint part number. Here’s what you need to get started:
