The purpose of a counterweight is to make lifting the load faster and more efficient, which saves energy and is less taxing on the lifting machine. Counterweights
Counterweight
A counterweight is a weight that, by exerting an opposite force, provides balance and stability of a mechanical system. Its purpose is to make lifting the load more efficient, which saves energy and is less taxing on the lifting machine.
Do elevators still use counterweights?
Control systems have been altered for modern elevators in ways that improve on speed and safety. In most cases, elevators will apply the use of counterweight and 40% of the maximum rated load to balance the car.
Why do the cranes use a counterweights?
Counterweights are extremely important when it comes to the engineering of a mobile crane or the planning of a lift. They are integral to ensuring that the crane remains stable and does not topple over during a lifting operation. Without the counterweights on a crane, it wouldn't be able to lift it's capacity.
Which type of elevator would use a counterweight?

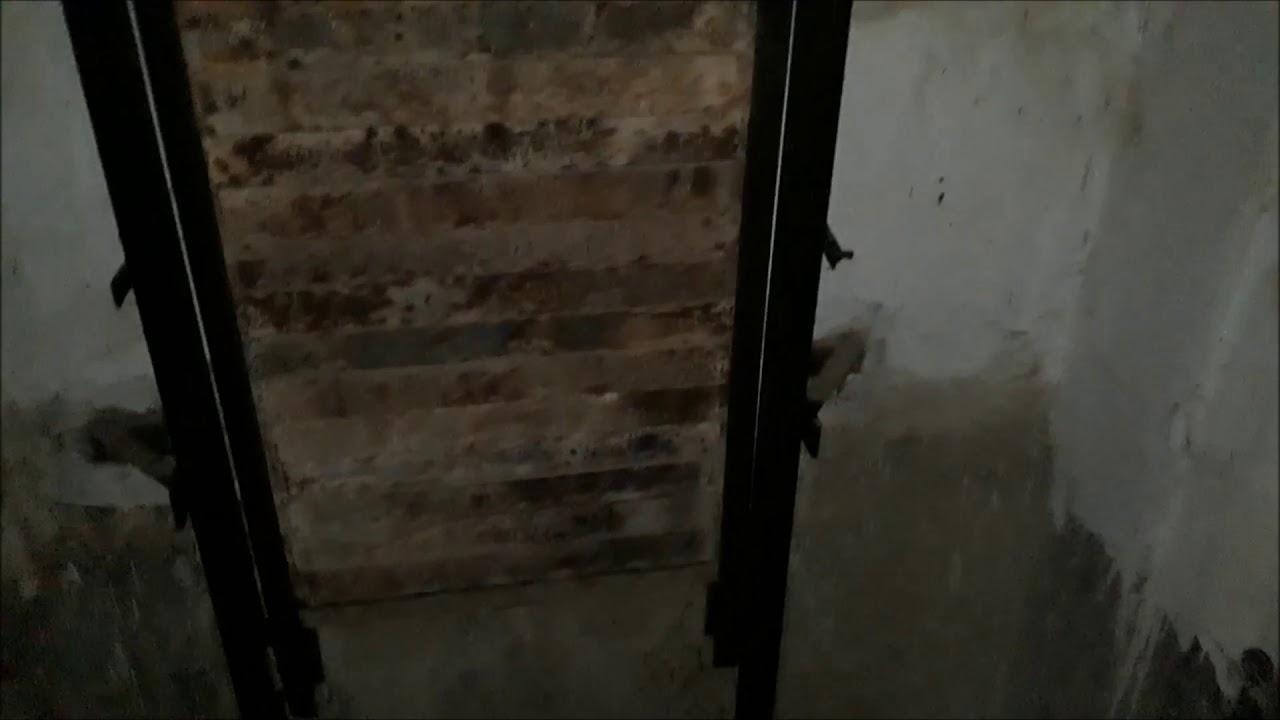

Unlike winding drum or hydraulic systems, a chain-driven home elevator typically uses a counterweight – essentially a stack of steel blocks equaling the weight of a 40% loaded elevator cab, hung on the other end of the chain opposite the cab itself.
Do I need a counterweight?
Do I Need a Counterweight? If you have an internal halyard system flagpole, then YES, YOU DO. As a counterweight is chiefly responsible for ensuring the flag flies and hangs properly, no counterweight means your flag will be all over the place.
How heavy is a counterweight?
Counterweight mass is various depending on its applications. A single counterbalance can weight from 1 kg to 50 tons. Common sizes are 600 kg, 50 kg, 100 kg counterweights for heavy-duty machines, or small sizes such as 2 kg, 5 kg counterweights for other applications.
Do hydraulic elevators have counterweights?
A hydraulic elevator includes a hydraulic ram and a counterweight that are directly roped. The hydraulic ram includes a single-acting cylinder, piston and yoke that are placed within the hoistway adjacent to the path of motion of an elevator car.
Where are counterweights used?
A counterweight is the stabilizing part of a balancing system for a lifting mechanism or machine. They are used in lift trucks, draw bridges, elevators, cranes, and any machine that lifts a lot of weight. A balance system has a main support or fulcrum.
Are you heavier or lighter in an elevator?
If you stand on a scale in an elevator accelerating upward, you feel heavier because the elevator's floor presses harder on your feet, and the scale will show a higher reading than when the elevator is at rest. On the other hand, when the elevator accelerates downward, you feel lighter.
What do counterweights do in an engine?
By placing counterweights on opposite sides of the Conrod journals of the crankshaft it is possible to compensate for outer moments, minimise internal moments and therefore reduce the amount of vibration and bearing stresses. The result is a smoother running, longer lasting engine.
What are yoyo counterweights used for?
Counterweights are freely moving objects attached to the string of a yo-yo that are used in tricks to manipulate an otherwise slack string. Counterweights are an essential part of Freehand (5A) play.
How does the counterweight prevent the crane from toppling over?
For big lifts, counterweights that weigh several hundred tons are attached to the base of the crane to prevent it from tipping over during lifts. The load is farther from the center pin than the counterweights. So to keep the crane upright, the counterweights need to be heavier than the load itself.
Where are counterweights used?
A counterweight is the stabilizing part of a balancing system for a lifting mechanism or machine. They are used in lift trucks, draw bridges, elevators, cranes, and any machine that lifts a lot of weight. A balance system has a main support or fulcrum.
How does a counterweight work?
By attaching a counterweight at the end, upward centrifugal force from the Earth's rotation ensures that the cable remains stretched taut, countering the gravitational pull on the lower sections and thereby allowing the elevator to remain upright. The counterweight itself could assume one of several forms:
What is a space elevator?
Space elevator: A space elevator is a proposed structure designed to transport material from a celestial body 's surface into space. Many variants have been proposed, but the concept most often refers to an elevator that reaches from the surface of the Earth to geostationary outer space, with a counterweight attached at its outer end.
What is a counterweight in a crankshaft?
Crankshaft: A counterweight is also used in many rotating systems to reduce vibrations due to imbalances in the rotating assembly. A typical example is counterweights on crankshafts in piston engines.
What episode is Counterweight in?
For the Outer Limits episode, see Counterweight (The Outer Limits).
How does a wind up metronome work?
Metronome: A wind-up mechanical metronome has an adjustable weight and spring mechanism that allows the speed to be adjusted by placement of the weight on the spindle. The tempo speed is decreased by moving the weight to a higher spindle marking or increased by moving it to a lower marking.
What is counterbalance in science?
A counterbalance is a weight or force that balances or offsets another as when two objects of equal weight, power, or influence are acting in opposition to each other. The objects are then said to be in counterbalance.
What is a tower crane?
Crane: The tower crane (see picture) is a modern form of balance crane that is fixed to the ground. A horizontal boom is balanced asymmetrically across the top of the tower. The long arm carries the lifting gear.
