How to fix the CRC error?
How do I fix cyclic redundancy check (CRC)?
- Method #1: Fix CRC data error with SFC scan. SFC means system file checker and it is able to repair errors for Windows system files for example, registry files, Windows ...
- Method #2: View S.M.A.R.T. information. ...
- Method #3: Check and repair bad sectors using DiskGenius Free edition. ...
What causes a CRC error?
[How to resolve] CRC errors
- Use the show interfaces ethernet exec command to determine the status of the router's Ethernet interfaces. ...
- Check cables to determine whether any are damaged.
- Look for badly spaced taps causing reflections.
- If you are using 100BaseTX, make sure you are using Category 5 cabling and not another type, such as Category 3.
How to fix cyclic redundancy check data error?
You can fix the data error cyclic redundancy check unallocated by the fixes mentioned here:
- Run Disk Check to Troubleshoot
- Use CHKDSK Utility to Repair Hard Drive
- Run SFC Scan to Repair System Files
- Format the Devices
- Go for Manual Repair
What to do with CRC errors?
CRC errors in Cisco networking are often caused by a malfunctioning port on the device or a damaged Ethernet connection, and thus are considered layer 1 issues. Changing the cable or switching out the port is a reasonably simple solution to the problem. They are occasionally formed on layer 2 as a result of a duplex mismatch.
Can CRC do error correction?
You CAN do multi-bit error correction with CRCs. Looking at wikipedia, with references to koopmans work, a CRC can detect up its hamming_distance-1 errors. The hamming distance depends on the payload length, and the CRC polynomial in use.
Can CRC detect error position?
CRC is a very effective error detection method. If the divisor is chosen according to the previously mentioned rules, 1. CRC can detect all burst errors that affect an odd number of bits.
How is CRC code used in error detection?
The Cyclic Redundancy Checks (CRC) is the most powerful method for Error-Detection and Correction. It is given as a kbit message and the transmitter creates an (n – k) bit sequence called frame check sequence. The out coming frame, including n bits, is precisely divisible by some fixed number.
Can CRC detect all errors?
The CRC error detection scheme cannot detect all errors at all times. In the case of an error pattern being the multiples of the polynomial constant, the error cannot be detected. Therefore, it is very important to select a polynomial constant that has low probability of being generated in a transmission environment.
What kind of errors does CRC Cannot detect?
What kind of errors does CRC cannot detect? Multiple burst errors where the total distance of the bursts spans more than 16 bits, essentially a single burst error more than 16 bits long. Some patterns of 4 or more randomly distributed bit errors will fail to be detected.
Can CRC detect two bit errors?
The Cyclic Redundancy Check (CRC) method is used for error detection. CRC is used to control such factors in received information. In this paper, the new method based on CRC has been introduced that is able to detect the exact place of double bits error and correct them.
What are 3 error detection techniques?
Error Detection Techniques There are three main techniques for detecting errors in frames: Parity Check, Checksum and Cyclic Redundancy Check (CRC).
What are the error correction techniques?
There are three major types of error correction.Automatic repeat request. ... Forward error correction. ... Hybrid schemes.
What is CRC error?
Cyclic Redundancy Check (CRC) Error indicates when data is corrupted. Calculating from all data, CRC validates packets of information sent by devices and verifies it against the data extracted, ensuring its accuracy. When sending packets over,BACnet automatically calculates and stores a CRC value for the packet.
What is the difference between CRC and checksum?
A CRC which is short for a Cyclic Redundancy Code is a powerful type of a checksum. A checksum is any sort of a mathematical operation that you can perform on data to make sure that the bits don't get flipped accidentally when it's stored in a memory or when it's transmitted over to a network.
How many random bit errors can CRC detect?
IEEE 802.3 CRC code can detect any single burst error up to a length of 32 bits per frame [9]. code C has the capability of correcting any single burst error of length up to b bits [2].
Can CRC detect odd number of errors?
In this case, a CRC based on G(x) will detect any odd number of errors. As long as G(x) has some factor of the form xi + 1, G(1) will equal 0. So, it isn't hard to find such a polynomial.
Why does CRC detect more errors than a parity bit?
Why would you expect a CRC to detect more errors than a parity bit? The CRC has more bits and therefore provides more redundancy. That is, it provides more information that can be used to detect errors.
What is the purpose of CRC in network communications?
The cyclic redundancy check (CRC) is a technique used to detect errors in digital data. As a type of checksum, the CRC produces a fixed-length data set based on the build of a file or larger data set.
What is CRC error?
Cyclic Redundancy Check (CRC) Error indicates when data is corrupted. Calculating from all data, CRC validates packets of information sent by devices and verifies it against the data extracted, ensuring its accuracy. When sending packets over,BACnet automatically calculates and stores a CRC value for the packet.
How is checksum error detection calculated?
For error detection by checksums, data is divided into fixed sized frames or segments. Sender's End − The sender adds the segments using 1's complement arithmetic to get the sum. It then complements the sum to get the checksum and sends it along with the data frames.
What is the parity bit in UART?
But the parity bit is a rather pathetic error-detection mechanism ; actually, as far as I can tell, most of the error-detection methods are more or less pathetic compared to the cyclic redundancy check (CRC), which has clearly emerged as the dominant approach—some big names in digital communication (including CAN, USB, and Ethernet) use a CRC as part of their data-transfer protocol.
Can you generate a CRC only for the original message?
Generating a CRC only for the original message doesn’t help you . The key to implementing CRC error detection is ensuring that both transmitter and receiver generate a checksum, and in exactly the same way.
Can CRC be used to correct errors?
You should be aware of the fact that CRC processing can actually be used to correct errors, rather than merely detect them. We’re dealing with binary data here, so if the CRC enables us to identify an erroneous bit, we can restore the original information by simply flipping the bit.
Is error detection easier with a CRC module?
Error detection is easier and more efficient with a hardware CRC module ; this diagram, from the EFM8LB1 reference manual , conveys the functionality of the CRC peripheral in the EFM8 Laser Bee microcontroller.
What is a CRC error?
A CRC error informs you that the cyclic redundancy check has detected damaged or incomplete files. In that case, the matched value of the data and the attached CRC value do not match, resulting in an aborted action (save, copy, read access, etc.) and a corresponding CRC error message. Typically, this message is as follows:
How to check for CRC error?
It can be used in the following way for data problems, such as a CRC error: Open the File Explorer and select the problematic disk drive by right-clicking on it. Select the menu item “Properties”. Switch to the “Tools” tab. Click on the “Check” button under the “Error checking” options.
What happens if a compressed file can't be extracted?
If a compressed file can no longer be extracted due to a CRC error, often most of the data is fine, and only a few files are corrupted. You could save the uncorrupted files even if you can’t fix the CRC error entirely. As an example, the following instructions show how this procedure works in WinRAR:
How to extract compressed files?
If you want to extract compressed files, you can use the tools installed on your operating system. Many users do opt for third-party tools such as WinZip or WinRAR for packing and extracting documents, however, which often have a much greater range of functions. If you use this kind of software yourself, you should first check whether it is still up to date when your CRC error occurs. If you have updated the program and the error persists, try to reinstall it entirely. A change of program can also be the answer to your CRC problem.
What is cyclic redundancy checking?
In 1961, the American mathematician William Wesley Peterson developed cyclic redundancy checking (CRC) to reduce errors occurring when transmitting and storing data. In this procedure, redundancies are added to each data block in the form of an additional test value.
Can you fix a compressed file?
Many third-party tools can repair damaged archives or compressed files. If your program offers this option, you can try to fix the CRC error this way in the last step. For example, in WinRAR, you can start the repair as follows:
Can a corrupted file cause a CRC error?
Even an incomplete or incorrectly executed download can quickly lead to problems like a CRC error. If you have downloaded the corrupted file or archive from the Internet, we recommend that you download it again.
What is a CRC used for?
see as you all know the crc is only used for error detection but it can even be used for error correction for single bit by generating the particular syndrome for each and each bit and if at the receiver side if the crc calculated doesn't matches with the received crc then both the received crc and calculated crc are exored and tha valve generated, if matches with any of syndrome then it can be be coorected or in case if doesn't maches that is multiple bit error that can't be corrected .
Can a CRC correct errors?
I strongly disagree that crc, in itself, can correct the errors, it only detects errors and normally, once crc detects the errors it asks to send the data again, that is how the correct data is received when there is an error, with reed solomon codes, or other error correcting codes, once the data is received, by itself, any errors that is within the error number that the code can correct, will be automatically corrected, and it does not need to resend data, all it needs is the data either corrupt or valid. It's like reading a sentence, when you read a word in the sentence that is mispelled, you correct it right away, (error correcting codes), or you could ask for another copy of the article you are reading (error detecting code)

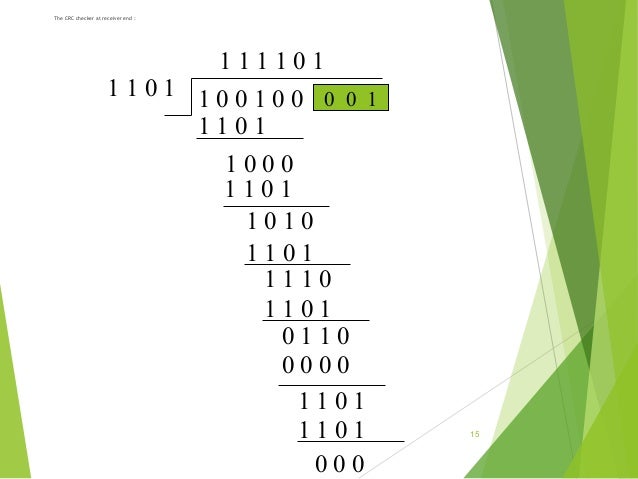

How to check CRC?
This has the convenience that the remainder of the original bitstream with the check value appended is exactly zero, so the CRC can be checked simply by performing the polynomial division on the received bitstream and comparing the remainder with zero. Due to the associative and commutative properties of the exclusive-or operation, practical table driven implementations can obtain a result numerically equivalent to zero-appending without explicitly appending any zeroes, by using an equivalent, faster algorithm that combines the message bitstream with the stream being shifted out of the CRC register.
What is the definition of a CRC code?
This polynomial becomes the divisor in a polynomial long division, which takes the message as the dividend and in which the quotient is discarded and the remainder becomes the result. The important caveat is that the polynomial coefficients are calculated according to the arithmetic of a finite field, so the addition operation can always be performed bitwise-parallel (there is no carry between digits).
What is a CRC in math?
A CRC is called an n -bit CRC when its check value is n bits long. For a given n, multiple CRCs are possible, each with a different polynomial. Such a polynomial has highest degree n, which means it has n + 1 terms. In other words, the polynomial has a length of n + 1; its encoding requires n + 1 bits.
What is a CRC in computer architecture?
In practice, all commonly used CRCs employ the Galois field, or more simply a finite field, of two elements, GF (2). The two elements are usually called 0 and 1, comfortably matching computer architecture. A CRC is called an n -bit CRC when its check value is n bits long.
What is cyclic redundancy check?
A cyclic redundancy check ( CRC) is an error-detecting code commonly used in digital networks and storage devices to detect accidental changes to raw data. Blocks of data entering these systems get a short check value attached, based on the remainder of a polynomial division of their contents. On retrieval, the calculation is repeated and, in the event the check values do not match, corrective action can be taken against data corruption. CRCs can be used for error correction (see bitfilters ).
Why are CRCs called CRCs?
CRCs are so called because the check (data verification) value is a redundancy (it expands the message without adding information) and the algorithm is based on cyclic codes.
How many bits are in a 3 bit CRC?
In this example, we shall encode 14 bits of message with a 3-bit CRC, with a polynomial x3 + x + 1. The polynomial is written in binary as the coefficients; a 3rd-degree polynomial has 4 coefficients ( 1x3 + 0x2 + 1x + 1 ). In this case, the coefficients are 1, 0, 1 and 1. The result of the calculation is 3 bits long, which is why it is called a 3-bit CRC. However, you need 4 bits to explicitly state the polynomial.
